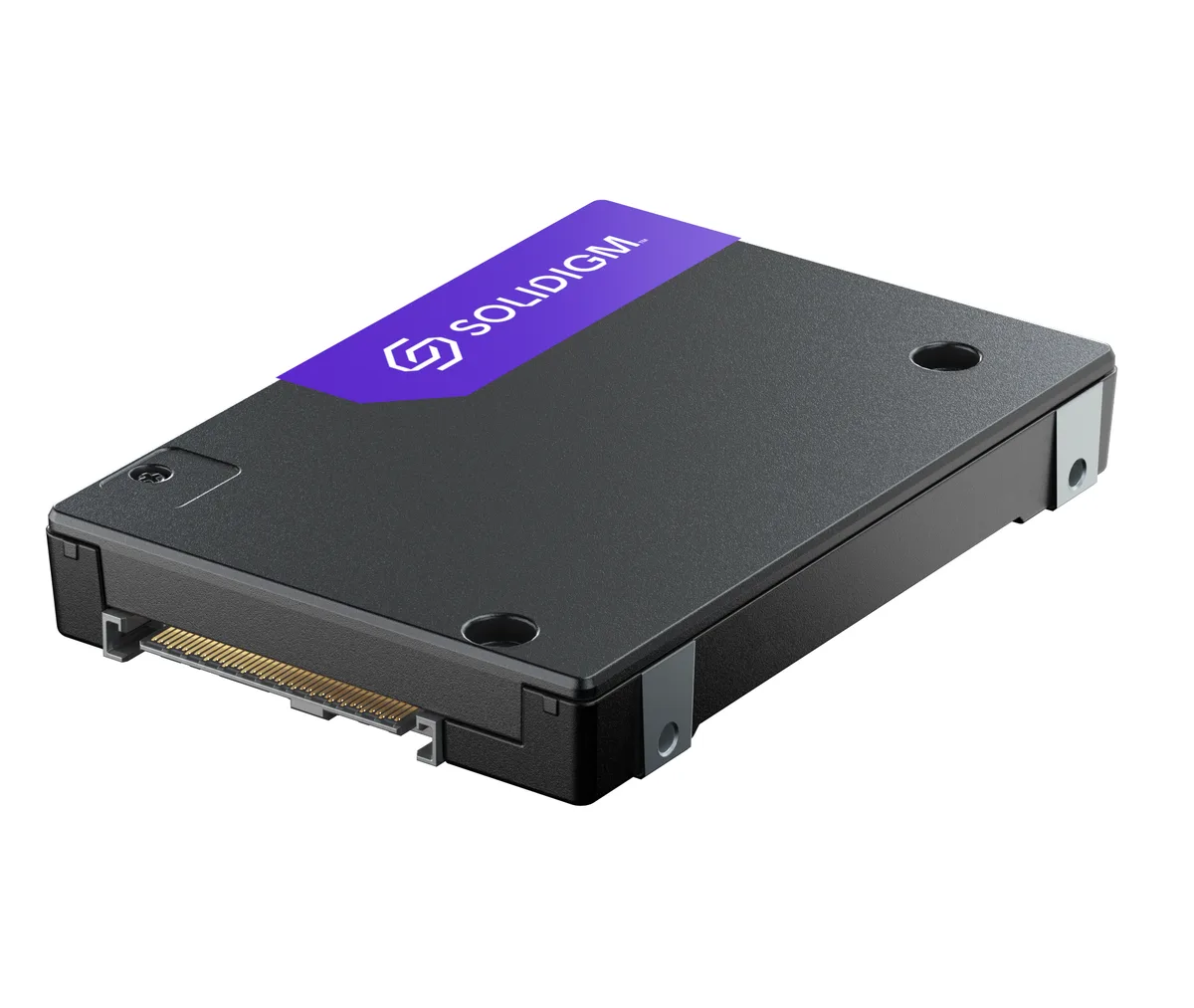

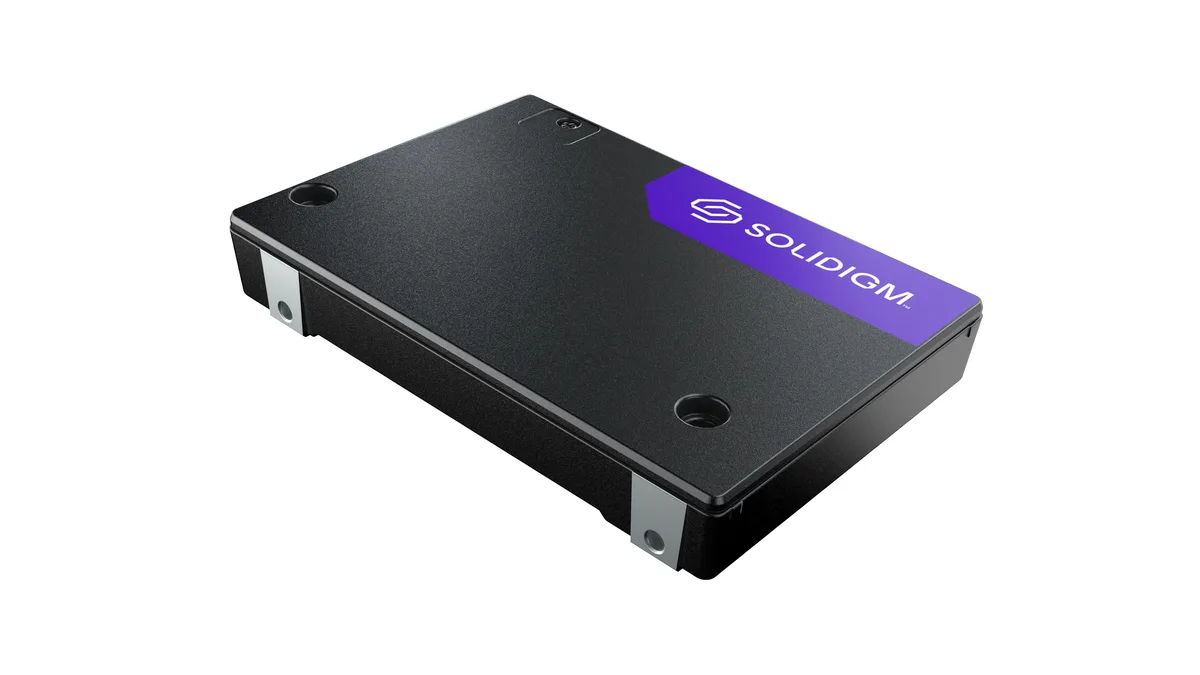

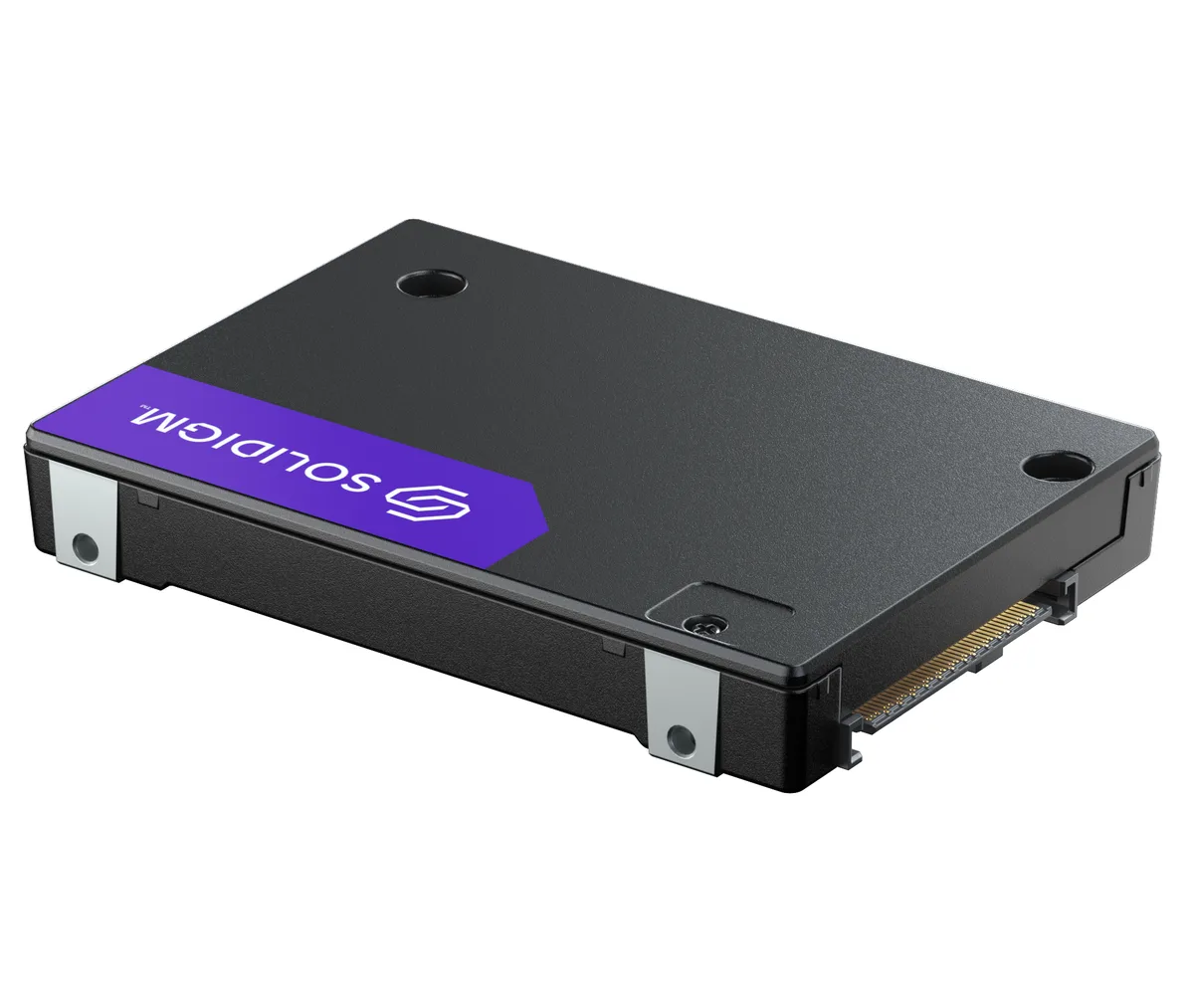

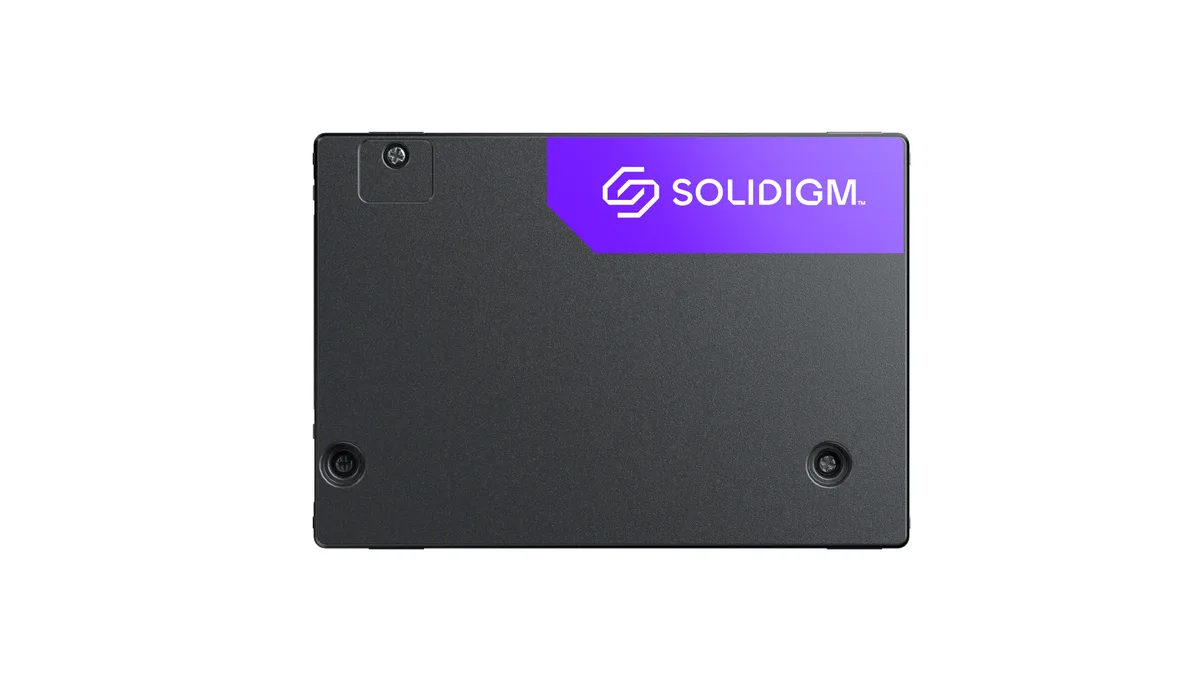

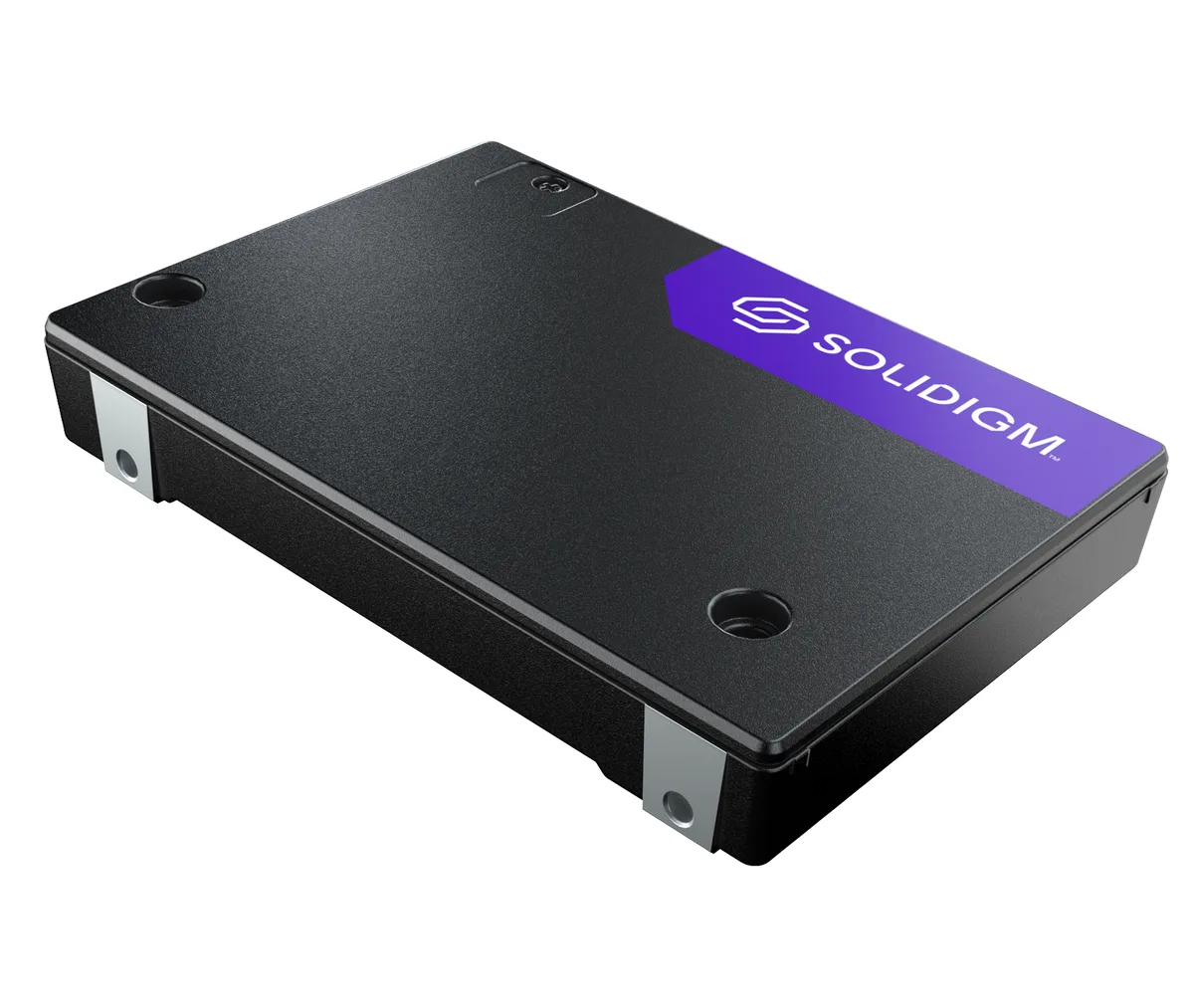

Rectangular silver U.2 15mm enterprise SSD with label showing 1.6TB capacity

Solidigm

Solidigm SB5PH27E016T001 enterprise SSD 1.6TB U.2 15mm PCIe 5.0

SKU CH-FX8X-ENAJ3 MPN SB5PH27E016T001

Enterprise U.2 15mm drive with 1.6TB of 176L TLC 3D NAND on a PCIe 5.0 x4 link for write-centric and mixed workloads

  • Form FactorU.2 15mm
  • Capacity1.6TB
  • Memory Components176L TLC 3D NAND
  • InterfacePCI-Express 5.0
  • MTBF2,500,000 hours
  • FeaturesDiscover Gen5 PCIe 5.0 performance with mid-endurance and ca

Option 1.6TB U.2

Show 12 more configurations
  • Accelerates write-centric workloads with PCIe 5.0 performance
  • 6 TB capacity built on 176-layer TLC 3D NAND
  • U.2 15 mm form factor fits dense server bays
  • 2,500,000-hour MTBF supports continuous data-centre operation
  • Withstands 1,000 G shock and 2.17 GRMS operating vibration

Enterprise SSD for write-centric workloads

The Solidigm D7-PS1030 is a 1.6TB enterprise SSD built on 176L TLC 3D NAND. It uses a U.2 15mm form factor and a PCI-Express 5.0 x4 interface to deliver Gen5 performance for data-centre servers and internal storage arrays.

Suits write-heavy and mixed workloads

This drive targets mixed and write-centric workloads with mid-endurance ratings and capacities up to 12.8TB. It is not intended for read-only caching tiers, cold-archive storage or desktop PCs that lack U.2 backplane support and adequate airflow for the 0°C to 77°C operating range.

Fits 15mm U.2 bays with Gen5 links

Installation requires a server chassis or backplane that accepts 15mm U.2 drives and provides a PCIe 5.0 x4 electrical connection. The 2,500,000-hour MTBF and 1,000 G shock rating free operators from frequent drive swaps in vibration-prone racks rated for 2.17 GRMS operating and 3.13 GRMS non-operating limits.

Highlights

  • Accelerates write-centric workloads with PCIe 5.0 performance
  • 6 TB capacity built on 176-layer TLC 3D NAND
  • U.2 15 mm form factor fits dense server bays
  • 2,500,000-hour MTBF supports continuous data-centre operation
  • Withstands 1,000 G shock and 2.17 GRMS operating vibration

Specifications

BrandSolidigm
ModelD7-PS1030
Part NumberSB5PH27E016T001
Form FactorU.2 15mm
Capacity1.6TB
Memory Components176L TLC 3D NAND
InterfacePCI-Express 5.0
MTBF2,500,000 hours
FeaturesDiscover Gen5 PCIe 5.0 performance with mid-endurance and capacities up to 12.8TB, designed to accelerate write-centric and mixed workloads.
Operating Temperature0°C to 77°C
Max Shock Resistance1,000 G (Max) at 0.5 msec
Max Vibration ResistanceOperating: 2.17 GRMS (5 - 700 Hz) Max
Non-Operating: 3.13 GRMS (5 - 800 Hz) Max
Shipping weight0.18 kg
Package size140 × 109 × 17 mm

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

Does my server backplane provide the 15 mm U.2 slot this drive needs?

The drive fits a 15 mm U.2 bay with a PCIe 5.0 x4 electrical connection and requires 0 °C to 77 °C airflow.

Will the PCIe 5.0 x4 link fall back to PCIe 4.0 on my existing CPU?

Yes, the interface negotiates down to PCIe 4.0 x4 automatically while keeping the same U.2 connector.

How can I confirm the 176-layer TLC NAND is healthy after installation?

Check SMART attributes for media wear, temperature within 0 °C to 77 °C, and no critical warnings in the OS storage tool.
