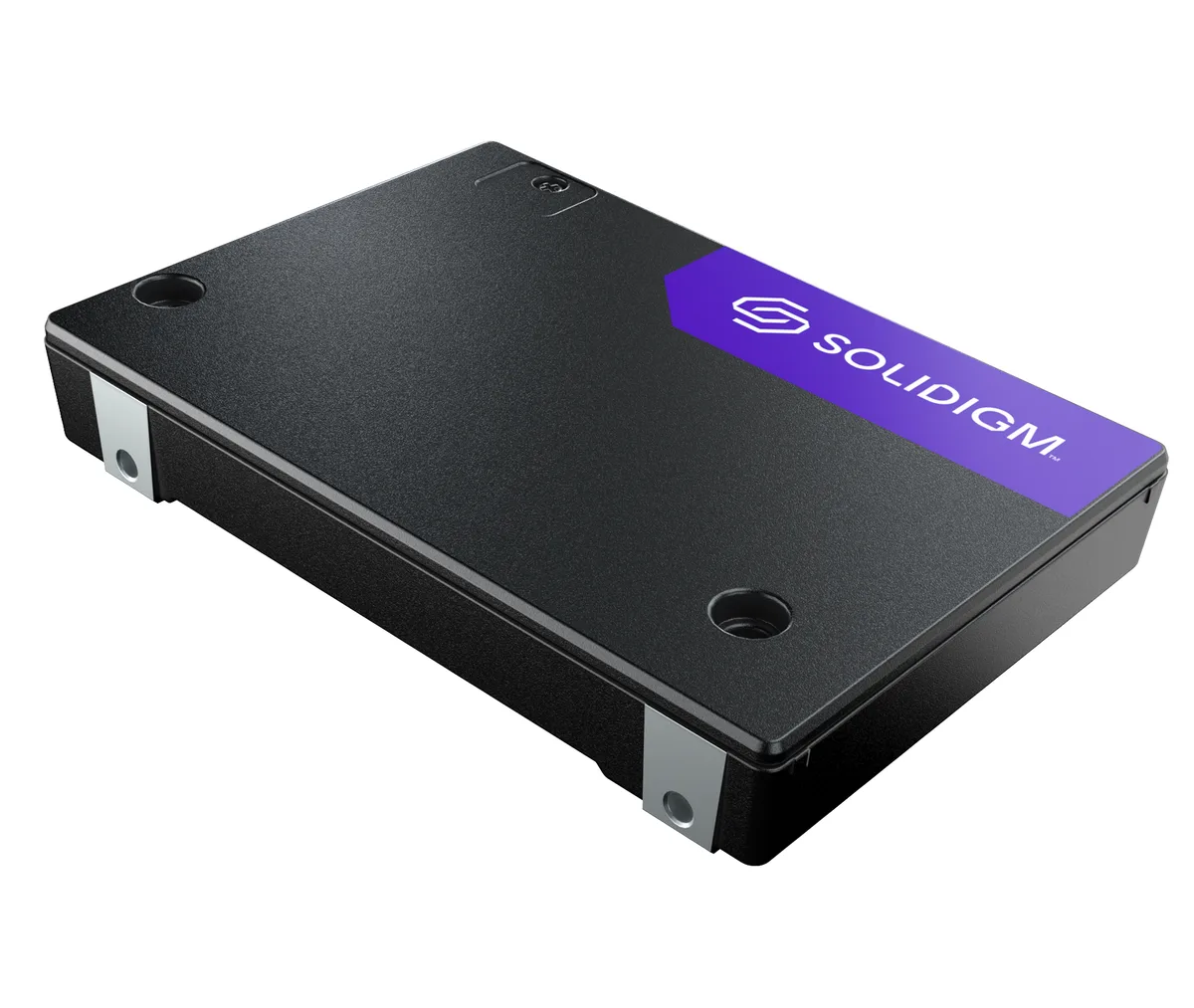

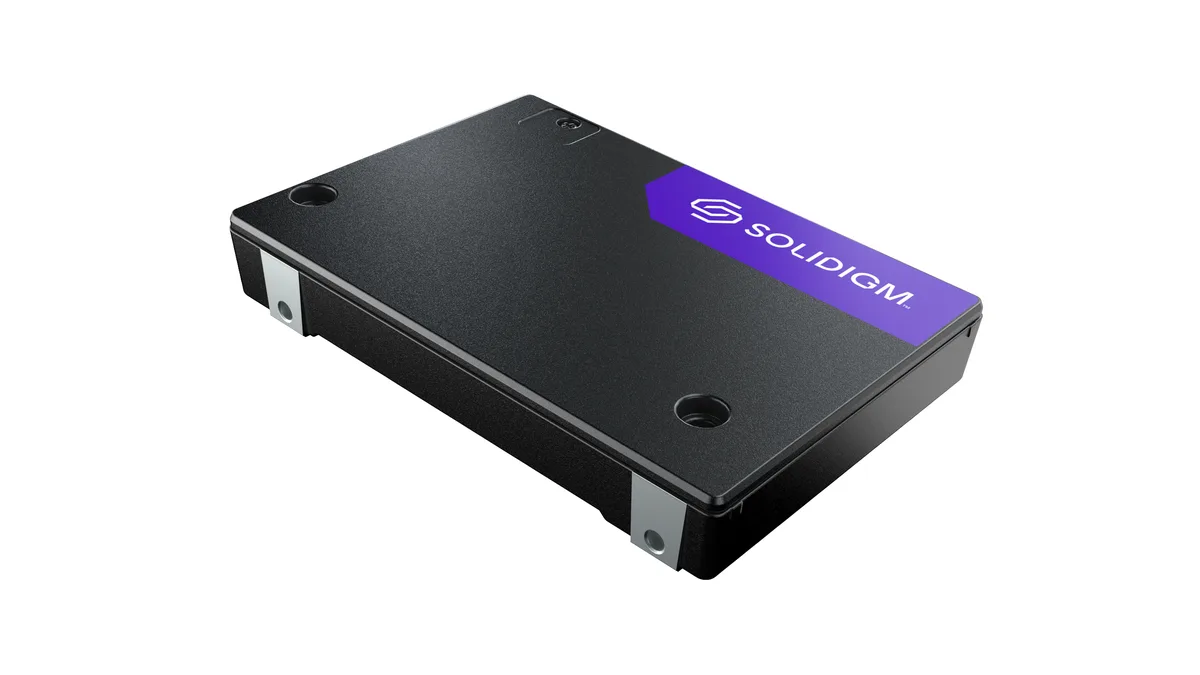

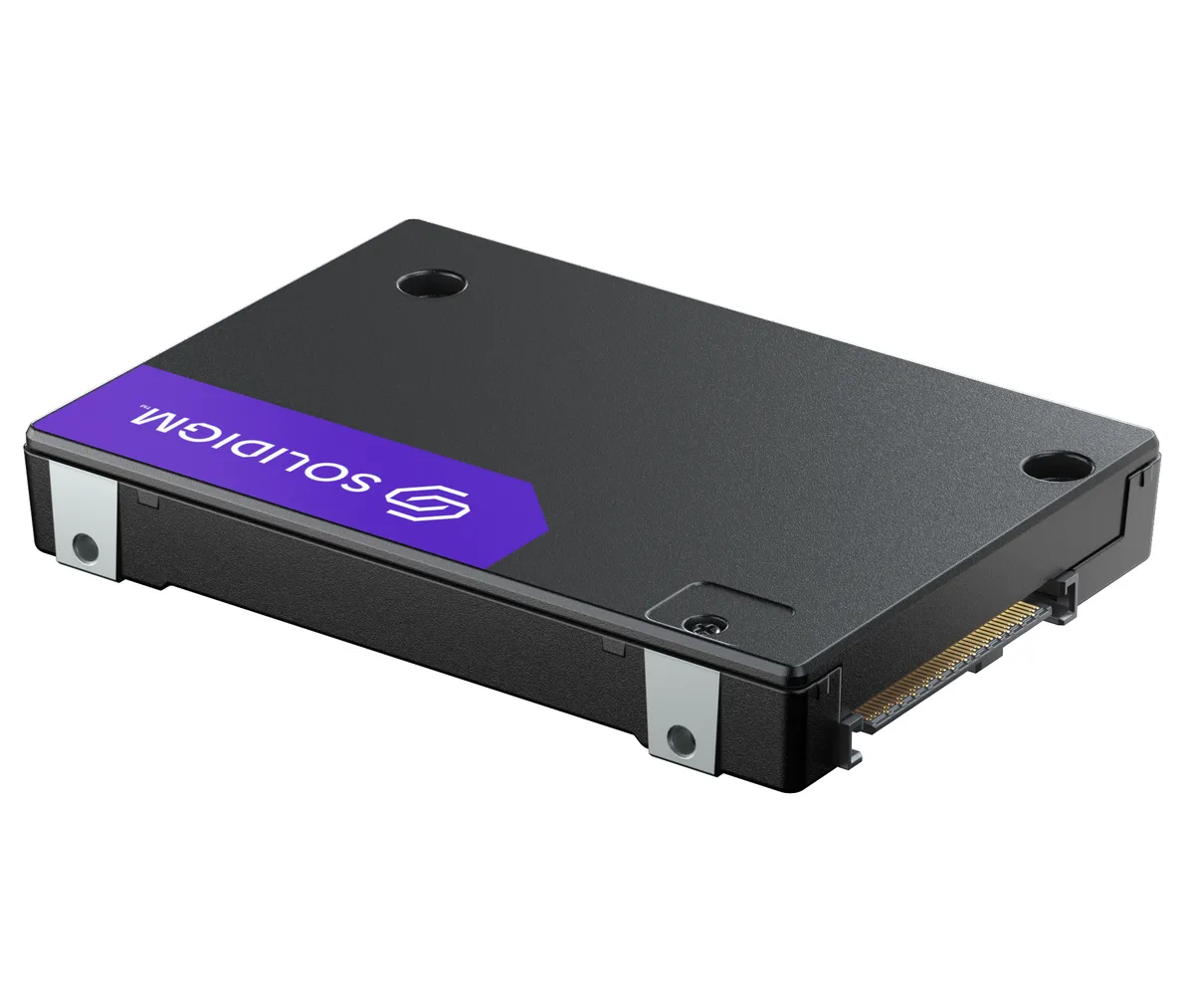

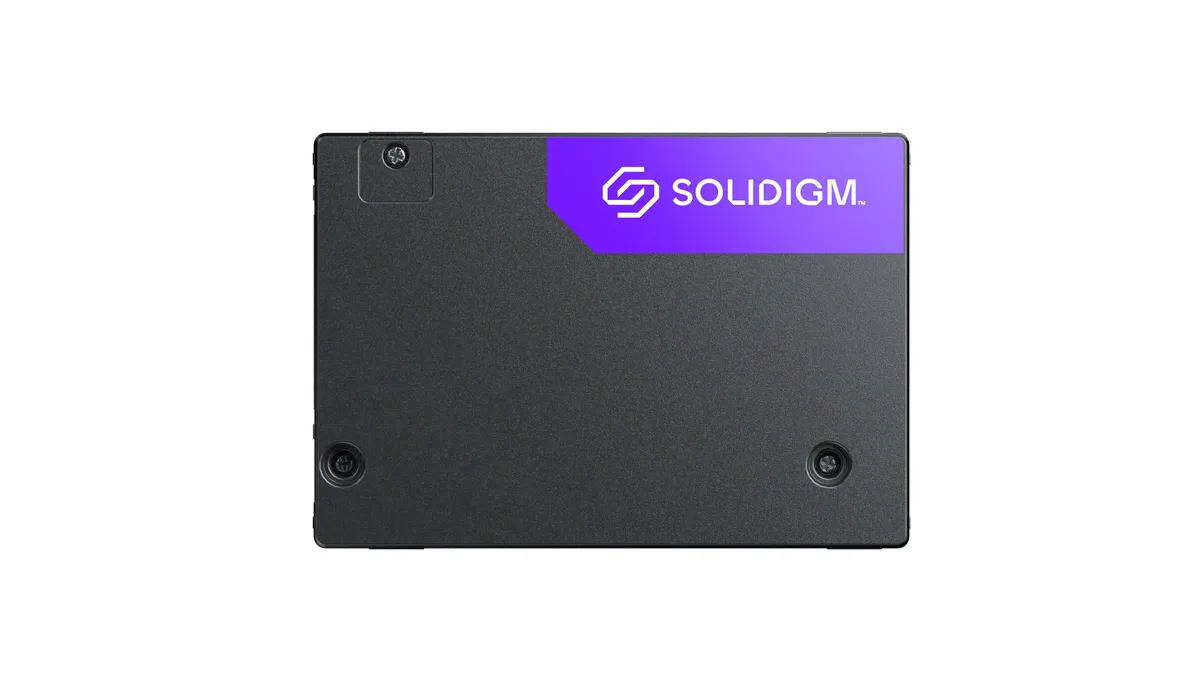

Rectangular silver U.2 15mm enterprise SSD with label showing 12.8TB capacity

Solidigm

Solidigm SB5PH27E128T001 12.8TB U.2 15mm enterprise SSD

SKU CH-GRBK-G504D MPN SB5PH27E128T001

A 12.8 TB U.2 15 mm enterprise SSD with PCIe 5.0 x4, 176-layer TLC 3D NAND, up to 14 500 MB/s sequential read, 9 300 MB/s sequential write, 2 750 000 random read IOPS, 800 000 random write IOPS.

  • Form FactorU.2 15mm
  • Capacity12.8TB
  • Memory Components176L TLC 3D NAND
  • InterfacePCI-Express 5.0
  • Max Sequential ReadUp to 14500 MBps
  • Max Sequential WriteUp to 9300 MBps

Option 12.8TB U.2

Show 12 more configurations
  • Massive 12.8TB capacity stores vast datasets on a single U.2 15mm drive
  • PCIe 5.0 x4 interface delivers up to 14,500 MB/s sequential read throughput
  • 2,750,000 random read IOPS accelerate latency-sensitive database and analytics workloads
  • 3 DWPD endurance rating supports 70 PB written over the drive lifetime
  • 5W idle and 23W active power draw limits rack-level energy consumption

Capacity and interface

The Solidigm D7-PS1030 is a 12.8TB enterprise SSD built on 176L TLC 3D NAND with a PCI-Express 5.0 x4 interface. It targets data-centre workloads that demand high throughput and sustained endurance.

Compatibility checks

Verify that your server or storage array accepts a U.2 15mm drive and provides a PCIe 5.0 x4 link for full performance. Confirm the backplane supplies adequate power for the 23W active rating and that airflow keeps the drive within its 0°C to 77°C operating range.

Thermals and power

Idle draw is 5W while active consumption reaches 23W under heavy load. The drive is rated for operation up to 77°C and withstands 1,000 G shock at 0.5 msec plus 2.17 GRMS operating vibration. MTBF is 2,500,000 hours with 3 DWPD endurance.

Highlights

  • Massive 12.8TB capacity stores vast datasets on a single U.2 15mm drive
  • PCIe 5.0 x4 interface delivers up to 14,500 MB/s sequential read throughput
  • 2,750,000 random read IOPS accelerate latency-sensitive database and analytics workloads
  • 3 DWPD endurance rating supports 70 PB written over the drive lifetime
  • 5W idle and 23W active power draw limits rack-level energy consumption

Specifications

BrandSolidigm
ModelD7-PS1030
Part NumberSB5PH27E128T001
Form FactorU.2 15mm
Capacity12.8TB
Memory Components176L TLC 3D NAND
InterfacePCI-Express 5.0
Max Sequential ReadUp to 14500 MBps
Max Sequential WriteUp to 9300 MBps
4KB Random Read2750000 IOPS (4K Blocks)
4KB Random Write800000 IOPS (4K Blocks)
Endurance3 DWPD / 70 PBW
MTBF2,500,000 hours
Power Consumption (Idle)5W
Power Consumption (Active)23W
Operating Temperature0°C to 77°C
Max Shock Resistance1,000 G (Max) at 0.5 msec
Max Vibration ResistanceOperating: 2.17 GRMS (5 - 700 Hz) Max
Non-Operating: 3.13 GRMS (5 - 800 Hz) Max
Weight165g +/- 10g
Shipping weight0.17 kg
Package size140 × 110 × 17 mm

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

Does the 12.8TB U.2 15mm drive ship with a heatsink or mounting hardware, or must those be purchased separately?

The drive is supplied as a bare U.2 15mm module; heatsinks, brackets and cables are not included and must be sourced separately.

Is the D7-PS1030 offered in other capacities or form factors that might suit a different slot?

This part number is the 12.8TB U.2 15mm model; other capacities exist in the D7-PS1030 family but are separate SKUs.

Will the 14500 MBps sequential read be achievable in a PCIe 4.0 backplane?

The drive negotiates PCIe 5.0 x4; in a PCIe 4.0 slot it will run at Gen 4 speeds, so the 14500 MBps ceiling will not be reached.
