Silverstone Technology
Silverstone Technology XE04-SP3 server accessory 92 mm fan SP3 TR4
4U server CPU cooler for AMD SP3/TR4 sockets with five 6mm heat-pipes, 92mm PWM fan and 38 dBA noise
- TypeFan & Heatsinks
- Fan Size92mm
- CPU Socket CompatibilityAMD Socket SP3 / AMD Socket sTR4
- Bearing Type2 Ball
- RPM1300 ~ 3800 RPM
- Air Flow54 CFM

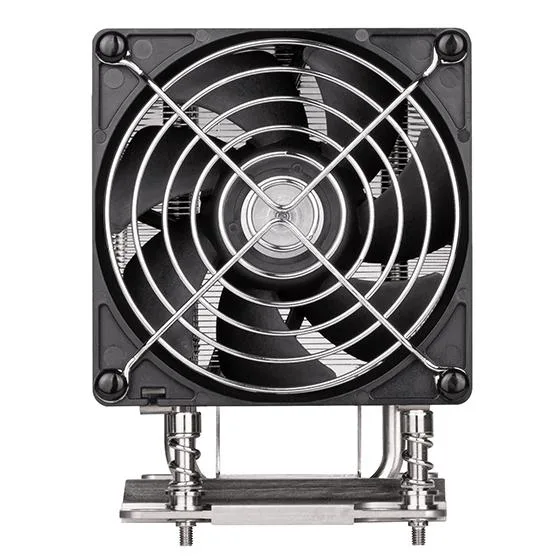

- 92 mm PWM fan spins 1300–3800 RPM for 54 CFM airflow
- Dual ball bearing rated for long life at 38 dBA max noise

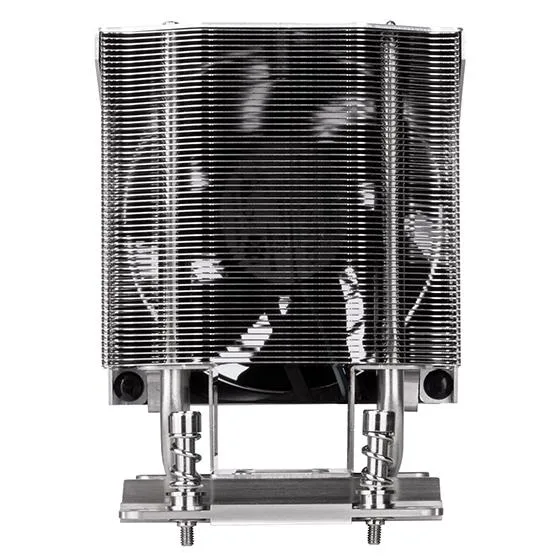

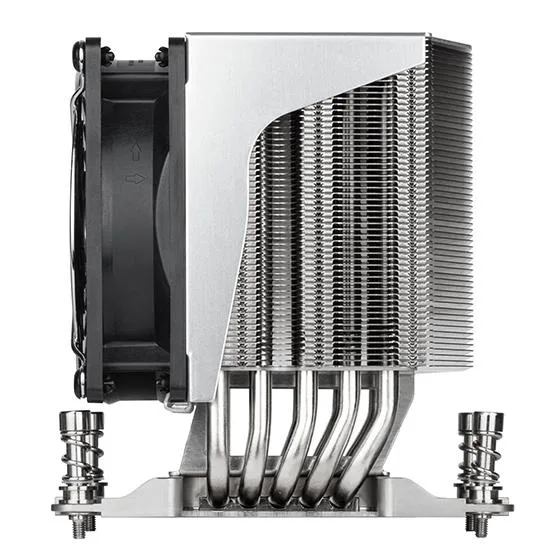

- Five 6 mm heat-pipes with aluminium fins spread heat quickly
- Fits AMD SP3 and sTR4 sockets in 4U server chassis
- 126 mm tall aluminium-copper heatsink weighs over 450 g
4U server CPU cooler for AMD SP3 and sTR4

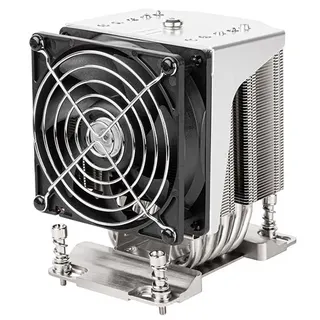

The Silverstone XE04-SP3 is a compact air cooler designed for 4U server and workstation chassis. It fits AMD Socket SP3 and sTR4 processors using five 6 mm heat-pipes and an aluminum fin stack. The 92 mm dual ball-bearing PWM fan delivers 54 CFM at up to 38 dBA. Total height is 126 mm and weight exceeds 450 g.
Installation notes and common issues
The cooler mounts vertically on the socket retention frame and uses a standard 4-pin PWM connector. Builders must verify that the 126 mm height clears the chassis lid and that the 93 mm by 119 mm footprint avoids memory slots or VRM heatsinks. The 25 mm fan thickness leaves little room for cable routing above the unit. Over-tightening the mounting screws can strip the back-plate threads.
Practical limits of the 4U form factor
The 126 mm height restriction confines this cooler to 4U or taller enclosures; it will not fit in 1U, 2U or 3U cases. The 92 mm fan diameter and 3800 RPM ceiling cap maximum airflow at 54 CFM, limiting thermal headroom for high-wattage CPUs under sustained load. The 4-pin PWM interface provides speed control but cannot overcome the physical fin-area constraint.
Highlights
- 92 mm PWM fan spins 1300–3800 RPM for 54 CFM airflow
- Dual ball bearing rated for long life at 38 dBA max noise
- Five 6 mm heat-pipes with aluminium fins spread heat quickly
- Fits AMD SP3 and sTR4 sockets in 4U server chassis
- 126 mm tall aluminium-copper heatsink weighs over 450 g
Specifications
| Brand | SILVERSTONE |
|---|---|
| Part Number | SST-XE04-SP3 |
| Type | Fan & Heatsinks |
| Fan Size | 92mm |
| CPU Socket Compatibility | AMD Socket SP3 / AMD Socket sTR4 |
| Bearing Type | 2 Ball |
| RPM | 1300 ~ 3800 RPM |
| Air Flow | 54 CFM |
| Noise Level | 38 dBA |
| Power Connector | 4 Pin |
| Heatsink Material | Aluminum & Copper |
| Fan Mounting Types to Heatsink | Vertical |
| Max CPU Cooler Height | 126 mm |
| Fan Dimensions | 92mm (W) x 25mm (H) x 92mm (D) |
| Heatsink Dimensions | 93mm (W) x 126mm (H) x 119mm (D) |
| Weight | More than 450g |
| Shipping weight | 0.91 kg |
| Package size | 127 × 127 × 102 mm |
Questions about this item
How can I verify the cooler is running correctly after installation?
Check that the fan spins between 1300 and 3800 RPM and stays at or below 38 dBA while moving 54 CFM of air.
What comes in the box and what must I buy separately?
The package includes the 92 mm dual ball bearing fan, the aluminium-and-copper heatsink with five 6 mm heat-pipes, and SP3/TR4 mounting hardware; thermal paste is not included.
Which version should I choose for my AMD SP3 or TR4 build?
Only the XE04-SP3 model is offered; it fits both AMD SP3 and sTR4 sockets and clears 4U chassis with a 126 mm height limit.
