Silverstone Technology
Silverstone Technology XE04-2066 4U server CPU cooler LGA 2011 2066 92mm fan
92 mm dual-ball-bearing fan cools Intel LGA 2011 and 2066 CPUs in 4U chassis with five 6 mm heat-pipes, 54 CFM airflow and 38 dBA noise
- TypeFan & Heatsinks
- Fan Size92mm
- CPU Socket CompatibilityIntel LGA 2011 / 2066 Square & Narrow
- Bearing Type2 Ball
- RPM1300 ~ 3800 RPM
- Air Flow54 CFM
- Efficient heat transfer via five 6 mm heat pipes
- Quiet operation at 38 dBA with 54 CFM airflow
- Fits 4U chassis with 126 mm maximum cooler height
- Dual ball-bearing fan runs 1300–3800 RPM for reliable cooling
- Supports Intel LGA 2011 and 2066 Square & Narrow sockets
Server CPU cooler for 4U racks

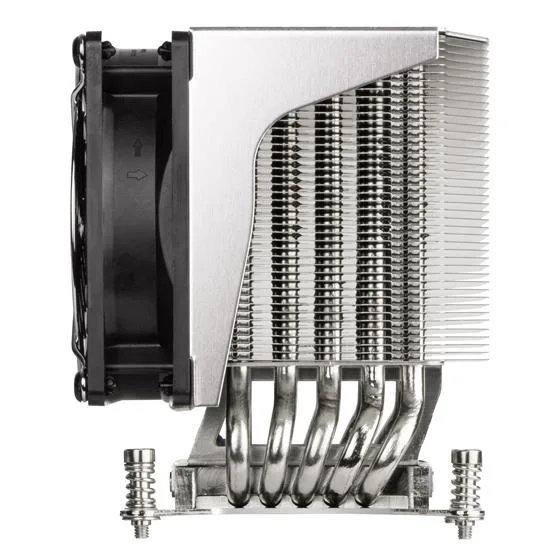

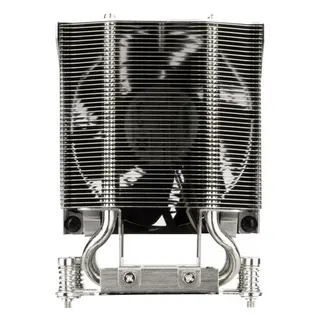

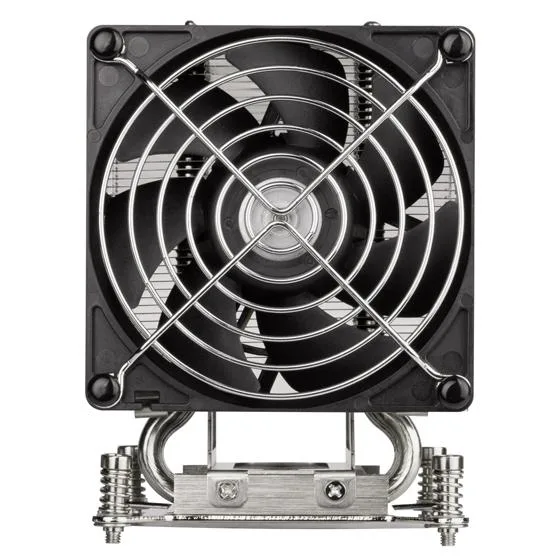

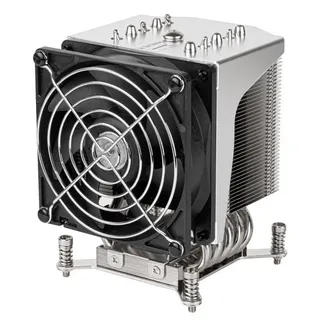

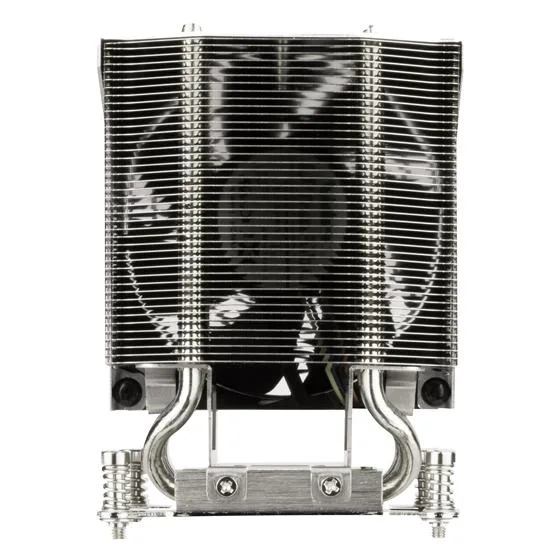

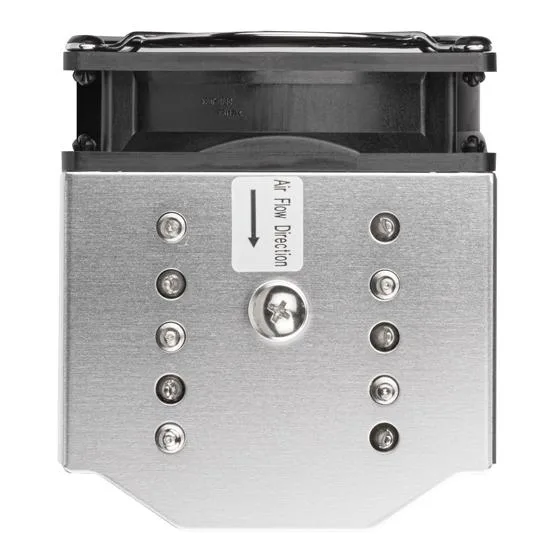

This 4U server CPU cooler fits Intel LGA 2011 and 2066 Square & Narrow sockets. A 92 mm PWM fan with dual ball bearings spins between 1300 and 3800 RPM, delivering 54 CFM at 38 dBA. The aluminium and copper heatsink uses five 6 mm heat pipes and stands 126 mm tall.
Sustained thermal behaviour
Five 6 mm heat pipes spread load across the aluminium fin stack while the dual ball bearing fan maintains constant airflow under continuous duty. PWM control adjusts speed to match thermal demand without the wear of sleeve bearings. The 4 pin connector feeds the motherboard real-time RPM data for closed-loop regulation.
4U height and socket constraints
Maximum cooler height is 126 mm, matching the 4U chassis envelope and leaving no margin for taller heat-spreaders. Mounting is limited to Intel LGA 2011 and 2066 Square & Narrow patterns; other LGA 2066 variants or newer server sockets will not align. The 92 mm fan footprint occupies the full width of the heatsink, restricting adjacent DIMM or VRM clearance.
Highlights
- Efficient heat transfer via five 6 mm heat pipes
- Quiet operation at 38 dBA with 54 CFM airflow
- Fits 4U chassis with 126 mm maximum cooler height
- Dual ball-bearing fan runs 1300–3800 RPM for reliable cooling
- Supports Intel LGA 2011 and 2066 Square & Narrow sockets
Specifications
| Brand | SILVERSTONE |
|---|---|
| Part Number | SST-XE04-2066 |
| Type | Fan & Heatsinks |
| Fan Size | 92mm |
| CPU Socket Compatibility | Intel LGA 2011 / 2066 Square & Narrow |
| Bearing Type | 2 Ball |
| RPM | 1300 ~ 3800 RPM |
| Air Flow | 54 CFM |
| Noise Level | 38 dBA |
| Power Connector | 4 Pin |
| Heatsink Material | Aluminum & Copper |
| Fan Mounting Types to Heatsink | Vertical |
| Max CPU Cooler Height | 126 mm |
| Fan Dimensions | 92mm (W) x 25mm (H) x 92mm (D) |
| Heatsink Dimensions | 93mm (W) x 126mm (H) x 106mm (D) |
| Weight | More than 450g |
| Shipping weight | 0.91 kg |
| Package size | 127 × 127 × 127 mm |
Questions about this item
How loud and hot does the 92 mm dual-ball-bearing fan get when it runs at 3800 RPM all day?
At full speed the fan reaches 38 dBA while moving 54 CFM through five 6 mm heat-pipes and an aluminium-copper heatsink.
My motherboard only has a 4-pin CPU fan header — is that enough to power and control this cooler?
Yes, the cooler uses a single 4-pin PWM connector for both power and speed control.
Will the 126 mm tall heatsink clear the DIMM slots and VRM heatsinks on a standard LGA 2066 narrow-ILM board?
The heatsink measures 93 mm wide by 106 mm deep, leaving room for memory and VRM components on narrow-ILM sockets.
