Handheld spectrum analyzer with 2.8 inch touch screen, compact plastic body

Seesii

Seesii TinySA V3.1 spectrum analyzer 100 kHz–960 MHz network ethernet cable

SKU CH-00H0-NG4YF

Handheld spectrum analyzer covering 100 kHz to 960 MHz with 2.8 inch touch screen, built-in signal generator and ESD protection

  • Wide 100 kHz to 960 MHz frequency coverage for MF/HF/VHF and UHF analysis

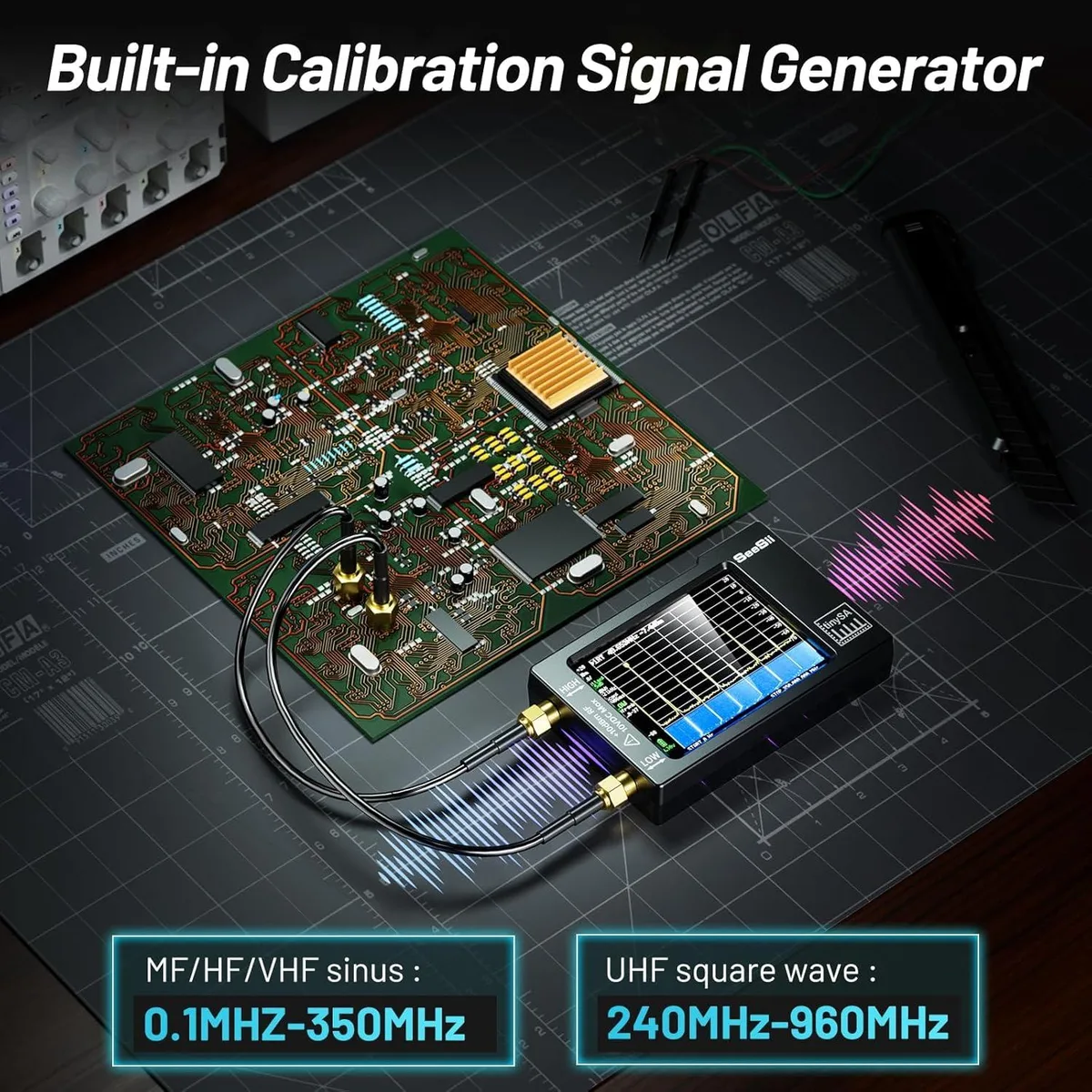

  • Built-in signal generator provides sine output to 350 MHz and square wave to 960 MHz
  • Switchable resolution filters from 2.6 kHz to 640 kHz adapt to signal detail
  • 290-point color touchscreen shows full-span sweeps on a 2.8 inch display
  • USB PC control turns the handheld into a desktop spectrum analyzer

Portable spectrum analyzer 100 kHz–960 MHz

The Seesii TinySA V3.1 is a handheld spectrum analyzer covering 100 kHz to 960 MHz with dual inputs for MF/HF/VHF and UHF ranges. It includes a built-in signal generator and a 2.8 inch touch screen for direct control. The 2024 version 3.1 adds ESD protection for improved durability.

Frequency coverage and resolution limits

The MF/HF/VHF input handles 0.1 MHz to 350 MHz while the UHF input covers 240 MHz to 960 MHz. Switchable resolution bandpass filters operate between 2.6 kHz and 640 kHz across both ranges. A color display presents 290 scan points spanning the selected frequency span.

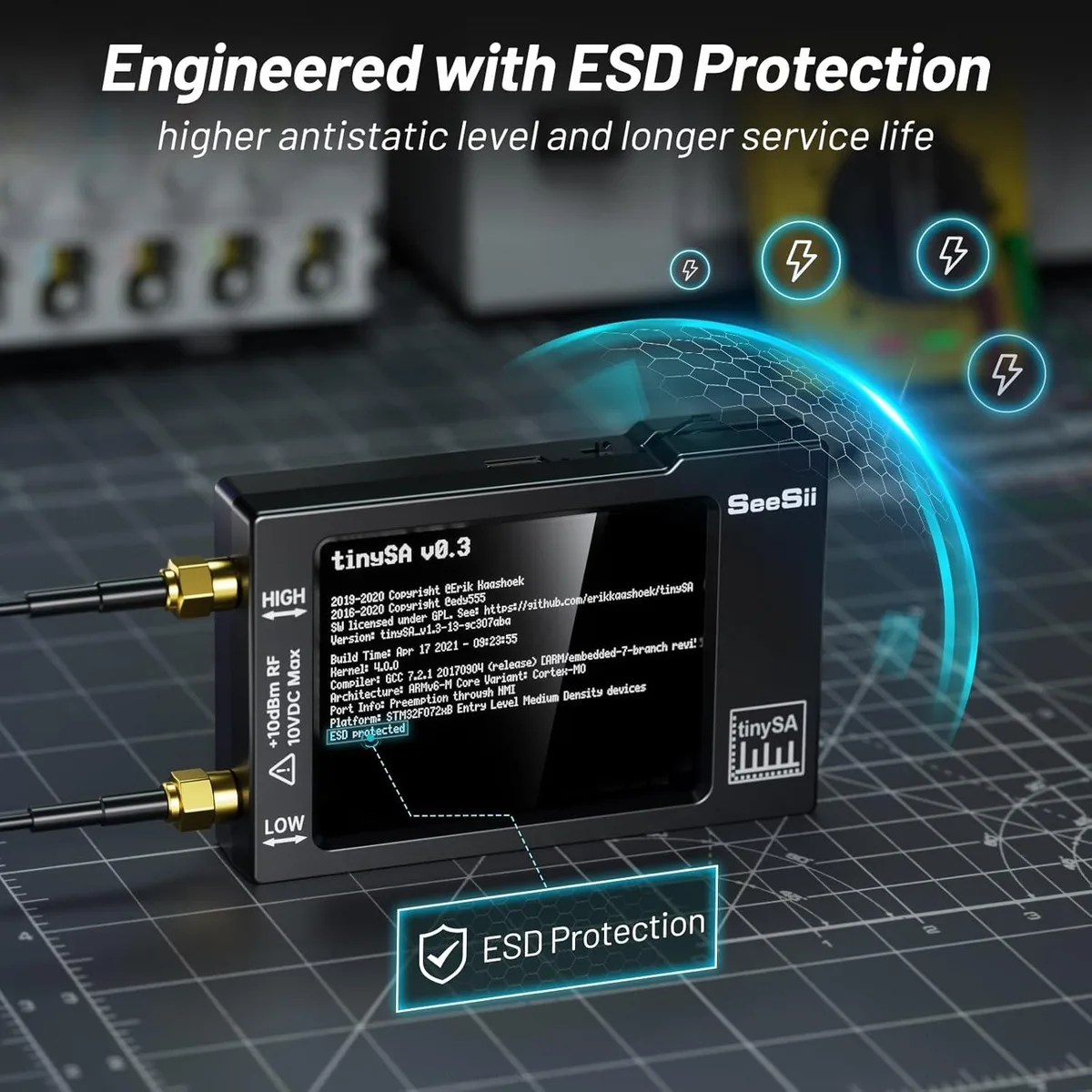

ESD-protected version 3.1 stability

The 2024 V3.1 hardware revision delivers more stable and sensitive performance with a new ESD protected function that raises antistatic resilience and extends service life. This specific upgrade is the deciding factor for users who need reliable operation in static-prone environments.

Highlights

  • Wide 100 kHz to 960 MHz frequency coverage for MF/HF/VHF and UHF analysis
  • Built-in signal generator provides sine output to 350 MHz and square wave to 960 MHz
  • Switchable resolution filters from 2.6 kHz to 640 kHz adapt to signal detail
  • 290-point color touchscreen shows full-span sweeps on a 2.8 inch display
  • USB PC control turns the handheld into a desktop spectrum analyzer

Specifications

No published specifications for this item yet.

Questions about this item

Will the 100 kHz–960 MHz range let me measure signals from my older MF/HF/VHF gear?

Yes, the high-quality MF/HF/VHF input covers 0.1 MHz to 350 MHz and the UHF input covers 240 MHz to 960 MHz, so legacy equipment in those bands can be analysed directly.

How do I verify the analyser is working correctly after I connect it?

Run the built-in self-test using the internal calibration signal generator; it automatically checks the low input and confirms the 290-scan-point display and switchable 2.6–640 kHz filters are operating as expected.

What comes in the box and what must I buy separately for PC control?

The handheld unit with integrated rechargeable battery and 2.8 inch touch screen is included; a standard USB cable for CDC serial connection to a PC is not supplied and must be purchased separately.
