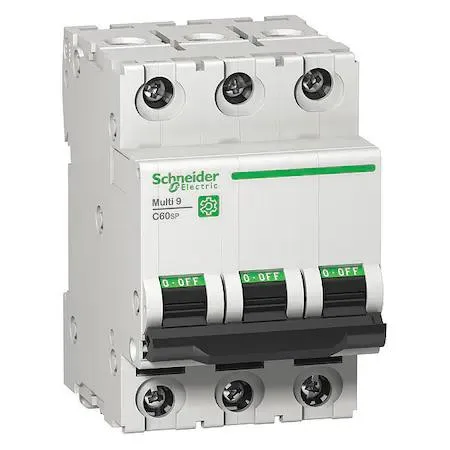

Schneider Electric C60SP three-pole miniature circuit breaker, grey DIN-rail housing, toggle actuators, screw-clamp terminals

Schneider Electric

Schneider Electric M9F22302 C60SP 2A 3-pole load center

SKU CH-HC0N-GTCV0

A 3-pole miniature circuit breaker rated 2 A with a 14 kA interrupting capacity at 240 V AC for DIN-rail branch-circuit protection

  • Reliable branch-circuit protection with thermal-magnetic trip
  • 14 kA interrupting capacity at 240 V AC
  • Fits 18 AWG to 8 AWG conductors with screw-clamp terminals
  • Space-saving 3.19 × 2.13 × 2.83 in DIN-rail housing
  • Certified to UL 1077 supplementary protector standard

Three-pole 2 A branch protector

The Schneider Electric M9F22302 is a C60SP series miniature circuit breaker rated at 2 A with three poles for three-phase branch circuit protection. It uses a thermal-magnetic trip mechanism and mounts on a DIN rail via a toggle actuator.

Suited to low-current three-phase circuits

This device suits panels that need 2 A overcurrent protection on three phases with a 14 kA interrupting rating at 240 V AC. It is not for DC applications, single-phase loads or circuits requiring a higher current rating.

Screw-clamp terminals for 18 to 8 AWG

The breaker accepts conductors from 18 AWG up to 8 AWG secured by screw-clamp terminals, so the wire size in the installation must fall within that range for a compliant connection.

Highlights

  • Reliable branch-circuit protection with thermal-magnetic trip
  • 14 kA interrupting capacity at 240 V AC
  • Fits 18 AWG to 8 AWG conductors with screw-clamp terminals
  • Space-saving 3.19 × 2.13 × 2.83 in DIN-rail housing
  • Certified to UL 1077 supplementary protector standard

Specifications

BrandSCHNEIDER ELECTRIC
