Schneider Electric Flush Push Button Blue 22 mm

22 mm Blue Flush Push Button

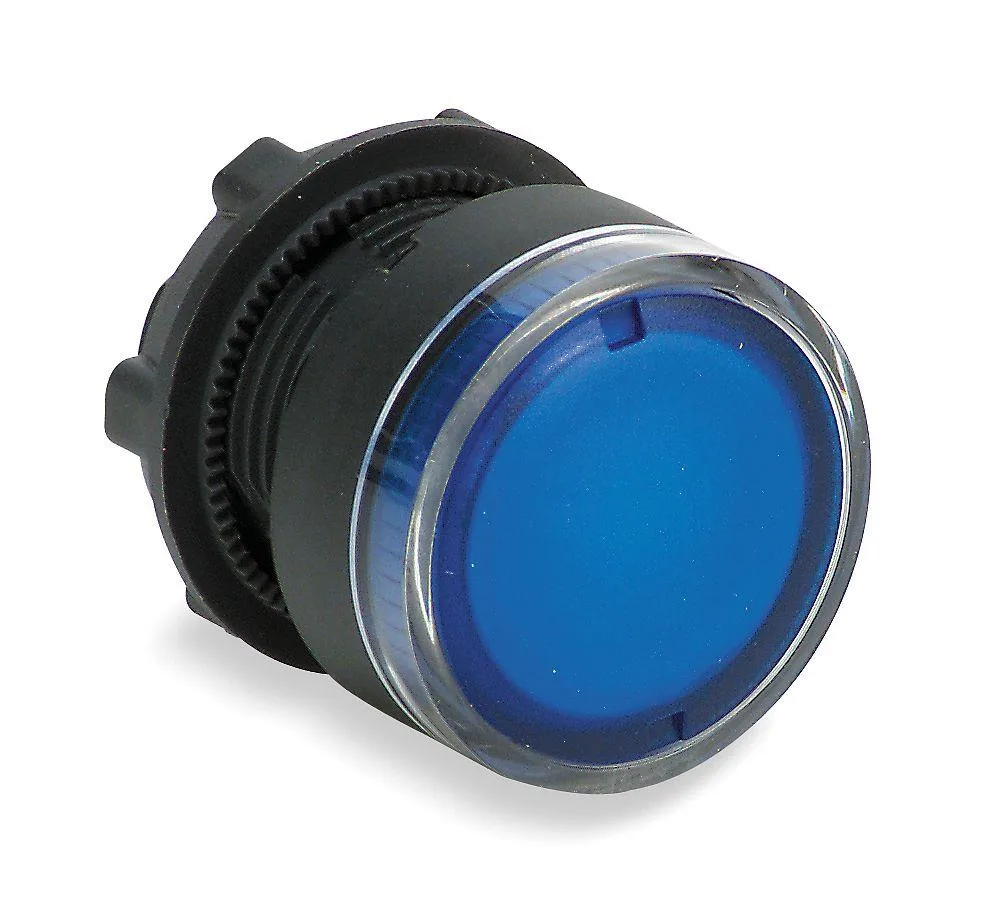

This Schneider Electric operator is a 22 mm momentary flush push button with a blue plastic head and bezel. It carries NEMA 13 and 4X ratings alongside IP66 ingress protection. The device meets IEC 60947-1, IEC 60947-5-1 and IEC 60947-5-4 standards for industrial control circuits. It is classified as Class II per IEC 60536 and complies with UL 508 and CSA C22.2 No. 14.

Suits panels needing a sealed momentary actuator

The flush design and IP66 rating suit control panels exposed to water jets, dust or outdoor environments. The blue colour codes for specific functions in accordance with industrial wiring conventions. Installers requiring a maintained latch action or an illuminated head should select a different operator type. Buyers needing a metal bezel or a different mounting diameter must choose an alternative series.

Mounts in standard 22 mm cut-outs

The 22 mm mounting size fits industry-standard panel cut-outs without adapters. Plastic construction reduces weight and eliminates grounding requirements for the bezel. Compliance with IEC 60068-2-6 and IEC 60068-2-27 confirms resistance to vibration and shock in machinery applications. DNV, GL, LROS and Bureau Veritas certifications support use in marine and offshore installations.
