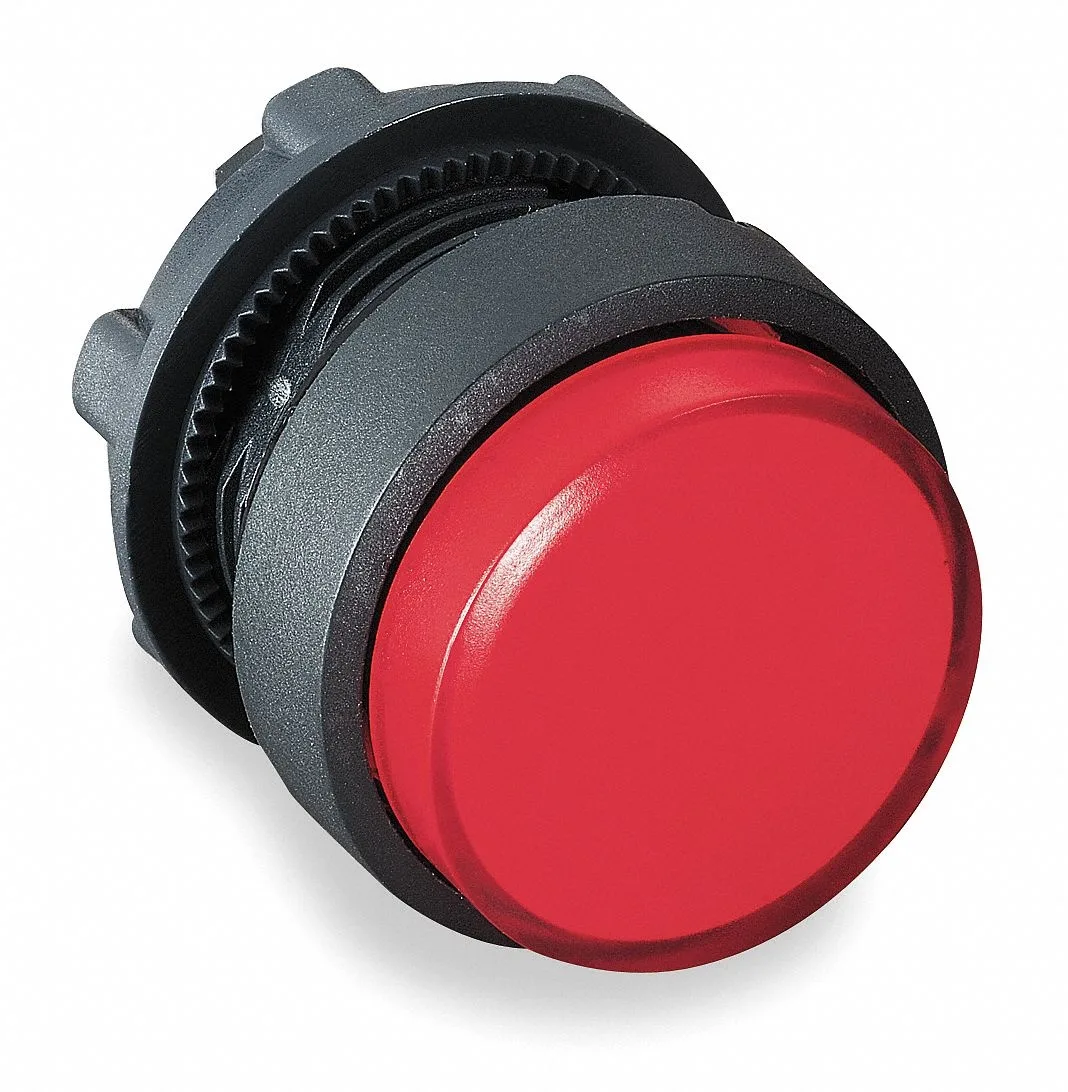

Red extended push button, 22 mm diameter, plastic body, momentary action

Schneider Electric

Schneider Electric Extended Push Button 22 mm Red

SKU CH-BVGA-1JB3T

A 22 mm red momentary push button rated IP66 and NEMA 13, 4X for industrial control panels

  • TypeIndustrial Electrical Controls & Automation
  • Size22 mm
  • Momentary action for precise control
  • 22 mm mounting fits standard panels
  • IP66 and NEMA 13 rating resist dust and water jets
  • Red colour gives clear visual identification
  • Complies with IEC 60947 and UL 508 standards

Extended Push Button 22 mm

The Schneider Electric operator is a 22 mm extended push button in red, designed for industrial control panels. It suits machine builders and maintenance teams who need a momentary actuator for start, stop or emergency functions. The plastic head and bezel keep weight low while fitting standard 22 mm cut-outs. It is not for buyers who need an illuminated or mushroom-head variant.

Standards and Environmental Ratings

The device meets NEMA 13 and 4X plus IP66, so it resists dust, water jets and oil ingress in harsh plant environments. Compliance includes IEC 60947-1, IEC 60947-5-1, IEC 60947-5-4, UL 508, CSA C22.2 No. 14, DNV, GL, LROS, Bureau Veritas, EN 50102, GB 14048.5, JIS C8201-1, JIS C8201-5-1, IEC 60068-2-6, IEC 60068-2-27, IEC 60529 and Class II IEC 60536. It is not for applications that demand higher pressure immersion or specialised hazardous-area certifications not listed here.

Build and Mounting

The operator uses an all-plastic construction for the head, bezel and base material, providing corrosion resistance and electrical insulation. The 22 mm mounting diameter matches standard panel cut-outs, allowing quick installation without adapters. The momentary action returns automatically when released. It is not for panels that require metal bezels, keyed operators or maintained-contact switching.

Highlights

  • Momentary action for precise control
  • 22 mm mounting fits standard panels
  • IP66 and NEMA 13 rating resist dust and water jets
  • Red colour gives clear visual identification
  • Complies with IEC 60947 and UL 508 standards

Specifications

BrandSchneider Electric
TypeIndustrial Electrical Controls & Automation
Size22 mm

Questions about this item

Which 22 mm extended push button should I choose for a panel that needs NEMA 13 and 4X sealing?

This red momentary operator is rated NEMA 13 and NEMA 4X, so it meets both oil-tight and wash-down requirements in a single 22 mm cut-out.

What does the IP66 rating mean once the button is mounted in my enclosure?

IP66 guarantees total dust ingress protection and resistance to powerful water jets from any direction when the button is correctly installed in a 22 mm panel opening.

Which standards cover the 22 mm mounting interface and what do they cap in practice?

The operator complies with EN/IEC 60947-1 and 60947-5-1, which define the 22 mm mounting dimensions and the electrical endurance limits for control circuit devices.
