SanDisk

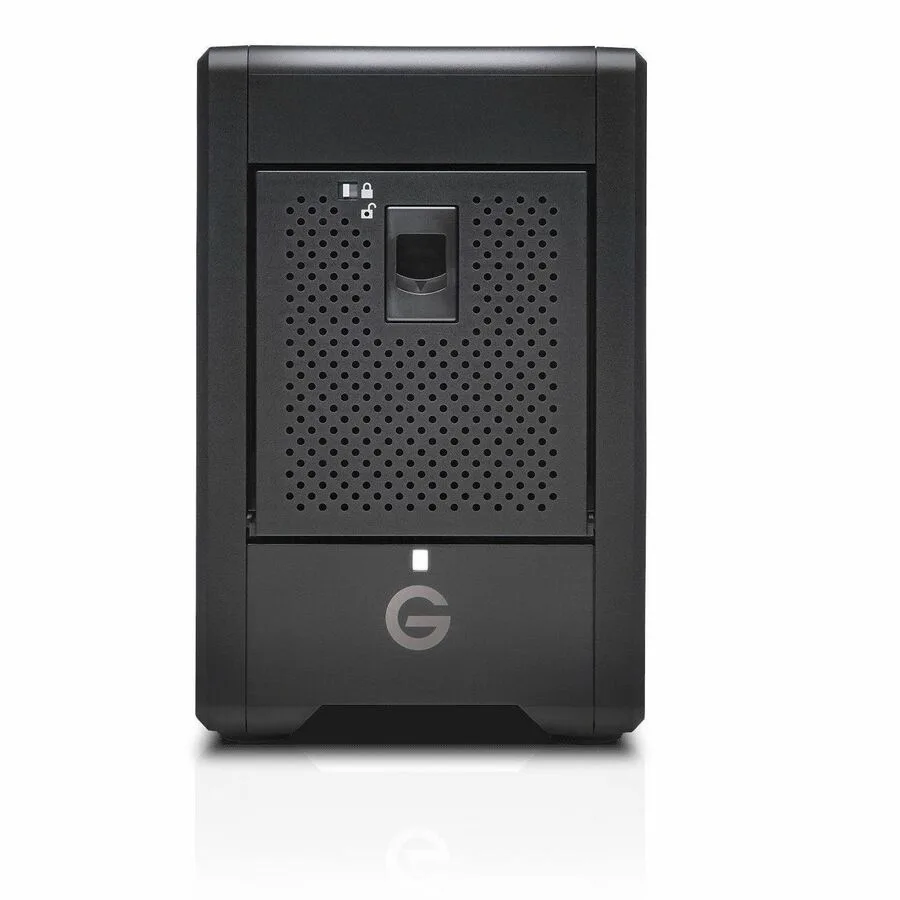

SanDisk Professional G-RAID Shuttle 4-Bay 104TB RAID Enclosure SDPH34H-104T-NBAAB
A transportable four-bay hardware RAID enclosure with Thunderbolt 3 delivering 104TB capacity and up to 700MB/s read and 850MB/s write speeds for multi-stream 4K, 8K and VR workflows
- Thunderbolt 3Yes
- RAID Levels0, 1, 5, 10, JBOD
- Package ContentsG-RAID Shuttle 4 DAS Storage System 1 x Thunderbolt™ 3 cable
- Transportable 4-bay hardware RAID with 104TB capacity
- Thunderbolt 3 (40Gbps) and USB-C (10Gbps) interfaces
- Up to 700MB/s read and 850MB/s write in RAID 5
- Supports RAID 0, 1, 5, 10, JBOD for flexible data protection
- Four removable 7200RPM Ultrastar enterprise-class hard drives included
Capacity and Workflow Fit
The SanDisk Professional G-RAID Shuttle 4-Bay enclosure delivers 104TB of storage in a transportable hardware RAID subsystem. It targets video professionals who need consolidated backup and real-time editing capacity for multi-stream 4K, 8K and VR projects on location or in the studio. The system ships with four removable 7200RPM Ultrastar enterprise-class drives pre-configured for immediate use.
Installation and Common Issues

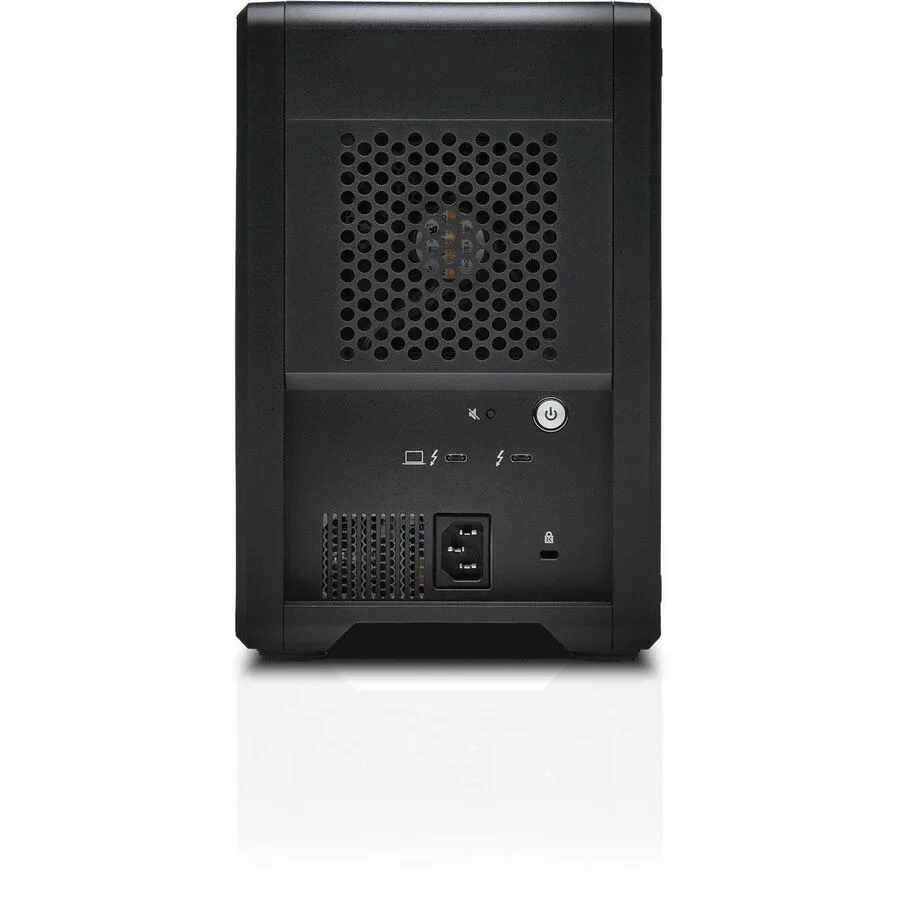

Connection uses the included Thunderbolt 3 cable for 40Gbps bandwidth, while USB-C compatibility provides a 10Gbps fallback. Dual Thunderbolt 3 ports allow daisy chaining up to five additional devices without extra hubs. RAID level selection — 0, 1, 5, 10 or JBOD — is handled by the hardware controller, so no software setup is required. The main friction point is physical weight; the four-bay chassis plus drives demands two people or a cart for safe transport.
Deciding Specification
Default RAID 5 performance reaches 700MB/s read and 850MB/s write on the 96TB reference model; the 104TB unit uses the same drive architecture. If your workflow requires sustained throughput above those figures, this enclosure will not meet the need.
Highlights
- Transportable 4-bay hardware RAID with 104TB capacity
- Thunderbolt 3 (40Gbps) and USB-C (10Gbps) interfaces
- Up to 700MB/s read and 850MB/s write in RAID 5
- Supports RAID 0, 1, 5, 10, JBOD for flexible data protection
- Four removable 7200RPM Ultrastar enterprise-class hard drives included
Specifications
| Brand | SanDisk |
|---|---|
| Series | Professional G-RAID Shuttle 4 DAS Storage System |
| Model | G-RAID Shuttle 4 DAS Storage System |
| Part Number | SDPH34H-104T-NBAAB |
| Thunderbolt 3 | Yes |
| RAID Levels | 0, 1, 5, 10, JBOD |
| Package Contents | G-RAID Shuttle 4 DAS Storage System 1 x Thunderbolt™ 3 cable (40 Gbps) Power Cord Quick Start Guide |
| Shipping weight | 12.67 kg |
| Package size | 379 × 369 × 318 mm |
Questions about this item
How can I verify the G-RAID Shuttle 4 is performing at the advertised 700MB/s read and 850MB/s write speeds after setup?
Run a disk benchmark tool while the unit is configured in its default RAID 5 mode; sustained sequential results should approach 700MB/s read and 850MB/s write for the 96TB reference capacity.
What ships with the SDPH34H-104T-NBAAB and what must I source separately?
The box includes the 4-bay enclosure with four 7200RPM Ultrastar enterprise-class drives pre-installed, one Thunderbolt 3 cable (40 Gbps), a power cord, and a quick start guide; no extra drives or cables are required for Thunderbolt operation.
Which capacity version of the G-RAID Shuttle 4 should I choose for multi-stream 8K editing?
The 104TB model provides the highest raw capacity for consolidated 8K, 4K HDR, and VR footage, while the 96TB variant is the one quoted for the 700MB/s read and 850MB/s write RAID 5 benchmark.
