Ruth's sister Universal 4 Channel Clone Copy Wireless Remote Control Controller Duplicator 433

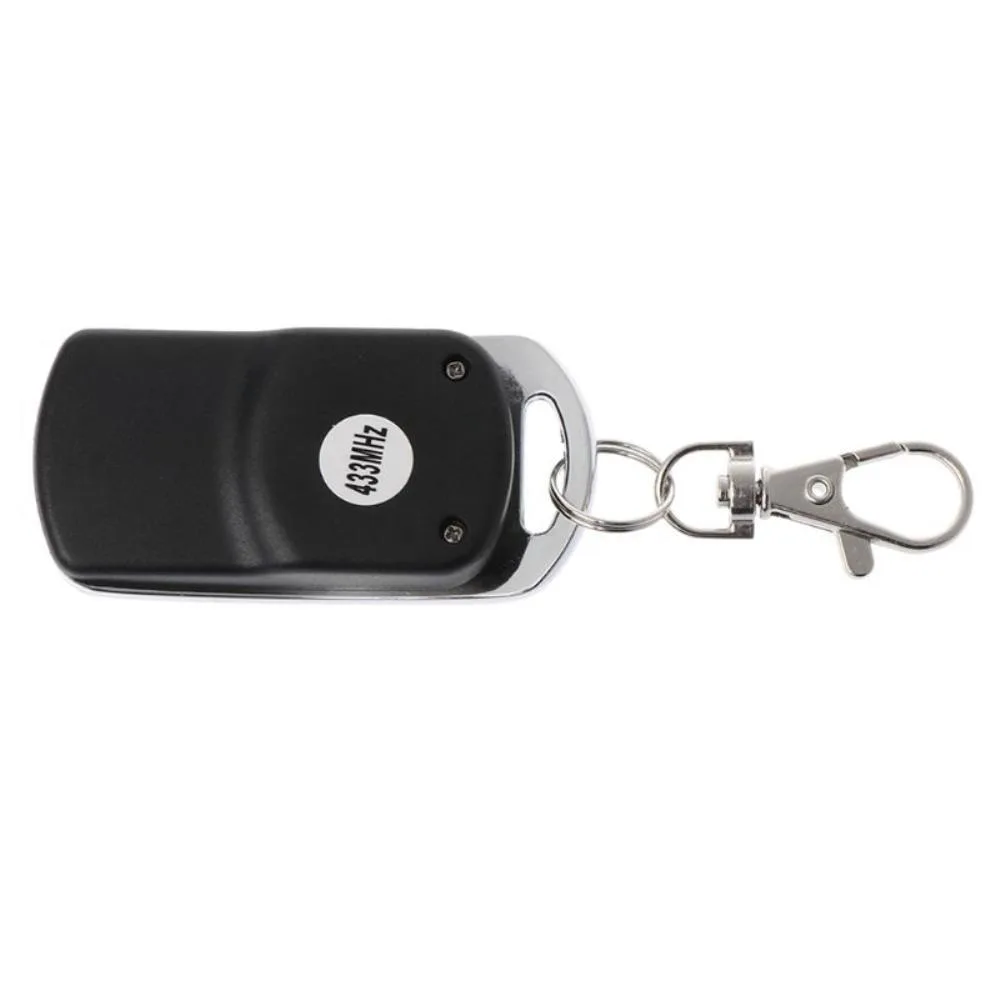

Universal 4-Channel Remote Duplicator

This duplicator copies up to four fixed-code or learning-code remotes onto a single handset. It targets installers and homeowners who operate garage doors, barrier gates or alarm systems and want one device instead of several. The unit works with a long list of common encoder chips including 2260, 2262, PT2264, 5326, SC5262, HT600, HT680, HT6207, HT6010, HT6012, HT6014, SMC918 series, 527, 1527, 2240, HCS101, HCS200, HCS201, HCS300 and HCS301. Buyers who need to clone rolling-code remotes that are not in the supported chip list cannot use this product.

Sustained copying performance

Copying data is faster and the copied code remains stable over repeated use. The remote operates at 433 MHz with a rated voltage of 12 V and a rated current of 10 mA. Strong wireless signal can pass through walls, floors and doors, so the duplicated commands reach the target device reliably during daily operation. The frequency range spans 270 MHz to 434 MHz, covering the common bands used by the supported chips.

433 MHz interface limits

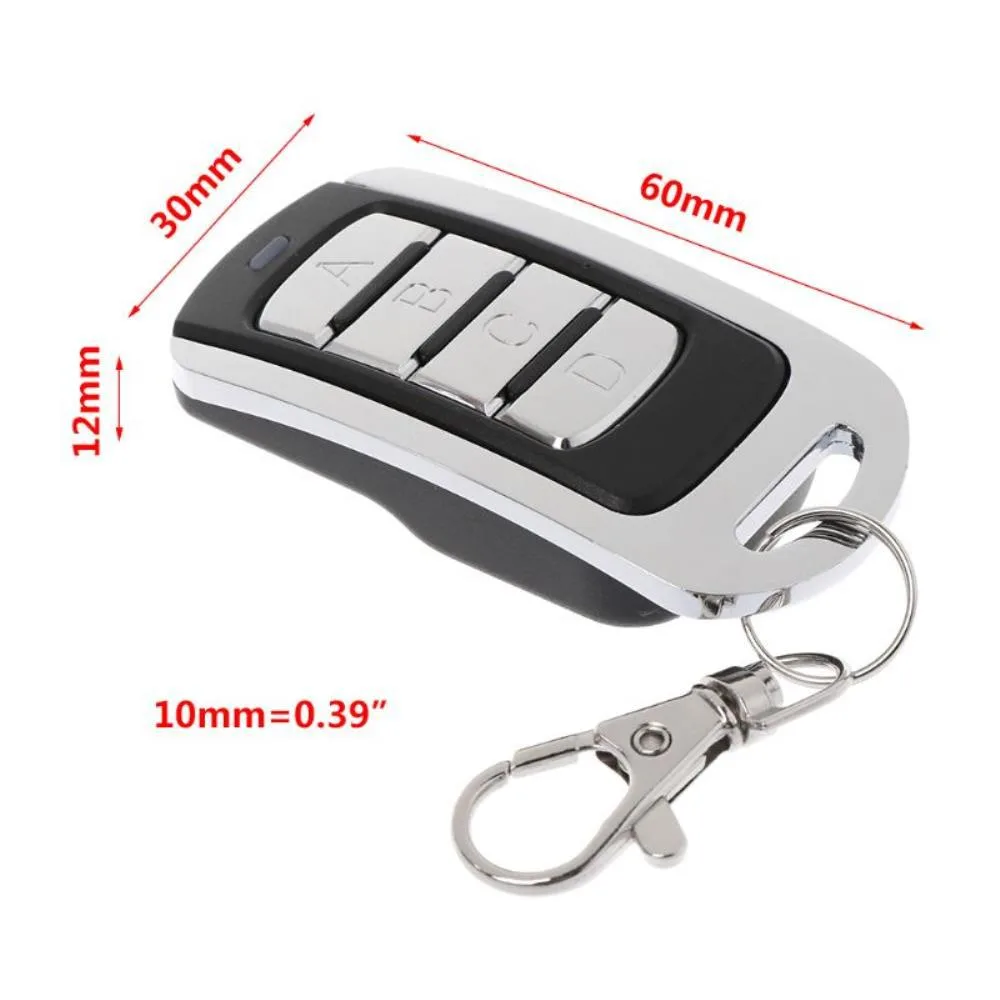

The duplicator communicates on the 433 MHz band and supports the encoder chips listed in the specifications. It does not support chips outside that list, so remotes using proprietary or unsupported encoding cannot be cloned. The four-button layout means only four distinct devices can be stored at once. Installation is autonomous and requires no additional wiring or external modules.
