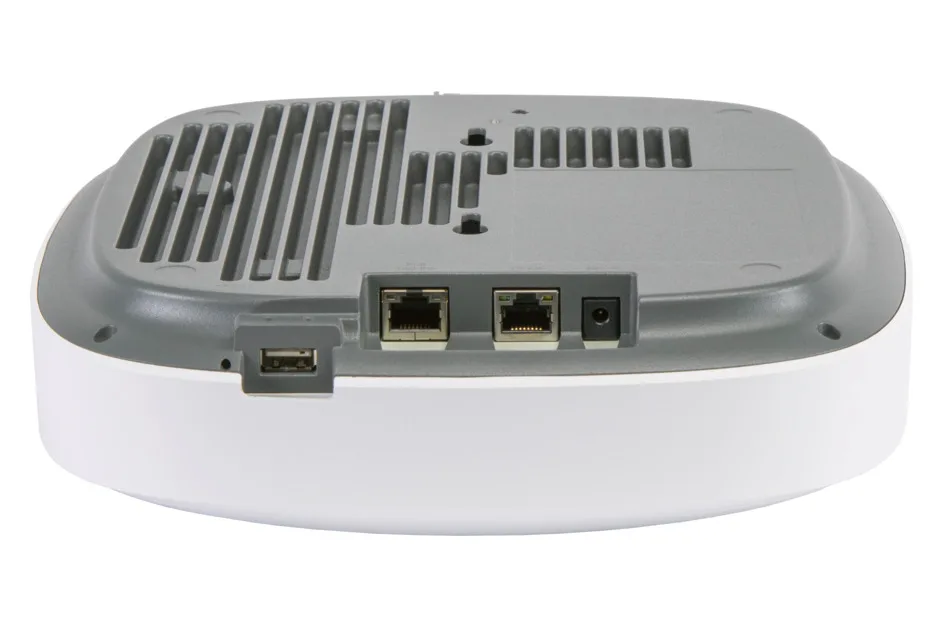

White indoor Wi-Fi 7 access point with curved vents and dual Ethernet ports

RUCKUS WIRELESS

RUCKUS WIRELESS 901-R770-US00 Wi-Fi 7 access point

SKU CH-TGFA-1Z9D4 MPN 901-R770-US00

Tri-band indoor access point delivers 12.22 Gbps Wi-Fi 7 throughput with BeamFlex+ adaptive antennas and a 10 GbE PoE port

  • ColorWhite
  • # of UsersUp to 1024 clients per AP
  • StandardsIEEE 802/11a/b/g/n/ac/ax/be
  • WiFi GenerationWi-Fi 7
  • Device ManagementWeb-Based
  • Wireless Data Rates12.22 Gbps

Class 1x1/2.5/5/10GbE, 1x1GbE, Wi-Fi 7

  • Tri-radio Wi-Fi 7 delivers 12.22 Gbps peak throughput
  • BeamFlex+ adaptive antennas create 4,000+ patterns per band for stronger coverage
  • Multi Link Operation transmits across multiple links to reduce interruptions
  • Dynamic PSK3 combines WPA3 security with per-user passphrases
  • 10 GbE PoE uplink plus 1 GbE port for flexible wired backhaul

R770 Tri-Radio Wi-Fi 7 Access Point

The RUCKUS R770 is an indoor wireless access point built on the Wi-Fi 7 standard with three radios operating across 2.4 GHz, 5 GHz and 6 GHz bands. It delivers a maximum data rate of 12.22 Gbps using 2x2 MIMO on the 2.4 GHz and 6 GHz radios and 4x4 MIMO on the 5 GHz radio. BeamFlex+ adaptive antennas provide over 4,000 unique patterns per band to optimise signal quality.

High-Density Environments Needing Multi-Link

This access point suits venues supporting up to 1,024 concurrent clients per AP where Multi-Link Operation across three bands reduces interruption risk. Networks limited to dual-band hardware or 2x2 spatial streams on all bands cannot match the 5 GHz 4x4 capacity or the 6 GHz spectrum access shown here. Installations requiring outdoor-rated enclosures or integrated controller hardware should evaluate other models.

12.22 Gbps Aggregate Throughput with Tri-Radio MLO

The decisive specification is the combined 12.22 Gbps rate achieved through simultaneous tri-radio operation and Multi-Link Operation. This throughput ceiling determines whether the AP can handle the aggregate load of high-density client groups running latency-sensitive applications on the 6 GHz band alongside legacy devices on 2.4 GHz and 5 GHz.

Highlights

  • Tri-radio Wi-Fi 7 delivers 12.22 Gbps peak throughput
  • BeamFlex+ adaptive antennas create 4,000+ patterns per band for stronger coverage
  • Multi Link Operation transmits across multiple links to reduce interruptions
  • Dynamic PSK3 combines WPA3 security with per-user passphrases
  • 10 GbE PoE uplink plus 1 GbE port for flexible wired backhaul

Specifications

BrandRuckus
SeriesR770
Model901-R770-US00
Part Number901-R770-US00
ColorWhite
# of UsersUp to 1024 clients per AP
StandardsIEEE 802/11a/b/g/n/ac/ax/be
WiFi GenerationWi-Fi 7
Device ManagementWeb-Based
Wireless Data Rates12.22 Gbps
SecurityWEP, WPA, WPA-PSK, WPA2, WPA2-PSK, WPA3, WPA3-SAE, OWE, PMF (802.11w), Dynamic PSK
WIPS/WIDS
Frequency Band2.4 GHz / 5 GHz / 6 GHz
Channels2.4GHz: 1-13
5GHz: 36-64, 100-144, 149-165
6GHz: 1-233
AntennaBeamFlex+ adaptive antennas with polarization diversity
Adaptive antenna that provides 4,000+ unique antenna patterns per band
Transmitted Power2.4GHz: 26dBm
5GHz: 28dBm
6GHz: 25dBm
Modulation4K QAM
InterfaceEthernet Port
LAN Ports1 x 100M/1/2.5/5/10G Ethernet PoE
1 x 10M/100M/1G Ethernet
Multiple SSIDsUp to 36 per AP
MIMO2x2 (2.4 and 6 GHz) and 4x4 (5 GHz) SU-MIMO
2x2 (2.4 and 6 GHz) and 4x4 (5 GHz) MU-MIMO
VLAN802.1Q (1 per BSSID or dynamic per user based on RADIUS)
VLAN Pooling
Port-based
Max Power ConsumptionDC Power: 32W
802.3bt5: 32W
PoH, uPoE: 40W
802.3at: 25.5W
ComplianceIEC/EN/UL 60950-1 Safety
IEC/EN/UL 62368-1 Safety
EN 60601-1-2 Medical
EN 61000-4-2/3/5 Immunity
EN 50121-1 Railway EMC
EN 50121-4 Railway Immunity
IEC 61373 Railway Shock & Vibration
UL 2043 Plenum
EN 62311 Human Safety/RF Exposure
WEEE & RoHS
ISTA 2A Transportation
GNSS Geolocation - (Rx mode only, L1 & L5 bands)
Zigbee & BLE (IEEE 802.15 in 2.4GHz ISM band)
Dimensions9.2in (L) x 9.2in (W) x 2.3in (H)
Weight3lbs
Package ContentsMounting clip
Shipping weight1.36 kg
Package size234 × 234 × 58 mm

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

What does the 10G PoE port cap in practice for this Wi-Fi 7 access point?

The 100M/1/2.5/5/10G PoE port supports the 12.22 Gbps aggregate wireless rate and powers the AP via PoE.

What physical mounting does the R770 indoor AP require?

The unit is white, designed for indoor ceiling or wall mounting, and connects through one 10G PoE port plus one 1G Ethernet port.

How is the 901-R770-US00 installed, and which step is often missed?

Mount the AP, plug the 10G PoE cable into a PoE switch, then configure up to 36 SSIDs and security like WPA3-SAE in the web interface.
