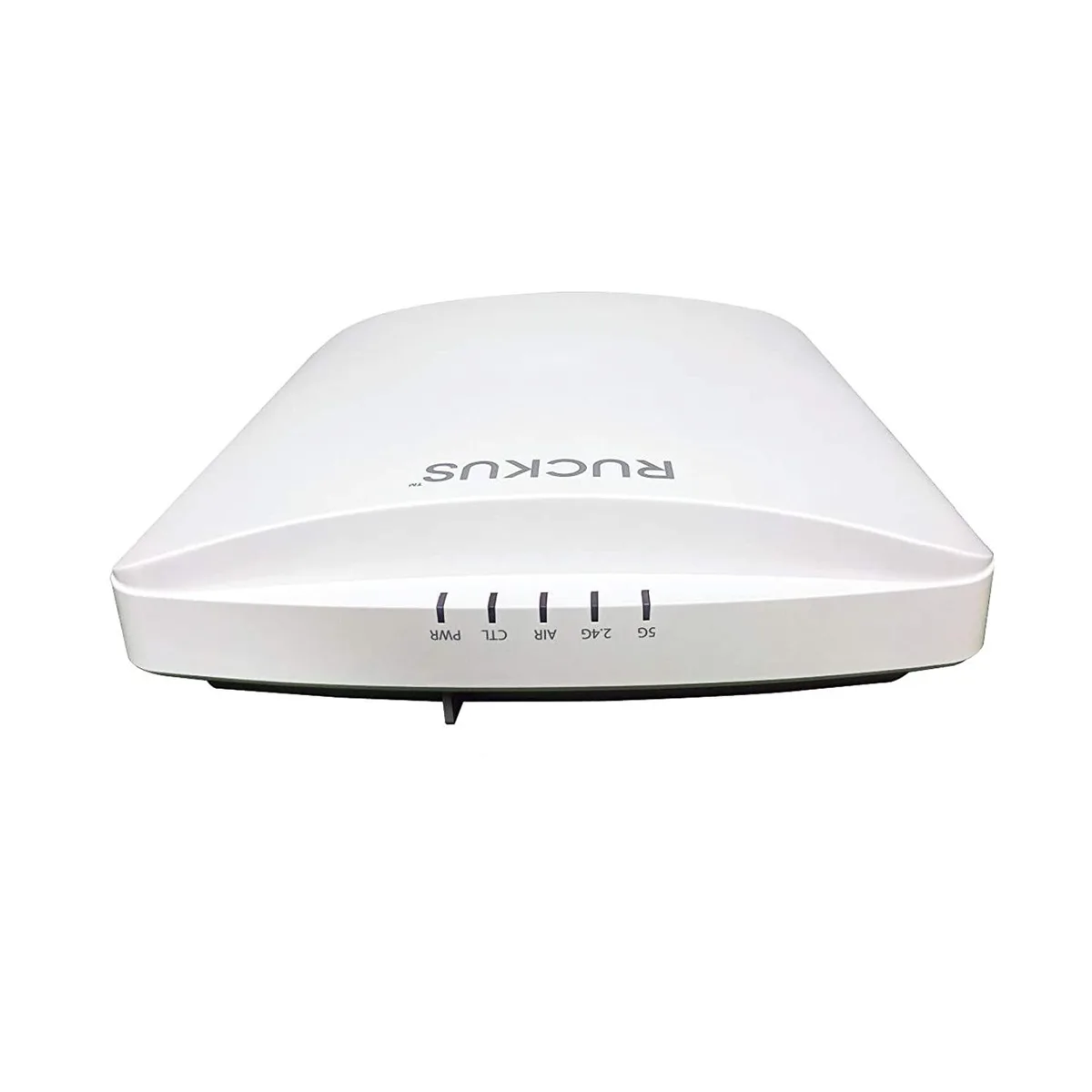

White rectangular indoor Wi-Fi 6 access point with curved edges, wall or ceiling mountable

RUCKUS WIRELESS

RUCKUS WIRELESS 901-R750-US00 Wi-Fi 6 access point

SKU CH-33KT-60W9M MPN 901-R750-US00

Delivers Wi-Fi 6 with 4×4:4 MU-MIMO on both bands, a 2.5 GbE PoE+ port and built-in BLE/Zigbee for converged IoT access

  • StandardsIEEE 802.1Q, IEEE 802.11b, IEEE 802.11a, IEEE 802.3af, IEEE
  • Frequency Band2.4 GHz, 5 GHz
  • AntennaDirectivity: Omni-directional Gain Level: 3 dBi
  • Transmitted PowerPower Over Ethernet (PoE) Supported: PoE+
  • Interface1 x 1000Base-T (PoE+) - RJ-45 ¦ 1 x USB 2.0 - Type A ¦ 1 x 2
  • TemperatureMin Operating Temperature: 32 °F Max Operating Temperature:

Class 1x1GbE, 1x2.5GigE, 8 Spatial Streams, Wi-Fi 6

  • Connect more devices simultaneously with 8 spatial streams and MU-MIMO
  • High-density performance for large venues using RUCKUS Ultra-High-Density Technology Suite
  • Converged access point with built-in BLE and Zigbee plus USB expansion
  • Multi-gigabit speeds via 2.5 GBase-T port for multigigabit switch uplinks
  • Flexible management options with on-premise appliances and auto-provisioning

Indoor Wi-Fi 6 Access Point

The Ruckus 901-R750-US00 is an indoor wireless access point built for high-density environments such as meeting halls, classrooms and enterprise offices. It delivers Wi-Fi 6 performance with 4x4:4 spatial streams on both the 2.4 GHz and 5 GHz bands, supporting up to eight simultaneous streams for dense client loads.

PoE+ Connectors and Mounting

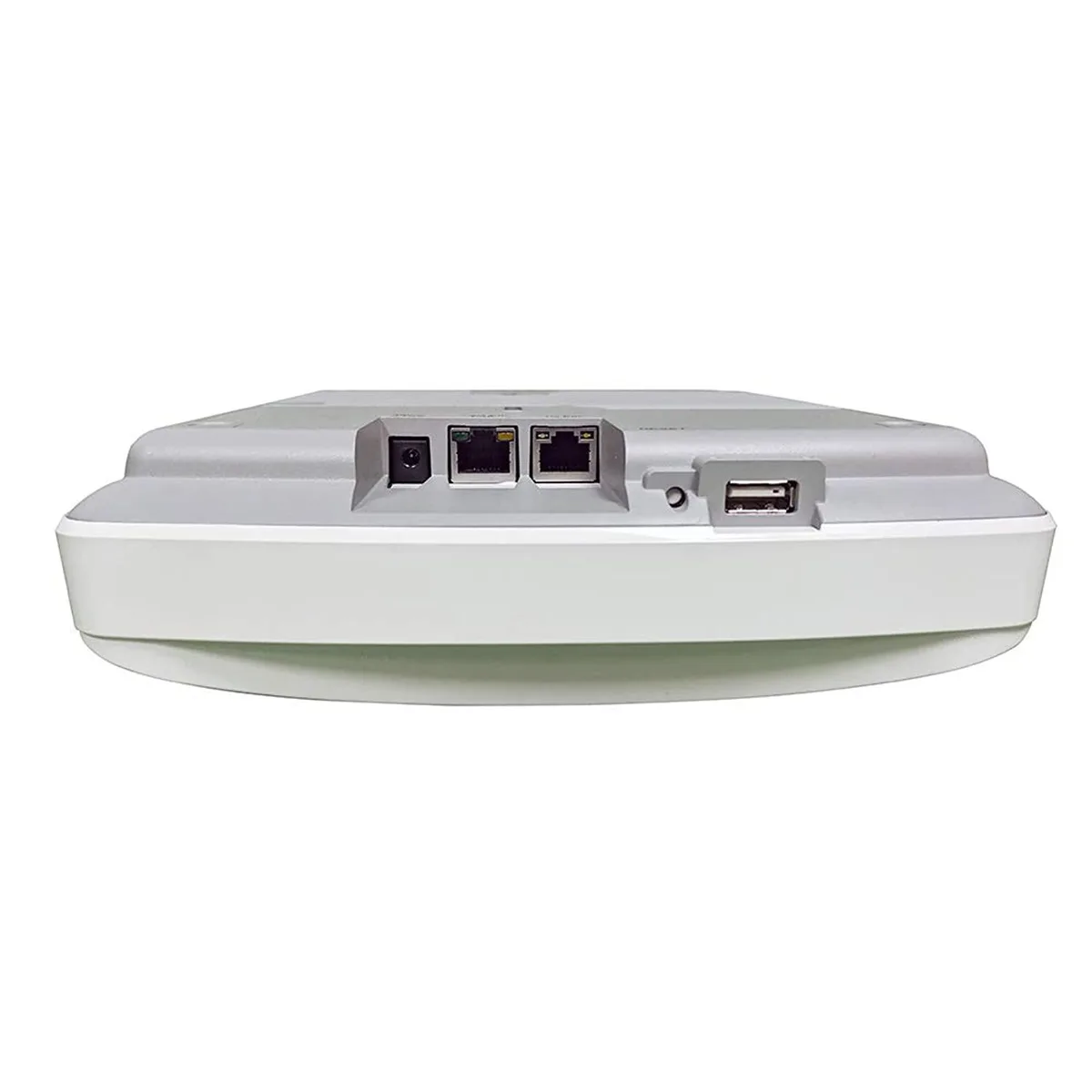

Two powered Ethernet ports provide flexible uplinks: one 1000Base-T and one 2.5 GBase-T, both supporting PoE+ so the unit draws power from the switch. A USB 2.0 Type A port allows future IoT expansion, while the wall and ceiling mountable chassis meets UL 2043 plenum ratings for safe installation in air-handling spaces.

3.5 Gbps Aggregate Throughput

The radio hardware reaches a maximum combined data rate of 3.5 Gbps, split as 1148 Mbps on 2.4 GHz and 2400 Mbps on 5 GHz. Buyers needing higher multi-gigabit backhaul or outdoor-rated enclosures should evaluate other models.

Highlights

  • Connect more devices simultaneously with 8 spatial streams and MU-MIMO
  • High-density performance for large venues using RUCKUS Ultra-High-Density Technology Suite
  • Converged access point with built-in BLE and Zigbee plus USB expansion
  • Multi-gigabit speeds via 2.5 GBase-T port for multigigabit switch uplinks
  • Flexible management options with on-premise appliances and auto-provisioning

Specifications

BrandRuckus
Part Number901-R750-US00
StandardsIEEE 802.1Q, IEEE 802.11b, IEEE 802.11a, IEEE 802.3af, IEEE 802.11g, IEEE 802.1x, Wi-Fi CERTIFIED, IEEE 802.11n, IEEE 802.3at, IEEE 802.11ac
UL 2043, RoHS, WEEE, EN 60601-1-2, EN 50121-4, IEC 61373, EN 50121-1
Frequency Band2.4 GHz, 5 GHz
AntennaDirectivity: Omni-directional
Gain Level: 3 dBi
Transmitted PowerPower Over Ethernet (PoE) Supported: PoE+
Interface1 x 1000Base-T (PoE+) - RJ-45 ¦ 1 x USB 2.0 - Type A ¦ 1 x 2.5 GBase-T (PoE+)
TemperatureMin Operating Temperature: 32 °F
Max Operating Temperature: 122 °F
HumidityHumidity Range Operating: 0 - 95% (non-condensing)
FeaturesAuto-sensing per device, DHCP support, NAT support, VLAN support, auto-uplink (auto MDI/MDI-X), manageable, IPv6 support, wall mountable, Wi-Fi Multimedia (WMM) support, Quality of Service (QoS), IPv4 support, Link Aggregation Control Protocol (LACP), Maximum Ratio Combining (MRC), Space Time Blocking Code (STBC), ceiling mountable, security lock slot (cable lock sold separately), BeamFlex+ Smart Antenna Technology, MU-MIMO technology, SU-MIMO technology, 4x4:4 streams
Encryption Algorithm: AES, WPA-PSK
Authentication Method: RADIUS, LDAP, Basic Service Set Identifier (BSSID), Active
Shipping weight1.01 kg
Package size236 × 206 × 61 mm

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

What maximum wired throughput does the 2.5 GBase-T port on the 901-R750-US00 support?

The 2.5 GBase-T port delivers up to 2.5 Gbps wired throughput when connected to a compatible multi-gigabit switch.

What mounting options are available for the Ruckus 901-R750-US00?

The access point is wall and ceiling mountable, allowing flexible indoor placement.

How is the 901-R750-US00 powered, and what PoE standard is required?

It is powered via PoE+ on either the 1000Base-T or 2.5 GBase-T port; a PoE+ (802.3at) injector or switch is required.
