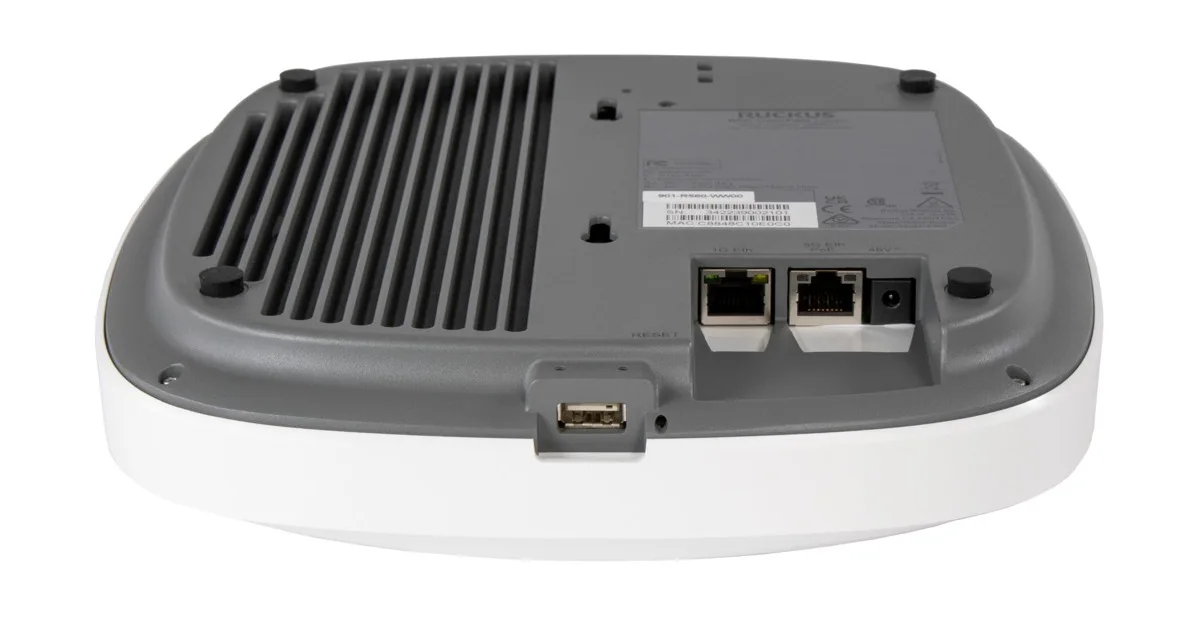

White rectangular indoor Wi-Fi 6E access point with rounded edges and front LED indicator

RUCKUS WIRELESS

RUCKUS WIRELESS 901-R560-US00 Wi-Fi 6E access point

SKU CH-0FDZ-N1BRC MPN 901-R560-US00

Tri-radio Wi-Fi 6E access point delivers 4.7 Gbps aggregate throughput, supports 1536 clients, and includes embedded BLE and Zigbee IoT radios

  • StandardsNetworking Compliant Standards: Wi-Fi Standards IEEE 802.11a
  • Wireless Data RatesData Transfer Rate: 1 Gbps; 2.5 Gbps Data Link Protocol: Gig
  • Frequency Band2.4 GHz; 5 GHz
  • Max Power ConsumptionDC Power Consumption: 21.46 W Max Power Consumption: 21.59 W
  • FeaturesFeatures: WPA-PSK, WPA-TKIP, WPA2 AES, WPA3, 802.11i, Dynami

Class 1x1/2.5/5GbE, 1x1GbE, Wi-Fi 6E

  • Wi-Fi 6E tri-radio delivers up to 4.7 Gbps aggregated throughput
  • Smart BeamFlex+ antenna technology maximises coverage and MIMO diversity gain
  • Built-in 2.5 Gbps and 5 Gbps Ethernet ports eliminate wired backhaul bottlenecks
  • Self-forming 6 GHz mesh reduces cabling and deployment complexity
  • Embedded BLE and Zigbee radios converge IoT connectivity on one platform

RUCKUS R560 Wi-Fi 6E Access Point

The RUCKUS R560 is a tri-radio indoor wireless access point built for high-density environments. It supports the Wi-Fi 6E standard across 2.4 GHz, 5 GHz and the 6 GHz band. The unit manages up to 1536 concurrent clients with an aggregated maximum throughput of 4.7 Gbps. Integrated BLE and Zigbee radios add IoT connectivity without extra hardware.

Thermals, noise and power draw

The access point draws a maximum of 21.59 W under load and 21.46 W on DC power. It operates silently with no moving parts, making it suitable for ceiling or wall mounting in occupied spaces. Power is delivered via a multi-gigabit Ethernet port supporting 2.5 Gbps and 5 Gbps backhaul links.

4.7 Gbps aggregated throughput

The combined 4.7 Gbps data rate across three radios determines whether the R560 matches the capacity needs of a venue. Buyers who need higher aggregate throughput or more spatial streams than the six provided here should evaluate other models. The built-in USB port allows future radio modules, but current client capacity tops out at 1536 devices.

Highlights

  • Wi-Fi 6E tri-radio delivers up to 4.7 Gbps aggregated throughput
  • Smart BeamFlex+ antenna technology maximises coverage and MIMO diversity gain
  • Built-in 2.5 Gbps and 5 Gbps Ethernet ports eliminate wired backhaul bottlenecks
  • Self-forming 6 GHz mesh reduces cabling and deployment complexity
  • Embedded BLE and Zigbee radios converge IoT connectivity on one platform

Specifications

BrandRuckus
Part Number901-R650-US00
StandardsNetworking Compliant Standards: Wi-Fi Standards IEEE 802.11a/b/g/n/ac/ax
Wireless Data RatesData Transfer Rate: 1 Gbps; 2.5 Gbps
Data Link Protocol: Gigabit Ethernet; Wi-Fi
Frequency Band2.4 GHz; 5 GHz
Max Power ConsumptionDC Power Consumption: 21.46 W
Max Power Consumption: 21.59 Watt
FeaturesFeatures: WPA-PSK, WPA-TKIP, WPA2 AES, WPA3, 802.11i, Dynamic PSK, OWE,WIPS/WIDS
Shipping weight1.41 kg
Package size234 × 234 × 48 mm

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

How is the R560 mounted and which step do installers often skip?

The R560 mounts on a ceiling or wall using the included bracket; the step often skipped is torquing the security screw to lock the AP to the bracket.

What component will need replacement first and when?

The internal power supply is rated for continuous operation at 21.59 W; plan to replace the AP after its typical five-to-seven-year lifecycle.

What throughput limit appears first under sustained heavy load?

The 2.5 Gbps Ethernet uplink becomes the bottleneck before the 4.7 Gbps aggregate Wi-Fi capacity is reached.
