Rfwel Infra PHTCELTAP Photocell Power Adapter Tap 10 ft 120 VAC
A 10 ft twist-lock adapter taps a streetlight NEMA socket to supply continuous 120 VAC power for outdoor radio equipment
- Changer TypePhotocell Power Tap Adapter
- ColorGray
- Cable Length10 ft
- SpecificationsStreetlight Adapter, Continuous-On Tap. Output Voltage: 120
- Connector A3 prong plug, Twist-lock (ANSI C136.10)
- Connector BMicro-Link (Female)
- Provides continuous 120 VAC power to outdoor radio equipment
- 10 ft ozone-resistant 16 AWG SOOW cord with Remke female connector
- Simple twist-lock ANSI C136.10 installation without interfering with photocontrol operation
- Water-resistant UV-stabilised impact-resistant housing for outdoor durability
- Supports up to 1800 VA load for high-power microwave radios
Photocell Power Adapter Tap for Streetlight

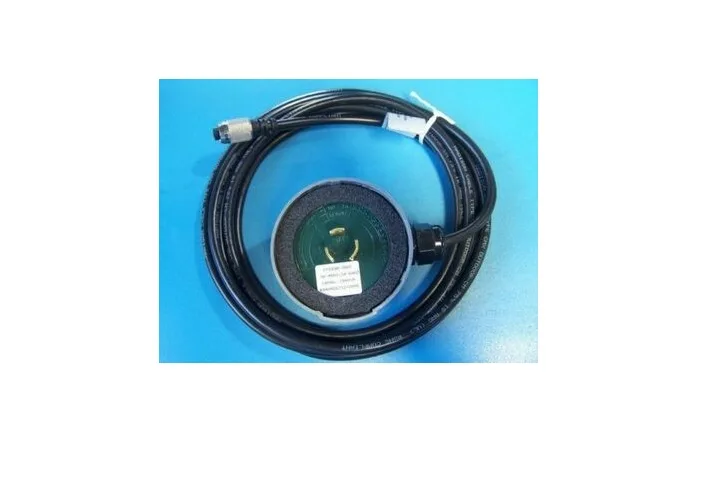

The Rfwel Infra PHTCELTAP is a NEMA twist-lock adapter that draws continuous 120 VAC power from an existing streetlight photocontrol socket. It is designed for installers who need to supply outdoor radio equipment without disrupting the luminaire's normal operation. The unit provides a Micro-Link female output for direct device connection.
Practical limits of the ANSI C136.10 interface
The adapter complies with ANSI C136.10 and accepts a 100 to 480 VAC input range while delivering a fixed 120 VAC output. It supports loads up to 1800 VA, which is sufficient for high-power long-range microwave radios. The three-pin design does not pass control signals through to the connected device.
What to verify before ordering
Confirm that the streetlight fixture has a compatible NEMA twist-lock receptacle matching the ANSI C136.10 standard. Ensure the connected equipment operates on 120 VAC and does not exceed the 1800 VA rating. The 10 ft, 16 AWG SOOW cord length determines placement flexibility relative to the socket.
Highlights
- Provides continuous 120 VAC power to outdoor radio equipment
- 10 ft ozone-resistant 16 AWG SOOW cord with Remke female connector
- Simple twist-lock ANSI C136.10 installation without interfering with photocontrol operation
- Water-resistant UV-stabilised impact-resistant housing for outdoor durability
- Supports up to 1800 VA load for high-power microwave radios
Specifications
| Brand | Rfwel Infra |
|---|---|
| Model | PHTCELTAP |
| Part Number | PHTCELTAP |
| Changer Type | Photocell Power Tap Adapter |
| Color | Gray |
| Cable Length | 10 ft |
| Specifications | Streetlight Adapter, Continuous-On Tap. Output Voltage: 120 VAC. Compliant with ANSI C136.10. |
| Connector A | 3 prong plug, Twist-lock (ANSI C136.10) |
| Connector B | Micro-Link (Female) |
| Features | 3-Pin (No Control Pass-Through) |
| Weight | 1 lb |
| Package Quantity | 1 |
Questions about this item
Which cable length suits my streetlight mounting height?
The adapter ships with a 10 ft 16 AWG SOOW cord that reaches most pole-top fixtures from the NEMA socket.
What does the 120 VAC continuous rating mean for my radio gear?
It delivers steady 120 VAC at up to 1800 VA so even high-power microwave radios run without voltage drops.
How does the ANSI C136.10 twist-lock limit what I can plug in?
The 3-pin twist-lock seats only in standard NEMA photocontrol receptacles and provides power but no control pass-through.
