Metal push button with LED ring, 16mm panel mount, 60cm cable for ATX power or reset

Push Button 16mm 60cm

SKU CH-4V3J-8W7ZG

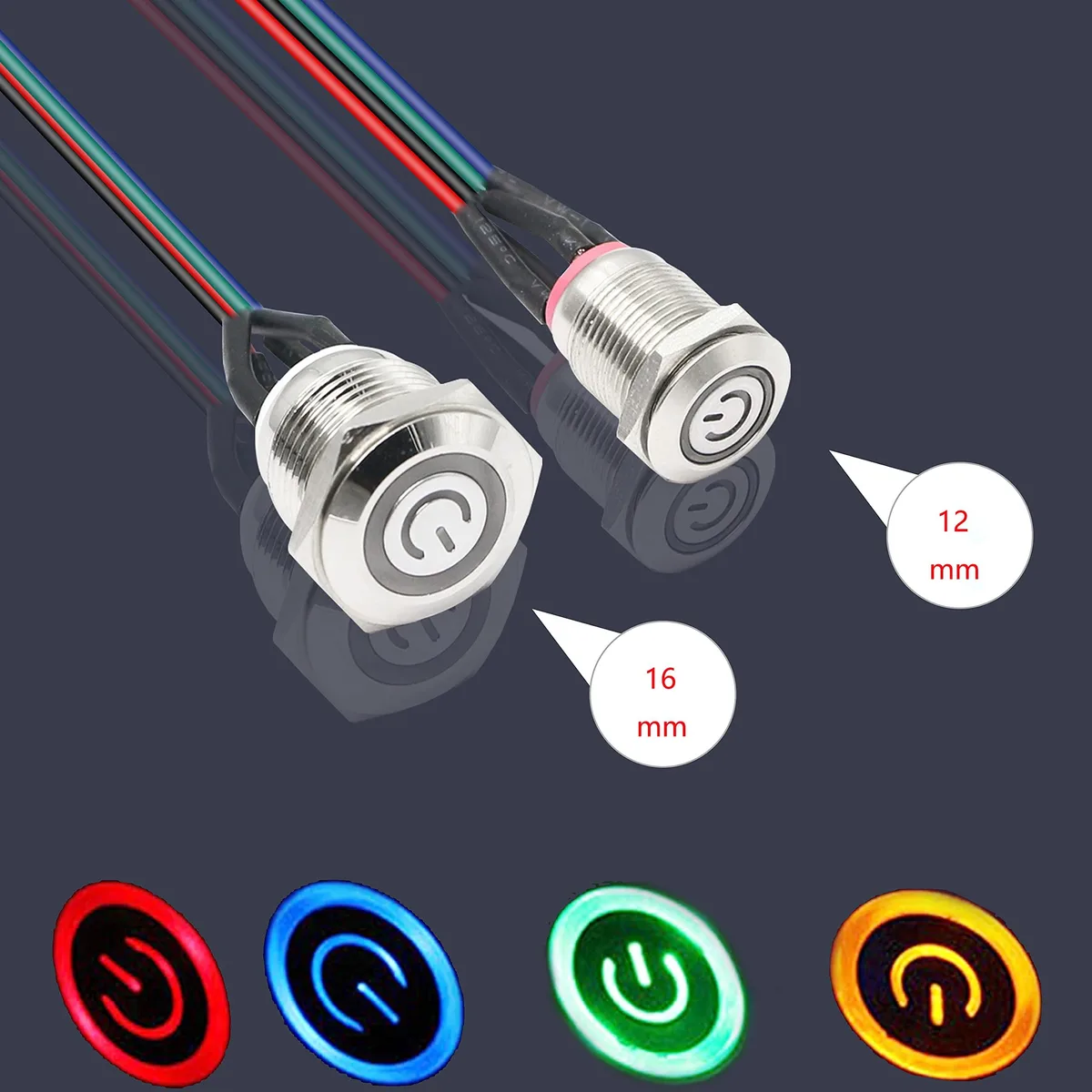

16 mm panel-mount push button with 60 cm cable and LED for ATX power or reset switching on computer cases and motherboards

  • TypePush Buttons
  • Switch FunctionOff
  • Voltage250 volts
  • Housing MaterialAluminum Alloy,Nickel,Metal
  • Mounting StylePanel Mount
  • Size/Dimensions1.2 cm x 9.7 cm x 15.1 cm
  • Replaces a damaged ATX power or reset switch
  • Simple one‑end motherboard connection, other end mounts on chassis panel
  • Rated for up to 5 A at 220 V on the 16 mm switch
  • Red LED shows restart, blue LED shows power‑on status
  • Nickel‑plated aluminium alloy housing rated IP65 for durability

Chassis Switch with LED Indicator

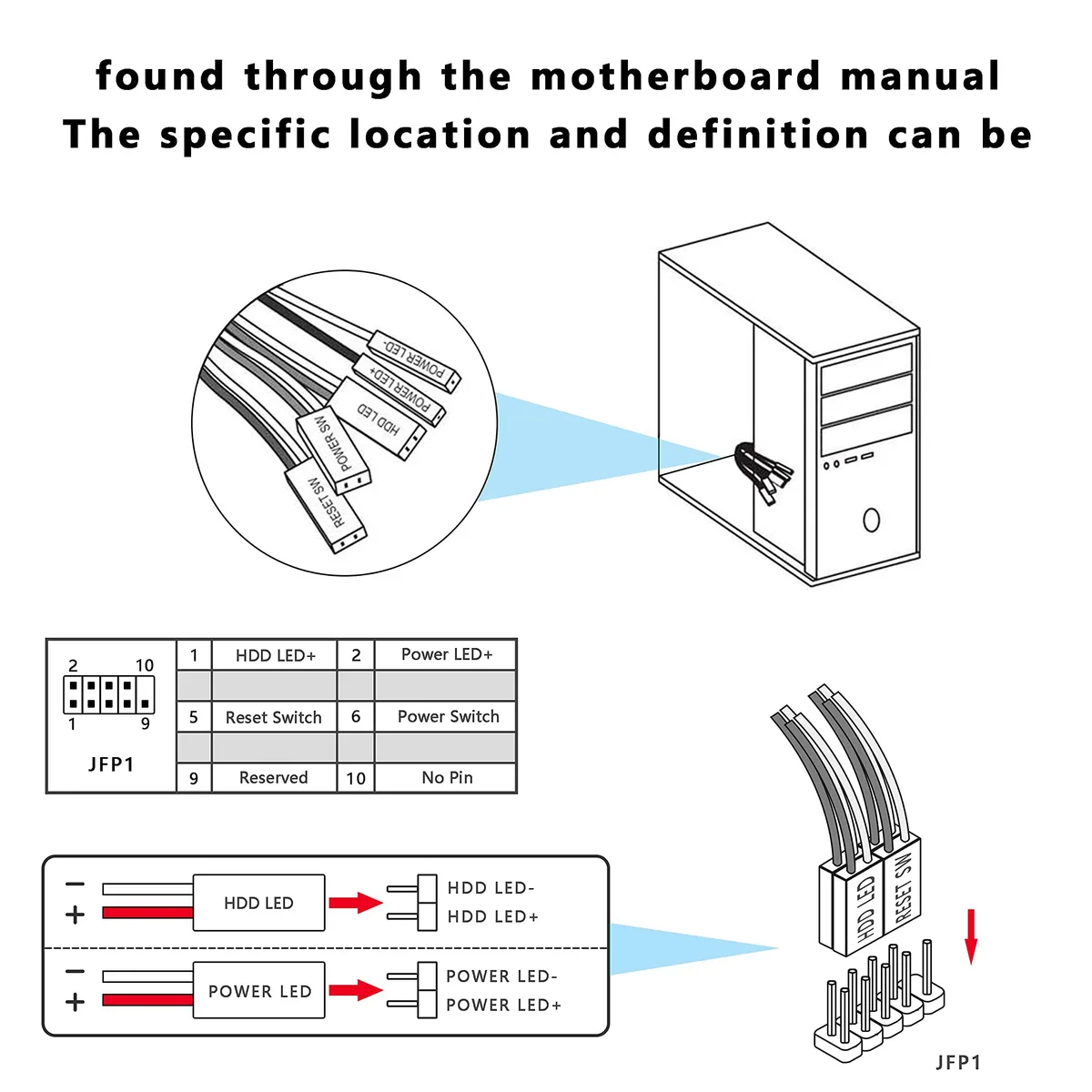

This panel-mount push button replaces a damaged ATX power or reset switch on a computer case. The 16 mm metal housing fits a standard front-panel cut-out and includes a built-in LED that shows blue for power-on and red for reset. A 60 cm cable connects the switch to the motherboard header. It is intended for DIY builders repairing or customising a case front panel.

250 V, 5 A Contact Rating

The switch contacts are rated for AC or DC circuits up to 250 V and 5 A maximum, with the LED circuit rated at 3–6 V and 20 mA. This headroom covers typical motherboard power and reset signals, which draw only milliamps at low voltage. The rating would be exceeded by any mains-voltage load above 5 A or by driving the LED directly from a higher voltage without its series resistor.

IP65 Sealed Panel Mount

The aluminium-alloy body meets IP65, so dust and low-pressure water jets cannot enter through the panel cut-out. The seal is effective only when the switch is correctly mounted in a flat, rigid panel with the supplied hardware. It does not protect the cable entry or the motherboard connector, and it is not rated for immersion or high-pressure wash-down.

Highlights

  • Replaces a damaged ATX power or reset switch
  • Simple one‑end motherboard connection, other end mounts on chassis panel
  • Rated for up to 5 A at 220 V on the 16 mm switch
  • Red LED shows restart, blue LED shows power‑on status
  • Nickel‑plated aluminium alloy housing rated IP65 for durability

Specifications

TypePush Buttons
BrandXMSJSIY
Switch FunctionOff
Voltage250 volts
Housing MaterialAluminum Alloy,Nickel,Metal
Mounting StylePanel Mount
Size/Dimensions1.2 cm x 9.7 cm x 15.1 cm
MaterialAluminum
Standards/CertificationsIP65, Ip65
Horsepower3
Operating Temperature-20 degrees_celsius
Operating Frequencynot_applicable
Actuation TypePush Button
DutyComputer Cases, Motherboards
Compatibility/FitmentComputer Cases, Motherboards
Resolution1
FeaturesComputer Cases, Motherboards

Questions about this item

Will the 16 mm push button fit the panel cut-out on my existing ATX case?

The switch is designed for a 16 mm panel mount cut-out, which matches the standard opening on most ATX chassis front panels.

How can I confirm the LED indicator is functioning once the button is wired to the motherboard?

Press the button; the built-in LED lights red for reset or blue for power, showing the circuit is live and the switch is actuating.

Does the package include any mounting hardware such as a bezel or retaining nut?

The box contains the push-button assembly with a 60 cm cable and pre-attached connectors; no extra bezel, nut or tools are supplied.
