Yellow G1/4 90-degree rotary 15mm extension elbow fitting with powder-coated brass finish

PrimoChill

PrimoChill G1/4 90° Rotary 15mm Extension Elbow Yellow

SKU CH-WVJY-G8G8V

A G1/4 male-to-female 90° rotary elbow with 15mm extension for redirecting tubing runs in custom water-cooling loops

  • TypeCPU Block

Option Yellow

Struck-through versions exist but are not stocked here.

  • 360° rotary lets you aim the connection in any direction
  • 90° elbow redirects tubing runs away from components at unconventional angles
  • 15 mm extension adds clearance when other parts are in the way
  • SX powder-coated finish protects the brass body
  • Male and female G 1/4 threads connect standard water-cooling components

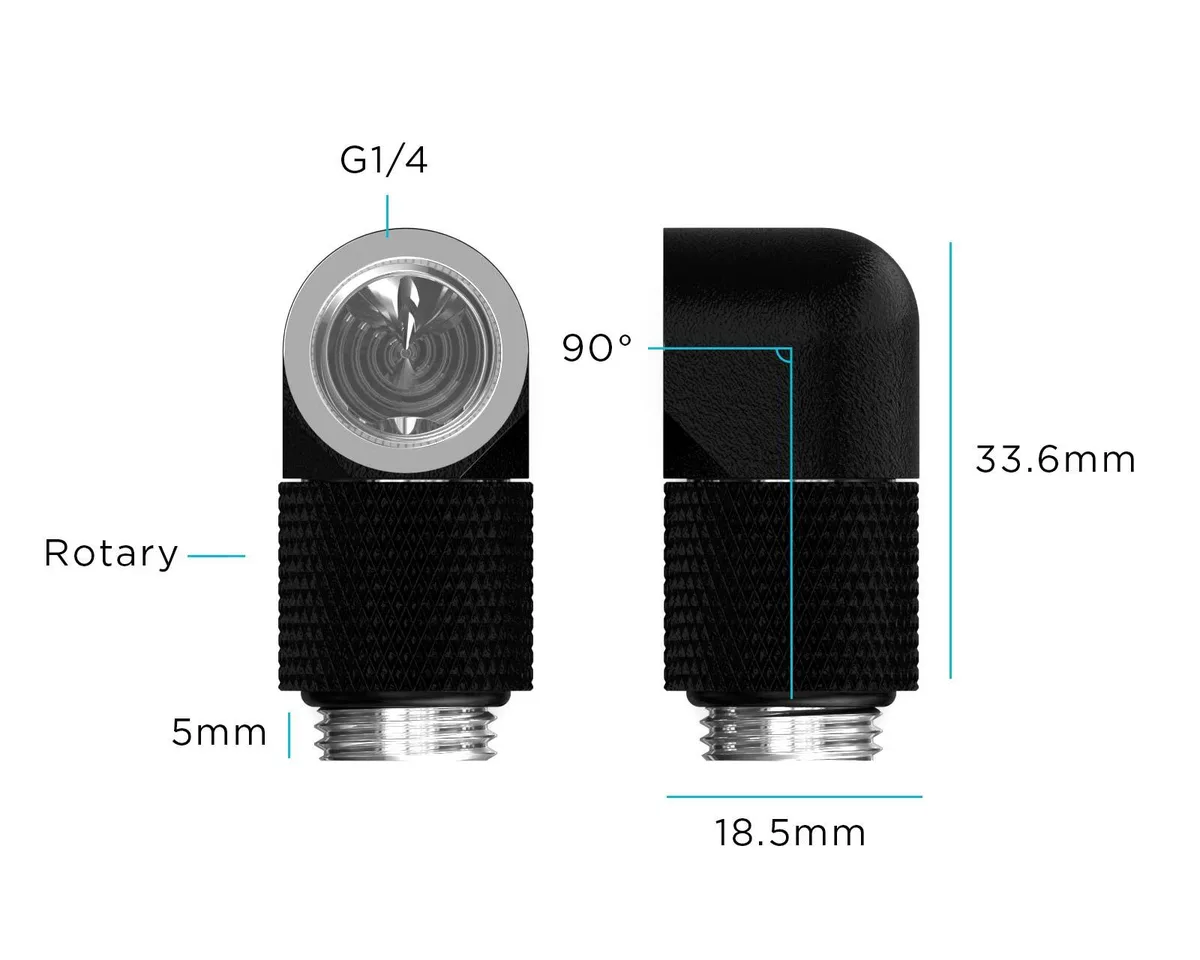

G1/4 90° Rotary Extension Elbow

The PrimoChill G1/4 90° rotary extension elbow connects male and female G1/4 threads at a right angle. Its 15 mm extension adds clearance for tight routing. The 360 degree rotary joint lets you orient the fitting precisely without stressing tubing runs.

Check thread compatibility and loop pressure

Verify that your blocks, radiators and reservoirs use standard G1/4 threads before ordering. The fitting includes an installed O-ring on the male side for sealing. Rotary joints can occasionally dislodge after movement, so plan to test the loop thoroughly for leaks after assembly.

Fits custom loops needing angled connections

Use this elbow to redirect tubing away from components at unconventional angles. The rotary function frees you from fixed port alignment, while the extension clears nearby hardware. The SX powder coated finish resists corrosion inside the loop. Pressure valves are recommended for any rotary fitting installation.

Highlights

  • 360° rotary lets you aim the connection in any direction
  • 90° elbow redirects tubing runs away from components at unconventional angles
  • 15 mm extension adds clearance when other parts are in the way
  • SX powder-coated finish protects the brass body
  • Male and female G 1/4 threads connect standard water-cooling components

Specifications

TypeCPU Block

Other versions of this model

3 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

Does the box contain everything needed to install the 90° rotary elbow, or do I need to buy extra seals?

The package includes one male-to-female G 1/4in. 90° rotary 15mm extension elbow with an O-ring already installed on the male threaded side, so no separate seals are required.

Should I choose a different length or angle instead of this 15mm 90° rotary version?

This fitting provides a 15mm extension with a 90° bend and full 360° rotary adjustment; select it when you need that exact offset and directional freedom, otherwise pick a straight or fixed-angle alternative.

How does the 15mm extension and 90° rotary action behave once the fitting is in a live loop?

The 15mm extension adds clearance from nearby parts, while the 360° rotary joint lets you aim the female port 90° from the mount in any direction; occasional joint movement may unseat seals, so press the joints back and retest if a leak appears.
