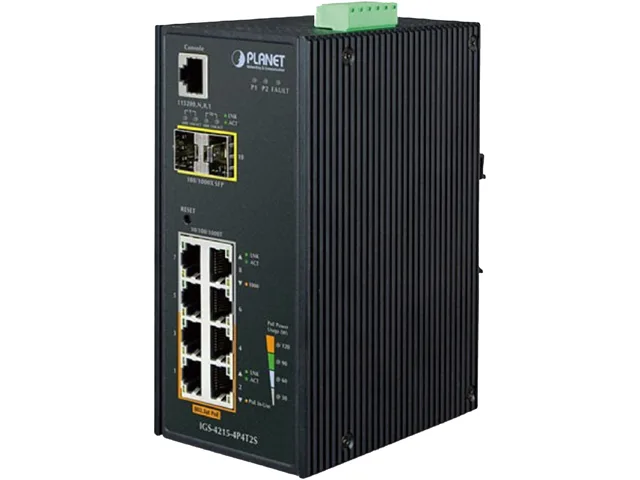

Industrial managed switch, metal DIN-rail housing, eight RJ45 ports, two SFP slots, LED indicators

PLANET

PLANET IGS-4215-4P4T2S network switch

SKU CH-M7CJ-GCQH7 MPN IGS-4215-4P4T2S

Industrial managed Gigabit switch with four PoE+ ports, four copper ports, two SFP slots and -40 to 75 °C operating range

  • Network Management TypeManaged
  • Primary Ports8-port 10/100/1000BASE-T Gigabit RJ45 copper with 4-port IEE
  • Primary Port Speed10/100/1000Mbps
  • MAC Address Table8K
  • Switching MethodStore and Forward
  • VLAN SupportYes
  • Managed L2/L4 switching for hardened networks
  • 4-port 802.3at PoE+ with 144 W budget
  • 2 SFP slots for 100/1000BASE-X fibre uplinks
  • 40 °C to 75 °C operating range in IP30 metal housing
  • Dual 48–56 V DC input with power-fault alarm

Industrial PoE+ Switch with SFP Uplinks

The PLANET IGS-4215-4P4T2S is a managed Gigabit switch built for hardened environments. It delivers four 802.3at/af PoE+ ports with a 144-watt total power budget, four additional copper ports, and two SFP fiber slots for uplink flexibility. The IP30 metal housing operates from -40 to 75 degrees C on 48 to 56V DC power.

Suited for Industrial Surveillance

This switch fits deployments that need PoE+ for cameras, access points or VoIP endpoints in extreme temperatures. It supports IEEE 802.1X authentication, RADIUS, SNMP, QoS and LACP for managed infrastructure. Buyers who need fiber-only connectivity or AC-powered desktop units should look elsewhere.

144-Watt PoE+ Budget Determines Device Count

The 144-watt total PoE budget across four ports decides how many 30-watt class devices you can power simultaneously. Exceeding this budget requires reducing connected endpoints or adding another power source.

Highlights

  • Managed L2/L4 switching for hardened networks
  • 4-port 802.3at PoE+ with 144 W budget
  • 2 SFP slots for 100/1000BASE-X fibre uplinks
  • 40 °C to 75 °C operating range in IP30 metal housing
  • Dual 48–56 V DC input with power-fault alarm

Specifications

BrandPLANET
ModelIGS-4215-4P4T2S
Network Management TypeManaged
Primary Ports8-port 10/100/1000BASE-T Gigabit RJ45 copper with 4-port IEEE 802.3at/af PoE Injector (Port-1 to Port-4)
2 x 100/1000BASE-X mini-GBIC / SFP slots, SFP type auto detection
Primary Port Speed10/100/1000Mbps
MAC Address Table8K
Switching MethodStore and Forward
VLAN SupportYes
Jumbo Frames10KB
SecurityStorm Control support
- Broadcast / unknown unicast / unknown multicast
Authentication
- IEEE 802.1X port-based network access authentication
- Built-in RADIUS client to cooperate with the RADIUS servers
- DHCP Option 82
- RADIUS / TACACS+ authentication
Access Control List
- IPv4 / IPv6 IP-based ACL
- IPv4 / IPv6 IP-based ACE
- MAC-based ACL
- MAC-based ACE
MAC Security
- Static MAC
- MAC filtering
Port security for source MAC address entries filtering
DHCP snooping to filter distrusted DHCP messages
Dynamic ARP inspection discards ARP packets with invalid MAC address to IP address
PoEYes
SNMPYes
QoSYes
LACPYes
Port MirroringYes
LEDs3 x LED for System and Power:
Green: DC Power 1
Green: DC Power 2
Red: Power Fault
2 x LED for PoE Copper Port (Port-1~Port-4):
Green: LNK / ACT
Orange: PoE-in-use
2 x LED for 10/100/1000T Copper Port (Port-5~Port-8):
Green: LNK / ACT
Orange: 1000 Mbps
2 x LED for per mini-GBIC interface (Port-9 and Port-10)
Green: LNK / ACT
Orange: 1000 Mbps
4 x LED for PoE Power Usage (W)
Orange: 30, 60, 90 and 120W
PowerPower Requirements: 48~56V DC, 3.5A (max.)
Power Consumption / Dissipation:
5.04 watts, 17.1 BTU (Standby without PoE function)
8.96 watts, 30.5 BTU (Full loading without PoE function)
152.96 watts, 521.8 BTU (Full loading with PoE function)
Dimensions2.83" x 6.34" x 4.21"
Shipping weight1.81 kg
Package size254 × 203 × 152 mm

Questions about this item

What are the mounting dimensions and method for the IGS-4215-4P4T2S?

The switch measures 2.83" x 6.34" x 4.21" and uses a DIN-rail type mounting system for industrial installations.

How do I initially configure the managed switch, and what step is often missed?

Connect via the RJ45 console interface for basic management setup; the step often missed is configuring the IPv6/IPv4 dual stack management for network integration.

What power supply specifications are required for the 144-watt PoE budget?

A 48~56V DC, 3.5A (max.) power source is required to support the full 144-watt PoE budget across the four IEEE 802.3at/af ports.
