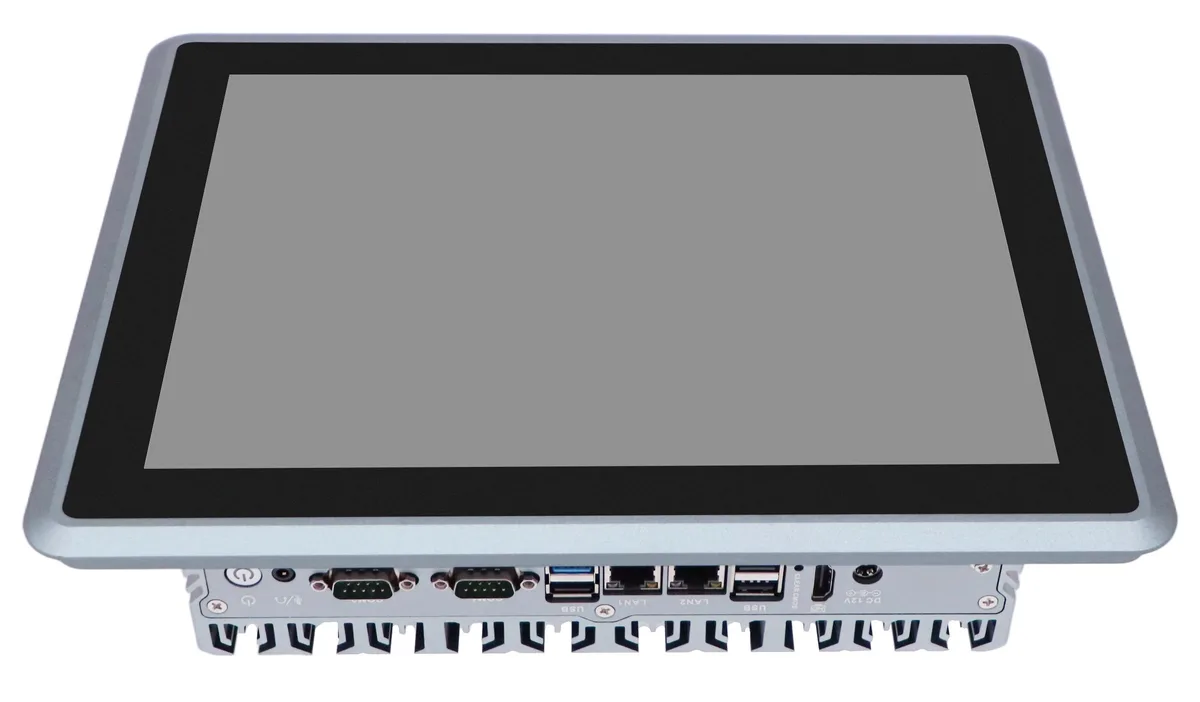

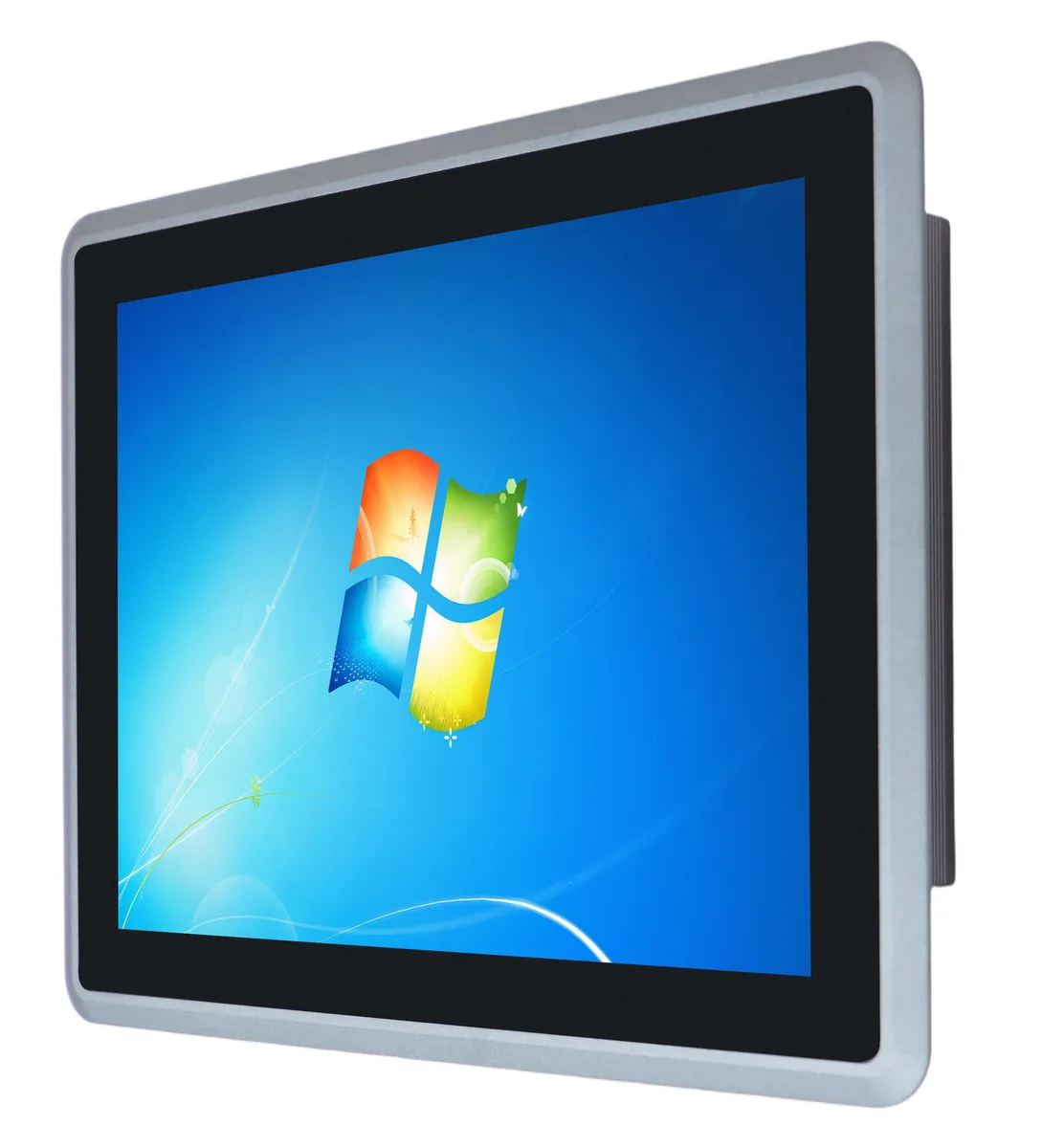

Gray 12.1-inch fanless industrial panel PC with capacitive touch screen and aluminum alloy chassis

partaker

partaker A26 12.1" AI edge system i3-3217U 8GB 256GB

SKU CH-C4A3-D2V8R

A 12.1 inch fanless industrial panel PC with IP65 front panel, capacitive touch, Intel Core i3-3217U, 8GB DDR3 and 256GB storage

  • TypeAll-in-One PC
  • Form FactorAll-in-One
  • ColorGray
  • Operating SystemWindows 10 Pro
  • CPU TypeIntel Core i3 3rd Gen
  • CPU NameIntel Core i3-3217U

A26 12.1" Capacitive i3 3217U 8GB RAM / 256GB SSD

  • 1-inch capacitive multi-touch display at 1024×768 resolution for clear industrial interfaces
  • Fanless aluminium-alloy chassis runs silently from -20 °C to +60 °C in harsh environments
  • IP65-rated front panel resists dust and water ingress with flexible VESA or panel-mount options
  • Dual Gigabit LAN plus two RS232/485 COM ports and four USB ports connect diverse industrial equipment
  • Intel Core i3-3217U dual-core processor with 8 GB DDR3 and 256 GB mSATA storage delivers stable edge performance

12.1-Inch Capacitive Touch Panel PC

The Partaker A26 is a fanless industrial all-in-one system built around a 12.1-inch TFT-LCD with 1024×768 resolution and a capacitive multi-touch overlay. It runs Windows 10 Pro on an Intel Core i3-3217U dual-core processor at 1.80 GHz with 8GB DDR3 memory and a 256GB mSATA drive. The IP65-rated front panel and aluminum alloy chassis target integrators who need silent, dust-resistant operation in harsh or noise-sensitive environments.

Sustained Load Thermal Behaviour

Passive cooling across the metal chassis dissipates heat from the 17 W dual-core CPU without fans, allowing continuous operation from -20 °C to +60 °C when a solid-state drive is fitted. The fanless design eliminates moving-part wear and acoustic output, so performance remains stable during long monitoring or control shifts rather than throttling after a short burst. Surface airflow is the only external requirement for thermal stability.

Interface Practical Limits

Dual Realtek Gigabit Ethernet ports provide standard wired bandwidth for industrial networking and support wake-on-LAN and PXE boot. Two RS232/485 COM ports connect legacy PLCs and sensors, expandable to six COM ports through optional modules not included in the standard shipment. HDMI output enables a second synchronous or asynchronous display via the internal LVDS link. Two Mini PCIe slots accept Wi-Fi, Bluetooth, 3G or 4G cards with a SIM holder for wireless expansion.

Highlights

  • 1-inch capacitive multi-touch display at 1024×768 resolution for clear industrial interfaces
  • Fanless aluminium-alloy chassis runs silently from -20 °C to +60 °C in harsh environments
  • IP65-rated front panel resists dust and water ingress with flexible VESA or panel-mount options
  • Dual Gigabit LAN plus two RS232/485 COM ports and four USB ports connect diverse industrial equipment
  • Intel Core i3-3217U dual-core processor with 8 GB DDR3 and 256 GB mSATA storage delivers stable edge performance

Specifications

TypeAll-in-One PC
Form FactorAll-in-One
ColorGray
Operating SystemWindows 10 Pro
CPU TypeIntel Core i3 3rd Gen
CPU NameIntel Core i3-3217U
Screen Size12.1"
Screen TypeMulti-Touch Screen

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

How much heat and noise does the fanless aluminium chassis produce during continuous 24/7 operation?

The sealed alloy body uses passive cooling only, so it runs silently with zero moving parts; the spec lists an operating range of -20 to +60 °C with surface airflow, meaning it dissipates heat through the case itself rather than fans.

Which cables and mounts must I already have to install the 12.1 inch IP65 panel in a cabinet cutout of 298.5×237 mm?

You need a 12 V DC power supply (or optional 9–36 V wide-voltage module), a VESA bracket or panel-mount hardware for the cutout, and any serial or USB cables for the two COM ports and four USB ports you plan to use.

Will the dual Realtek Gigabit LAN ports and RS232/485 COM ports talk to my older PLCs and HMIs without extra converters?

Yes — the two Gigabit RJ45 ports support standard Ethernet and PXE boot, while the two COM ports are hardware-configurable as RS232 or RS485, matching most legacy industrial protocols directly.
