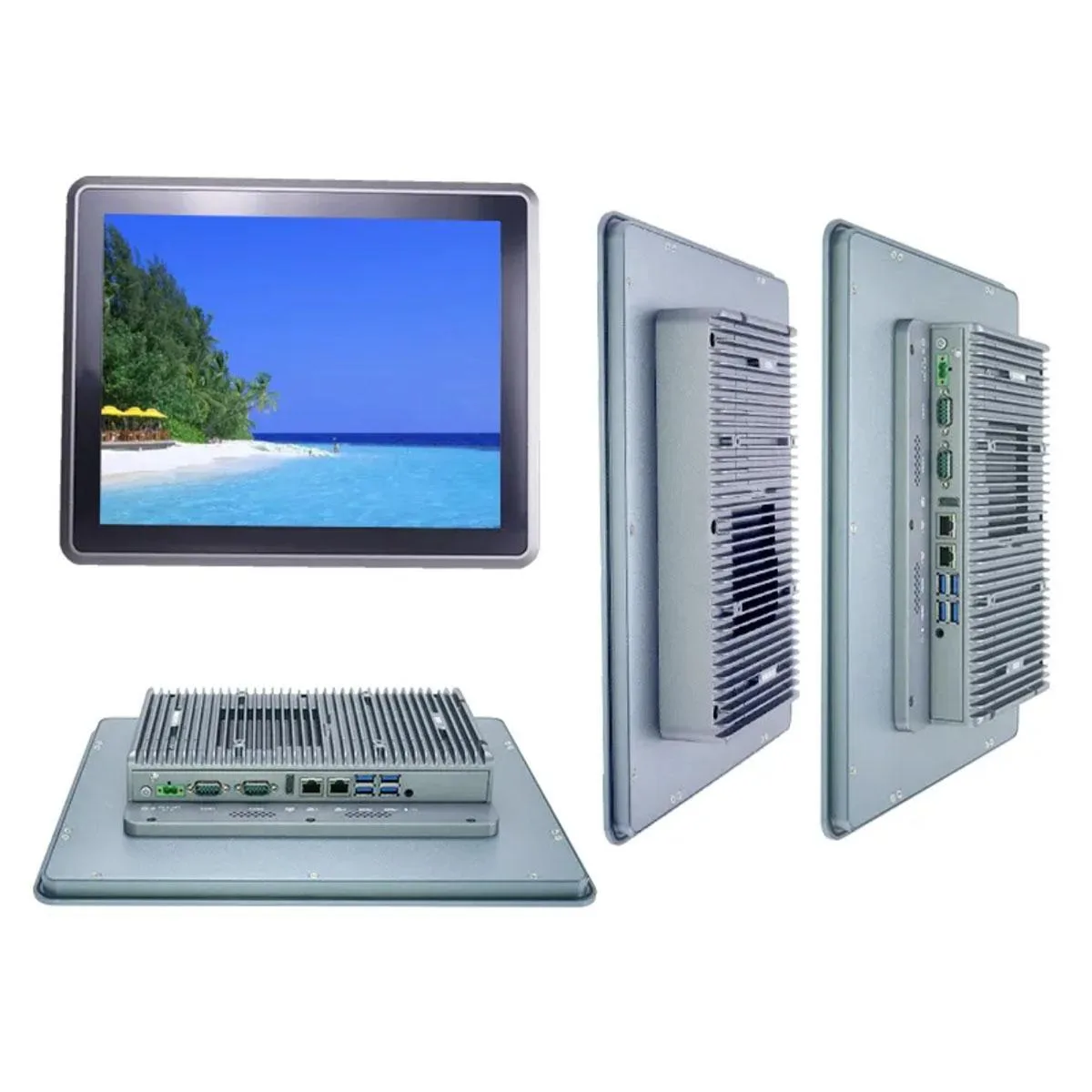

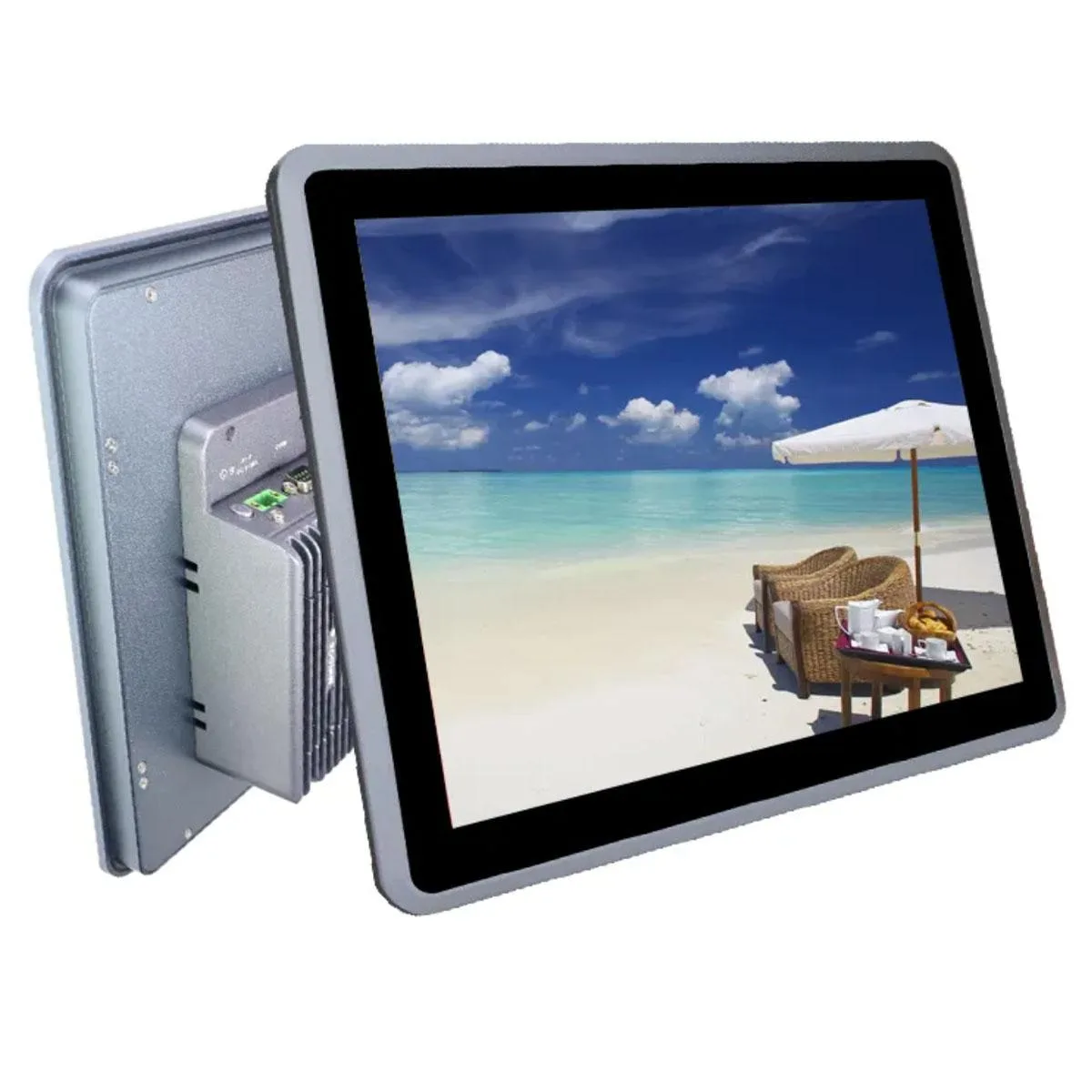

Gray 15 inch industrial panel PC with flat IP65 front, fanless aluminum body, resistive touchscreen, embedded mount holes

partaker

Partaker A20 15" controller panel i5-8265U 8GB 256GB

SKU CH-BHEX-JN03Y

A 15-inch IP65-rated industrial panel PC with a fanless Core i5-8265U, 8GB DDR4, 256GB SSD and multi-touch resistive screen for embedded or wall-mount deployment

  • Form FactorAll-in-One
  • ColorGray
  • Operating SystemWindows 11 Pro
  • CPU TypeIntel Core i5 8th Gen
  • CPU NameIntel Core i5-8265U
  • GPU/VGA TypeIntel UHD Graphics 620

Memory Capacity 8GB DDR4

SSD 256GB

  • IP65 front protection withstands dust and water jets
  • Fanless aluminium alloy cooling runs silent 24/7
  • Core i5-8265U with 8 GB DDR4 and 256 GB SATA SSD
  • Versatile I/O: 2 COM, HDMI, 4 USB 3.0, 2 LAN, 9-36 V Phoenix
  • Windows 11 Pro pre-installed with TPM 2.0 security

Industrial 15" Panel PC

The Partaker A20 is a 15-inch all-in-one panel computer with an IP65-rated front bezel, Intel Core i5-8265U processor, 8GB DDR4 memory and a 256GB SATA SSD. It ships with Windows 11 Pro and a resistive multi-touch screen designed for continuous industrial use. Fanless aluminium cooling keeps the unit silent in noise-sensitive environments.

Upgrade from basic HMIs

This unit replaces standalone operator panels or older fan-cooled industrial PCs that lack modern I/O or OS support. The jump is worth it when you need HDMI output, dual Intel LAN ports, four USB 3.0 ports and a wide 9-36V Phoenix power input in a single sealed enclosure. TPM 2.0 and auto power-on recovery add reliability for unattended operation.

Embedded mounting with Phoenix power

Installation uses the 355x279mm cut-out for embedded fitting, with wall, desktop or cantilever options also supported. The 2-pin Phoenix connector requires correct polarity wiring; reversed polarity will prevent start-up. Verify the 9-36V DC source before connecting, and ensure the Mini PCIe slot antenna cables are routed if adding wireless modules.

Highlights

  • IP65 front protection withstands dust and water jets
  • Fanless aluminium alloy cooling runs silent 24/7
  • Core i5-8265U with 8 GB DDR4 and 256 GB SATA SSD
  • Versatile I/O: 2 COM, HDMI, 4 USB 3.0, 2 LAN, 9-36 V Phoenix
  • Windows 11 Pro pre-installed with TPM 2.0 security

Specifications

ModelA20-I5 8260U-N-8G256G
Form FactorAll-in-One
ColorGray
Operating SystemWindows 11 Pro
CPU TypeIntel Core i5 8th Gen
CPU NameIntel Core i5-8265U
GPU/VGA TypeIntel UHD Graphics 620
Memory Capacity8GB DDR4
SSD256GB
HDDNo
Screen Size15"
TouchscreenYes

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

What cut-out size does the 15" panel need for embedded mounting?

The embedded cut-out is 355 x 279mm, matching the 366 x 290 x 60mm outer dimensions of the aluminum alloy chassis.

Which cable connects to the 2-pin Phoenix power input for 9-36V supply?

A two-wire DC cable with a matching Phoenix plug; polarity is marked on the connector so the positive and negative wires must be inserted in the correct holes.

What is the rated touch-cycle life of the resistive screen?

The industrial-grade multi-touch resistive screen is rated for more than 50000 thousand touches.
