Small rectangular plastic box with a round button and a long cable attached

OwlTree BT292 Desktop Power Switch Gear

SKU CH-TMW7-WA00W MPN BT292

External push-button switch with two-metre cable, reset and LED leads, adhesive mount and splitter boards for desktop PC motherboards

  • TypePush Buttons
  • Switch FunctionON-OFF
  • Voltage5 volts
  • Housing MaterialPlastic
  • Mounting StyleWall Mount
  • Size/Dimensions3.6068 cm x 8.7122 cm x 11.6078 cm
  • Easy access for hard-to-reach cases with 2M cable extension
  • Simple adhesive sticker mounting requires no tools or case modification
  • Replaces broken front-panel buttons by routing cables through existing openings
  • Includes 1-to-2 splitter board and cable to keep original button functional
  • Operates from 0 to 100 °C at 5 V and 0.01 A

External power switch for desktop PCs

The OwlTree BT292 is a push-button control unit that extends the motherboard power, reset, power-LED and HDD-LED headers to a convenient external location. It suits home users, computer labs, barebone systems and custom chassis builds where the case front panel is difficult to reach. The switch operates at five volts and is rated for 0.01 amps.

Two-metre cable with splitter options

A 2 m cable connects the switch to the motherboard headers, and the package includes both a 1-to-2 splitter board and a 1-to-2 splitter cable so the original case button can remain active alongside the new one. The housing is plastic, rated IP00, and functions from 0 to 100 degrees Celsius.

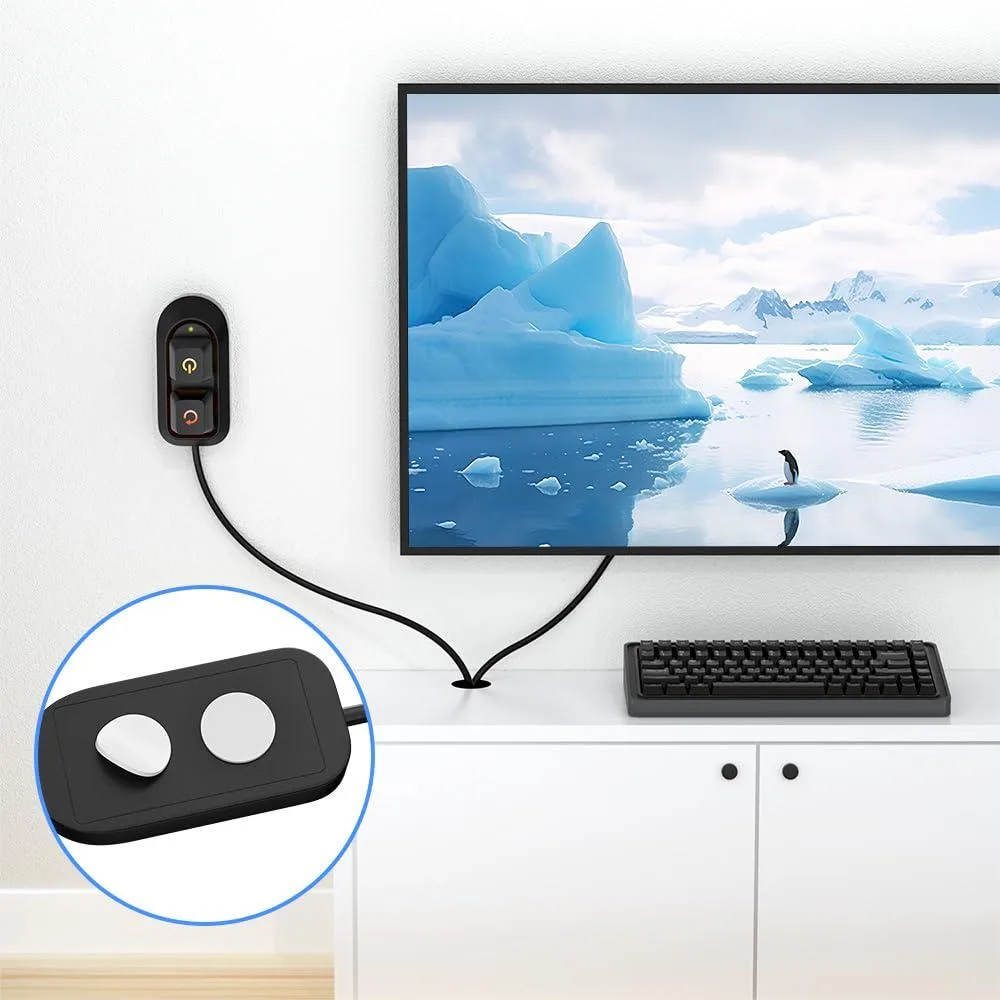

Adhesive mounting fits tight spaces

The unit measures 3.6068 cm by 8.7122 cm by 11.6078 cm and mounts with the supplied adhesive stickers, allowing placement on a desk, a drive bay opening, a rear fan vent or an expansion-slot bracket. No tools or chassis modifications are required, freeing the builder from a broken or inaccessible front-panel button.

Highlights

  • Easy access for hard-to-reach cases with 2M cable extension
  • Simple adhesive sticker mounting requires no tools or case modification
  • Replaces broken front-panel buttons by routing cables through existing openings
  • Includes 1-to-2 splitter board and cable to keep original button functional
  • Operates from 0 to 100 °C at 5 V and 0.01 A

Specifications

TypePush Buttons
BrandOwlTree
Switch FunctionON-OFF
ModelBT292
Voltage5 volts
Housing MaterialPlastic
Mounting StyleWall Mount
Size/Dimensions3.6068 cm x 8.7122 cm x 11.6078 cm
MaterialPlastic
Standards/CertificationsIP00, 0
Horsepower0.01 amps
Operating Temperature0 degrees_celsius to 100 degrees_celsius
Operating Frequencynot_applicable
DutyDesktop PCs
Compatibility/FitmentDesktop PCs
Resolution1
Display TypeBT292
FeaturesDesktop PCs
Part NumberBT292

Questions about this item

What does the 2-metre cable length mean when the button is placed on my desk?

The two-metre cable lets you position the switch up to two metres from the motherboard headers, so you can reach the power and reset buttons even if the case sits under a desk or inside a cabinet.

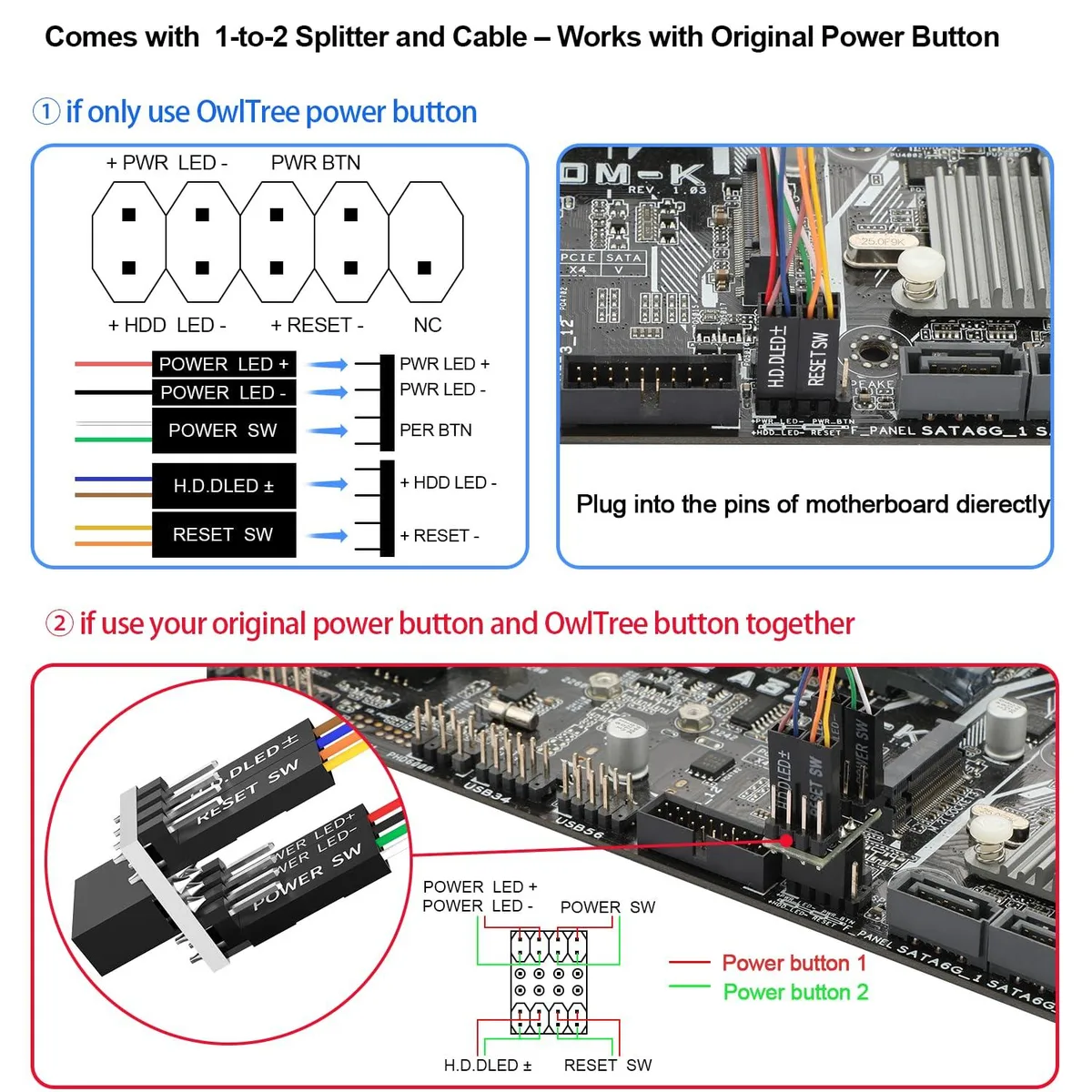

Which motherboard headers does the switch connect to and what does the splitter board do?

The switch plugs into the standard POWER SW, RESET SW, POWER LED and HDD LED headers; the included 1-to-2 splitter board lets the external button work alongside the original front-panel button without unplugging it.

How much space does the 3.6068 cm by 8.7122 cm by 11.6078 cm housing need for the adhesive mount?

The plastic housing measures 3.6068 cm deep, 8.7122 cm wide and 11.6078 cm tall, so you need a flat area at least that large on the case or desk for the adhesive sticker to hold securely.
