Nippon Labs

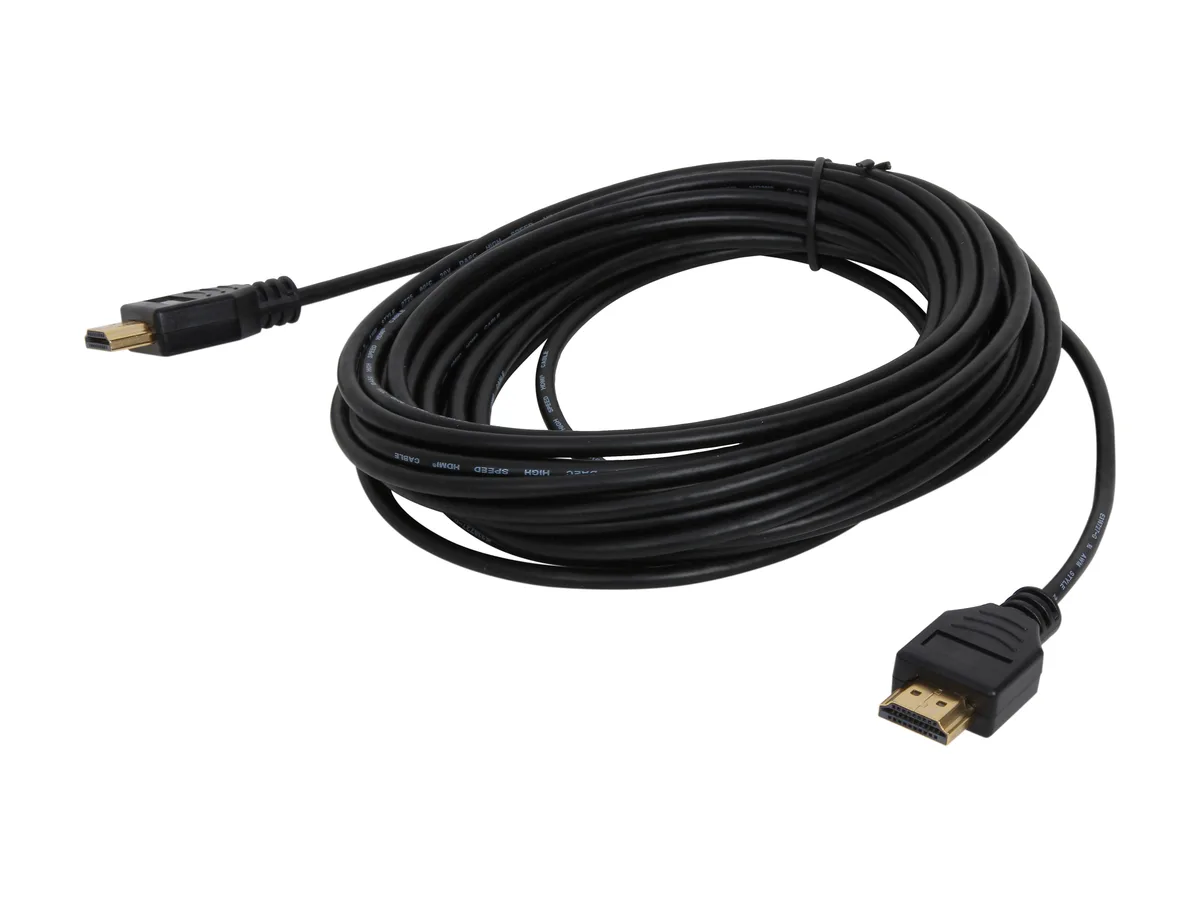

Nippon Labs HDMI-HS-25 25 ft hdmi cable
A 25 ft CL2-rated HDMI cable with Ethernet that carries 4K at 60 Hz and high-speed data up to 100 Mb/sec
- TypeHDMI to HDMI
- ColorBlack
- Cable Length25 ft.
- Connector Number2
- Connect From1 x HDMI Male
- Connect To1 x HDMI Male
- 25 ft length spans long runs between devices
- CL2 rating permits safe in-wall installation
- 4K x 2K at 60 Hz delivers sharp high-resolution video

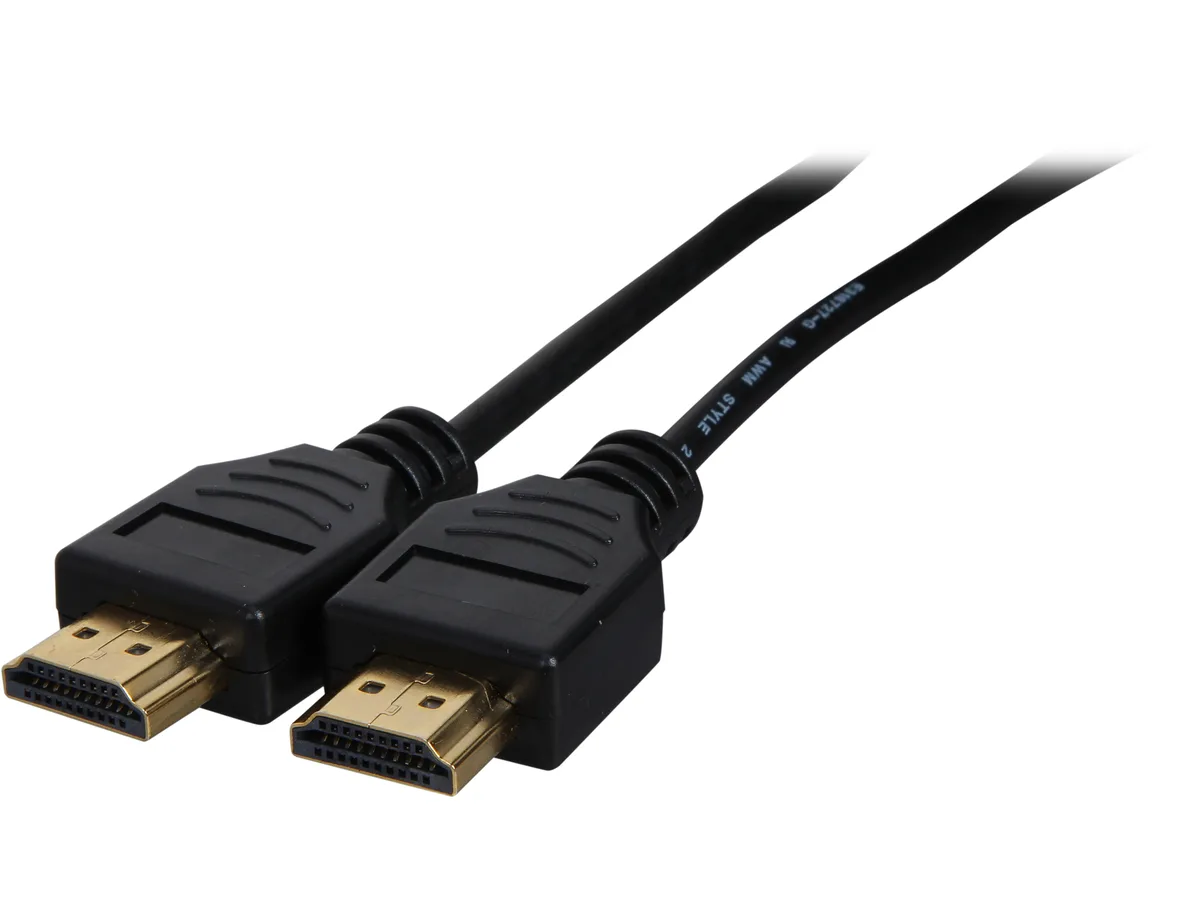

- Gold-plated connectors resist corrosion for reliable signal transfer
- 100 Mb/s Ethernet channel carries network data alongside AV
What this cable does and who needs it
The Nippon Labs HDMI-HS-25 is a 25 ft High-Speed HDMI cable with Ethernet, rated CL2 for in-wall runs. It carries 4K x 2K at 60 Hz and multi-channel audio between any two HDMI-equipped devices such as a Blu-ray player, game console, AV receiver, TV or computer.
The spec that decides fit
The cable meets the HDMI 2.0 level and supports HDMI 1.4 functions including Ethernet channel, 3D video, Audio Return Channel and deeper colour. Gold-plated male connectors on both ends provide the 100 Mb/sec data path required for 4K at 60 Hz.
Installation notes and common pitfalls
CL2 rating means the jacket is approved for in-wall installation without conduit. The 28 AWG conductors keep the cable flexible for pulling through studs, but the 25 ft length approaches the practical limit for passive 4K 60 Hz signals; runs beyond this distance often need an active cable or signal booster.
Highlights
- 25 ft length spans long runs between devices
- CL2 rating permits safe in-wall installation
- 4K x 2K at 60 Hz delivers sharp high-resolution video
- Gold-plated connectors resist corrosion for reliable signal transfer
- 100 Mb/s Ethernet channel carries network data alongside AV
Specifications
| Brand | Nippon Labs |
|---|---|
| Model | HDMI-HS-25 |
| Type | HDMI to HDMI |
| Color | Black |
| Cable Length | 25 ft. |
| Connector Number | 2 |
| Connect From | 1 x HDMI Male |
| Connect To | 1 x HDMI Male |
| Terminal Gender | Male to Male |
| Conductor | CL2 Rated, 28 AWG. x 5P + 28 AWG. x 4C |
| Features | Transmit crystal-clear digital video and multi-channel surround audio and data through our HDMI cable. Compatible with CD/DVD/Blu-ray players, AV receiver, PS3/4, Xbox 360/One, TV, computer and any other HDMI enabled devices. Support HDMI 1.4 functions including HDMI Ethernet channel, 3D video, 4K resolution, audio return channel, deeper color...etc. CL2 rated for in-wall installation. Support resolutions up to 4K x 2K@60Hz. Feature a high-speed data transfer rate up to 100 Mb/sec. Gold-plated connector provides superior transmission, high reliability and durability. All relevant mat |
| Shipping weight | 0.16 kg |
| Package size | 173 × 117 × 23 mm |
Questions about this item
What does the 4K x 2K@60Hz rating mean when I plug this cable into my display?
The cable supports resolutions up to 4K x 2K at 60 Hz, allowing a compatible source and display to show 4K video at 60 frames per second.
How does the HDMI 2.0 high-speed with Ethernet label limit what the cable can actually carry?
It is built to the HDMI 2.0 high-speed specification and includes an Ethernet channel, so it handles 4K@60 Hz video, multi-channel audio and network data up to 100 Mb/sec.
What does the CL2 rating and 28 AWG conductor mean for running this cable through a wall?
The CL2 rating means the cable meets fire-safety codes for in-wall installation, and the 28 AWG conductors are sized for the 25 ft length.
