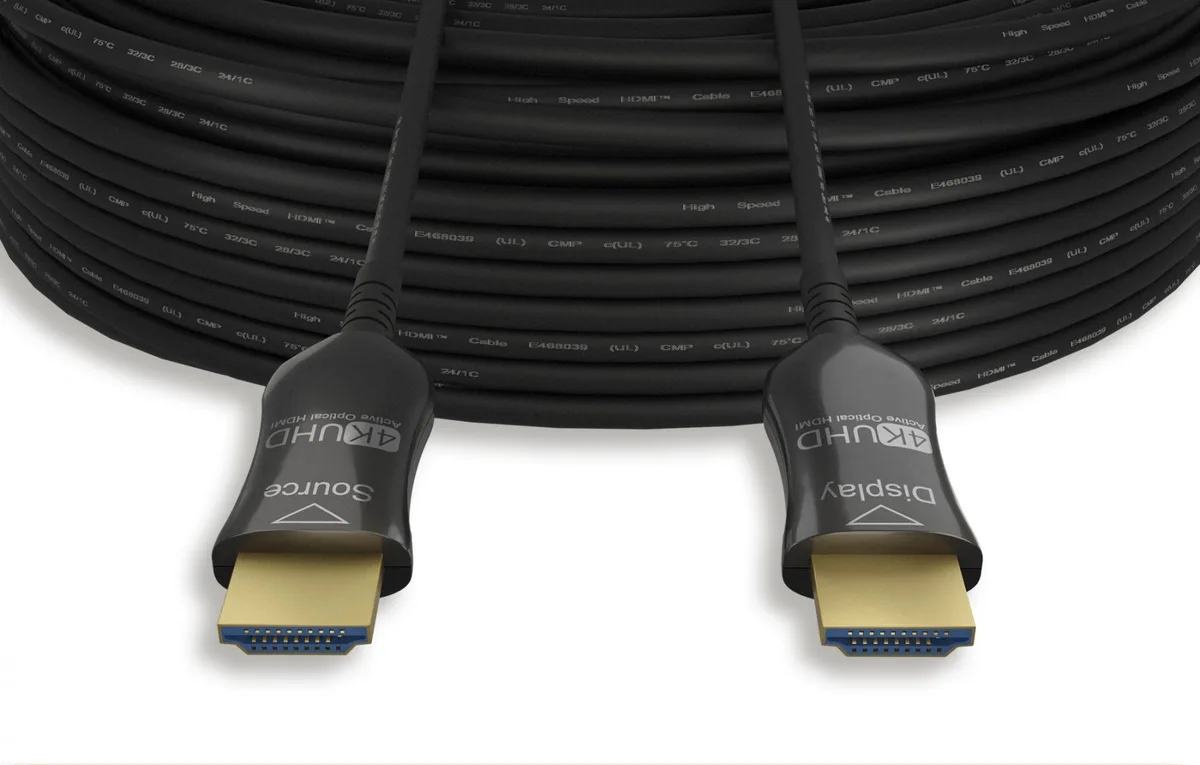

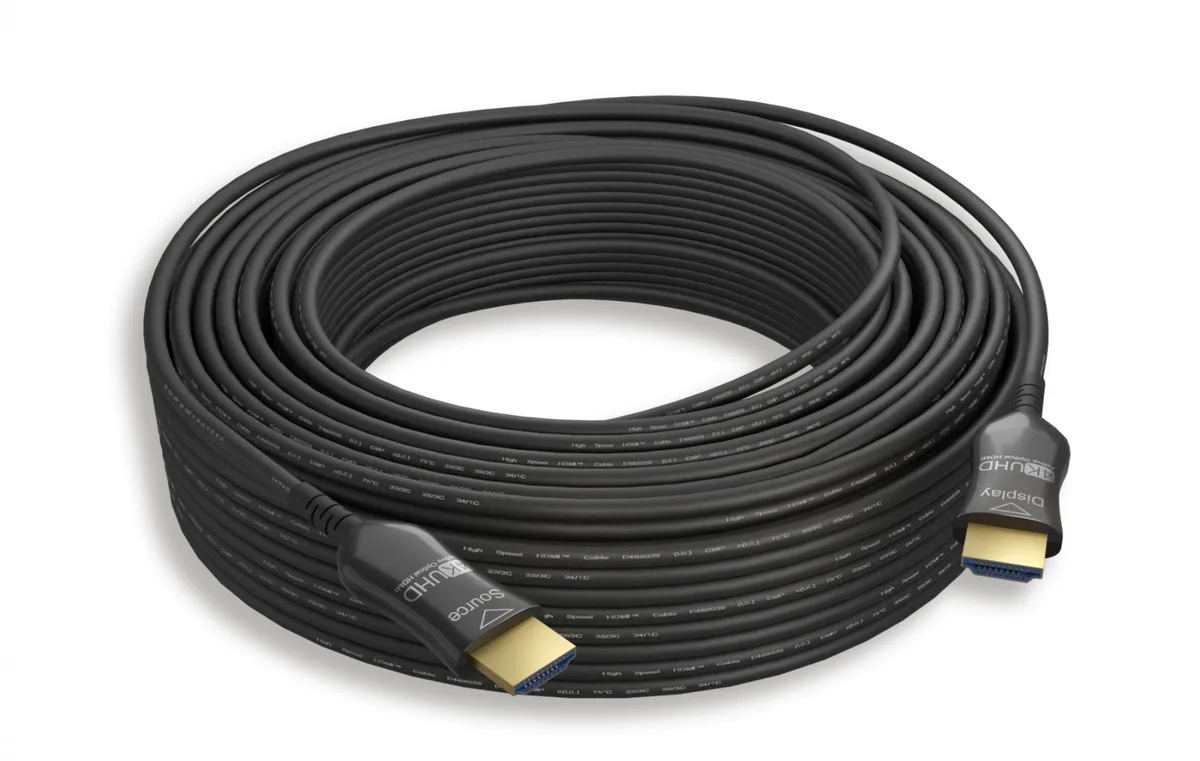

Black 75 ft active optical HDMI cable with slim 4.8 mm jacket and gold-plated Type A connectors

Nippon Labs

Nippon Labs 30HM2-10HM-AOCL34K-75 75 ft HDMI cable

SKU CH-9B7H-SXZH1 MPN 30HM2-10HM-AOCL34K-75

A 75 ft active optical fibre HDMI cable with CL3 rating for in-wall runs, delivering 4K at 60 Hz and 18 Gbps bandwidth

  • TypeActive Optical Fiber CL3 HDMI Cable
  • ColorBlack
  • Length75 ft.
  • SpecificationsConnector A : HDMI Type A Male (Source) Connector B : HDMI T

Cable Length 75 Feet

  • Transmits 4K at 60 Hz over 75 ft without signal loss
  • CL3 rating allows safe in-wall and ceiling routing
  • Gold-plated connectors resist corrosion for reliable long-term contact
  • Active optical fibre design blocks EMI and RFI interference
  • 18 Gbps bandwidth carries HDR, 3D and multi-channel audio formats

75 ft active optical HDMI cable

This 75 ft active optical fibre cable carries HDMI 2.0 signals between a source and a display. The hybrid construction uses four 50/125 µm fibres plus copper conductors to maintain signal integrity over long runs. It is suited for installers who need a single-cable link across large rooms or through walls. The CL3 rating allows in-wall and in-ceiling routing.

HDMI 2.0 bandwidth ceiling

The link tops out at 18 Gbps, limiting 4K resolution to 60 Hz with 4:4:4 chroma at 8 bit. Higher refresh rates, 10-bit colour or 8K formats exceed the available bandwidth and will not pass. HDCP 2.2, HDR, EDID, CEC and ARC are supported within the 2.0 specification. Copper lines inside the jacket handle DDC and power so the optical cores carry only video data.

Capacity and headroom

At 75 ft the cable delivers 4K 60 Hz 4:4:4 8-bit reliably thanks to the active optical engine. Runs beyond this length are not covered by the supplied specifications. The 4.8 mm outer diameter eases conduit pulls but the fixed connector heads require adequate clearance at each end. Installers needing longer distances or higher bandwidths must choose a different solution.

Highlights

  • Transmits 4K at 60 Hz over 75 ft without signal loss
  • CL3 rating allows safe in-wall and ceiling routing
  • Gold-plated connectors resist corrosion for reliable long-term contact
  • Active optical fibre design blocks EMI and RFI interference
  • 18 Gbps bandwidth carries HDR, 3D and multi-channel audio formats

Specifications

BrandNippon Labs
Model30HM2-10HM-AOCL34K-75
TypeActive Optical Fiber CL3 HDMI Cable
ColorBlack
Length75 ft.
SpecificationsConnector A : HDMI Type A Male (Source)
Connector B : HDMI Type A Male (Display)
Conductor : (50/125um FIBER*4C+MID)*IC+7 /0.08Tx3C+19/0.08T*3C+41/0.08Tx1C+F+D+AL
Cable OD : 4.8mm
Cable Color : Black Color
Shipping weight1.72 kg
Package size254 × 203 × 152 mm

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

Which length of this active optical HDMI cable should I pick for my run?

The cable is offered in a single 75 ft length, so choose it when the source-to-display distance is close to that figure.

What does the 18 Gbps rating mean for 4K playback on my TV?

It carries 4K at 60 Hz with 4:4:4 chroma at 8-bit depth, matching the HDMI 2.0 bandwidth ceiling for uncompressed UHD video.

How does the HDMI 2.0 interface limit the cable in practice?

HDMI 2.0 caps the link at 18 Gbps, so 4K 60 Hz 4:4:4 8-bit is the maximum supported format; higher refresh rates or 10-bit HDR would need a newer interface.
