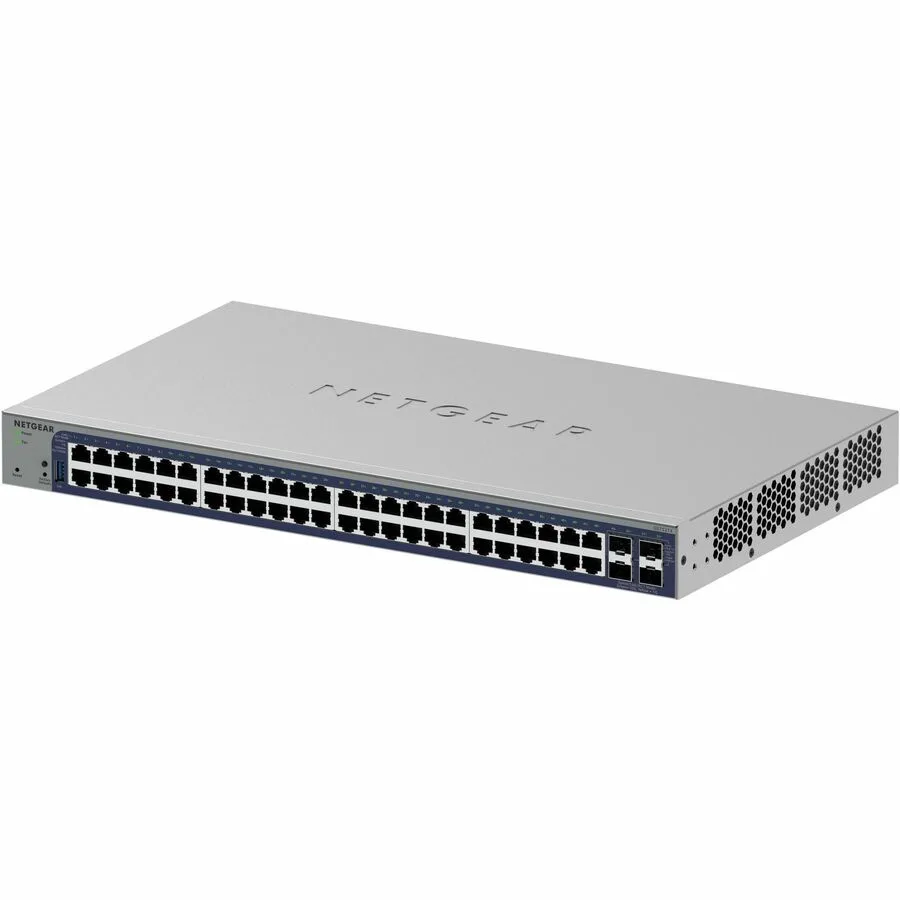

Silver 1U rackmount chassis with 48 RJ45 ports and four SFP+ cages on the front

Netgear Inc.

Netgear Inc. GS752TX-300NAS 48-port rackmount network switch

SKU CH-ZY78-6809F MPN GS752TX-300NAS

A 48-port Gigabit rackmount smart switch with four 10G SFP+ uplinks, Layer 3 static routing for 32 routes, cloud management via Insight, and quiet 26.80–37.3 dBA operation at 25 °C

  • FormatRackmount
  • Network Management TypeSmart
  • Primary Ports48 x RJ45 + 4 x SFP+
  • Primary Port Speed10/100/1000Mbps
  • Management FeatureCloud/Remote management Insight mobile app & Insight Cloud P
  • Packet Forwarding Rate130.94

Model GS752TX-300NAS

  • 48 Gigabit RJ45 ports plus 4 dedicated 10G SFP+ uplinks for high-speed fibre connectivity
  • Layer 3 static routing with 32 IPv4 and 32 IPv6 routes enables inter-VLAN traffic locally
  • Quiet rackmount operation at 26.80 to 37.3 dBA in a 25°C ambient environment
  • Cloud and remote management via Insight mobile app and Insight Cloud Portal for centralised control
  • Maximum power consumption of 43 W without PoE keeps energy costs low

48-Port Smart Switch

The Netgear GS752TX-300NAS is a rackmount Gigabit Ethernet switch with 48 RJ45 ports and four dedicated 10G SFP+ uplinks. It delivers Layer 3 static routing with 32 IPv4 and 32 IPv6 routes for local inter-VLAN traffic. Management is handled through the Insight mobile app, cloud portal, lite CLI or web interface, supporting zero-touch provisioning and multi-site visibility. Maximum power draw without PoE is 43 W and acoustic output ranges from 26.80 to 37.3 dBA at 25 °C.

Managed Access Layer

This switch suits administrators who need cloud-managed Layer 2 and Layer 3 features such as VLANs, ACLs, DHCP services and static routing in a 1U form factor. It is not for buyers who require Power over Ethernet on the copper ports or who need dynamic routing protocols beyond the 32 static entries provided. The 1.5 MB buffer and 130.94 Mpps forwarding rate support typical access-layer workloads but not high-density data-centre cores.

Four 10G SFP+ Uplinks

The four dedicated SFP+ ports provide 10 Gbps fiber uplinks with redundancy and failover, a capability that determines whether this model fits a network design that requires high-speed aggregation without consuming RJ45 ports.

Highlights

  • 48 Gigabit RJ45 ports plus 4 dedicated 10G SFP+ uplinks for high-speed fibre connectivity
  • Layer 3 static routing with 32 IPv4 and 32 IPv6 routes enables inter-VLAN traffic locally
  • Quiet rackmount operation at 26.80 to 37.3 dBA in a 25°C ambient environment
  • Cloud and remote management via Insight mobile app and Insight Cloud Portal for centralised control
  • Maximum power consumption of 43 W without PoE keeps energy costs low

Specifications

BrandNETGEAR
SeriesSmart w/ Optional Cloud
ModelGS752TXv3
Part NumberGS752TX-300NAS
FormatRackmount
Network Management TypeSmart
Primary Ports48 x RJ45 + 4 x SFP+
Primary Port Speed10/100/1000Mbps
Management FeatureCloud/Remote management
Insight mobile app & Insight Cloud Portal management
uPnP Discovery
Lite Command-line Interface (CLI)
Networking monitoring
Data/performance logs
Centralized network configuration/policies (network-centric management)
Device auto-join and configure (zero-touch provisioning)
Multi-site, multi-network single pane-of-glass view
Multi-switch, multi-port concurrent configuration
Network/global password (for all Insight Managed devices on a network)
Password management
Configurable management VLAN
Admin access control via RADIUS and TACACS+
IPv6 management
SNTP clie
Packet Forwarding Rate130.94
Buffer Memory1.5MB
ProtocolsIEEE 802.3 Ethernet
IEEE 802.3u 100BASE-T
IEEE 802.3ab 1000BASE-T
IEEE 802.3af PoE
IEEE 802.3at PoE+
IEEE 802.3az Energy Efficient Ethernet (EEE)
IEEE 802.3ad Trunking (LACP)
IEEE 802.3z Gigabit Ethernet 1000BASE-SX/LX
IEEE 802.3x Full-Duplex Flow Control
IEEE 802.1Q VLAN Tagging
IEEE 802.1AB LLDP with ANSI/TIA-1057 (LLDP-MED)
IEEE 802.1p Class of Service
IEEE 802.1D Spanning Tree (STP)
IEEE 802.1s Multiple Spanning Tree (MSTP)
IEEE 802.1w Rapid Spanning Tree (RSTP)
IEEE 802.1x RADIUS Network Access Control
SecurityIEEE 802.1x
Guest VLAN
RADIUS-based VLAN assignment via .1x
MAC-based .1x
RADIUS accounting
Access Control Lists (ACLs): L2 / L3 / L4
IP-based ACLs (IPv4 and IPv6)
MAC-based ACLs
TCP/UDP-based ACLs
MAC lockdown
MAC lockdown by the number of MACs
Control MAC # Dynamic learned entries: 16384
Control MAC # static entries: 256
IEEE 802.1x RADIUS port access authentication
Port-based security by locked MAC addresses
Dynamic ARP inspection
Broadcast, unicast, multicast DoS protection
DoS attacks prevention
Network storm protection, DoS
Broadcast, unicast, multicast DoS protection
DoS attac
PoENo
QoSPort-based rate limiting: Ingress and egress
Port-based QoS
Support for IPv6 fields
DiffServ QoS: Ingress
IEEE 802.1p COS
Destination MAC and IP
IPv4 and v6 DSCP
IPv4 and IPv6 ToS
TCP/UDP-based
Weighted Round Robin (WRR)
Strict priority queue technology
Auto-VoIP VLAN / Auto-Voice VLAN: Based on OUI bytes (default database and user-based OUIs) in the phone source MAC address
Auto-VoIP: Based on protocols (SIP). Prioritzes traffic to a higher queue
Voice VLAN: Based on either VLAN ID or 802.1p priority, packets are passed onto the connecting VoIP phone using LLDP-MED
Auto-Video VLAN
Layer3
Layer 2 FeaturesServices - VLANs
IEEE 802.1Q VLAN tagging
IP-based VLANs
MAC-based VLANs
Auto-VoIP VLAN / Auto-Voice VLAN: Based on OUI bytes (default database and user-based OUIs) in the phone source MAC address
Auto-VoIP: Based on protocols (SIP). Prioritizes traffic to a higher queue
Voice VLAN: Based on either VLAN ID or 802.1p priority, packets are passed onto the connecting VoIP phone using LLDP-MED
Auto-Video VLAN
Auto WiFi VLAN and Auto Camera VLAN: Based on inputed OUIs
GARP with GVRP
Private VLAN
Services - Availability
Broadcast, multicast, unknown unicast storm control
IEEE 802.3ad - LAG
Layer 3 FeaturesServices - DHCP
DHCP client
DHCP snooping
DHCP Server, DHCP IPv6 Server, DHCP Relay, DHCP IPv6 Relay
Services - Routing
IPv4 static routing: 32
IPv6 static routing: 32
VLAN routing
Host ARP table (number of entries): 512 ARP
ICMP Router Discovery Protocol (IRDP)
Number of IP VLAN interfaces (routed VLANs): 15
Max Power ConsumptionMax power without PoE: 43 W
Dimensions440 x 257 x 43 mm (17.3 x 10.1 x 1.7 in)
Weight3.53kg (7.78 lb)
Shipping weight4.67 kg
Package size526 × 351 × 104 mm

Other versions of this model

2 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

How loud is the GS752TXv3 when running continuously in a rack?

The switch produces 26.80dBA to 37.3dBA at 25°C (77°F) ambient, enabling quiet rackmount operation all day.

Which cables and modules must I already have to use the 48 RJ45 and 4 SFP+ ports?

You need Cat5e or better Ethernet cables for the 48 RJ45 ports and compatible 10G SFP+ transceivers with fibre patch leads for the four uplink ports.

Will the GS752TXv3 route traffic between VLANs on my older Layer 2 switches?

Yes, it provides Layer 3 static routing with 32 IPv4 routes and 32 IPv6 routes for inter-VLAN routing alongside legacy switches.
