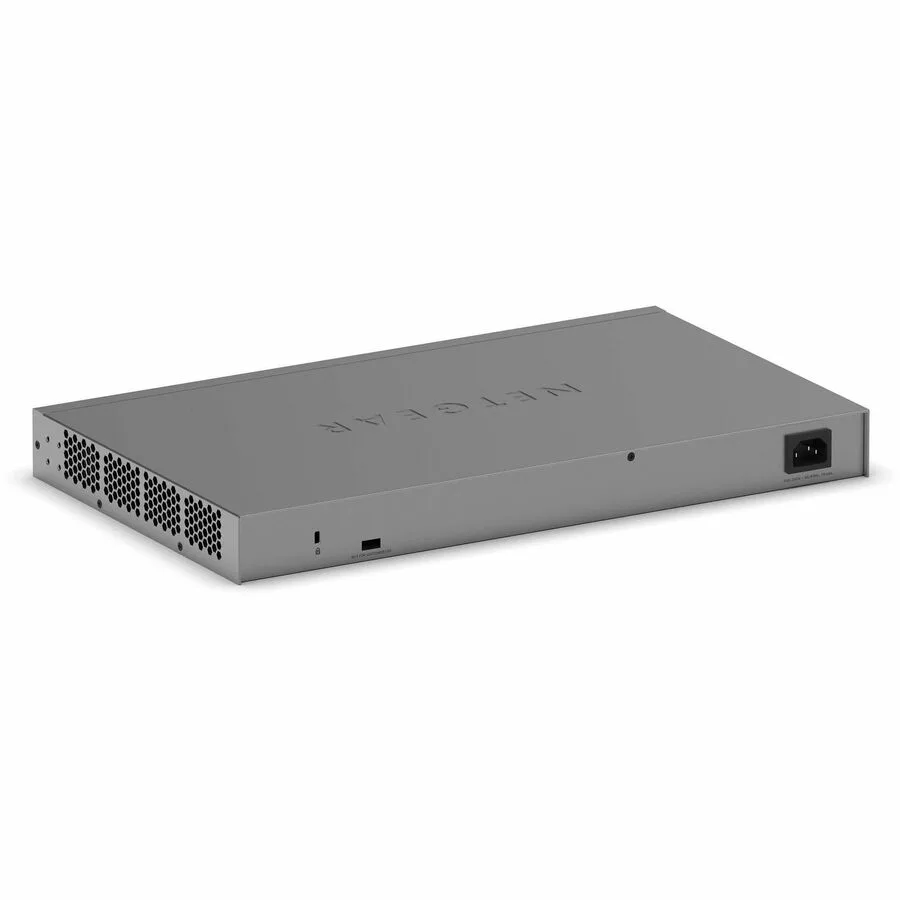

Silver 1U rackmount switch, 24 RJ45 ports, 4 SFP slots, front status LEDs

Netgear Inc.

Netgear Inc. GS728TXUP-300NAS 24-port rackmount network switch

SKU CH-8VPE-NJJWT MPN GS728TXUP-300NAS

A 24-port rackmount Gigabit switch with 16 PoE+ and 8 PoE++ ports delivering a 420 W power budget, four SFP uplinks and Layer 3 static routing

  • FormatRackmount
  • Network Management TypeSmart
  • Primary Ports24 x RJ45 + 4 x SFP
  • Primary Port Speed10/100/1000Mbps
  • Management FeatureCloud/Remote management Insight mobile app & Insight Cloud P
  • ProtocolsIEEE 802.3 Ethernet IEEE 802.3u 100BASE-T IEEE 802.3ab 1000B

Model GS728TXUP-300NAS

  • 24 Gigabit RJ45 ports plus 4 SFP uplinks for flexible copper and fibre connectivity
  • 16 PoE+ and 8 PoE++ ports deliver up to 420 W for power-hungry devices
  • Layer 3 static routing with 32 IPv4 and 32 IPv6 routes enables inter-VLAN traffic
  • Managed through Insight mobile app and Cloud Portal for remote configuration
  • Quiet rackmount operation at 26.80 to 37.3 dBA in a 1U form factor

24-port Gigabit switch with PoE++

The GS728TXUPv3 is a rackmount smart switch offering 24 RJ45 ports at 10/100/1000Mbps and four dedicated SFP uplinks. Sixteen ports deliver PoE+ and eight ports deliver PoE++, giving a total PoE budget of 420W for access points, cameras and VoIP phones. Layer 3 static routing supports 32 IPv4 and 32 IPv6 routes for local inter-VLAN traffic. Cloud and remote management are available through the Insight mobile app and Cloud Portal.

Quiet operation and power profile

Acoustic output ranges from 26.80dBA to 37.3dBA at 25°C ambient, allowing deployment in noise-sensitive rack environments. Maximum power draw reaches 502W when the PoE budget is fully utilised and drops to 27W without PoE load. Energy Efficient Ethernet (IEEE 802.3az) reduces consumption on idle links. The 1U chassis measures 440 x 257 x 43 mm for standard rack mounting.

Insight cloud platform and security tools

The bundled Insight ecosystem provides zero-touch provisioning, multi-site visibility and concurrent multi-port configuration from a single pane of glass. Security features include IEEE 802.1x with RADIUS and TACACS+ admin access, MAC lockdown, DHCP snooping and ACLs at L2/L3/L4. IPv6 management, SNMP v3 and configurable management VLAN complete the administrative toolkit.

Highlights

  • 24 Gigabit RJ45 ports plus 4 SFP uplinks for flexible copper and fibre connectivity
  • 16 PoE+ and 8 PoE++ ports deliver up to 420 W for power-hungry devices
  • Layer 3 static routing with 32 IPv4 and 32 IPv6 routes enables inter-VLAN traffic
  • Managed through Insight mobile app and Cloud Portal for remote configuration
  • Quiet rackmount operation at 26.80 to 37.3 dBA in a 1U form factor

Specifications

BrandNETGEAR
SeriesSmart w/ Optional Cloud
ModelGS728TXUPv3
Part NumberGS728TXUP-300NAS
FormatRackmount
Network Management TypeSmart
Primary Ports24 x RJ45 + 4 x SFP
Primary Port Speed10/100/1000Mbps
Management FeatureCloud/Remote management
Insight mobile app & Insight Cloud Portal management
uPnP Discovery
Lite Command-line Interface (CLI)
Networking monitoring
Data/performance logs
Centralized network configuration/policies (network-centric management)
Device auto-join and configure (zero-touch provisioning)
Multi-site, multi-network single pane-of-glass view
Multi-switch, multi-port concurrent configuration
Network/global password (for all Insight Managed devices on a network)
Password management
Configurable management VLAN
Admin access control via RADIUS and TACACS+
IPv6 management
SNTP clie
ProtocolsIEEE 802.3 Ethernet
IEEE 802.3u 100BASE-T
IEEE 802.3ab 1000BASE-T
IEEE 802.3af PoE
IEEE 802.3at PoE+
IEEE 802.3az Energy Efficient Ethernet (EEE)
IEEE 802.3ad Trunking (LACP)
IEEE 802.3z Gigabit Ethernet 1000BASE-SX/LX
IEEE 802.3x Full-Duplex Flow Control
IEEE 802.1Q VLAN Tagging
IEEE 802.1AB LLDP with ANSI/TIA-1057 (LLDP-MED)
IEEE 802.1p Class of Service
IEEE 802.1D Spanning Tree (STP)
IEEE 802.1s Multiple Spanning Tree (MSTP)
IEEE 802.1w Rapid Spanning Tree (RSTP)
IEEE 802.1x RADIUS Network Access Control
SecurityIEEE 802.1x
Guest VLAN
RADIUS-based VLAN assignment via .1x
MAC-based .1x
RADIUS accounting
Access Control Lists (ACLs): L2 / L3 / L4
IP-based ACLs (IPv4 and IPv6)
MAC-based ACLs
TCP/UDP-based ACLs
MAC lockdown
MAC lockdown by the number of MACs
Control MAC # Dynamic learned entries: 16384
Control MAC # static entries: 256
IEEE 802.1x RADIUS port access authentication
Port-based security by locked MAC addresses
Dynamic ARP inspection
Broadcast, unicast, multicast DoS protection
DoS attacks prevention
Network storm protection, DoS
Broadcast, unicast, multicast DoS protection
DoS attac
PoEYes
QoSPort-based rate limiting: Ingress and egress
Port-based QoS
Support for IPv6 fields
DiffServ QoS: Ingress
IEEE 802.1p COS
Destination MAC and IP
IPv4 and v6 DSCP
IPv4 and IPv6 ToS
TCP/UDP-based
Weighted Round Robin (WRR)
Strict priority queue technology
Auto-VoIP VLAN / Auto-Voice VLAN: Based on OUI bytes (default database and user-based OUIs) in the phone source MAC address
Auto-VoIP: Based on protocols (SIP). Prioritzes traffic to a higher queue
Voice VLAN: Based on either VLAN ID or 802.1p priority, packets are passed onto the connecting VoIP phone using LLDP-MED
Auto-Video VLAN
Layer3
Layer 2 FeaturesServices - VLANs
IEEE 802.1Q VLAN tagging
IP-based VLANs
MAC-based VLANs
Auto-VoIP VLAN / Auto-Voice VLAN: Based on OUI bytes (default database and user-based OUIs) in the phone source MAC address
Auto-VoIP: Based on protocols (SIP). Prioritizes traffic to a higher queue
Voice VLAN: Based on either VLAN ID or 802.1p priority, packets are passed onto the connecting VoIP phone using LLDP-MED
Auto-Video VLAN
Auto WiFi VLAN and Auto Camera VLAN: Based on inputed OUIs
GARP with GVRP
Private VLAN
Services - Availability
Broadcast, multicast, unknown unicast storm control
IEEE 802.3ad - LAG
Layer 3 FeaturesServices - DHCP
DHCP client
DHCP snooping
DHCP Server, DHCP IPv6 Server, DHCP Relay, DHCP IPv6 Relay
Services - Routing
IPv4 static routing: 32
IPv6 static routing: 32
VLAN routing
Host ARP table (number of entries): 512 ARP
ICMP Router Discovery Protocol (IRDP)
Number of IP VLAN interfaces (routed VLANs): 15
PoE Ports16 PoE+, 8 PoE++ (420W)
PoE Power Budget420 W
Max Power ConsumptionMax power with PoE: 502W
Max power without PoE: 27 W
Dimensions440 x 257 x 43 mm (17.3 x 10.1 x 1.7 in)
Weight3.86kg (8.51lb)
Shipping weight5.04 kg
Package size450 × 340 × 91 mm

Other versions of this model

2 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

How do I install the GS728TXUPv3 in a rack and what clearance step is often missed?

Mount the 440 mm wide chassis using the supplied brackets; the step often missed is leaving at least 43 mm depth clearance behind the switch for cable bend radius and airflow.

What maintenance or replacement will the GS728TXUPv3 need over time?

The internal fan is the only moving part; clean its intake vents periodically and expect to replace the fan assembly if bearing noise appears after years of continuous operation.

What limit appears first on the GS728TXUPv3 under sustained full PoE load?

The 420 W PoE power budget is the first hard limit; with 16 PoE+ and 8 PoE++ ports active the switch will enforce per-port priority before reaching the 502 W total consumption ceiling.
