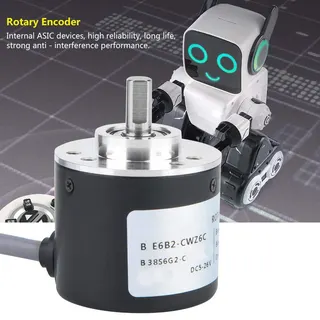

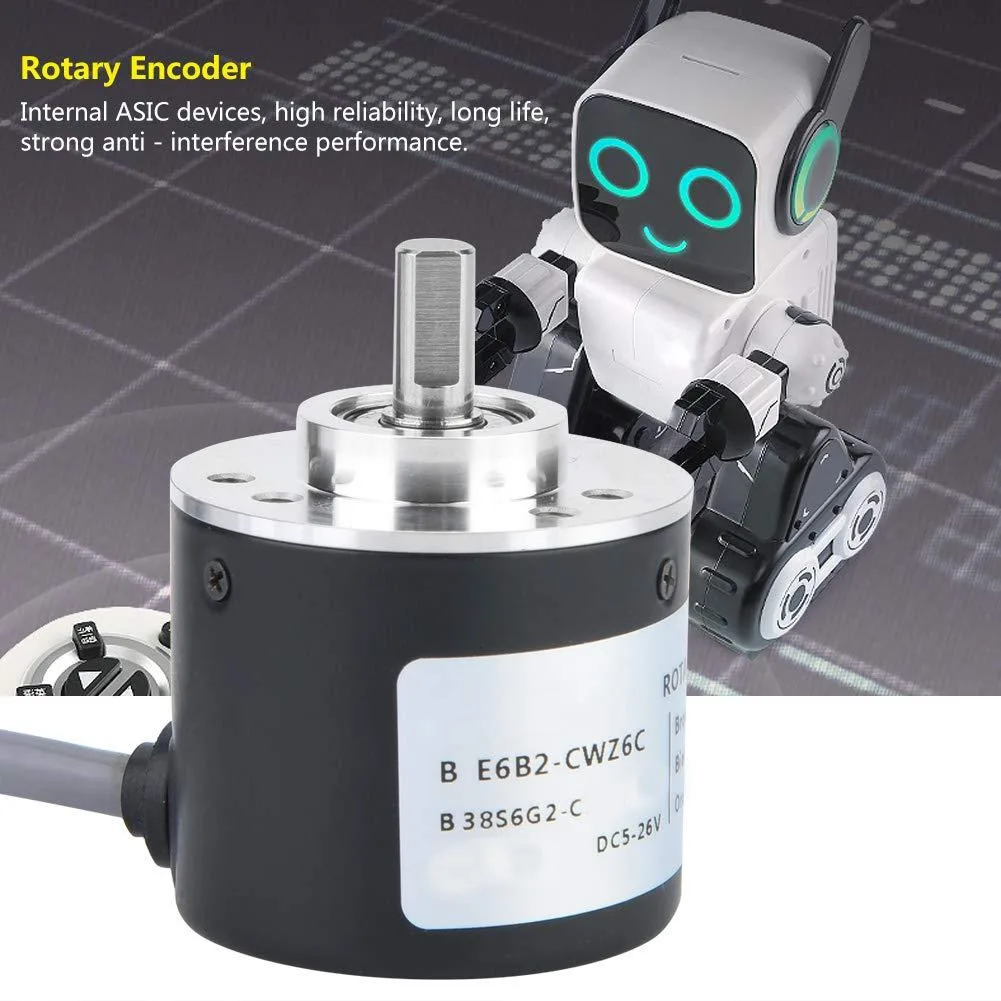

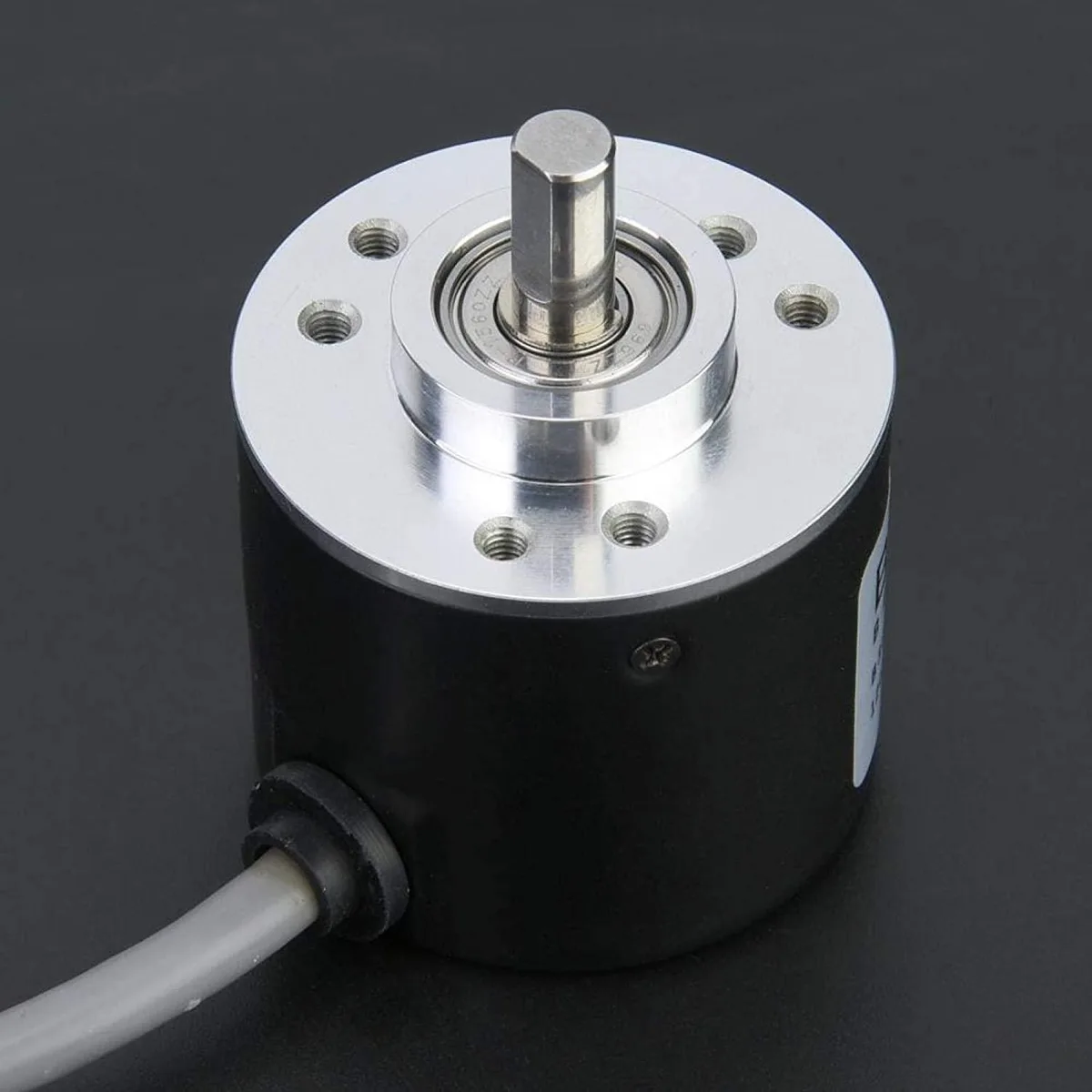

Small silver metal cylinder with protruding shaft and attached cable

myVolts

myVolts E6B2-CWZ6C 38mm incremental encoder 1000P/R

SKU CH-MFKN-83QVR MPN E6B2-CWZ6C

A 38 mm incremental encoder delivering 1000 pulses per revolution with DC 5–26 V supply, stainless spindle and reverse-wiring protection

  • TypeAT
  • Precise positioning with 1000 pulses per revolution
  • Reliable operation from internal ASIC circuitry
  • Durable stainless steel spindle resists wear and impact
  • Compact 38 mm body fits tight machine spaces
  • Protected against short circuits and reverse wiring

38 mm Incremental Encoder for Motion Control

The myVolts E6B2-CWZ6C is a 38 mm diameter incremental encoder built with internal ASIC devices for high reliability and strong anti‑interference performance. Its stainless‑steel spindle and metal shell provide impact resistance and stable operation in machinery environments. The compact, lightweight design allows easy installation on shafts requiring precise position feedback.

Open‑Collector Output with DC 5‑26 V Supply

This encoder operates on a DC 5‑26 V supply using an open‑collector output type, delivering A, B and Z phase signals through voltage, collector, complementary, push‑pull, long‑line‑drive, differential or fork output modes. Wiring includes brown for positive, blue for ground and black for signal, with a standard two‑metre cable length. The unit tolerates radial shaft loads up to 30 N and thrust loads up to 20 N.

Replaces Encoders Lacking Protection

It upgrades older encoders that lack load short‑circuit protection and power‑supply reverse‑wiring protection, adding both safeguards in a single package. The jump is worthwhile when a project needs selectable resolution from 100 to 5000 pulses per revolution, including 1000, 1024, 2000 or 2500 P/R options, and demands a rugged 38 mm housing with a 6 mm shaft. Buyers who need a larger diameter or a different shaft size should look elsewhere.

Highlights

  • Precise positioning with 1000 pulses per revolution
  • Reliable operation from internal ASIC circuitry
  • Durable stainless steel spindle resists wear and impact
  • Compact 38 mm body fits tight machine spaces
  • Protected against short circuits and reverse wiring

Specifications

TypeAT

Questions about this item

Which resolution should I choose from the optional pulse counts for the E6B2-CWZ6C?

Select the resolution that matches your controller's required pulses per revolution; available options range from 100 to 5000 P/R including 1000 P/R as standard.

What does the 1000 P/R rating mean when the encoder is installed in a machine?

The shaft produces 1000 distinct pulses for every full rotation, giving the controller precise position feedback at that granularity.

What interface does the open-collector output use and what voltage range does it support?

The open-collector output operates on a DC 5 to 26 V supply through the brown and blue wires.
