TRIPLETT - TOOLS & METERS BNC Male Crimp Connector 75 Ohm 10 Pack
Pack of ten 75-ohm BNC male crimp connectors for RG-58, RG-59 and RG-6 coaxial cable
- Reliable signal integrity up to 1 GHz with 75 ohm impedance matching
- Gold-plated center contact self-energizes for consistent low-loss connections
- Nickel-plated brass body resists corrosion in demanding environments
- Single crimp design fits RG-58, RG-59 and RG-6 cables without loose parts
- Captive contact solves cable dimensional discrepancies across 18-22 AWG range
GEM BNC Male Crimp Connector 75 Ohm 10 Pack

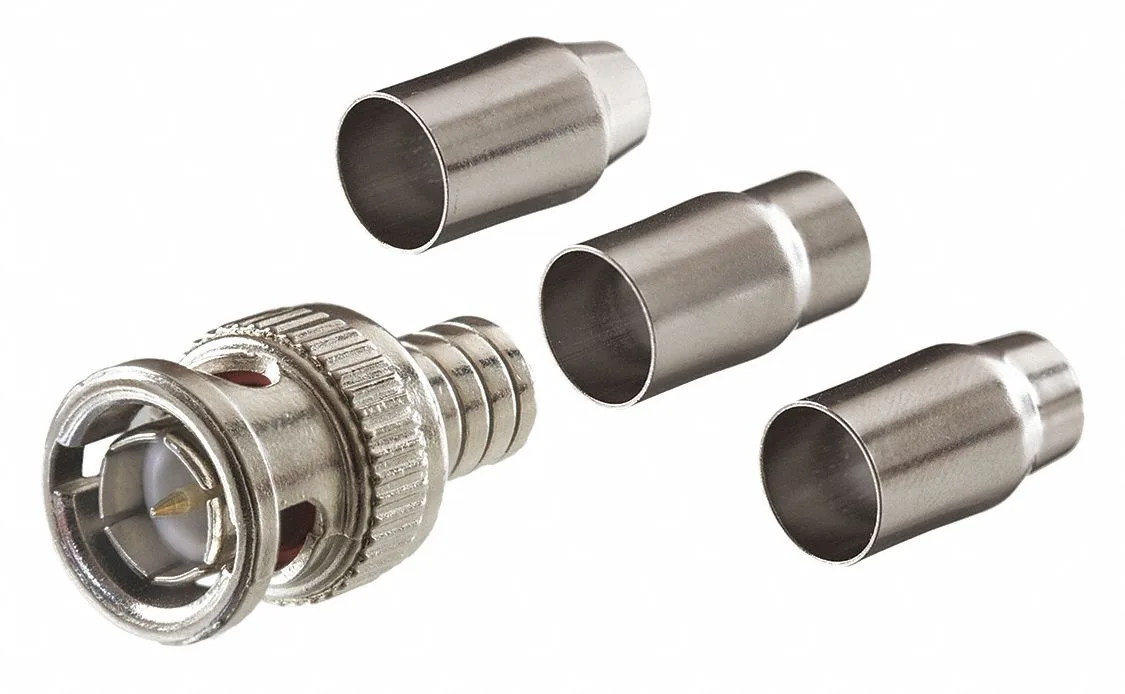

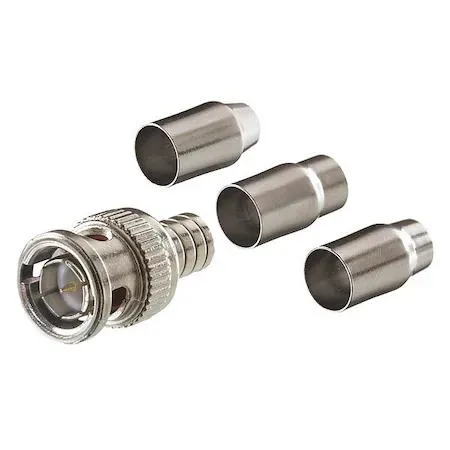

This pack supplies ten crimp-on BNC male connectors rated for 75 ohm impedance and frequencies from 0 to 1 GHz. Each connector fits RG-58 PVC, RG-59 PVC or PTFE, and RG-6 PVC or PTFE cables with jacket outer diameters from .185 to .280 inch and conductor sizes of 18 to 22 AWG. The two-piece brass body carries a bright nickel finish and a self-energizing gold-plated center contact.
Installers needing other impedances or cable sizes
Technicians who require a 75 ohm BNC interface for video, broadcast, or RF test leads will find these connectors match the stated cable types and frequency range. Builders working with cables outside the listed jacket diameter range, different coax series, or alternative coupling methods must choose a different connector.
75 ohm impedance and supported cable types
The single specification that determines fit is the 75 ohm impedance combined with the approved cable types RG-58, RG-59, and RG-6 across the noted jacket diameter and AWG range. Crimping requires the GST-1 or GST-2 strip tool and the GET-301-UT crimp tool.
Highlights
- Reliable signal integrity up to 1 GHz with 75 ohm impedance matching
- Gold-plated center contact self-energizes for consistent low-loss connections
- Nickel-plated brass body resists corrosion in demanding environments
- Single crimp design fits RG-58, RG-59 and RG-6 cables without loose parts
- Captive contact solves cable dimensional discrepancies across 18-22 AWG range
Specifications
| Brand | Triplett |
|---|
Questions about this item
How much heat do these BNC connectors generate when carrying a 1 GHz signal all day?
Passive connectors like these do not generate measurable heat; they simply pass the signal through their gold-plated centre contact and nickel-plated brass body.
Which crimp tool and strip tool must I already own to install these connectors on RG-58, RG-59 or RG-6 cable?
The manufacturer specifies the GET-301-UT crimp tool together with the GST-1 or GST-2 strip tool for proper termination.
Will these 75 ohm plugs mate reliably with the BNC gear I already have in the rack?
They are standard BNC male interfaces, so they will physically mate with any BNC female jack; signal integrity depends on the impedance of the connected equipment.
