Black rectangular DP switch with DP input, DP and HDMI outputs

LUOM

LUOM TJ-A038 DisplayPort 1.4 to DP 1.4 + HDMI 2.1 Video Switch

SKU CH-90AG-4KTC8

Connects one DisplayPort 1.4 source to a DisplayPort 1.4 and HDMI 2.1 display simultaneously at up to 8K 30 Hz

  • TypeDisplayPort Switchers
  • Changer TypeDisplayPort Switch/Extender
  • ColorBlack
  • Ports2
  • SpecificationsCompatible with all DisplayPort input and HDMI, DisplayPort
  • Input Connector1 x DisplayPort 1.4
  • Drives two displays from one DP 1.4 port
  • 4 Gbps bandwidth carries 8K at 30 Hz
  • MST extends desktop across both screens
  • HDMI 2.1 output reaches 4K 120 Hz
  • USB power keeps the splitter running

Dual DisplayPort HDMI splitter for creators

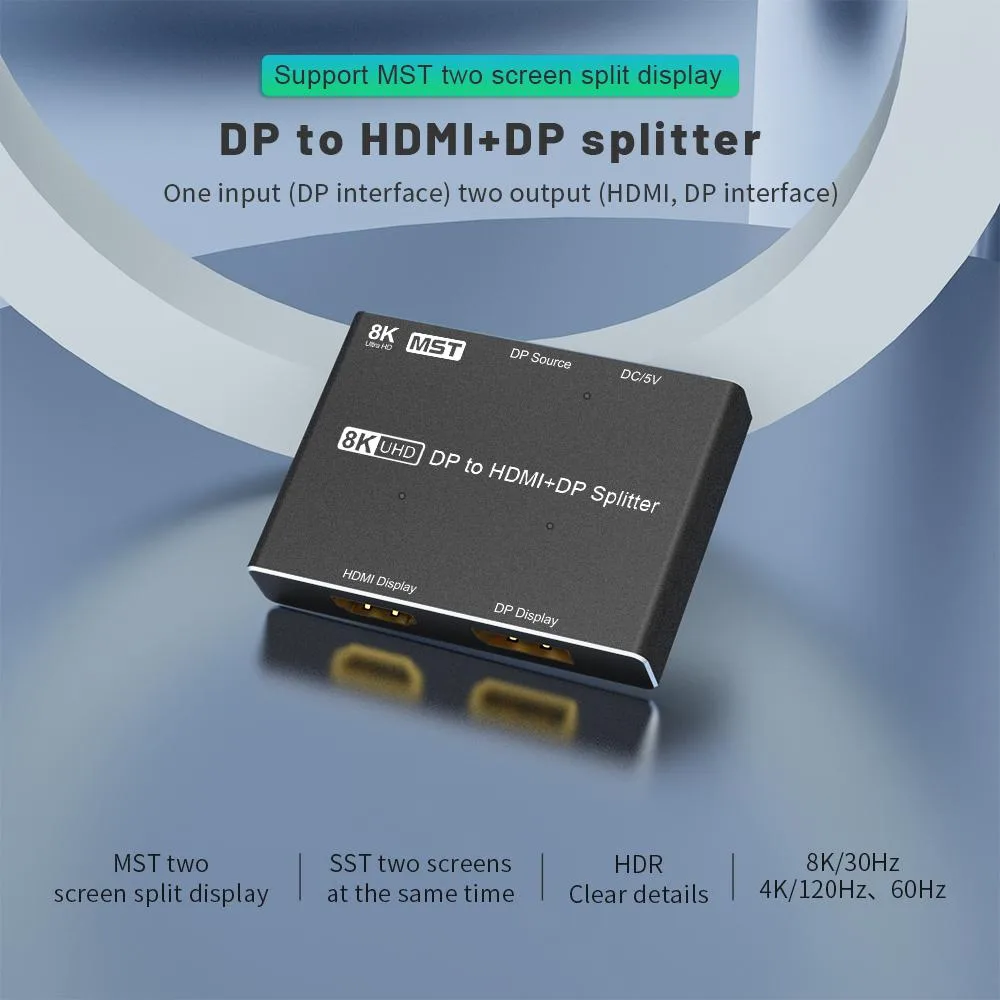

The LUOM TJ-A038 splits one DisplayPort 1.4 source into simultaneous DisplayPort 1.4 and HDMI 2.1 outputs. It supports SST mirror and MST extended modes for dual-monitor workflows. Compatible with Windows, Android and iOS systems. Requires the included USB power cable for operation.

Upgrade from single-port adapters

Replaces basic single-output dongles when you need two active displays from one GPU port. In MST mode each output can reach 4K@60Hz together, or one port can hit 8K@30Hz or 4K@120Hz alone. The jump is worth it for signage, streaming or multi-tasking setups that demand simultaneous high-refresh 1440p or 4K signals.

Check GPU port and cable specs

Verify your graphics card provides a DisplayPort 1.4 output with MST support for extended desktop. Use certified DP 1.4 and HDMI 2.1 cables rated for 32.4 Gbps bandwidth. Note that 165 Hz and 144 Hz at 1440p are not supported on the HDMI port. Ensure a free USB port or charger for the required 5 V power line.

Highlights

  • Drives two displays from one DP 1.4 port
  • 4 Gbps bandwidth carries 8K at 30 Hz
  • MST extends desktop across both screens
  • HDMI 2.1 output reaches 4K 120 Hz
  • USB power keeps the splitter running

Specifications

BrandLUOM
SeriesTJ-A038
ModelTJ-A038
Part NumberTJ-A038
TypeDisplayPort Switchers
Changer TypeDisplayPort Switch/Extender
ColorBlack
Ports2
SpecificationsCompatible with all DisplayPort input and HDMI, DisplayPort output
Comply with DisplayPort 1.4, 1.3, 1.2, 1.0 specifications
Support resolution:
8K@30Hz
4K@120Hz, 60Hz
1440P@165Hz, 144Hz, 120Hz, 60Hz (165Hz, 144Hz HDMI output is not supported)
1080P@240Hz, 165Hz, 144Hz, 120Hz, 60Hz (165Hz, 144Hz HDMI output Not supported)
(Depends on your graphics card, monitor, TV, operating system and DP cable, HDMI cable support)
Support operating system: Apple (iOS) system, Windows system, Android system
Support HDR
Support SST (Mirror) and MST (Extended) mode
Support 4:4:4, 4:2:2, 4:2:0
Input Connector1 x DisplayPort 1.4
Output ConnectorDisplayPort1.4+HDMI 2.1
Maximum Resolutions8K@30Hz 4K@120Hz
BandwidthHigh Speed 32.4Gbps
FeaturesDisplay Port HDMI: Creative dp 1.4 splitter, support dp input to dp and hdmi output simulantely. Greatly satisfying your individual creative needs. Ideal for digital signage in schools, churches, conference rooms, trade shows, hotels and retail outlets
Parameter Information 1): Single dp to dp support 8k@30hz, 4k@60/144hz, 2k@165hz. 2): Single dp to hdmi support 8k@30hz, 4k@60/122hz, 2k@144hz. 3): dp to dp+hdmi support dual 4k@60hz or 5k@60hz + 1080p@60hz: 4): when you use a thundebolt 3/USB C to dp cable connecting dp input interface, the dp and hdmi output can only support 4k. CHEC
Dimensions12 x 6 x 0.08 inches
Weight1.2 ounces
Package Quantity1
Package Contents1 X Directional DP to DP+HDMI Switcher
1 X DC 5V power line
1 x instructions

Questions about this item

What size opening does the 12 x 6 x 0.08 inch switch need to fit in a rack or shelf?

The switch measures 12 inches long, 6 inches wide and 0.08 inches thick, so allow at least that footprint plus cable clearance.

Which step do people skip when installing the DP 1.4 to DP 1.4 + HDMI 2.1 switch?

Connect the included DC 5 V USB power cable before linking the DisplayPort source and the two displays; the unit will not pass signal without external power.

What will need replacement first on the LUOM TJ-A038 switch?

The USB power cable or the DisplayPort and HDMI cables will wear out before the switch itself, so keep spares for those.
