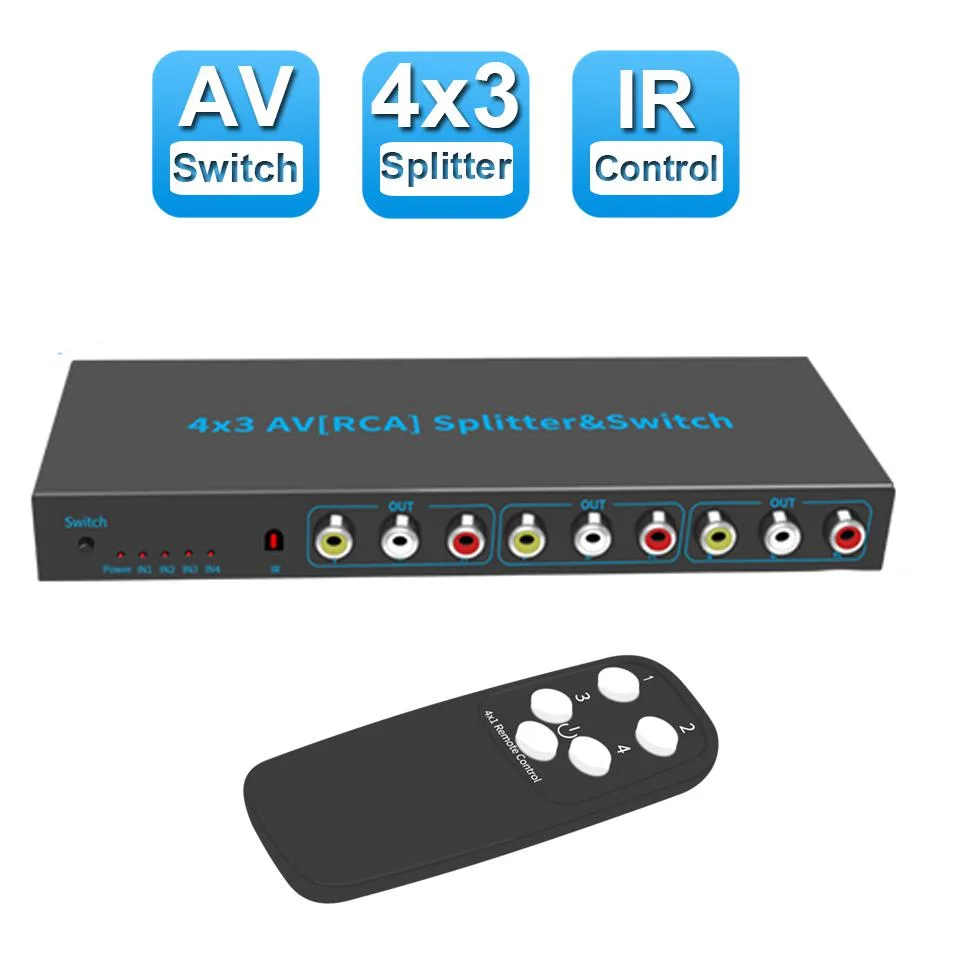

Small black metal box with rows of colour-coded RCA sockets and a front selection button

LUOM

LUOM OZQV Composite AV Switch 4 In 3 Out

SKU CH-4E2F-K6Q4S

Connects four composite sources to three displays with front-panel buttons or infrared remote

  • ColorBlack
  • SpecificationsComposite AV Switch 4 in 3 out - This 4 In 3 Out Composite S
  • AudioYes
  • FeaturesRCA AV Switch Splitter Box 4 in 3 out AV Audio Video Signal
  • Dimensions8 x 5.6 x 0.7 inches
  • Weight3.2 ounces
  • Connect up to four legacy sources to three displays
  • Hardware switching needs no drivers or software setup
  • IR remote lets you change inputs from the sofa
  • Metal chassis with colour-coded ports resists wear
  • 50 Hz–5.5 MHz bandwidth keeps composite video clear

Composite AV Switch 4 In 3 Out

The LUOM OZQV is a composite AV switch that routes four sets of RCA sources to three separate displays. It handles video and stereo audio through colour-coded RCA sockets and includes an IR remote for input selection. The unit is powered by an included 5V/1A adapter and requires no software drivers.

Suited for multi-display retro setups

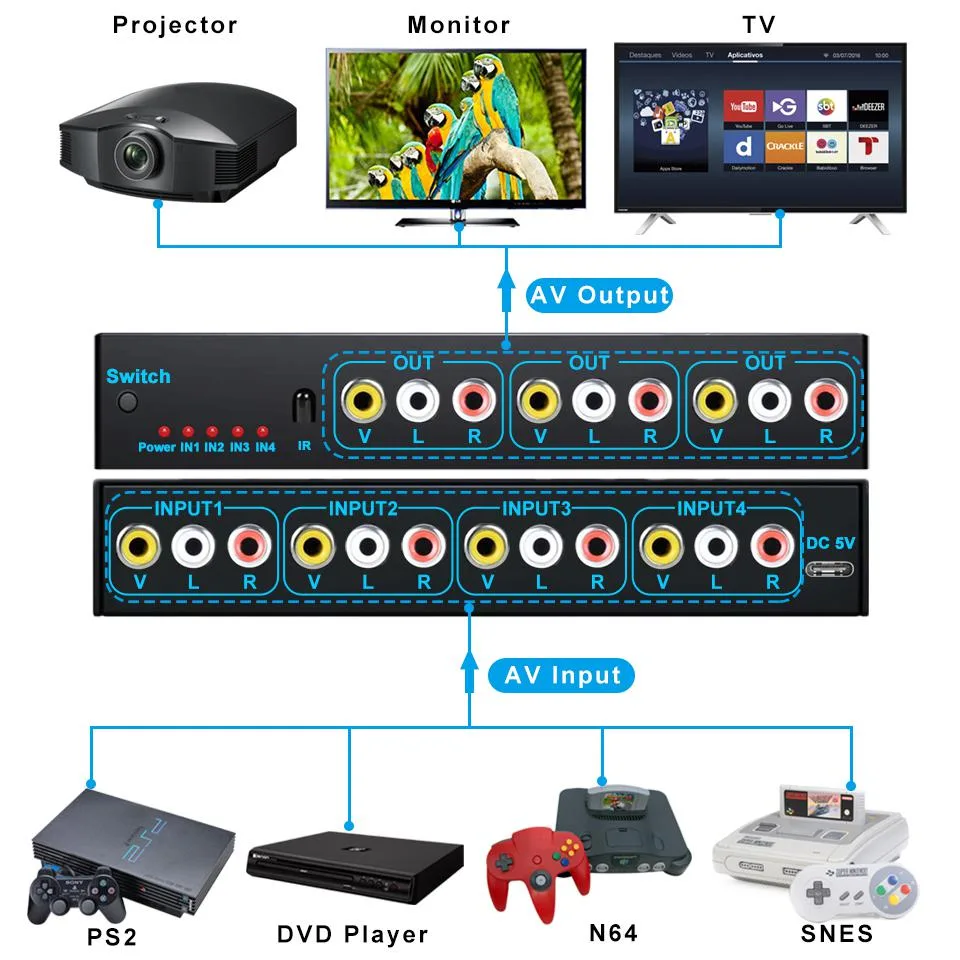

This switch suits users who want to share consoles such as a PS2, PS3 or N64 across three televisions without re-plugging cables. It does not support matrix mode, so the same source is sent to all active outputs simultaneously. Buyers needing independent source-to-display routing should look at a true matrix switcher instead.

Check RCA ports and power before ordering

Verify that each source device and each television provides composite video plus left and right audio RCA connectors. The switch passes signals with 75Ohm video impedance and 47kOhm audio input impedance. Ensure a mains socket is available for the supplied 5V/1A power adapter.

Highlights

  • Connect up to four legacy sources to three displays
  • Hardware switching needs no drivers or software setup
  • IR remote lets you change inputs from the sofa
  • Metal chassis with colour-coded ports resists wear
  • 50 Hz–5.5 MHz bandwidth keeps composite video clear

Specifications

BrandLUOM
ModelOZQV
ColorBlack
SpecificationsComposite AV Switch 4 in 3 out - This 4 In 3 Out Composite Selector's 3 standards "Video, L-Audio-R", 4 in 3 out, If you own 3 TV Set but more than 1 audio and video device, this 4 Way (4 In 3 Out) Composite AV Switch is suitable for you,Not support Matrix mode.
Video:
Input Video Signal: 0.8-1.0 volts p-p
Input Impedance: 75Ohm
Output Video Signal: 0.8-1.0 volts p-p
Output Impedance: 75Ohm
Bandwidth: 50Hz-5.5MHz
Audio:
Input Audio Signal: 2V(RMS)
Input Impedance: 47kOhm
Output Video Signal: 2V(RMS)
Output Impedance: 1KOhm
Frequency: 10Hz-20KHz, 0db
AudioYes
FeaturesRCA AV Switch Splitter Box 4 in 3 out AV Audio Video Signal Composite for HDTV LCD DVD 3 RCA Switcher 4 to 1 Selector
Composite AV Switch 4 in 3 out - This 4 In 3 Out Composite Selector's 3 standards "Video, L-Audio-R", 4 in 3 out, If you own 3 TV Set but more than 1 audio and video device, this 4 Way (4 In 3 Out) Composite AV Switch is suitable for you,Not support Matrix mode.
Easy to Use/True Plug&Play - Pure hardware design, be plugged and unplugged easily. No software drivers are needed, just press the selection button on the component av switcher box to choose the av sources.
IR
Dimensions8 x 5.6 x 0.7 inches
Weight3.2 ounces
Package ContentsAV Switcher*1
User Manual*1
5V/1A Power Adapter*1
Remote Control (without battery)*1

Questions about this item

What cables do I need to connect my sources and three displays to the four composite inputs and three composite outputs?

You need RCA cables with yellow, red and white plugs for each device — four sets for the inputs and three sets for the outputs — matching the Video, L-Audio-R layout on the switch.

Will my older consoles that output standard composite video work through the switch without degrading the picture on a modern TV?

Yes, the switch passes 0.8–1.0 V p-p composite video at 75 Ω with a 50 Hz–5.5 MHz bandwidth, so legacy consoles such as a PS2 or N64 will display correctly on any TV with composite inputs.

How can I verify the switch is routing the correct source to all three TVs after I press the button or use the remote?

Each TV will show the same selected source simultaneously; the front-panel LED indicates the active input number, and the IR remote changes that selection for all three outputs at once.
