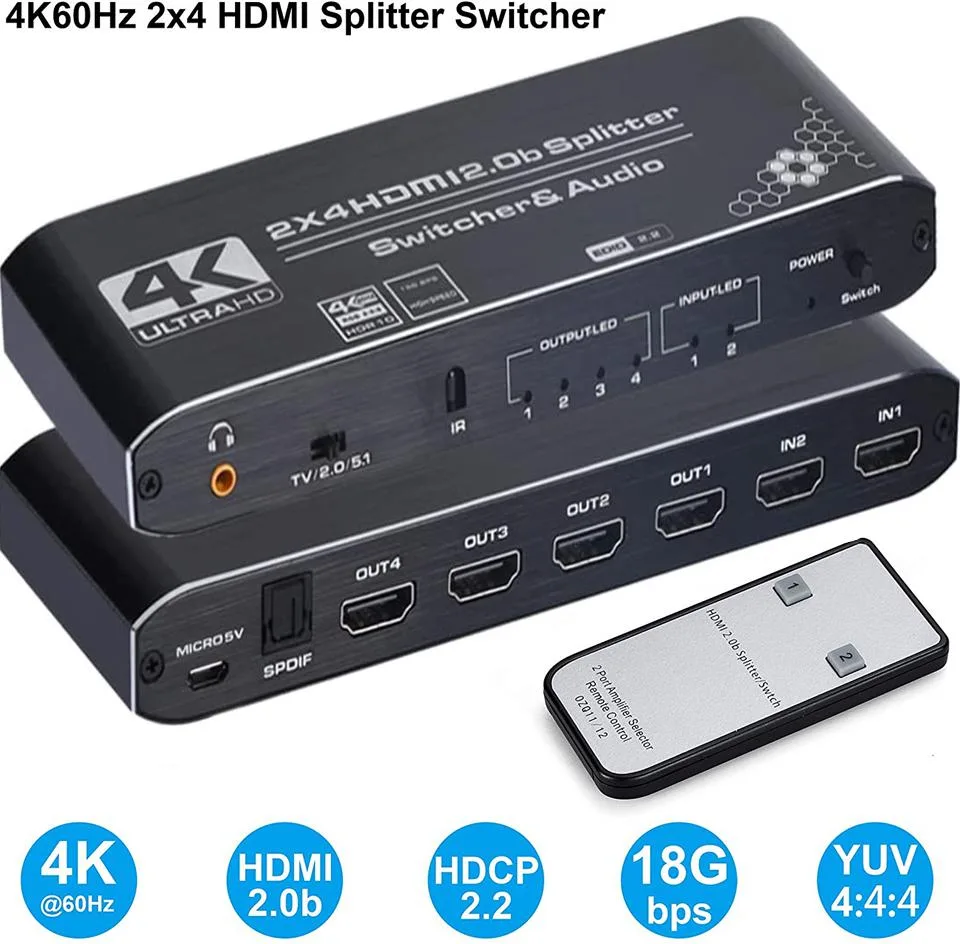

Black rectangular HDMI switch box with multiple ports and remote control

LUOM

LUOM OZQ12 2x4 HDMI Switch Audio Extractor Black

SKU CH-JG2G-Q3XRS

Routes two HDMI sources to four displays at 4K@60Hz with optical and 3.5 mm audio extraction

  • TypeHDMI Switchers
  • Changer TypeHDMI Switch/Extender
  • ColorBlack
  • Ports2
  • Specifications2 HDMI inputs switch and split to 4 HDMI displays HDMI resol
  • Input Connector4 x HDMI
  • Switch two sources across four displays with IR remote
  • Extract audio via optical Toslink and 3.5 mm jack
  • Deliver 4K 60 Hz HDR video at 18.5 Gbps bandwidth
  • Support deep colour up to 48-bit for richer gradients
  • HDCP 2.2 and HDMI 2.0b ensure protected content plays

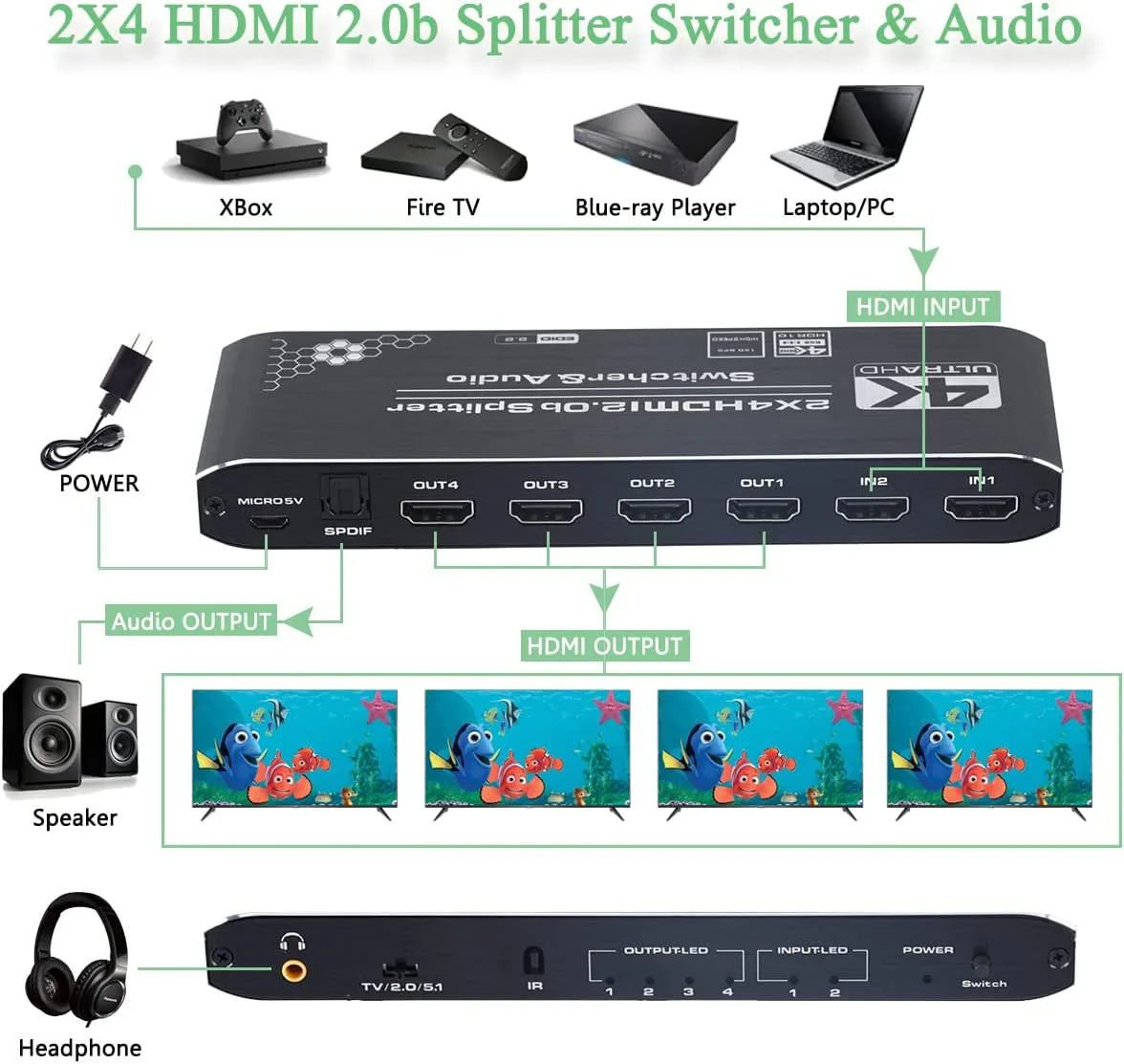

2×4 HDMI Switch with Audio Extraction

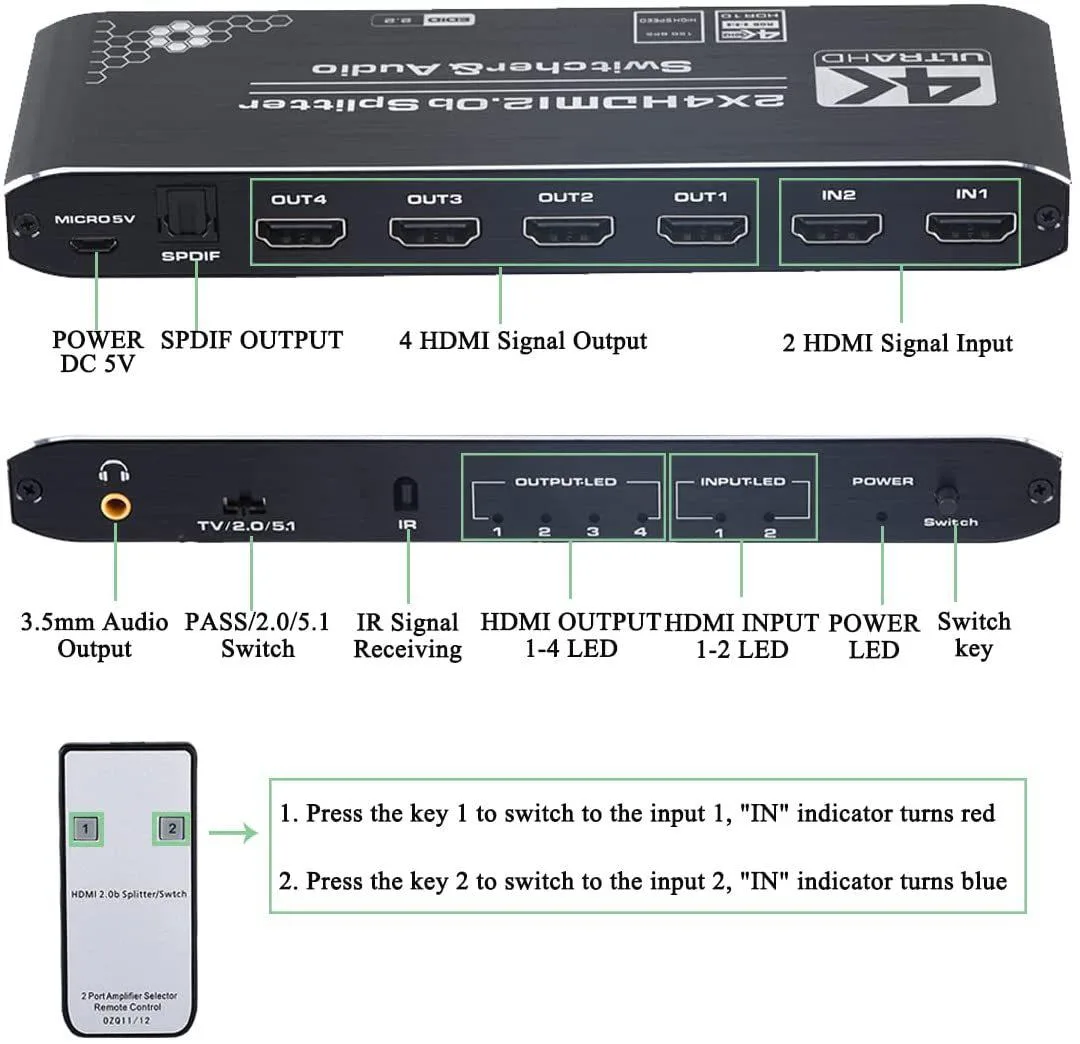

This LUOM OZQ12 unit routes two HDMI sources to four displays simultaneously. It includes an IR remote and a front-panel button for instant input selection. The built-in audio extractor provides both optical Toslink and 3.5 mm outputs for external sound systems. Ideal for installers who need one box to switch and distribute signals.

Replaces separate switch and splitter boxes

A single device now handles both source selection and four-way distribution, removing the need for a switch plus a splitter and the extra cabling between them. The jump is worth it when you run two sources to four screens in a home theatre, classroom or digital-signage wall and want zero cable swapping. HDCP 2.2 and HDMI 2.0b support keep protected 4K content flowing.

4K@60 Hz 4:4:4 with 18.5 Gbps bandwidth

The switch passes 3840×2160 at 60 Hz with full chroma sampling, HDR and deep colour up to 48-bit. Standard HDMI 2.0b cables carry the signal 10 m at 4K and 20 m at 1080p. Audio extraction handles multichannel streams over Toslink and stereo over 3.5 mm. It runs out when a source demands bandwidth above 18.5 Gbps or when runs exceed the stated cable distances.

Highlights

  • Switch two sources across four displays with IR remote
  • Extract audio via optical Toslink and 3.5 mm jack
  • Deliver 4K 60 Hz HDR video at 18.5 Gbps bandwidth
  • Support deep colour up to 48-bit for richer gradients
  • HDCP 2.2 and HDMI 2.0b ensure protected content plays

Specifications

BrandLUOM
SeriesOZQ12
ModelOZQ12
Part NumberOZQ12
TypeHDMI Switchers
Changer TypeHDMI Switch/Extender
ColorBlack
Ports2
Specifications2 HDMI inputs switch and split to 4 HDMI displays
HDMI resolution:Support 4K@60Hz (YUV 4:4:4) & 4K HDR
In HDMI HDR resolution, 4K@60Hz HDMI Input and Output distance can be up to 10m,1080p can be up to 20m using the AWG26 standard HDMI Cable.
Downscaling output from 4K to 1080p at the same time.
Audio Supports: DTS - HD/Dolby-true HD/DTS/Dolby-AC3/DSD
Support HDCP 2.2 & HDMI 2.0b
Support deep color 24/12/10/8 Bit.
Max bandwidth& baud rate: 600MHz&18.5Gbps
Works with: PS4 /XBox /Apple Tv 4K/pc /Blu-Ray/Etc More
Input Connector4 x HDMI
Output Connector1 x HDMI
Maximum Resolutions4K@60Hz
Bandwidth18.5Gbps/600MHZ
FeaturesSupport HDMI 2.0b HDCP 2.2
Support 3D video format
Support highest resolution up to 3840*2160/60Hz
Support 18.5Gbps 3 data rate and tmds clock up to 600Mhz
Support deep color 8/10/12/24/32/48bit
Support HDMI audio outputs ,3.5 mm earphone jack and optical output at same time
HDMI resolution: up to 3840*2160/60 Hz, RGB 4:4:4
2 HDMI inputs switch and split to 4 HDMI displays
Support LPCM/Dolby/DTS 5.1 audio
Dimensions5.91 x 2.36 x 0.79 inches
Weight11.9 ounces
Package Quantity1
Package Contents1x HDMI Splitter Switch 2x4
1x 5V power adapter
1x IR Remote Control
1x User Manual

Questions about this item

What are the dimensions of the LUOM OZQ12 so I can check if it fits my AV rack?

The unit measures 5.91 x 2.36 x 0.79 inches and weighs 11.9 ounces.

How do I connect the power and sources to the switch, and which step is often missed?

Connect the included 5V power adapter first, then attach up to 2 HDMI sources to the inputs and up to 4 displays to the outputs. The step often missed is powering the unit before connecting video cables.

When will the IR remote need a battery replacement?

The remote uses a standard button cell; replace it when switching becomes unreliable or range drops noticeably.
