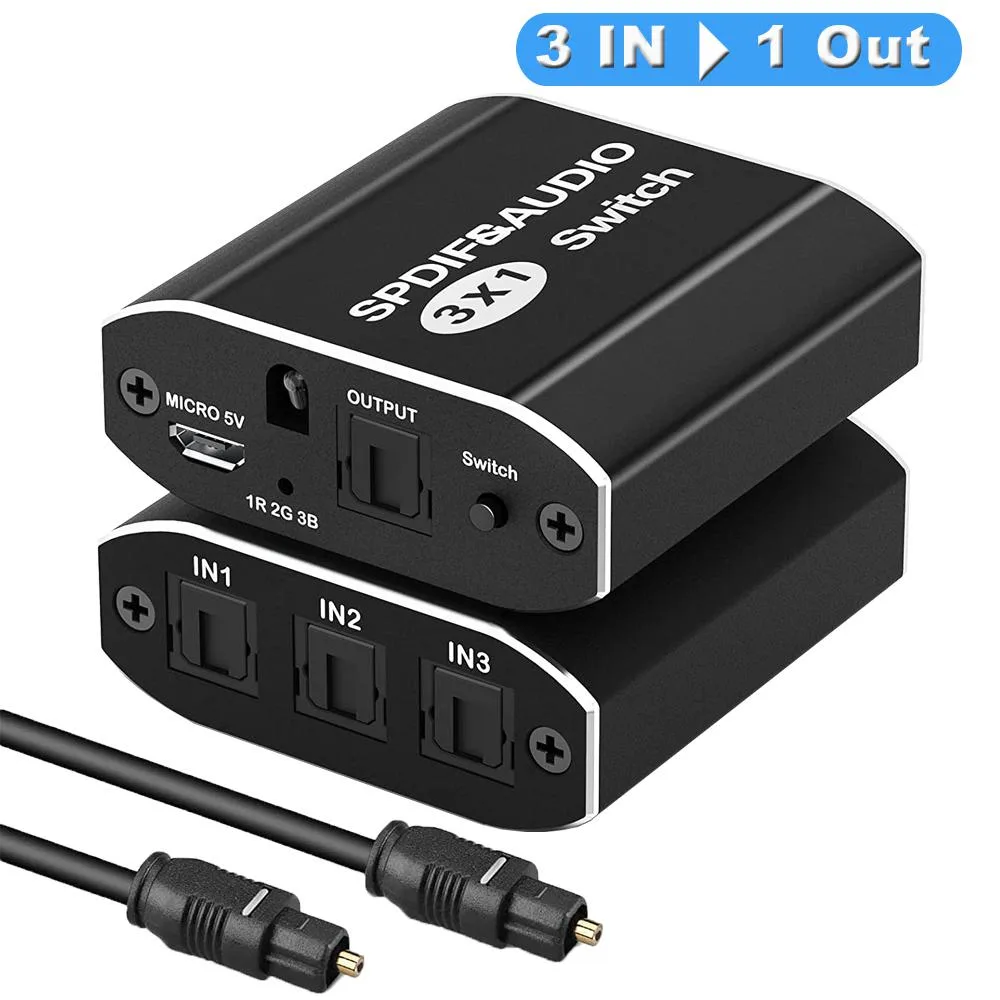

Black rectangular Toslink switch with three inputs and one output, IR remote included

LUOM

LUOM OZG2 3x1 Toslink Switch IR Remote Black

SKU CH-MKR4-XG6JZ

A three-input optical switch routes Toslink sources to one SPDIF output, supports LPCM 2.0, DTS and Dolby Digital up to 192 kHz, and includes an IR remote with last-memory recall

  • TypeSPDIF Switchers
  • Changer TypeSPDIF / Toslink Switch
  • ColorBlack
  • Ports3
  • SpecificationsSupport for audio formats: LPCM2.0 / DTS / Dolby Digital. Su
  • Input Connector3 x SPDIF
  • Connect three optical sources to one amplifier with 3×1 Toslink switching
  • Switch inputs from the sofa using the included IR remote up to 3 m
  • Enjoy LPCM 2.0, DTS and Dolby Digital at sample rates up to 192 kHz
  • Transmit clean digital audio up to 40 m over fibre with less than .2 dB/m loss
  • Aluminium alloy chassis shields signal and includes over-voltage protection for safe operation

What this switch does

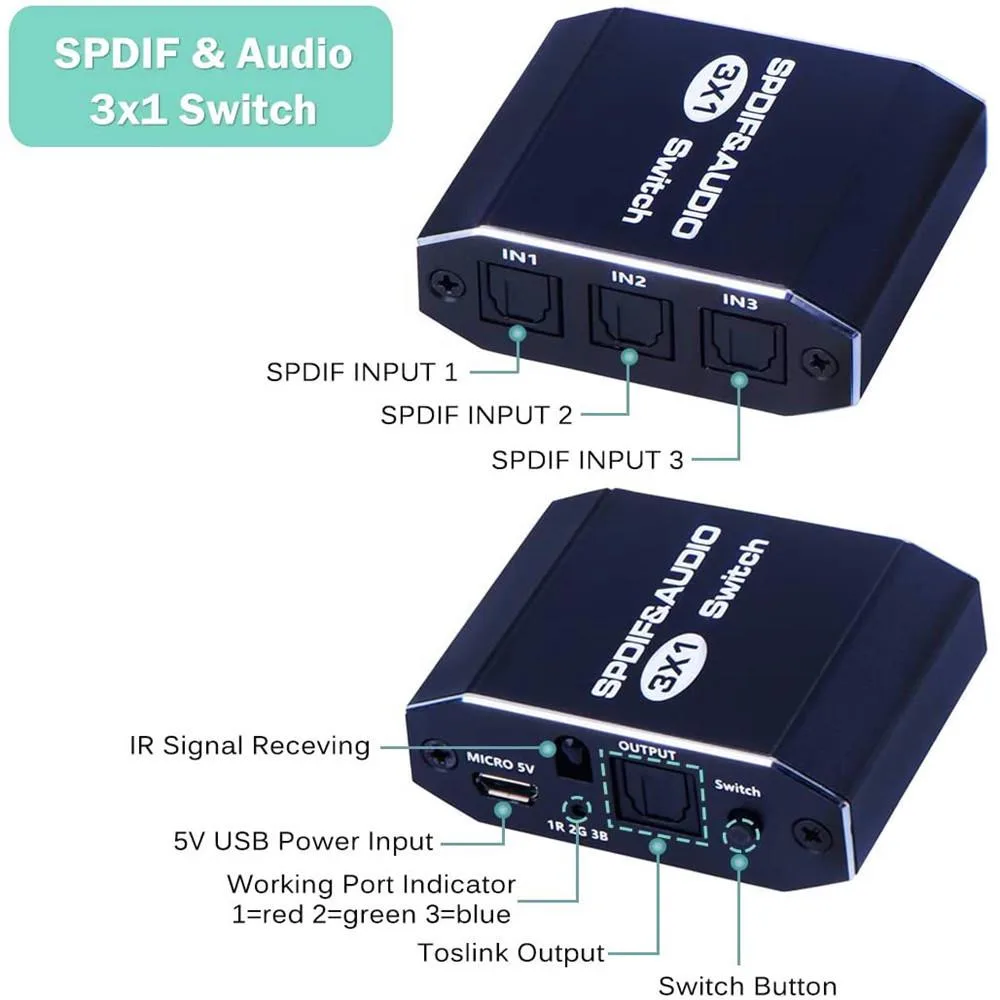

The LUOM OZG2 is a 3x1 Toslink switch that routes three optical digital sources to a single SPDIF input on an amplifier soundbar or AV receiver. It supports uncompressed LPCM2.0 and compressed DTS and Dolby Digital formats at sample rates of 32 44.1 48 96 and 192 kHz. A compact aluminium alloy chassis houses the circuitry and provides over-voltage protection.

Check before ordering

Verify that each source device has a Toslink output and that the destination has a single Toslink input. The switch does not decode 7.1 channel Dolby Digital Plus or Dolby TrueHD so those formats must be down-mixed to a supported format at the source. A free USB port or 5 V USB power adapter is required to power the unit. Optical cables for the three inputs and one output are not included.

What the accessories add

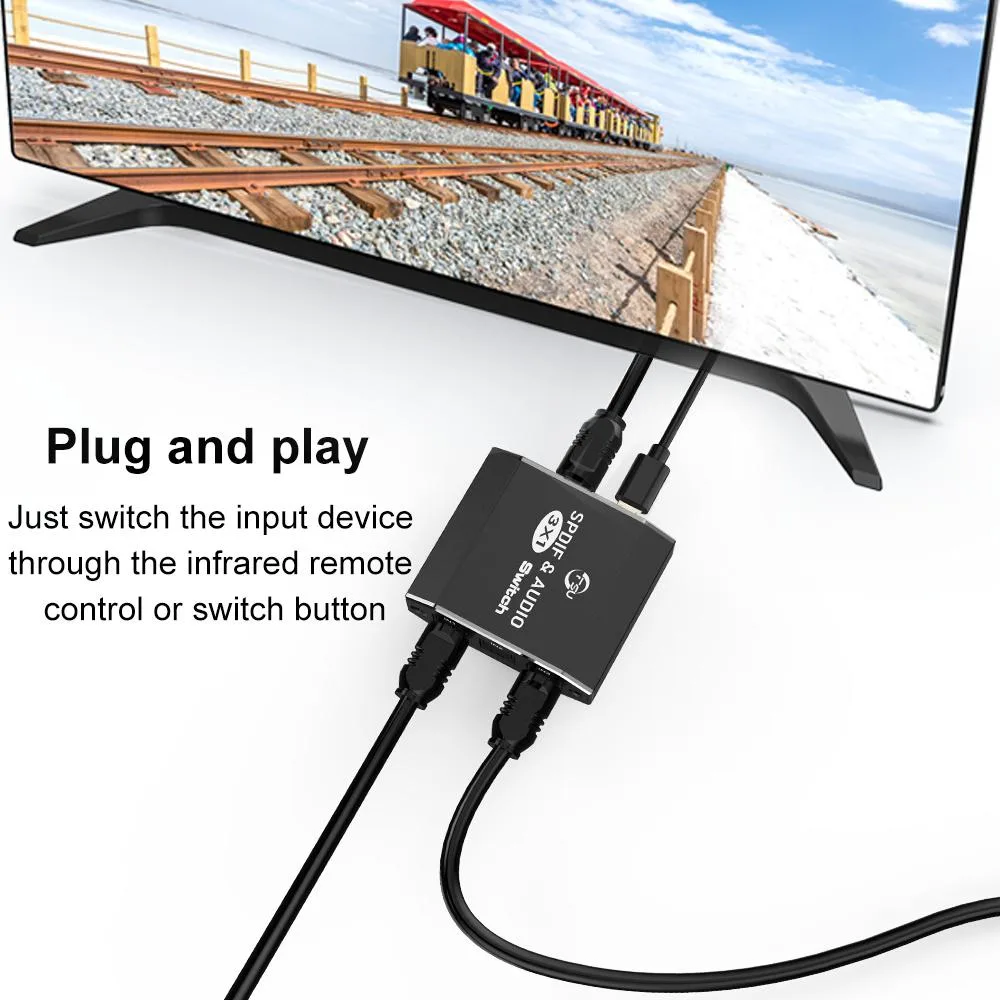

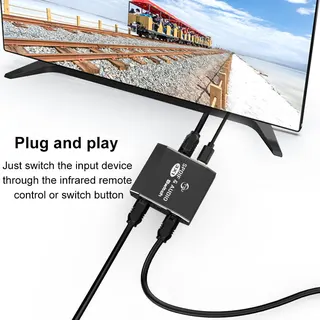

The supplied IR remote lets you change inputs from up to 3 m away and an IR extension cable allows the sensor to be positioned for line of sight when the switch is hidden. The 5 V USB power cable draws power from a TV USB port or any standard USB charger. Last memory recall restores the active input after a power loss. A user manual explains the button and remote operation.

Highlights

  • Connect three optical sources to one amplifier with 3×1 Toslink switching
  • Switch inputs from the sofa using the included IR remote up to 3 m
  • Enjoy LPCM 2.0, DTS and Dolby Digital at sample rates up to 192 kHz
  • Transmit clean digital audio up to 40 m over fibre with less than .2 dB/m loss
  • Aluminium alloy chassis shields signal and includes over-voltage protection for safe operation

Specifications

BrandLUOM
SeriesOZG2
ModelOZG2
Part NumberOZG2
TypeSPDIF Switchers
Changer TypeSPDIF / Toslink Switch
ColorBlack
Ports3
SpecificationsSupport for audio formats: LPCM2.0 / DTS / Dolby Digital.
Supports a transmission distance of up to 40 m via fibre optic cable.
Supports the last memory when power off.
Supports manual switching or IR control.
Support signal retiming
Surge protection
LED power status indicator.
No loss of sound quality.
Easy to set up, installed in minutes.
Dimensions: 6.2 x 5.8 x 2.4 cm
Weight:65g
Input Connector3 x SPDIF
Output Connector1 x SPDIF
FeaturesOptical 3x1 audio switch: with these digital optical SPDIF / Toslink audio switches, 3 optical Toslink sources (PS3, PS4, Xbox One, Blu-ray player, Apple TV, cable boxes, etc.) can be easily connected to a SPDIF / Toslink signal receivers (home theater, speaker, amplifier, soundbar, AV receiver, etc.). Support last working status memory when power off.
Supports 3 audio formats: this SPDIF Toslink switch supports uncompressed audio: LPCM 2.0, compressed audio: DTS, Dolby-AC3, no distortion of audio and video, no delay in signal transmission, enjoy various high quality audio quality an
Dimensions5.91 x 2.36 x 0.79 inches
Weight11.9 ounces
Package Quantity1
Package Contents1 x 3x1 Toslink switch.
1 x 5V USB power cable.
1 x remote control.
1 x IR extension cable.
1 x user manual

Questions about this item

What comes in the box with the LUOM OZG2 switch, and do I need to buy a power adapter separately?

The box includes the 3x1 Toslink switch, a 5V USB power cable, an IR remote control, an IR extension cable and a user manual. A USB power adapter is not supplied, so you will need a spare USB charger or powered port.

Which audio formats does the OZG2 support, and what are its limits?

It passes LPCM 2.0, DTS and Dolby Digital (AC3) at sample rates of 32, 44.1, 48, 96 and 192 kHz. It cannot carry 7.1-channel Dolby Digital Plus or Dolby TrueHD because those require HDMI bandwidth.

How far can I run the optical cables from this switch without signal loss?

The manufacturer rates the output distance at up to 40 m (130 ft) when using low-loss fibre optic cable rated at .2 dB/m or better.
