Small black HDMI splitter box with one input and two outputs, slim rectangular shape

LUOM

LUOM OZF2 1x2 HDMI Splitter 4K@30Hz Black

SKU CH-NP5E-6WZ0Q

Splits one HDMI source to two displays at up to 4K@30Hz with 18.5Gbps bandwidth and 36-bit deep colour

  • TypeHDMI Splitters
  • Changer TypeHDMI
  • Ports2
  • AudioYes
  • ColorBlack
  • SpecificationsHDMI-compatible version:HDMI-compatible 1.4a HDMI-compatible

Style 2 port - 4K 30Hz

  • Splits one HDMI source to two displays simultaneously
  • Supports 4K resolution at 30Hz for sharp video
  • Handles 1080p at 60Hz with deep colour 36bit
  • Passes multi-channel audio formats including DTS-HD and Dolby TrueHD
  • Compact 5.59 x 3.15 x 1.26 inch design with USB power

What the LUOM OZF2 splitter does

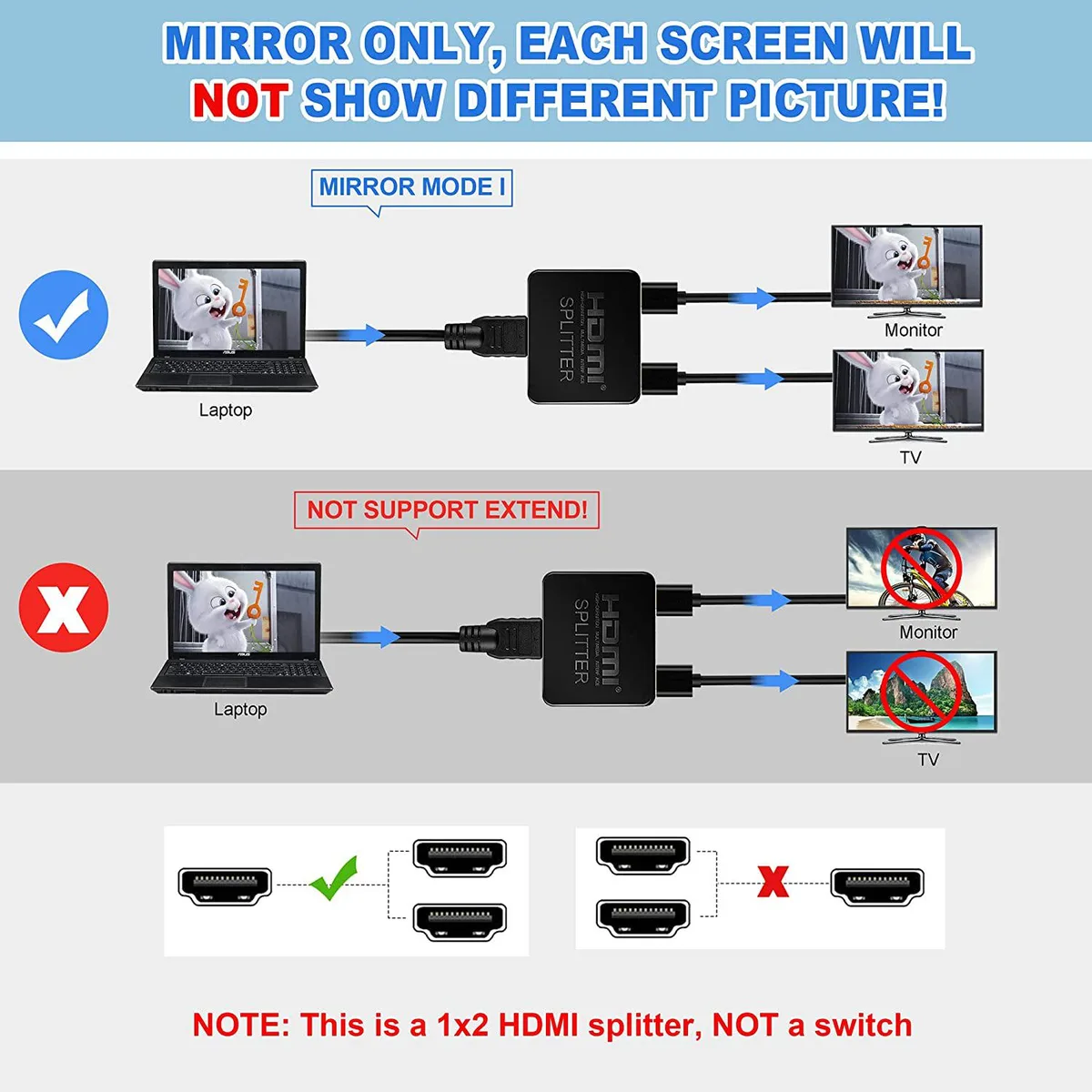

The LUOM OZF2 is a powered HDMI splitter that takes one source and duplicates it to two displays simultaneously. It supports video resolutions up to 3840 x 2160 at 30 Hz and 1920 x 1080 at 60 Hz. Audio formats including DTS-HD, Dolby TrueHD and 7.1-channel LPCM are passed through. The unit is designed for mirroring only, not for extending a desktop across screens.

Installation and common issues

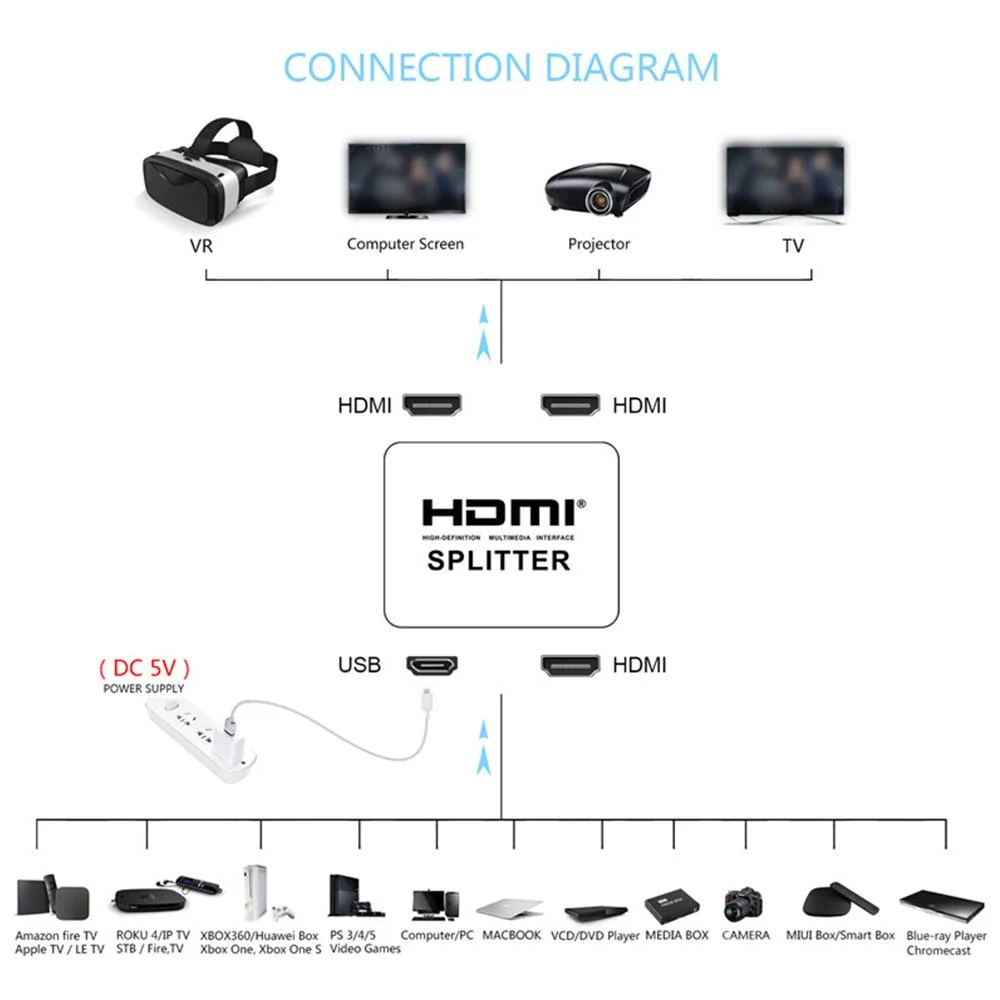

Connect the single HDMI input to your source device and the two outputs to your displays, then power the splitter via the included USB cable. The slim enclosure measures 5.59 x 3.15 x 1.26 inches and weighs 3.2 ounces, so it fits behind most equipment. A frequent mistake is expecting independent content on each screen; this device only mirrors the same signal to both outputs.

HDMI 1.4a bandwidth limits

The splitter operates on an HDMI 1.4a interface with 18.5 Gbps bandwidth, which restricts 4K output to 30 Hz. Higher refresh rates such as 4K at 60 Hz are not possible over this standard. Deep colour up to 36-bit is supported, but the 30 Hz ceiling at 3840 x 2160 remains a hard constraint for gaming or high-motion video.

Highlights

  • Splits one HDMI source to two displays simultaneously
  • Supports 4K resolution at 30Hz for sharp video
  • Handles 1080p at 60Hz with deep colour 36bit
  • Passes multi-channel audio formats including DTS-HD and Dolby TrueHD
  • Compact 5.59 x 3.15 x 1.26 inch design with USB power

Specifications

BrandLUOM
SeriesOZF2
ModelOZF2
Part NumberOZF2
TypeHDMI Splitters
Changer TypeHDMI
Ports2
AudioYes
ColorBlack
SpecificationsHDMI-compatible version:HDMI-compatible 1.4a
HDMI-compatible resolution:UP TO 1920*1080/60Hz
Support video color format:24bit/deep color 30bit,36bit
Support audio format:DTS-HD/Dolby-trueHD/DTS/Dolby-AC3/DSD HD(HBR)
Max bandwidth:225MHz
Max baud rate:2.25Gbps
Input/Output TMDS signal:0.5~1.5Volts p-p(TTL)
Input/Output DDC signal:5Volts p-p (TTL)
Input cable distance:15m AWG26 HDMI-compatible standard cable
Output cable distance:20m AWG26 HDMI-compatible standard cable
Max working current:350mA
Operating Temperature range:(-15 to +55)
Operating Humidity range:5 to 90%RH (No Condensati
Input Connector1 HDMI
Output Connector2 HDMI
Maximum Resolutions3840 x 2160
Bandwidth18.5Gbps
FeaturesPortable, slim design
Supports 4K, 3D, and HDMI
4K resolution, Full HD 1080p
One HDMI input signal splits into two HDMI sink devices
Support Full HD (1080p) and 3D images
Support Blue-Ray and DVD
Support signal retiming
Support input up to 15metres with AWG26 HDMI standard cable length, output up to 20metres AWG26 cable length
Dimensions5.59 x 3.15 x 1.26 inches
Weight3.2 ounces
Package Quantity1
Package Contents1 X HDMI Splitter 1x2
1 X USB Cable
1 X User Manual

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

How can I verify the splitter is passing a 4K@30Hz signal correctly after connecting it?

Check that both displays show identical 3840 x 2160 resolution at 30 Hz and that audio plays through both outputs without lag or colour distortion.

What comes in the package and do I need to buy any HDMI cables separately?

The box includes the 1x2 splitter, a USB power cable and a user manual; you must supply two HDMI cables for the outputs and one for the input.

Should I choose this OZF2 model if I need 4K@60Hz or HDR support?

This unit is specified for 4K@30Hz and 1080p@60Hz with deep colour up to 36-bit; it does not support 4K@60Hz or HDR metadata.
