Small black HDMI splitter box with one input and two output ports

LUOM

LUOM OZF2-1 4K@60Hz 1x2 HDMI Splitter

SKU CH-62CF-P8B7Y

One HDMI input splits to two displays at up to 4K 60 Hz with 30-bit or 36-bit deep colour and multi-format audio

  • TypeHDMI Splitters
  • Changer TypeHDMI
  • Ports2
  • AudioYes
  • ColorBlack
  • SpecificationsHDMI-compatible version:HDMI-compatible 2.0b HDMI-compatible

Style 2 port - 4K 60Hz

  • Splits one HDMI source to two displays simultaneously
  • 4K at 60 Hz with deep colour up to 36-bit
  • Supports lossless audio formats including DTS-HD and Dolby TrueHD
  • Cable runs up to 15 metres at 1080p or 8 metres at 4K
  • Compact 5.59 × 3.15 × 1.26 inch design weighing 3.2 ounces

One-to-two 4K splitter for dual-display mirroring

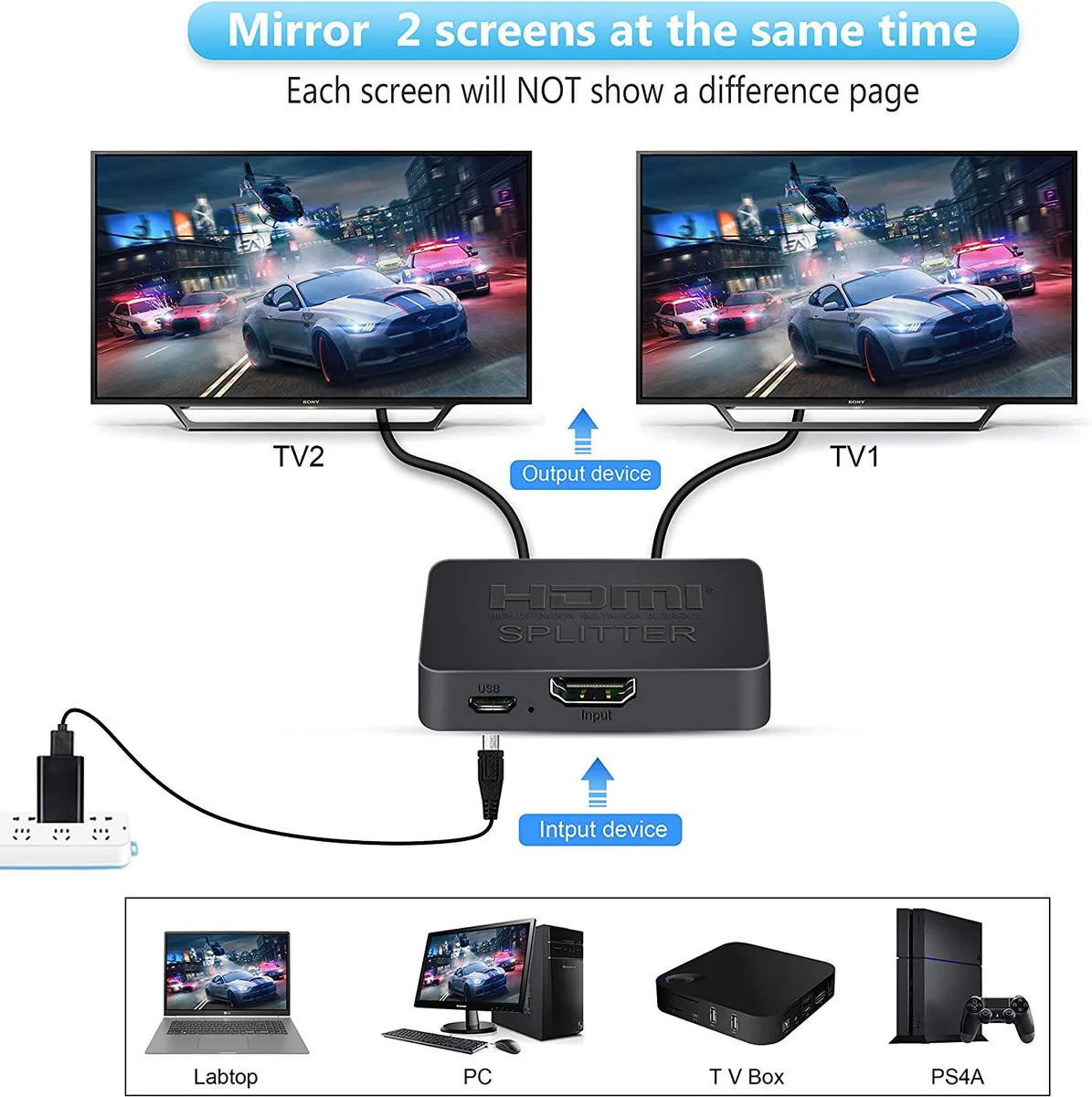

The LUOM OZF2-1 takes a single HDMI source and duplicates it across two screens at the same time. It handles 4K at 60 Hz, 1080p at 120 Hz and 3D content without quality loss. The unit is intended for users who need identical output on two displays from one device such as a console, streaming stick or Blu-ray player.

HDMI 2.0b bandwidth and 4K60 capability

The splitter operates on HDMI 2.0b with a maximum bandwidth of 2.25 Gbps and supports resolutions up to 3840 x 2160 at 60 Hz. It also passes deep-colour formats at 24, 30 and 36 bits per pixel plus audio formats including DTS-HD, Dolby TrueHD and DSD. This specification decides whether the part matches the source and display capabilities in your setup.

USB power cable and mixed-resolution handling

A USB cable is included for power, so no separate mains adapter is required. When one display supports 4K60 and the other only 1080p, the splitter automatically downscales the second output to 1080p while the first remains at 4K60. The package also contains a user manual; no software or drivers are needed.

Highlights

  • Splits one HDMI source to two displays simultaneously
  • 4K at 60 Hz with deep colour up to 36-bit
  • Supports lossless audio formats including DTS-HD and Dolby TrueHD
  • Cable runs up to 15 metres at 1080p or 8 metres at 4K
  • Compact 5.59 × 3.15 × 1.26 inch design weighing 3.2 ounces

Specifications

BrandLUOM
SeriesOZF2-1
ModelOZF2-1
Part NumberOZF2-1
TypeHDMI Splitters
Changer TypeHDMI
Ports2
AudioYes
ColorBlack
SpecificationsHDMI-compatible version:HDMI-compatible 2.0b
HDMI-compatible resolution:UP TO 4K/60Hz
Support video color format:24bit/deep color 30bit,36bit
Support audio format:DTS-HD/Dolby-trueHD/DTS/Dolby-AC3/DSD HD(HBR)
Max bandwidth:225MHz
Max baud rate:18.5Gbps
Input/Output TMDS signal:0.5~1.5Volts p-p(TTL)
Input/Output DDC signal:5Volts p-p (TTL)
Input cable distance:15m AWG26 HDMI-compatible standard cable
Output cable distance:20m AWG26 HDMI-compatible standard cable
Max working current:350mA
Operating Temperature range:(-15 to +55)
Operating Humidity range:5 to 90%RH (No Condensation)
Dim

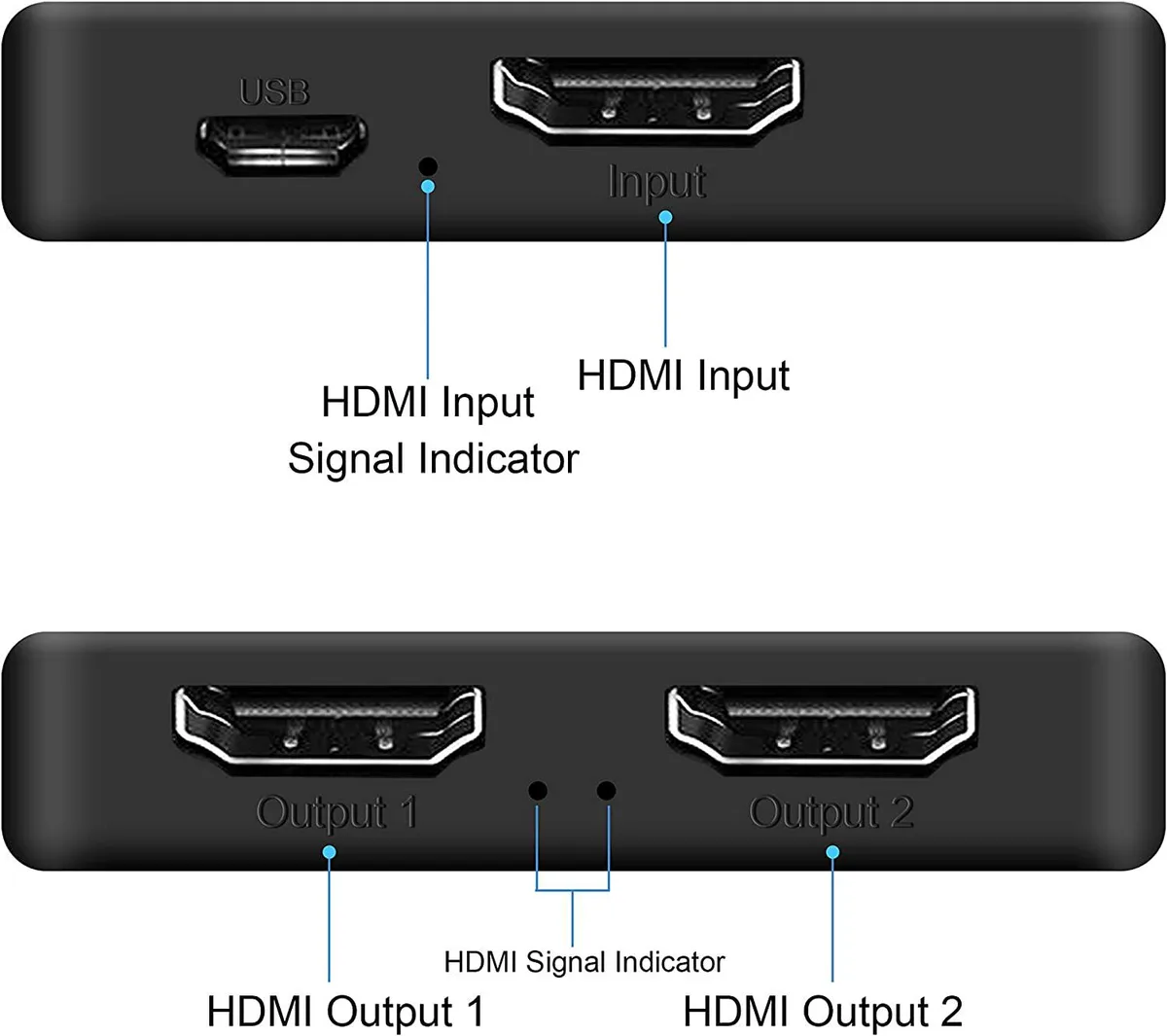

Input Connector1 HDMI
Output Connector2 HDMI
Maximum Resolutions3840 x 2160
Bandwidth2.25Gbps
FeaturesPortable, slim design
Supports 4K@60Hz, 3D, and HDMI
4K@60Hz resolution, Full HD 1080p
One HDMI input signal splits into two HDMI sink devices
Support Full HD (1080p) and 3D images
Support Blue-Ray and DVD
Support signal retiming
Support input up to 15metres with AWG26 HDMI standard cable length, output up to 20metres AWG26 cable length
Dimensions5.59 x 3.15 x 1.26 inches
Weight3.2 ounces
Package Quantity1
Package Contents1 X HDMI Splitter 1x2
1 X USB Cable
1 X User Manual

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

What does 4K@60Hz mean once the splitter is connected to my TV and source?

The unit takes one HDMI source and duplicates it to two displays at up to 3840 x 2160 resolution and 60 frames per second with 24, 30 or 36 bit colour depth and DTS-HD, Dolby TrueHD or DSD audio.

The box says HDMI 2.0b — what bandwidth does that actually allow?

The HDMI 2.0b interface is rated at 2.25 Gbps per channel, which caps video at 4K 60 Hz 4:4:4 and supports 1080p at 120 Hz or 3D formats.

How much space do I need behind the rack for this splitter?

The splitter measures 5.59 x 3.15 x 1.26 inches and weighs 3.2 ounces, so it fits in a shallow cavity or on a shelf with a few centimetres of clearance.
