Black rectangular HDMI splitter with one input and two output ports

LUOM

LUOM OZF2-1 HDMI Splitter 1×2 4K@60Hz 18.5Gbps

SKU CH-36P1-5JH7Q

Splits one HDMI source to two displays at up to 4K 60 Hz with automatic downscaling to 1080p on the second screen

  • TypeHDMI Splitters
  • Changer TypeHDMI
  • Ports2
  • AudioYes
  • ColorBlack
  • SpecificationsHDMI-compatible version:HDMI-compatible 2.0b HDMI-compatible

Style 2 port - 4K 60Hz

  • Splits one HDMI source to two identical displays
  • 4K at 60 Hz with 18.5 Gbps bandwidth
  • Auto downscales 4K to 1080p on mixed screens
  • Supports deep colour up to 36-bit and 3D video
  • 50 ft reach at 1080p, 26 ft at 4K

One input to two displays

This LUOM OZF2-1 HDMI splitter takes a single HDMI source and duplicates the signal to two screens simultaneously. It supports resolutions up to 3840 x 2160 at 60 Hz and handles deep colour at 30 bit and 36 bit. Audio formats including DTS-HD, Dolby TrueHD and DSD HD are passed through without degradation. The unit is designed for mirroring, not for switching between multiple sources.

Fits between source and screens

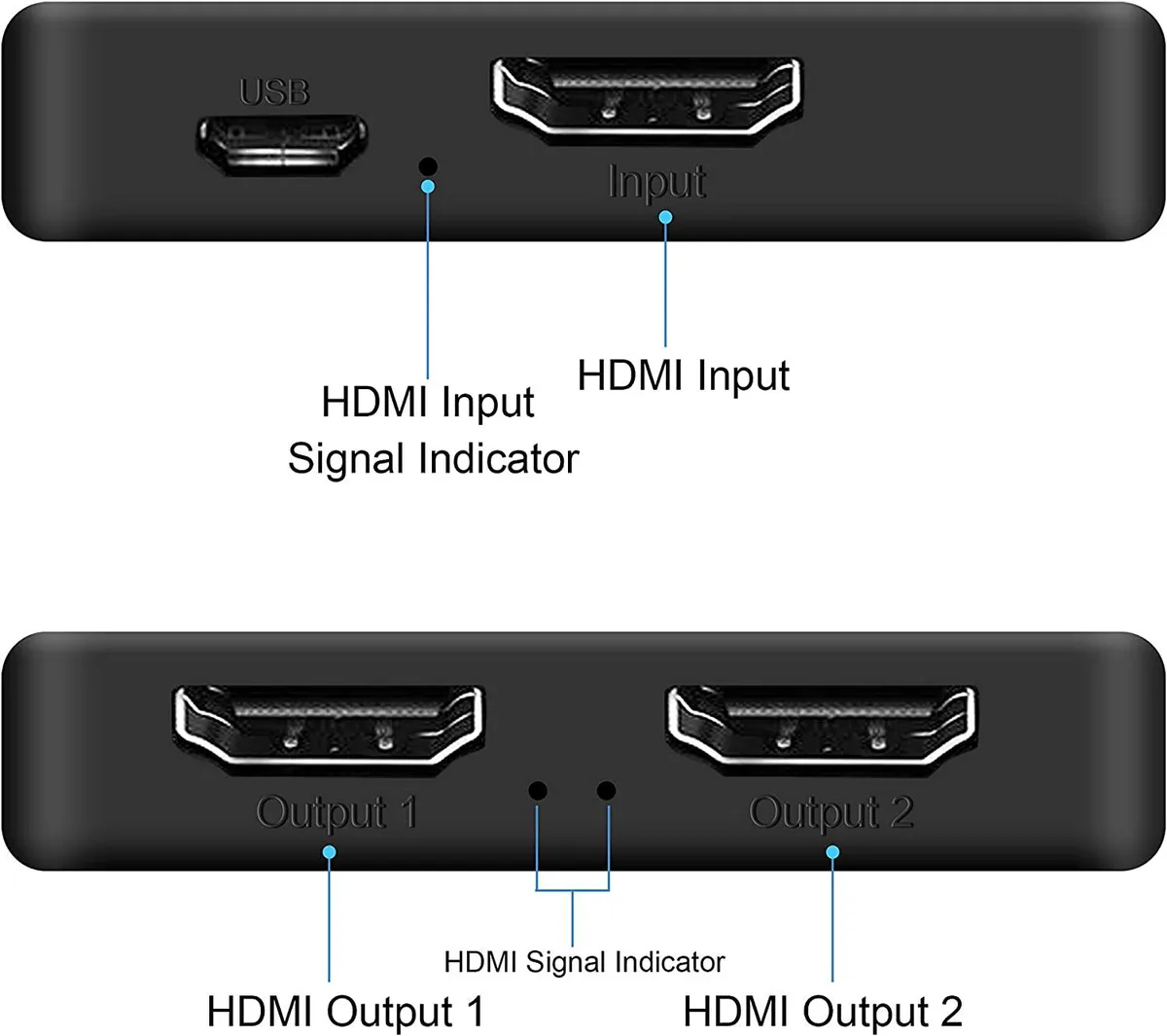

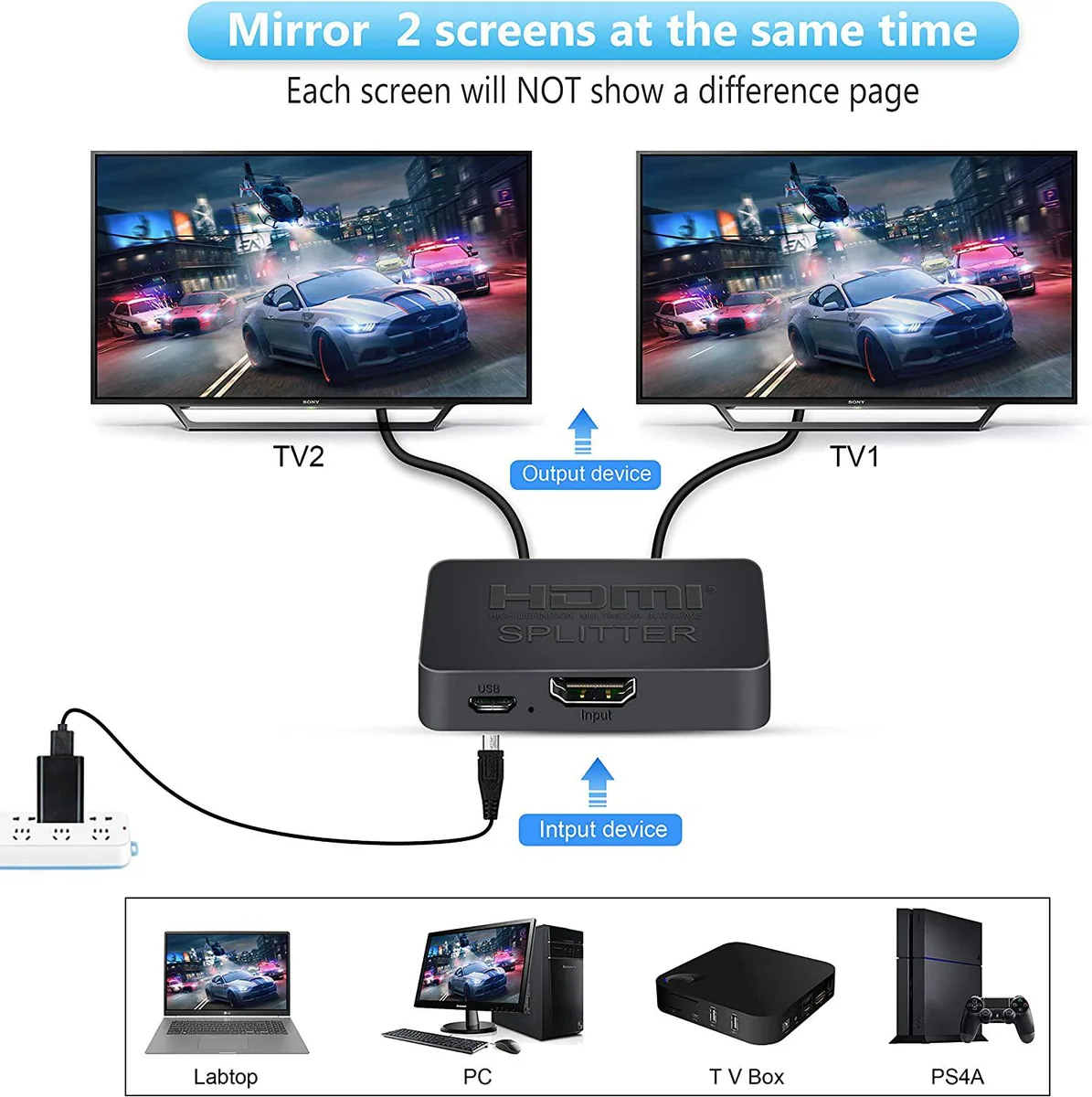

Connect one HDMI cable from a console, media player or computer to the input, then run two HDMI cables to monitors, TVs or projectors. The splitter amplifies the signal so both outputs stay stable at 1080p up to 15 m and at 4K up to 8 m using standard AWG26 cable. It requires a USB power cable (included) and draws power from any 5 V USB port, freeing the source device from driving long cable runs.

Bundled USB cable and manual

A short USB cable is supplied for power, eliminating the need for a separate mains adapter. The printed user manual explains the automatic downscaling behaviour when one display is 4K@60 Hz and the other is 1080p. No driver installation or configuration software is required; the device operates purely in hardware.

Highlights

  • Splits one HDMI source to two identical displays
  • 4K at 60 Hz with 18.5 Gbps bandwidth
  • Auto downscales 4K to 1080p on mixed screens
  • Supports deep colour up to 36-bit and 3D video
  • 50 ft reach at 1080p, 26 ft at 4K

Specifications

BrandLUOM
SeriesOZF2-1
ModelOZF2-1
Part NumberOZF2-1
TypeHDMI Splitters
Changer TypeHDMI
Ports2
AudioYes
ColorBlack
SpecificationsHDMI-compatible version:HDMI-compatible 2.0b
HDMI-compatible resolution:UP TO 4K/60Hz
Support video color format:24bit/deep color 30bit,36bit
Support audio format:DTS-HD/Dolby-trueHD/DTS/Dolby-AC3/DSD HD(HBR)
Max bandwidth:225MHz
Max baud rate:18.5Gbps
Input/Output TMDS signal:0.5~1.5Volts p-p(TTL)
Input/Output DDC signal:5Volts p-p (TTL)
Input cable distance:15m AWG26 HDMI-compatible standard cable
Output cable distance:20m AWG26 HDMI-compatible standard cable
Max working current:350mA
Operating Temperature range:(-15 to +55)
Operating Humidity range:5 to 90%RH (No Condensation)
Dim
Input Connector1 HDMI
Output Connector2 HDMI
Maximum Resolutions3840 x 2160
Bandwidth2.25Gbps
FeaturesPortable, slim design
Supports 4K@60Hz, 3D, and HDMI
4K@60Hz resolution, Full HD 1080p
One HDMI input signal splits into two HDMI sink devices
Support Full HD (1080p) and 3D images
Support Blue-Ray and DVD
Support signal retiming
Support input up to 15metres with AWG26 HDMI standard cable length, output up to 20metres AWG26 cable length
Dimensions5.59 x 3.15 x 1.26 inches
Weight3.2 ounces
Package Quantity1
Package Contents1 X HDMI Splitter 1x2
1 X USB Cable
1 X User Manual

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

How far can the HDMI signal travel at 4K resolution before quality drops?

The splitter supports up to 26 feet (8 meters) for 4K@60Hz signals using standard AWG26 HDMI cables.

Does the splitter get hot or draw much power during continuous all-day operation?

The compact unit is powered via the included USB cable and has no fan, so it runs silently with minimal heat.

What cables and power source do I need to start using this splitter right away?

You need two HDMI cables for the outputs, one for the input, and a USB power adapter or port for the included USB cable.
