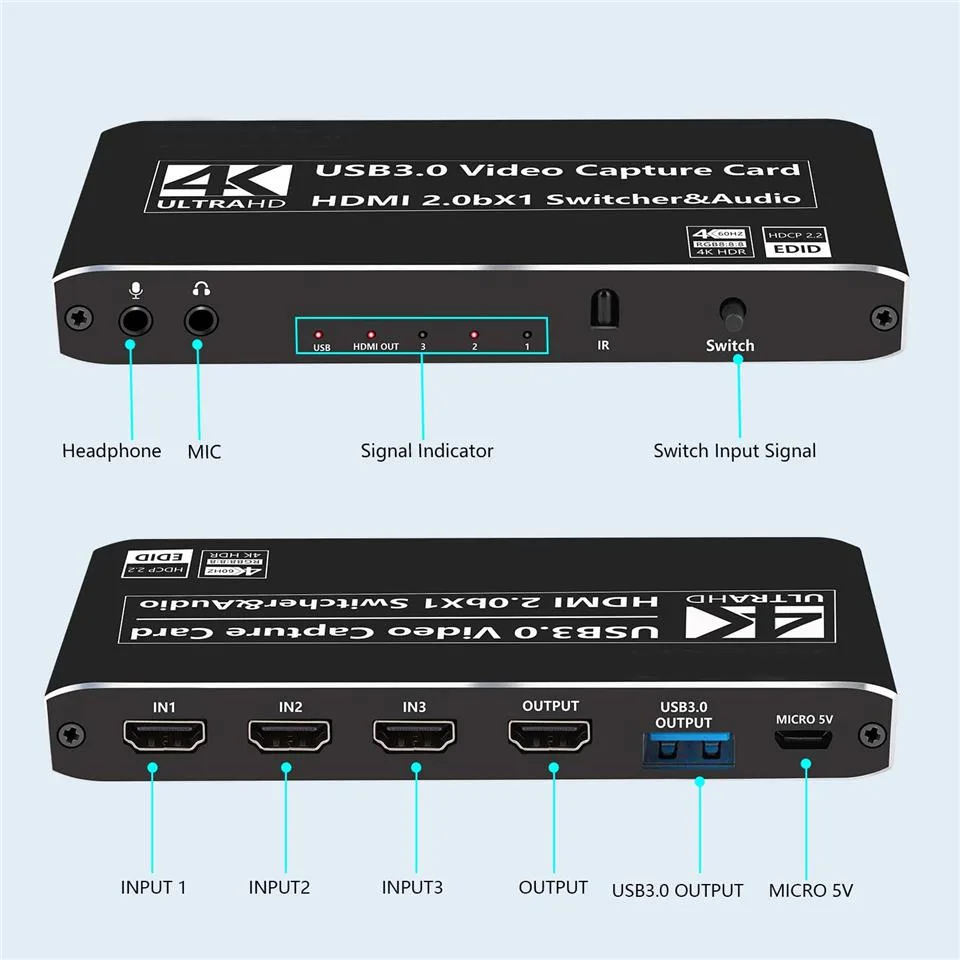

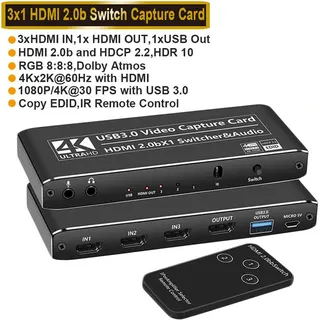

Black rectangular capture box with three HDMI inputs, one HDMI output, USB 3.0, mic and headphone jacks, LED indicator and IR remote

LUOM

LUOM OZC6 3×1 4K60 HDMI Switch Capture Device

SKU CH-N472-AB6A8

A 3×1 HDMI switch and capture box that routes three 4K 60 Hz sources to one 4K 60 Hz loop-out while recording up to 2160p 30 fps over USB 3.0 with microphone input and headphone output

  • InterfaceUSB 3.0
  • Resolution Support4K
  • Camera ResolutionUp to 4K Video
  • ColorBlack
  • AudioYes
  • HDMI1 Input/3 Output
  • Capture and stream gameplay at 4K 60 fps input resolution
  • Record or broadcast up to 2160p 30 fps via USB 3.0
  • Switch between three HDMI sources using front panel or IR remote
  • Connect microphone and headphones through dedicated 3.5 mm jacks
  • Works driver-free on Windows, Mac and Linux with UVC and UAC support

LUOM OZC6 3×1 HDMI Switch Capture

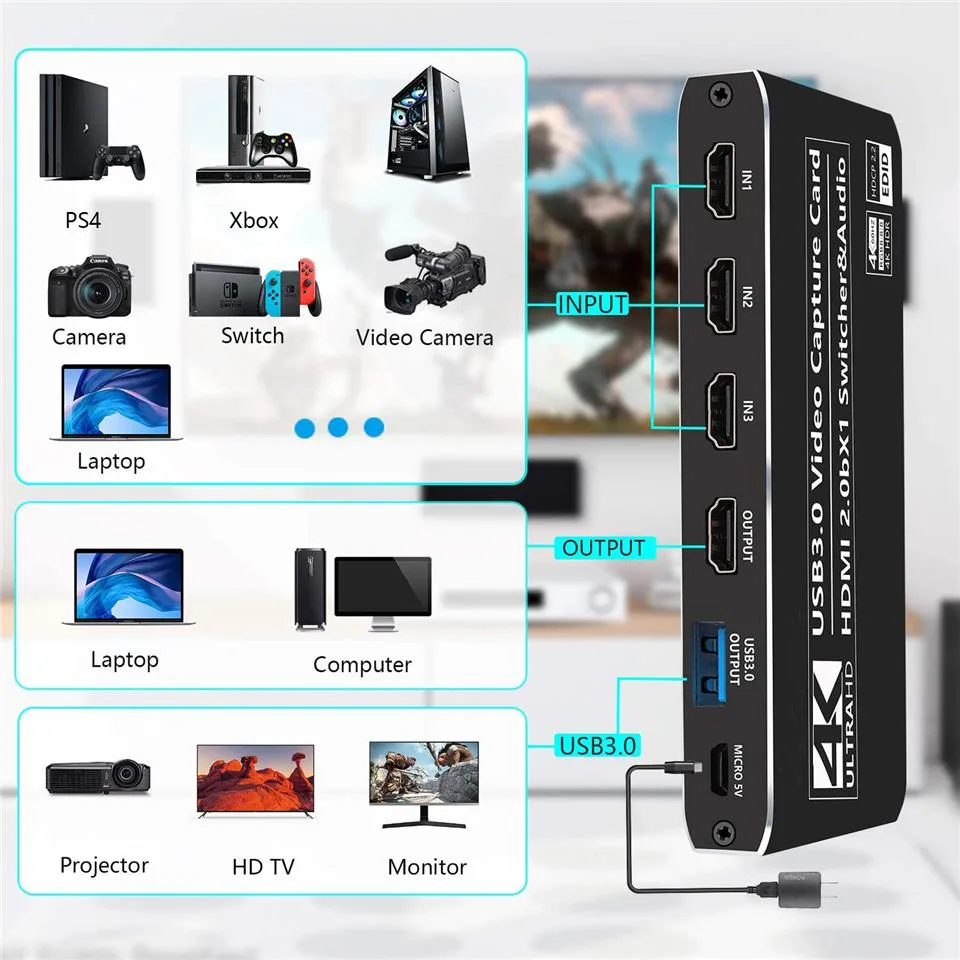

The LUOM OZC6 is a 3×1 HDMI switch and capture device that accepts three 4K@60Hz HDMI sources and routes one to an HDMI loop-out while sending a 2160p30 or 1080p60 stream over USB 3.0. It targets streamers, educators and content creators who need to switch between multiple consoles or cameras without a separate matrix.

Check HDMI sources and USB host before ordering

Each source must output 4K@60Hz or lower over HDMI 2.0b and LPCM audio if sound is required. The host computer needs a free USB 3.0 Type-A or Type-C port and UVC/UAC support; no driver installation is needed on Windows, Mac or Linux. Verify that your recording software can ingest 2160p30 or 1080p60 in YUY2 or RGB24 colour space.

Thermals noise and power in normal use

The aluminium enclosure measures 4.45 by 2.2 by 0.71 inches and weighs 0.352 ounces, drawing bus power from the USB 3.0 link so no external adapter is required. Passive cooling keeps the unit silent during capture; the only audible cues are the relay clicks when switching inputs via the front button or the supplied IR remote.

Highlights

  • Capture and stream gameplay at 4K 60 fps input resolution
  • Record or broadcast up to 2160p 30 fps via USB 3.0
  • Switch between three HDMI sources using front panel or IR remote
  • Connect microphone and headphones through dedicated 3.5 mm jacks
  • Works driver-free on Windows, Mac and Linux with UVC and UAC support

Specifications

BrandLUOM
SeriesOZC6
ModelOZC6
InterfaceUSB 3.0
Resolution Support4K
Camera ResolutionUp to 4K Video
ColorBlack
AudioYes
HDMI1 Input/3 Output
USB Port1
LED IndicatorYes
SpecificationInput: HDMI Port x 3, Mic Port x 1
Output: USB3.0 Port x 1, HDMI x 1, Audio x 1
HDMI Video Input: 4K@60Hz HDMI HD interface
HDMI Audio Input: LPCM
Audio Signal Output Color Space: YUY2, RGB24
With ultra HD(4K) game capture, you can record the game more easily.
No need to install any driver, you can use any 3rd party software to capture or stream your HD game , or other HD video source.
The video capture card switcher can be used for video conference, game collection, multimedia teaching scenario etc, it has superior performance and compatibility than the previous versions.
Support 4K
FeatureEasy to carry and good compatibility: 4K@60Hz HD-MI to USB3.0 video capture card, easy to carry, superior performance, good compatibility, simple installation, powerful features, etc., can collect 1 HD-MI input signal
4Kx2K With 30FPS,Support HDCP: The HD video capture card can support HDCP 4Kx2K with 30FPS and 1080P with 60FPS, it is very suitable to use it for game live streaming.
Faster Data Transmition: USB3.0 high speed transmission port,let your live streaming to Twitch, Youtube, OBS, Potplayer and VLC more easily.
ZERO Latency HD-MI Loopout: There is no latency when you use th
Dimensions4.45 x 2.2 x 0.71 inches
Weight0.352 ounces
Package Content1 x 4K@60Hz HDMI Audio Video Capture Card
1 x USB 3.0 to USB 3.0 Cable
1 x USB 3.0 to Type-C Cable
1 x HDMI to HDMI Cable
1 x User Manual
1 x IR Remote
OptionHDMI - 4K

Questions about this item

What cables and accessories are included with the LUOM OZC6 capture device?

The box contains the capture card, a USB 3.0 to USB 3.0 cable, a USB 3.0 to Type-C cable, an HDMI cable, a user manual and an IR remote control.

Which video resolution and frame-rate combination should I select for USB capture versus HDMI pass-through?

The HDMI output passes 4K at 60 Hz while the USB capture path records at 4K 30 fps or 1080p 60 fps; choose the USB setting that matches your streaming software and bandwidth.

What does the 4K 60 Hz rating mean for actual gameplay recording through the USB 3.0 link?

The device accepts 4K 60 Hz on each of its three HDMI inputs, but the USB 3.0 capture stream is limited to 4K 30 fps or 1080p 60 fps, so fast gameplay is recorded at the lower frame rate.
