Small rectangular CVBS-to-USB capture module with black PCB and yellow RCA socket, .75 by 1.77 inches

LORDWORLD

LORDWORLD CVBS to USB Capture Module 1080P

SKU CH-8K8W-EHVHP

Converts CVBS analogue video to USB with driver-free 1080P capture, automatic PAL/NTSC recognition and 5 V camera power output

  • Driver-free setup works instantly on Windows, Linux, Android and macOS
  • Captures analogue CVBS video at 1080P resolution for clear recordings

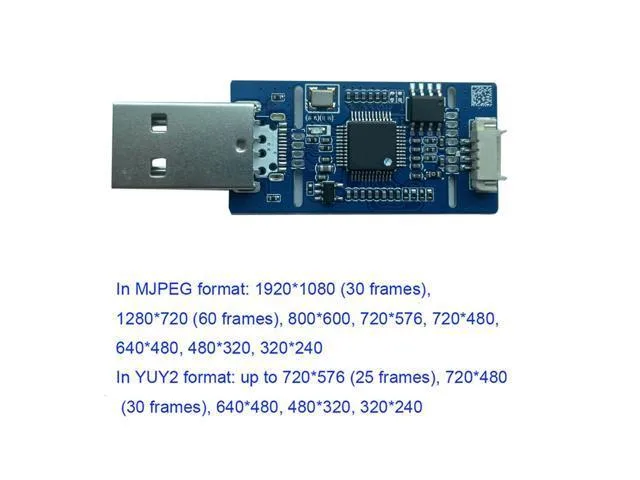

  • Outputs MJPEG or YUY2 formats for broad software compatibility
  • Automatically detects PAL or NTSC cameras without manual switching
  • Powers the connected camera with 5 V from the USB port

CVBS to USB capture module

The LORDWORLD CVBS to USB Capture Module converts analogue composite video signals to a digital USB stream. It outputs 1080P resolution in MJPEG or YUY2 formats and works with Windows, Linux, Android and macOS without installing any driver. The board suits users who need to record or stream footage from legacy cameras, CCTV systems or other CVBS sources.

Check USB port and software compatibility

Verify that your host device provides a standard USB port able to supply 5V power, because the module draws power directly from the bus and can also feed 5V to the connected camera. Ensure your chosen capture application — such as OBS or Amcap — supports UVC video devices on your operating system. No internal headers, PCIe slots or external power adapters are required.

Thermals noise and power draw

The module weighs 8g and measures 1.9 by 4.5 cm, so it adds negligible heat and no audible noise to a workstation. Power consumption is limited to what the USB port delivers, and the board itself can supply 5V to the camera. In normal use the device runs cool and silent while capturing 1080P video.

Highlights

  • Driver-free setup works instantly on Windows, Linux, Android and macOS
  • Captures analogue CVBS video at 1080P resolution for clear recordings
  • Outputs MJPEG or YUY2 formats for broad software compatibility
  • Automatically detects PAL or NTSC cameras without manual switching
  • Powers the connected camera with 5 V from the USB port

Specifications

BrandLORDWORLD

Questions about this item

What cables or accessories are included with the CVBS-to-USB capture module, and do I need to buy anything extra?

The module itself is supplied; no driver disc or separate power adapter is required because it draws power from the USB port and can feed 5 V to the connected camera.

The description mentions 1080P capture — is there a lower-resolution option or a different variant I should consider?

This unit captures up to 1080P; no alternative resolution versions or capacity options are listed for this model.

When I plug the module into a PC and open OBS, what does the 1080P figure actually mean for the live video window?

You can expect a 1080P MJPEG or YUY2 stream at the camera’s native PAL or NTSC frame rate, with automatic format detection and no driver installation.
