Black metal 1U vented cantilever shelf with mounting hardware

LORDWORLD

LORDWORLD 1U Vented Cantilever Server Rack Mount Shelf 152mm Depth

SKU CH-8CW5-DMEDF

A 1U vented cantilever shelf fits 19-inch racks, holds 44 pounds, and adjusts lip orientation for flexible equipment mounting

  • Fits all 19-inch racks and cabinets
  • Vented cantilever design holds IT and network gear
  • 2 mm thick sides support up to 44 pounds
  • Disassembled build protects mounting ears during transit
  • 1U high, 152 mm deep with M6 and M5 hardware included

1U Vented Cantilever Shelf 152mm Depth

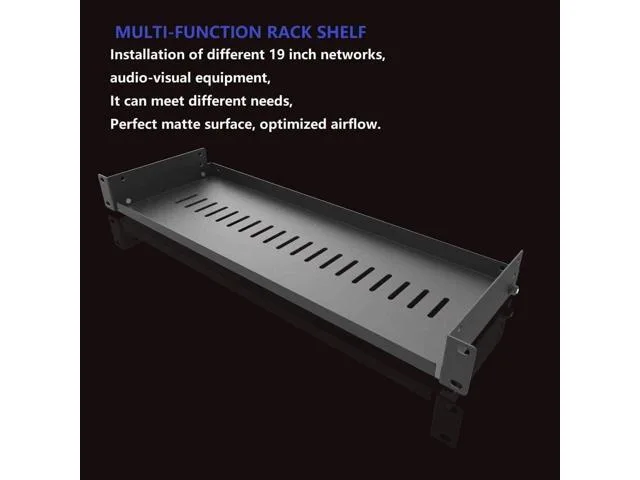

This 1U vented cantilever shelf mounts in any 19-inch rack or cabinet to hold IT, network or AV equipment. It ships disassembled so the lip can face up or down depending on the installation. The 1.2 mm thick side brackets support a maximum load of 44 pounds.

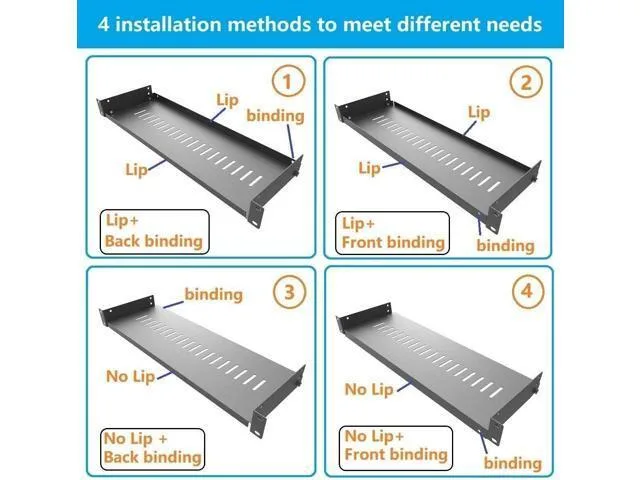

Disassembled Design for Flexible Rack Integration

The shelf arrives in pieces to reduce transit damage to the mounting ears and lets you configure the lip orientation on site. Four M6 screws with cage nuts and four M5 screws with nuts are included for securing the unit to standard 19-inch rack posts. The 152 mm depth provides a compact footprint for shallow devices.

Suited for Light Network

Installers who need a low-profile, vented shelf for lightweight switches, patch panels or audio components will find the 44-pound capacity adequate. Builders requiring deeper mounting surfaces, higher weight ratings or tool-less installation should consider alternative shelf types.

Highlights

  • Fits all 19-inch racks and cabinets
  • Vented cantilever design holds IT and network gear
  • 2 mm thick sides support up to 44 pounds
  • Disassembled build protects mounting ears during transit
  • 1U high, 152 mm deep with M6 and M5 hardware included

Specifications

BrandLORDWORLD

Questions about this item

What is the maximum load the 1.2 mm thick cantilever shelf can hold before it becomes the limiting factor?

The shelf is rated for a maximum loading weight capacity of 44 pounds, which is higher than other cantilever rack shelves.

How much heat or noise does the passive vented steel shelf generate during continuous operation?

The shelf has no moving parts or electronics, so it produces no noise and adds no heat beyond the equipment placed on it.

Which rack standard must the cabinet already follow for the included M6 cage nuts and M5 screws to fit?

It mounts in any standard 19-inch rack or cabinet using the supplied 4 x M6 screws with cage nuts and 4 x M5 screws with nuts.
