Lenovo

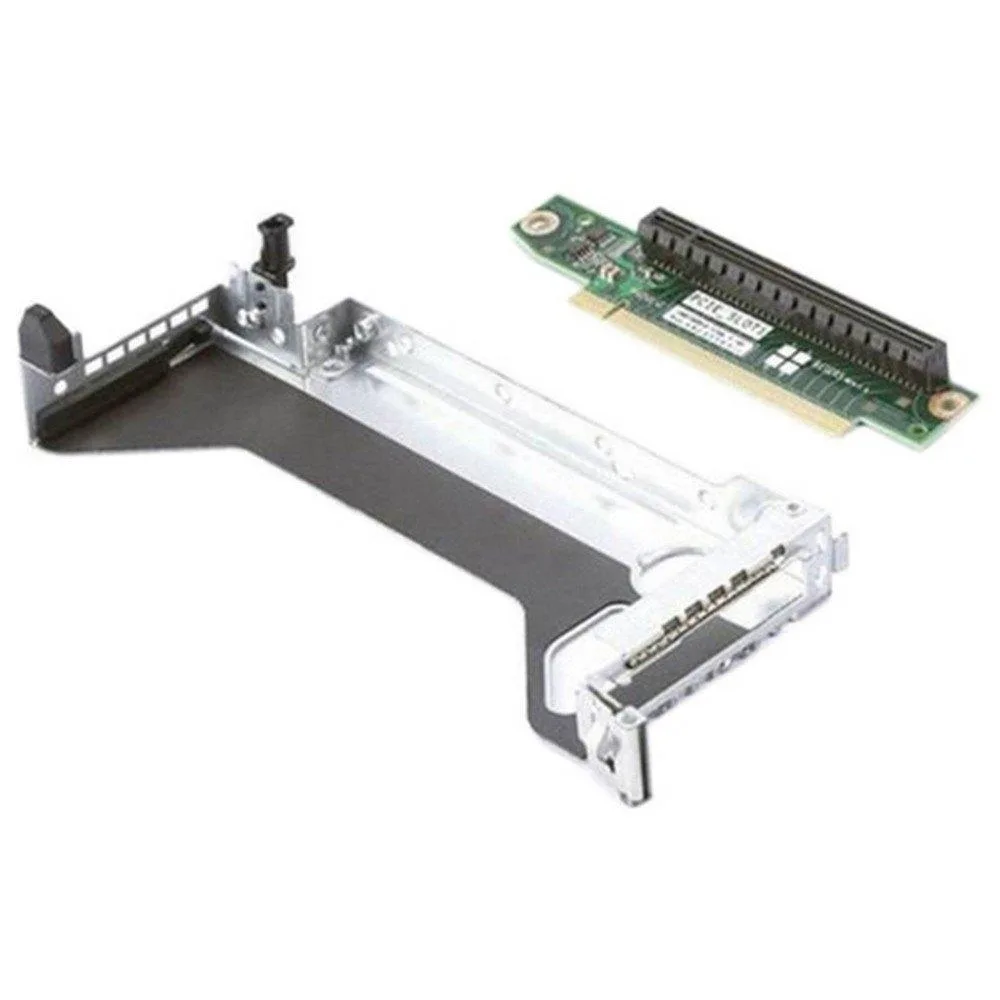

Lenovo 7XH7A02682 server accessory x8/x16 PCIe 3.0 riser kit
Adds two low-profile PCIe 3.0 slots, one x16 and one x8, to compatible ThinkSystem servers
- TypeOther
- ColorBlack
- SpecificationsProduct Type: Riser Card Number of Total Expansion Slots: 2
- FeaturesCompatible with Lenovo ThinkSystem Servers: SR530 SR570 SR63
- Adds two low-profile PCIe 3.0 slots for expansion
- One x16 and one x8 slot support diverse cards
- Designed for ThinkSystem SR530, SR570 and SR630 servers
- Riser 1 kit integrates directly into compatible chassis
- Black low-profile form factor fits space-constrained builds
Compatible Server Riser Kit
The Lenovo 7XH7A02682 riser kit adds two low-profile PCIe 3.0 slots to supported ThinkSystem servers. It is designed for administrators expanding I/O capacity in SR530, SR570 or SR630 chassis.
Dual Low-Profile Slot Layout
The kit provides one PCIe 3.0 x16 low-profile slot and one PCIe 3.0 x8 low-profile slot. This specific x16 plus x8 combination determines which adapter cards can be installed simultaneously.
Expansion Capacity and Limits
Two total expansion slots accommodate a pair of low-profile cards such as network controllers or storage HBAs. The riser does not support full-height cards and provides no additional slots beyond the two listed.
Highlights
- Adds two low-profile PCIe 3.0 slots for expansion
- One x16 and one x8 slot support diverse cards
- Designed for ThinkSystem SR530, SR570 and SR630 servers
- Riser 1 kit integrates directly into compatible chassis
- Black low-profile form factor fits space-constrained builds
Specifications
| Brand | Lenovo |
|---|---|
| Model | 7XH7A02682 |
| Type | Other |
| Color | Black |
| Specifications | Product Type: Riser Card Number of Total Expansion Slots: 2 Expansion Slot Type: PCI Express 3.0 x16 Low-profile PCI Express 3.0 x8 Low-profile |
| Features | Compatible with Lenovo ThinkSystem Servers: SR530 SR570 SR630 |
| Shipping weight | 0.60 kg |
| Package size | 305 × 254 × 203 mm |
Questions about this item
What does the x8/x16 PCIe 3.0 riser kit add to a ThinkSystem server?
It adds two low-profile expansion slots, one PCIe 3.0 x16 and one PCIe 3.0 x8, to compatible ThinkSystem SR530, SR570 or SR630 servers.
Which PCIe standard do the slots use and what bandwidth does each provide?
Both slots use PCIe 3.0; the x16 slot delivers up to 16 GT/s per lane and the x8 slot up to 8 GT/s per lane.
What physical space does this riser kit require inside the chassis?
It occupies the Riser 1 position and accepts two low-profile cards in the SR530, SR570 and SR630 chassis.
