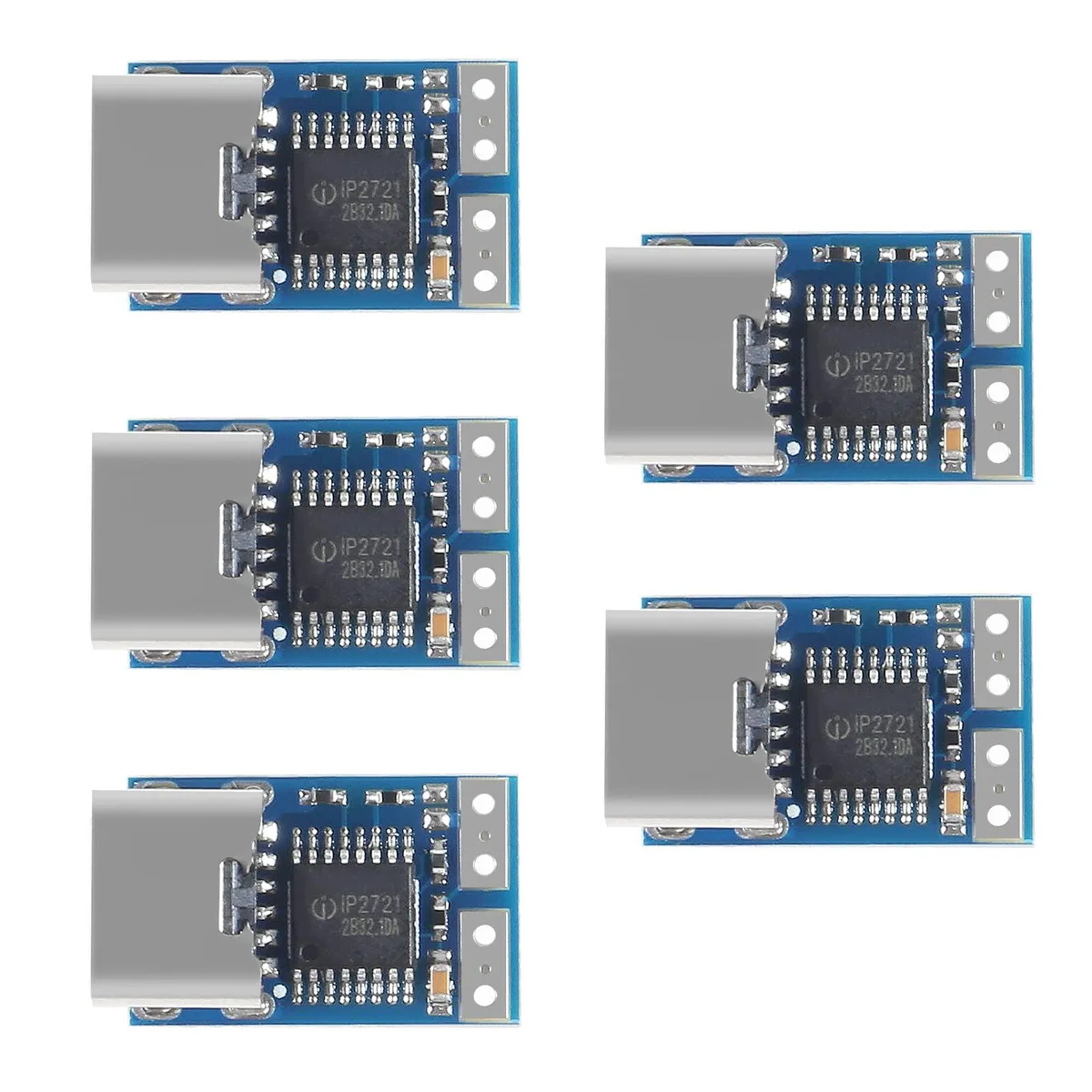

Five tiny green USB-C PD decoy modules, 17.6 by 10.2 by 4.2 mm

KEHIPI

KEHIPI PDC004-PD 9V PD Decoy Module 5 PCS

SKU CH-APQC-C2J20

A pack of five fixed 9 V USB-C PD trigger modules using a 2721 hardware chip, each rated for up to 5 A and measuring 17.6 × 10.2 × 4.2 mm

  • Color5PCS 9V
  • Delivers fixed 9 V output through PD negotiation using 2721 chip
  • Handles up to 5 A current when paired with e-marked USB-C cable
  • Operates reliably from -25 °C to 85 °C ambient temperature
  • Compact 17.6 × 10.2 × 4.2 mm form factor fits tight project enclosures
  • Protects connected gear by preventing VBUS-to-CC short-circuit damage during testing

Compact 9V PD Decoy Module

This module performs USB-C Power Delivery negotiation to request a fixed 9V output from a compatible charger or power bank. It uses a 2721 hardware PD chip that cannot be reprogrammed or upgraded. Each pack contains five identical units for multiple projects or spares.

Build integration and cable needs

The board measures 17.6 by 10.2 by 4.2 mm and presents a Type-C female input, so it slots into tight enclosures or prototype boards. To draw currents above 3A the supply requires an electronically marked Type-C cable and a genuine PD source; Quick Charge-only chargers will not trigger the 9V contract.

Capacity headroom and limits

Rated for up to 5A at 9V, the decoy suits small appliances, smart-home nodes, power-tool electronics and similar loads. It operates from -25 to 85 °C at 5 to 95 % relative humidity. If the connected supply does not support 9V it will fall back to its next lower voltage, and the module cannot negotiate any other level.

Highlights

  • Delivers fixed 9 V output through PD negotiation using 2721 chip
  • Handles up to 5 A current when paired with e-marked USB-C cable
  • Operates reliably from -25 °C to 85 °C ambient temperature
  • Compact 17.6 × 10.2 × 4.2 mm form factor fits tight project enclosures
  • Protects connected gear by preventing VBUS-to-CC short-circuit damage during testing

Specifications

BrandAITRIP
ModelPDC004-PD
Color5PCS 9V

Questions about this item

How much current can the 2721 chip negotiate before an e-marked cable becomes necessary?

The module supports up to 5 A; to draw more than 3 A you must use an electronically marked USB-C cable.

What temperature range does the decoy module tolerate during continuous operation?

It is rated for -25 °C to 85 °C ambient temperature with 5 % to 95 % relative humidity.

Which charger capability is mandatory for the decoy to deliver 9 V?

A genuine USB Power Delivery source is required; Quick Charge-only chargers will not work.
