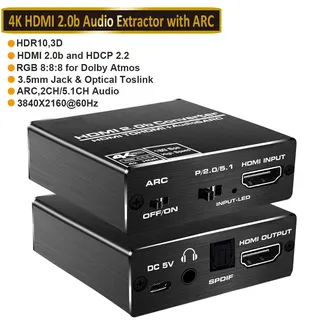

Small black aluminium box with HDMI, optical and 3.5 mm ports

Jansicotek

Jansicotek OZV8-1 4K@60Hz HDMI Audio Extractor SPDIF 3.5mm

SKU CH-KGF6-FG3Q4

Extracts audio from 4K 60 Hz HDMI sources to optical and 3.5 mm outputs while passing video through untouched

  • TypeHDMI Splitters
  • Ports3
  • AudioYes
  • ColorBlack
  • SpecificationsHDMI Resolution: 4K2K/3D/1080P/720P/576P/480P/480i Support v
  • Input Connector1 HDMI input
  • Extract audio to soundbars via optical or 3.5 mm jack
  • Pass 4K HDR video at 60 Hz with 18 Gbps bandwidth
  • Choose 2.1, 5.1 or pass-through EDID audio modes
  • Supports DTS-HD, Dolby TrueHD and LPCM 7.1 on SPDIF
  • Aluminium shell with 5 V power adapter included

HDMI Audio Extractor for 4K@60Hz Sources

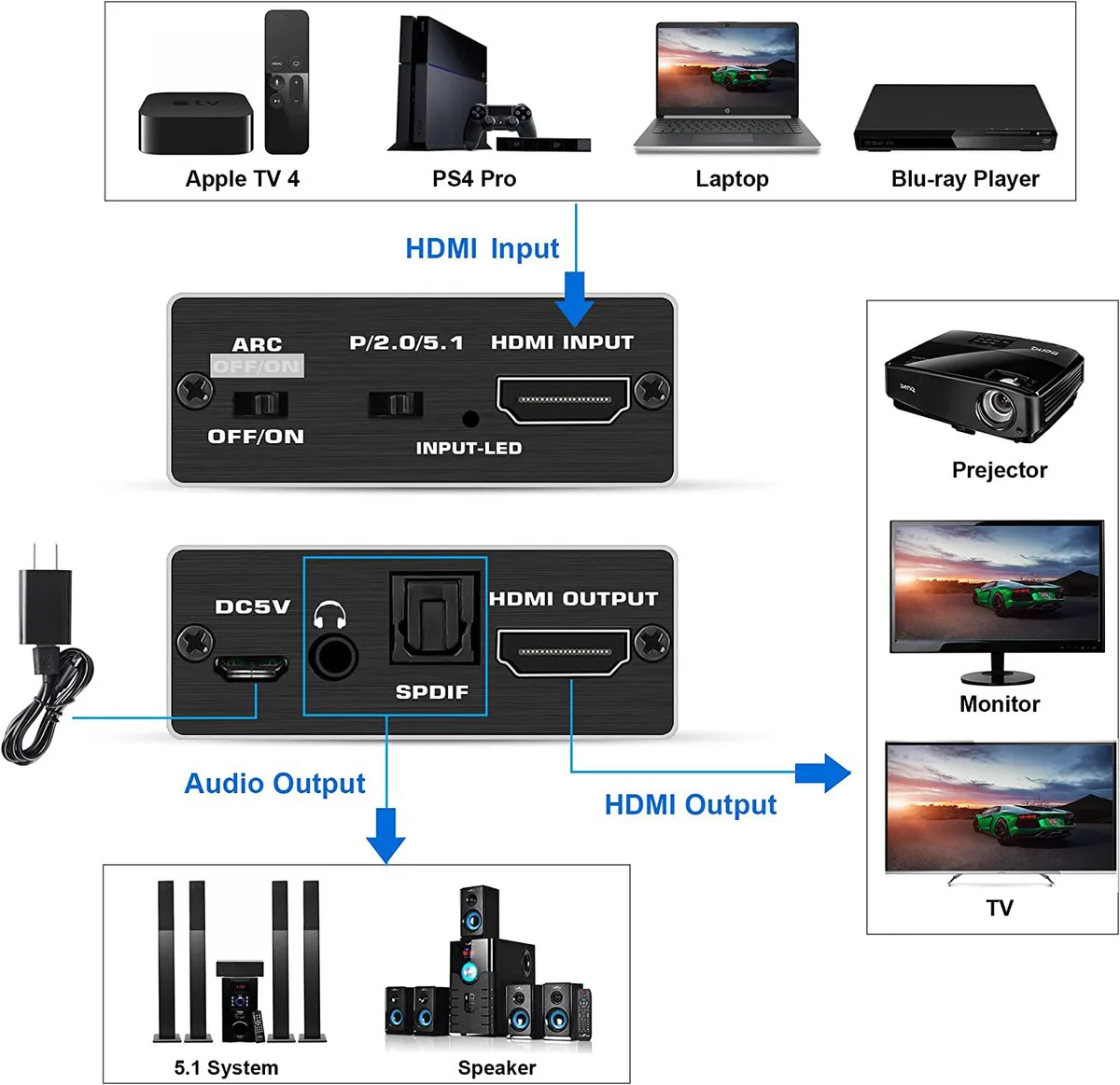

The Jansicotek OZV8-1 splits one HDMI input into a mirrored HDMI output plus separate digital and analogue audio paths. It handles resolutions up to 3840 x 2160 at 60 Hz with 18 Gbps bandwidth and HDCP 2.2 compliance. The unit suits installers who need to feed a soundbar or AV receiver while keeping the video chain intact.

Sustained Operation with Deep-Colour Video

During continuous playback the extractor maintains 24, 30 or 36 bit deep-colour formats without dropping frames or degrading the HDMI link. EDID management lets you select 2.1 CH, 5.1 CH or Pass modes so the source delivers the correct audio stream for long sessions. The 600 MHz pixel clock and 18 Gbps throughput stay stable over the full 10 metre input cable allowance.

Passive Cooling and Low Power Draw

An aluminium shell dissipates heat without a fan, so the device runs silently in rack or desktop positions. It draws power from the included 5 V/1 A adapter, eliminating any load on the source HDMI port. The compact 5.59 x 3.15 x 1.26 inch enclosure adds negligible weight at 3.2 ounces and requires no additional ventilation space.

Highlights

  • Extract audio to soundbars via optical or 3.5 mm jack
  • Pass 4K HDR video at 60 Hz with 18 Gbps bandwidth
  • Choose 2.1, 5.1 or pass-through EDID audio modes
  • Supports DTS-HD, Dolby TrueHD and LPCM 7.1 on SPDIF
  • Aluminium shell with 5 V power adapter included

Specifications

BrandJansicotek
SeriesOZV8-1
ModelOZV8-1
Part NumberOZV8-1
TypeHDMI Splitters
Ports3
AudioYes
ColorBlack
SpecificationsHDMI Resolution: 4K2K/3D/1080P/720P/576P/480P/480i
Support video color format: 24bit/deep color 30bit,36bit
Max bandwidth: 600MHZ
Max baud rate: 18Gbps
Input cable distance: 10m AWG26 HDMI standard cable
Output cable distance: 10m AWG26 HDMI standard cable
Max working current: 350mA
Input Connector1 HDMI input
Output Connectorone HDMI + Audio (SPDIF+3.5mm) Output
Maximum Resolutions3840 x 2160
Bandwidth18Gbps
FeaturesSupport 4K x 2K@60Hz, Support 3D
Support blue-ray 24/50/60fs/HD-DVD/XVYCC
Digital audio format, as dts-hd/dobly-truehd/LPCM7.1/DTS/dobly-ac-3(not support always Dobly Digital plus)
Need DC5V power supply.
Dimensions5.59 x 3.15 x 1.26 inches
Weight3.2 ounces
Package Quantity1
Package Contents1 X HDMI Audio Extractor
1 x 5V/1A Power Adapter
1 X User Manual

Questions about this item

Does the Jansicotek OZV8-1 get hot or noisy when extracting audio continuously?

The aluminum shell acts as a passive heatsink with no fan, so it runs silently and stays cool during all-day use.

What cables and power source must I already have to use the OZV8-1?

You need an HDMI source cable up to 10 m AWG26, an HDMI display cable, either a Toslink optical or 3.5 mm stereo cable for audio, and a nearby mains outlet for the included 5 V/1 A adapter.

Will the OZV8-1 pass 4K 60 Hz HDR video to my older 1080p AV receiver while sending 5.1 sound to the optical port?

Yes, it supports 4K 60 Hz 18 Gbps passthrough with HDR10 and HDCP 2.2, while the SPDIF output delivers DTS-HD, Dolby TrueHD, DTS 5.1 or LPCM 7.1 to the receiver.
