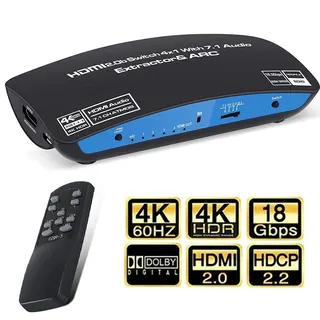

Black rectangular HDMI switch with four inputs, one output, optical and 3.5mm audio ports

Jansicotek

Jansicotek OZQ9-1 4K@60Hz HDMI Switch 4×1 7.1CH Audio Extractor

SKU CH-NZYF-E1765

Connects four HDMI sources to one display at 4K@60Hz while extracting 7.1CH audio via HDMI, optical or 3.5mm outputs

  • TypeHDMI Switchers
  • Changer TypeHDMI Switch/Extender
  • ColorBlack
  • Ports4
  • Specifications4K@60Hz HDMI Switch 4 in 1 output with HDMI Audio(7.1CH ATMO
  • Input Connector4 x HDMI
  • Connect four sources to one display with 4K@60Hz switching
  • Extract 7.1CH Atmos audio via HDMI optical or 3.5mm outputs
  • Choose 7.1 5.1 2.0 or pass-through audio modes
  • Control the switch from the sofa with included IR remote
  • 5Gbps bandwidth supports HDR10 HDCP2.2 and 36-bit deep colour

Four-port HDMI 2.0b switch with audio extraction

This Jansicotek OZQ9-1 unit routes four HDMI sources to a single display at up to 4K@60Hz. It also separates the audio stream and delivers it through HDMI 7.1CH, optical or 3.5mm outputs. The device suits home-theatre owners who need to connect several consoles, streamers or players to one screen while feeding an external sound system.

Bandwidth capped at 18.5Gbps and HDCP 2.2

The switch operates within the HDMI 2.0b specification, limiting throughput to 18.5Gbps. That bandwidth supports 4K@60Hz with HDR10 and 36-bit deep colour, but cannot carry higher refresh rates or uncompressed 8K signals. HDCP 2.2 compliance ensures protected 4K content plays correctly, yet older HDCP versions on source devices may block playback.

Plug-and-play with IR remote and mode button

Power the unit with the included 5V/2A adapter, connect sources and display, then select inputs via the front button or IR remote. Audio mode cycles through 7.1CH, 5.1CH, 2.0CH and pass-through; optical and 3.5mm ports only output PCM 2.0 or Dolby Digital/DTS 5.1, so multi-channel formats above 5.1 require the HDMI audio path.

Highlights

  • Connect four sources to one display with 4K@60Hz switching
  • Extract 7.1CH Atmos audio via HDMI optical or 3.5mm outputs
  • Choose 7.1 5.1 2.0 or pass-through audio modes
  • Control the switch from the sofa with included IR remote
  • 5Gbps bandwidth supports HDR10 HDCP2.2 and 36-bit deep colour

Specifications

BrandJansicotek
SeriesOZQ9-1
ModelOZQ9-1
Part NumberOZQ9-1
TypeHDMI Switchers
Changer TypeHDMI Switch/Extender
ColorBlack
Ports4
Specifications4K@60Hz HDMI Switch 4 in 1 output with HDMI Audio(7.1CH ATMOS)/SPDIF Optical/3.5 Audio Extractor
This HDMI Switch 4x1 with audio extractor can connect up to 4 HD Source to 1 HDMI Display, and extracts audio from the 4K HDMI signal to HDMI 7.1 atmos audio, optical fiber or stereo audio and send it to an external speaker or soundbar.
Support Four audio modes: 7.1CH/5.1CH/2.0CH/pass-through (PASS)
HDMI Input and Out: Dobly Digital/Atmos 7.1CH, Dobly TrueHD, DTS:X, DTS Digital, DTS-HD Master, Dobly /DTS 7.1/5.1, PCM 7.1/5.1/2.0
HDMI Audio Out: Dobly Digital/Atmos 7.1CH, Dobly TrueHD, DTS
Input Connector4 x HDMI
Output Connector1 x HDMI
Maximum Resolutions4K@60Hz
Bandwidth18.5Gbps/600MHZ
FeaturesSupport Max resolution 4K@60Hz
Support 7.1 ATMOS audio out
Support HDCP2.2, HDMI2.0b, RGB 8:8:8, HDR10
Dimensions5.91 x 2.36 x 0.79 inches
Weight11.9 ounces
Package Quantity1
Package Contents1 x 4K 60Hz HDMI Switch 4x1
1 x 5V/2A DC Power Adapter
1 x Remote Control
1 x User Manual

Questions about this item

How many HDMI inputs does the OZQ9-1 switch provide for connecting my devices?

The OZQ9-1 provides four HDMI inputs, letting you connect up to four source devices such as a PS5, Xbox, Blu-ray player or streaming box to a single display.

What does the 4K@60Hz rating mean for my gaming console or media player?

It means the switch passes 4K resolution at 60 frames per second with HDR10 and 36-bit deep colour, so a PS5 or Xbox Series X can run at its full 4K 60Hz output without downscaling.

Which audio formats can I actually get from the optical and 3.5 mm outputs?

The optical port delivers Dolby Digital or DTS 5.1 and PCM 2.0, while the 3.5 mm jack is limited to PCM 2.0 stereo; full 7.1 Atmos or TrueHD is only available via the HDMI audio output.
