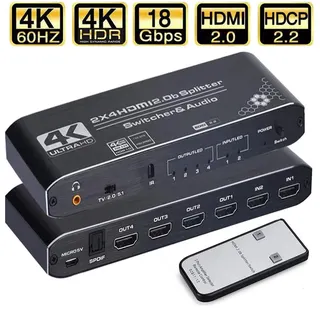

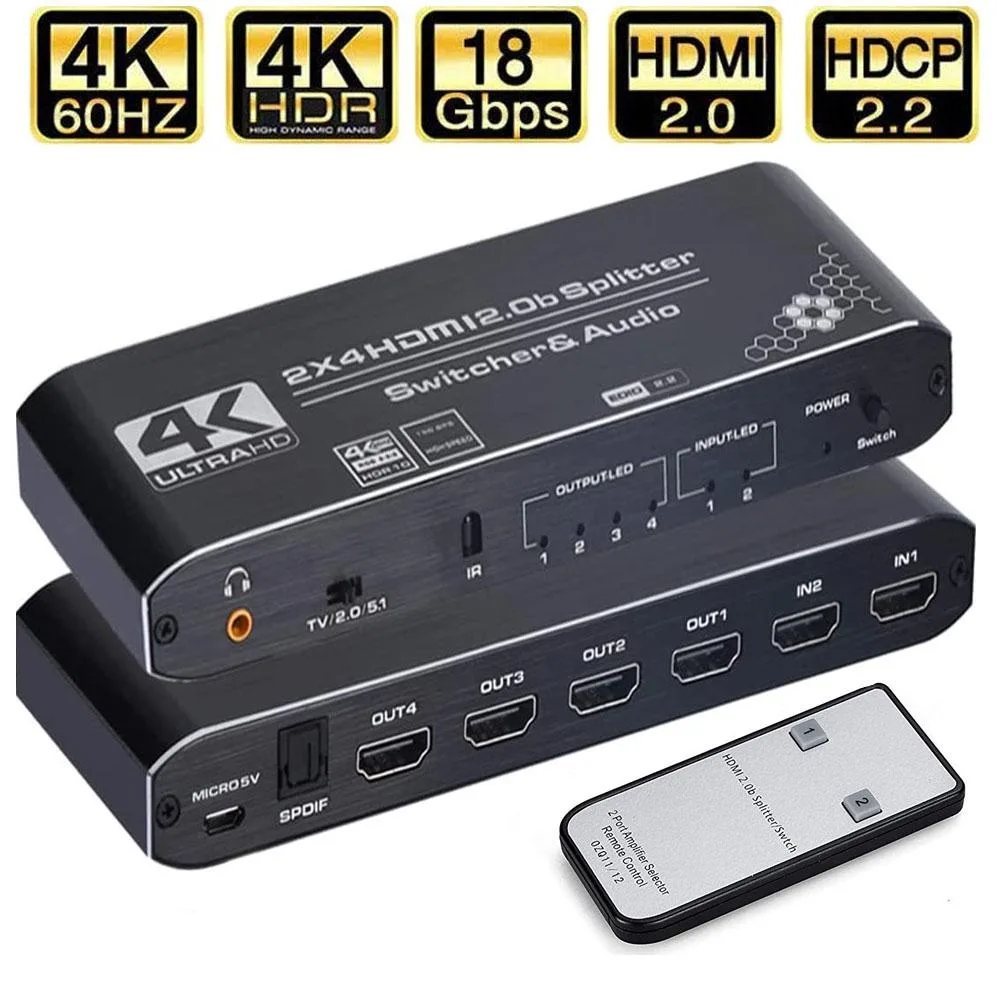

Black rectangular HDMI switch box with front ports and IR remote

Jansicotek

Jansicotek OZQ12 2×4 HDMI Switch Audio Extractor

SKU CH-3GY2-1M620

Switches two HDMI sources to four displays at 4K 60 Hz with optical SPDIF and 3.5 mm audio extraction

  • TypeHDMI Switchers
  • Changer TypeHDMI Switch/Extender
  • ColorBlack
  • Ports2
  • Specifications2 HDMI inputs switch and split to 4 HDMI displays HDMI resol
  • Input Connector4 x HDMI
  • Switch two sources to four displays without cable swaps
  • Extract audio via 3.5 mm and optical SPDIF outputs
  • 4K 60 Hz HDR with 18.5 Gbps bandwidth and RGB 4:4:4
  • HDMI 2.0b and HDCP 2.2 for protected 4K content
  • IR remote and front button give instant input selection

2×4 HDMI Switch with Audio Extraction

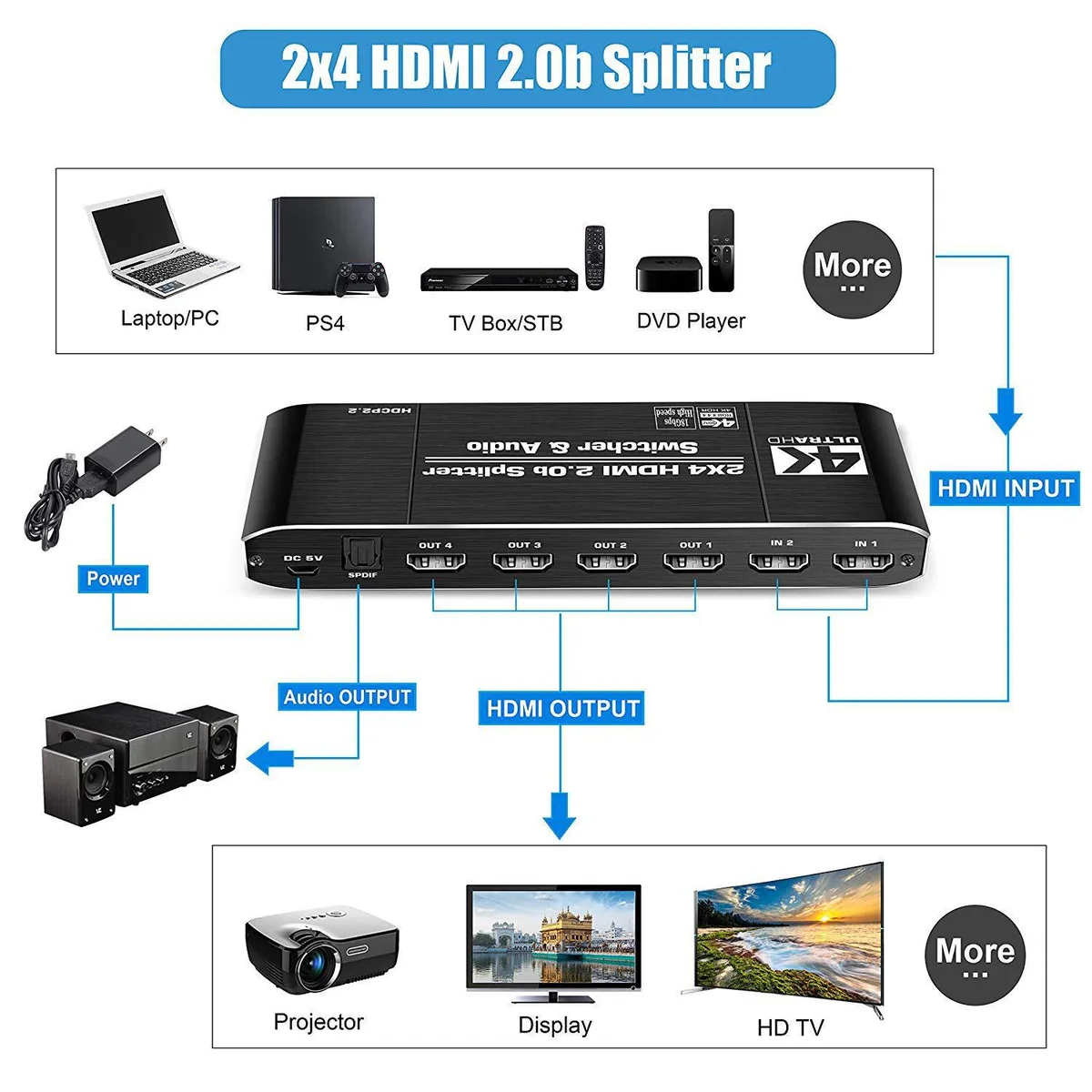

The Jansicotek OZQ12 routes two HDMI sources to four displays at once. It suits home-theatre, conference-room and digital-signage installations where multiple screens must show the same 4K content. An IR remote and a front-panel button let you select the active input in about three seconds. Audio is de-embedded to both 3.5 mm analogue and optical SPDIF outputs for external sound systems.

HDMI 2.0b bandwidth and cable limits

The switch handles 18.5 Gbps and a TMDS clock up to 600 MHz, supporting 4K at 60 Hz with 4:4:4 chroma and HDR. Deep-colour modes up to 48 bit are passed through. HDCP 2.2 is enforced on protected content. With standard HDMI 2.0b cables the 4K HDR signal reaches 10 metres; 1080p extends to 20 metres. Longer runs or higher data rates are not supported by this unit.

Desktop installation and common issues

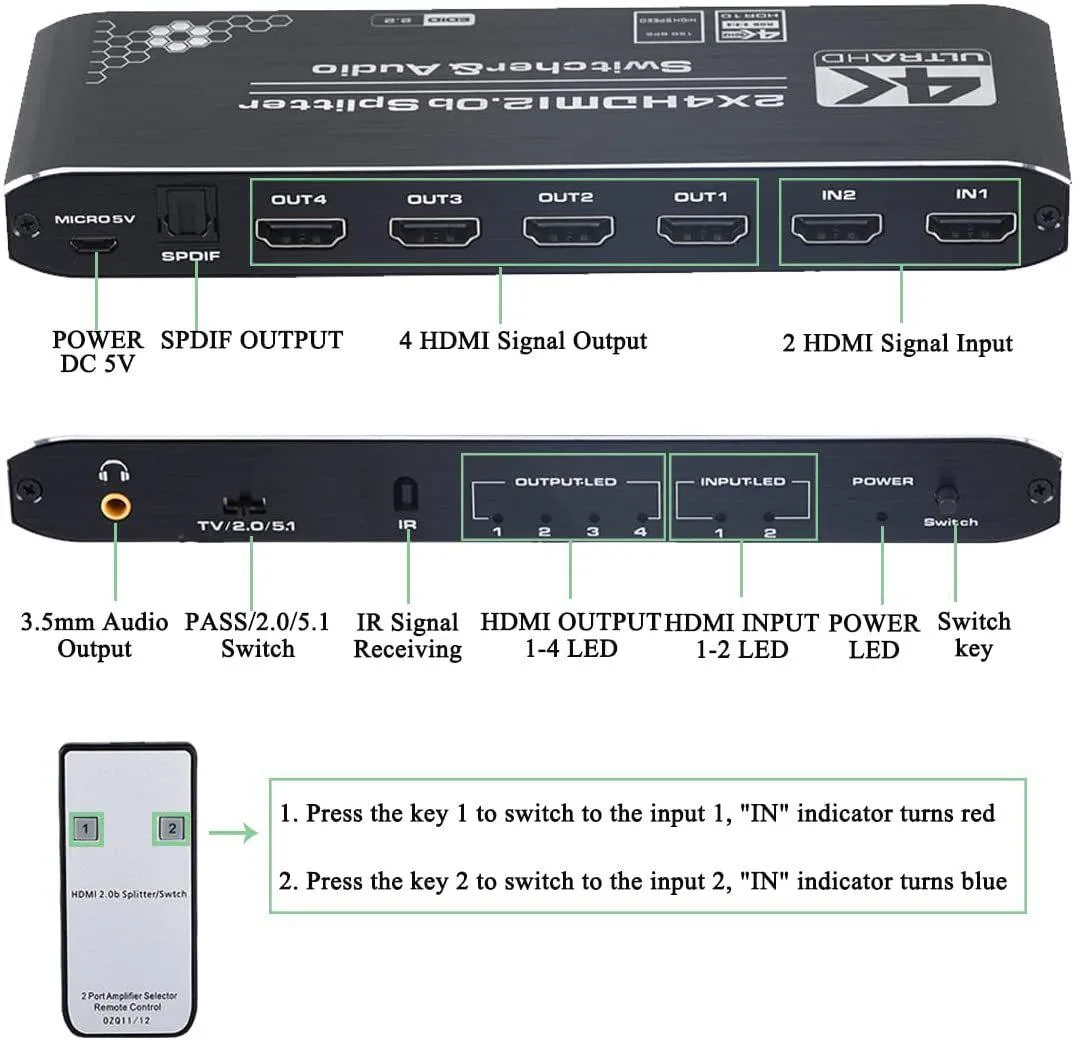

The unit measures 5.91 by 2.36 by 0.79 inches and weighs 11.9 ounces, so it sits on a shelf or rack without mounting hardware. A 5 V power adapter is included and must be connected for reliable switching. Problems usually arise when cables exceed the stated lengths or when non-2.0b leads are used, causing signal drop-out or loss of HDR. The IR remote requires direct line of sight to the front sensor.

Highlights

  • Switch two sources to four displays without cable swaps
  • Extract audio via 3.5 mm and optical SPDIF outputs
  • 4K 60 Hz HDR with 18.5 Gbps bandwidth and RGB 4:4:4
  • HDMI 2.0b and HDCP 2.2 for protected 4K content
  • IR remote and front button give instant input selection

Specifications

BrandJansicotek
SeriesOZQ12
ModelOZQ12
Part NumberOZQ12
TypeHDMI Switchers
Changer TypeHDMI Switch/Extender
ColorBlack
Ports2
Specifications2 HDMI inputs switch and split to 4 HDMI displays
HDMI resolution:Support 4K@60Hz (YUV 4:4:4) & 4K HDR
In HDMI HDR resolution, 4K@60Hz HDMI Input and Output distance can be up to 10m,1080p can be up to 20m using the AWG26 standard HDMI Cable.
Downscaling output from 4K to 1080p at the same time.
Audio Supports: DTS - HD/Dolby-true HD/DTS/Dolby-AC3/DSD
Support HDCP 2.2 & HDMI 2.0b
Support deep color 24/12/10/8 Bit.
Max bandwidth& baud rate: 600MHz&18.5Gbps
Works with: PS4 /XBox /Apple Tv 4K/pc /Blu-Ray/Etc More
Input Connector4 x HDMI
Output Connector1 x HDMI
Maximum Resolutions4K@60Hz
Bandwidth18.5Gbps/600MHZ
FeaturesSupport HDMI 2.0b HDCP 2.2
Support 3D video format
Support highest resolution up to 3840*2160/60Hz
Support 18.5Gbps 3 data rate and tmds clock up to 600Mhz
Support deep color 8/10/12/24/32/48bit
Support HDMI audio outputs ,3.5 mm earphone jack and optical output at same time
HDMI resolution: up to 3840*2160/60 Hz, RGB 4:4:4
2 HDMI inputs switch and split to 4 HDMI displays
Support LPCM/Dolby/DTS 5.1 audio
Dimensions5.91 x 2.36 x 0.79 inches
Weight11.9 ounces
Package Quantity1
Package Contents1x HDMI Splitter Switch 2x4
1x 5V power adapter
1x IR Remote Control
1x User Manual

Questions about this item

Should I choose the 2×4 or a different matrix for two sources and four displays?

This model is a fixed 2×4 matrix: it routes two HDMI sources to four displays simultaneously and lets you switch between the two inputs with the IR remote or front button.

What does the 18.5 Gbps bandwidth mean when I connect 4K@60 Hz sources?

The 18.5 Gbps bandwidth carries full 4K@60 Hz 4:4:4 video with HDR and deep colour up to 48 bit, so each of the four outputs receives an uncompressed 3840×2160@60 Hz signal.

Does the HDMI 2.0b and HDCP 2.2 interface limit cable length or audio formats?

HDMI 2.0b with HDCP 2.2 supports 4K@60 Hz up to 10 m and 1080p up to 20 m; audio is extracted to both 3.5 mm stereo and optical SPDIF for external sound systems.
