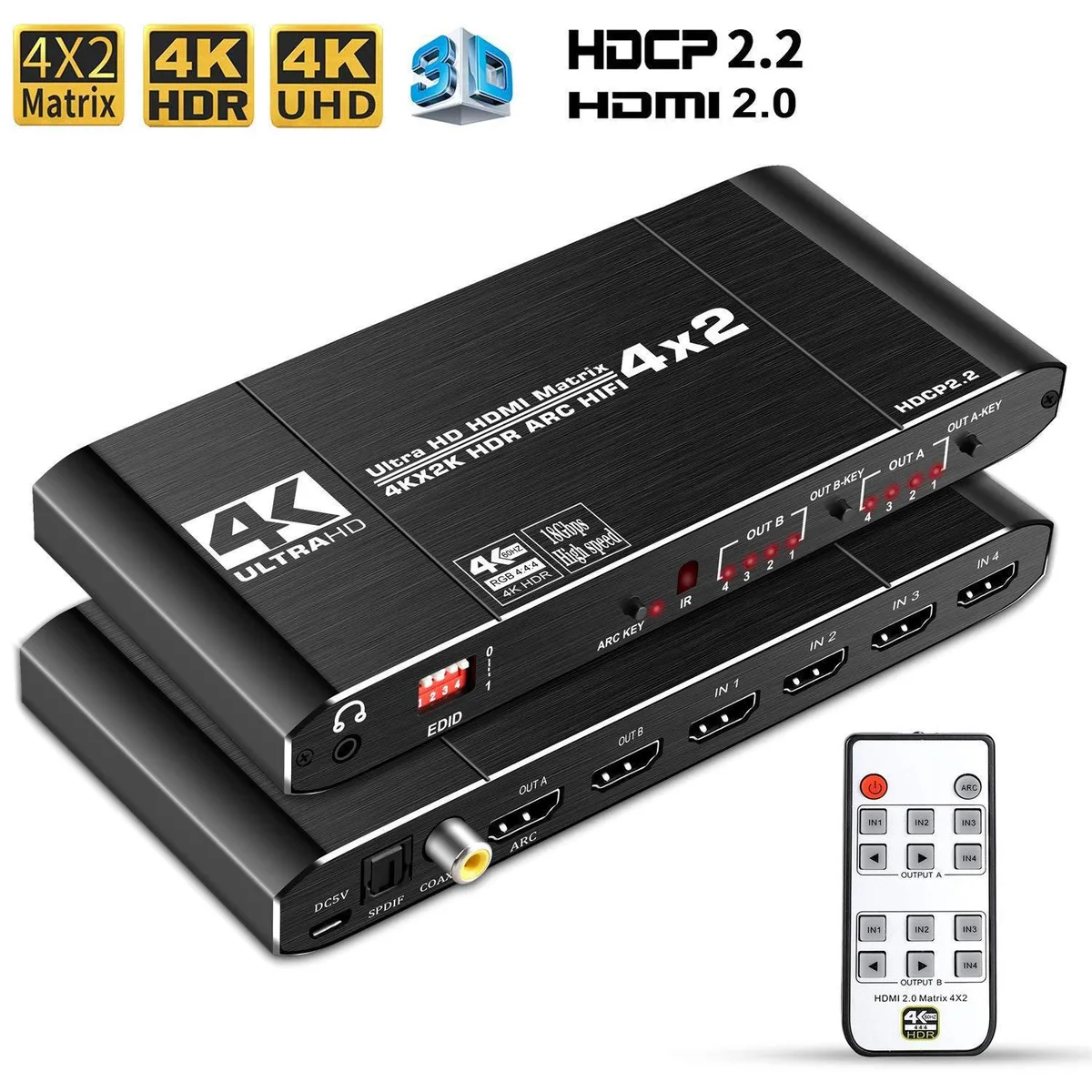

Black rectangular HDMI matrix switch, four inputs, two outputs, IR remote included

Jansicotek

Jansicotek OZJ2 4x2 HDMI Matrix Switch Audio

SKU CH-SAQ0-A1Y3P

Routes four HDMI sources to two displays at 4K 60 Hz with ARC and optical audio extraction

  • TypeHDMI Switchers
  • Changer TypeHDMI Switch/Extender
  • ColorBlack
  • Ports4
  • MatrixYes
  • AudioYes
  • Routes four sources to two displays independently
  • 4K@60Hz 18.5Gbps bandwidth with HDCP 2.2
  • Optical, coaxial and 3.5 mm audio extraction
  • Eight EDID modes for wide source compatibility
  • IR remote and front buttons for quick switching

4x2 HDMI Matrix Switch

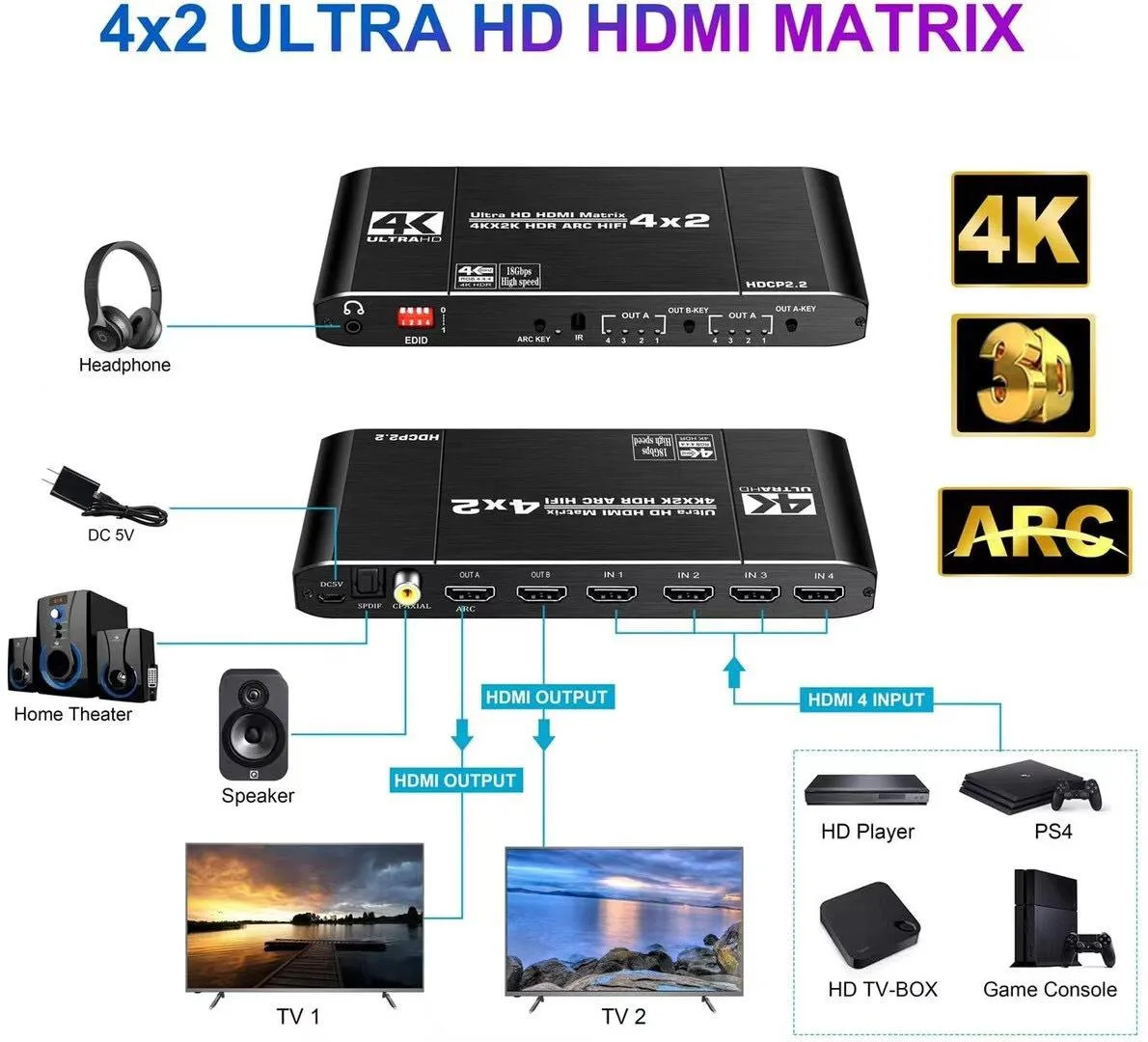

The Jansicotek OZJ2 routes four HDMI sources to two displays simultaneously. Each output can show the same or a different source. The unit handles 4K at 60 Hz with 18.5 Gbps bandwidth and supports HDMI 2.0b and HDCP 2.2.

Installers needing independent dual-display routing

This matrix suits AV setups that must send distinct 4K signals to two screens from a pool of four players, consoles or PCs. It does not suit installations requiring more than two simultaneous outputs or signal distribution beyond the two HDMI ports provided.

18.5 Gbps bandwidth ceiling

The 18.5 Gbps limit defines the maximum video data rate. It carries 4K 60 Hz 4:4:4 and deep-colour formats up to 48-bit, but higher refresh rates or uncompressed 8K signals exceed this ceiling.

Highlights

  • Routes four sources to two displays independently
  • 4K@60Hz 18.5Gbps bandwidth with HDCP 2.2
  • Optical, coaxial and 3.5 mm audio extraction
  • Eight EDID modes for wide source compatibility
  • IR remote and front buttons for quick switching

Specifications

BrandJansicotek
SeriesOZJ2
ModelOZJ2
Part NumberOZJ2
TypeHDMI Switchers
Changer TypeHDMI Switch/Extender
ColorBlack
Ports4
MatrixYes
AudioYes
SpecificationsProduct Type:HDMI Splitter 4x2
Interface Type: 4 HDMI in, 2 HDMI out
Color: Black
Power Supply: DC 5V.
Max working current: 600mA
Operating Temperature range -15°C to+45°C
Dimension (LxWxH): 170*56*24mm
Weight: 0.175kg
Input Connector4 x HDMI
Output Connector2 x HDMI
Maximum Resolutions4K@60Hz
Bandwidth18.5Gbps/600MHZ
FeaturesSupport HDMI 2.0b HDCP 2.2
Support 3D video format
Support highest resolution up to 3840*2160/60Hz
Support 18.5Gbps 3 data rate and tmds clock up to 600Mhz
Support deep color 8/10/12/24/32/48bit
Support HDMI audio outputs ,3.5 mm earphone jack and optical output at same time
HDMI resolution: up to 3840*2160/60 Hz, RGB 4:4:4
4 HDMI inputs switch and split to 2 HDMI displays
Support LPCM/Dolby/DTS 5 1 audio
Dimensions5.91 x 2.36 x 0.79 inches
Weight11.9 ounces
Package Quantity1
Package Contents1x HDMI Matrix 4X2
1x 5V power adapter
1x IR Remote Control(Battery is not included)
1x User Manual

Questions about this item

Does the Jansicotek OZJ2 matrix get hot or draw much power when it runs all day?

It draws 600 mA at 5 V and is rated for -15 °C to 45 °C operation, so it stays cool under normal use.

What cables and sources do I need before the OZJ2 will work?

You need four HDMI source devices and two HDMI displays plus the included 5 V power adapter.

Will the OZJ2 pass 4K 60 Hz from my older 1080p Blu-ray player and 4K streaming box to both TVs?

Yes, it supports 4K@60Hz and HDCP 2.2 while remaining backward compatible with 1080p sources on all four inputs.
