Black rectangular HDMI splitter with eight output ports

Jansicotek

Jansicotek OZF5-1 1x8 HDMI 2.0b Splitter 4K@60Hz 18Gbps

SKU CH-K3M4-GHSHS

One HDMI source feeds eight displays at 4K 60 Hz with 18 Gbps bandwidth, HDCP 2.2 and downscaling for mixed 4K and 1080p screens

  • TypeHDMI Splitters
  • Changer TypeHDMI
  • Ports8
  • AudioYes
  • ColorBlack
  • SpecificationsHDMI Version: HDMI 2.0b, HDCP 2.2 HDMI Resolution: 24/50/60f
  • Distributes one source to eight displays simultaneously
  • Handles 4K at 60 Hz with 18 Gbps bandwidth
  • Supports mixed 4K and 1080p outputs via downscaling
  • Passes DTS-HD, Dolby TrueHD and LPCM 7.1 audio
  • Regenerates signal at the end of long cable runs

1×8 HDMI 2.0b Splitter

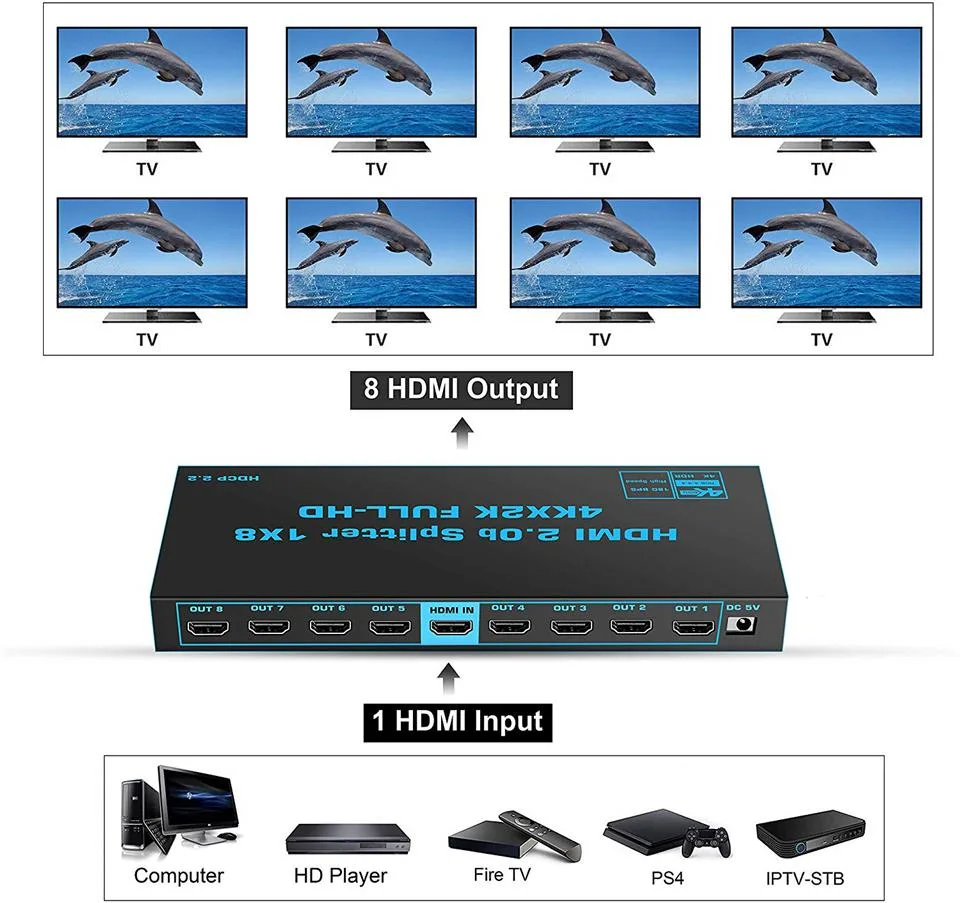

The Jansicotek OZF5-1 takes a single HDMI source and duplicates it across eight displays simultaneously. It supports 4K at 60 Hz, 1080p, 3D and deep-colour formats up to 48-bit. Audio pass-through covers LPCM 7.1, DTS-HD and Dolby TrueHD. The unit is powered and includes an AC adapter.

HDMI 2.0b bandwidth and cable limits

The 18 Gbps bandwidth caps resolution at 3840 × 2160 at 60 Hz with 4:4:4 colour. HDCP 2.2 is supported for protected content. The supplier notes that high-speed cables of 26 or 28 AWG should not exceed 17 ft for reliable 4K transmission. Mixed 4K and 1080p outputs are handled through automatic downscaling.

Installation notes and common issues

Connect the source to the single input and up to eight displays to the outputs, then apply power. The device does not extend a desktop; it only mirrors the same image. Handshake failures can occur if cables are too long or if a display does not support HDCP 2.2. Ensure all cables meet the recommended gauge and length.

Highlights

  • Distributes one source to eight displays simultaneously
  • Handles 4K at 60 Hz with 18 Gbps bandwidth
  • Supports mixed 4K and 1080p outputs via downscaling
  • Passes DTS-HD, Dolby TrueHD and LPCM 7.1 audio
  • Regenerates signal at the end of long cable runs

Specifications

BrandJansicotek
SeriesOZF5-1
ModelOZF5-1
Part NumberOZF5-1
TypeHDMI Splitters
Changer TypeHDMI
Ports8
AudioYes
ColorBlack
SpecificationsHDMI Version: HDMI 2.0b, HDCP 2.2
HDMI Resolution: 24/50/60fps/480i/480p/576i/576p/720p/1080i/1080p/2160p/4K@60Hz
Supports Video Color Format: 24bit/deep color 30bit, 36bit, 48bit
Audio Format: DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD HD(HBR)
Max Bandwidth: 600MHz
Max Baud Rate: 18.5Gbps
Input/Output TMDS Signal: 0.5~1.5Volts p-p(TTL)
Input/Output DDC Signal: 5Volts p-p (TTL)
Input Cable Distance: 17ft AWG28 HDMI standard cable
Output Cable Distance: 17ft AWG28 HDMI standard cable
Max Working Current: 1200mA
Power Adapter Format Input: AC100V-240V (50/60Hz) ; Output: DC 5V/2A
Op
Input Connector1 HDMI input
Output Connector8 HDMI Output
Maximum Resolutions3840 x 2160
Bandwidth18Gbps
FeaturesULTRA HD 1 in 8 HDMI Splitter : Perfect for Duplicating 1 HDMI Input Signal to 8 Monitors or TV 4K Display Screens, HDMI Splitter 1 in 8 out, This Device Will Not Extend Monitor for PC or Laptops
NOTE: This HDMI splitter will NOT Extend Monitors to create dual screen mode; Works best with up to 30 Feet high quality HDMI Cables. We recommend using this splitter with HDMI cables that are 30 feet or shorter and of excellent quality.
The OZF5-1 HDMI splitter 1 in 8 out will work with all HDMI versions 1.3 and 1.4, 2.0: Supports 3D and LPCM, Dolby-AC3, DTS7.1, DSD/Dolby /DTS-HD master aud
Dimensions5.59 x 3.15 x 1.26 inches
Weight3.2 ounces
Package Quantity1
Package Contents1x 1in 8out HDMI splitter, 1x AC adapter, 1 Manual

Questions about this item

Should I choose the 1×8 model or is a smaller version available?

The OZF5-1 is a fixed 1-input, 8-output splitter; no other port counts are offered for this model.

What does the 4K 60 Hz rating mean when I connect eight screens?

It duplicates the same 3840×2160 60 Hz signal to every output; each display receives an identical 4K 60 Hz picture.

How does the HDMI 2.0b / HDCP 2.2 interface limit cable length and bandwidth?

The 18 Gbps link supports certified cables up to 5 m for 4K 60 Hz; longer runs may need active or fibre cables to maintain the full bandwidth.
