Small black HDMI splitter box with one male plug and two female ports

Jansicotek

Jansicotek OZF2 4K@30Hz HDMI 1x2 video splitter

SKU CH-0KT5-Y52E9

Splits one HDMI source to two displays at up to 3840 x 2160 @ 30 Hz with audio pass-through

  • TypeHDMI Splitters
  • Changer TypeHDMI
  • Ports2
  • AudioYes
  • ColorBlack
  • SpecificationsHDMI-compatible version:HDMI-compatible 1.4a HDMI-compatible

Style 2 port - 4K 30Hz

  • Splits one 4K@30Hz source to two displays simultaneously
  • Passive 1 W design draws power from the HDMI link
  • Deep-colour 36-bit video with DTS-HD and Dolby TrueHD audio
  • HDMI 1.4a bandwidth up to 18.5 Gbps supports 1080p at 60 Hz
  • Compact 5.59 × 3.15 × 1.26 in unit weighs 3.2 oz

What this splitter does

The Jansicotek OZF2 is a 1x2 HDMI splitter that takes a single 4K@30Hz source and duplicates it to two displays simultaneously. It passes video and audio together, supporting deep colour up to 36bit and audio formats such as DTS-HD and Dolby TrueHD. The device draws power from the HDMI connection itself, so no external supply is required. It is suited for users who need identical output on two screens, such as a TV and a projector.

Check your source and cables

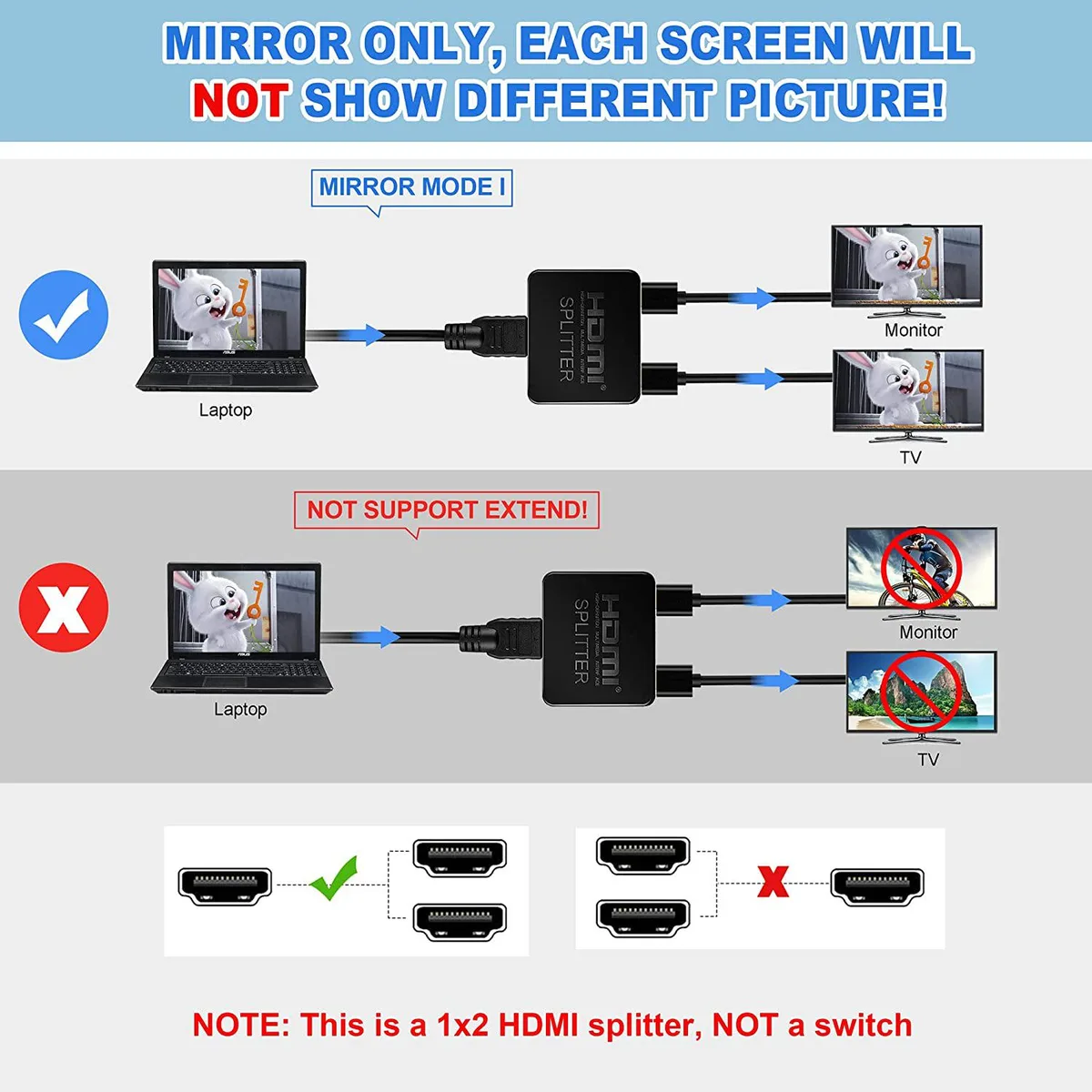

Verify that your source device can output 4K at 30Hz or 1080p at 60Hz over HDMI 1.4a, as the splitter mirrors the input signal without scaling. Both attached displays must support the same resolution and refresh rate, because the unit does not extend the desktop or handle CEC. Use HDMI cables rated for the bandwidth you need, especially for 4K@30Hz runs. The package includes a USB cable for optional power if the source port cannot supply enough current.

How it fits in a setup

The splitter sits between one HDMI source and two HDMI sinks, mirroring the signal to both. Its slim black enclosure measures 5.59 by 3.15 by 1.26 inches and weighs 3.2 ounces, so it can be tucked behind equipment or mounted discreetly. Because it is powered from the HDMI line, it frees up a mains socket and reduces cable clutter. The box contains the splitter, a USB cable and a user manual.

Highlights

  • Splits one 4K@30Hz source to two displays simultaneously
  • Passive 1 W design draws power from the HDMI link
  • Deep-colour 36-bit video with DTS-HD and Dolby TrueHD audio
  • HDMI 1.4a bandwidth up to 18.5 Gbps supports 1080p at 60 Hz
  • Compact 5.59 × 3.15 × 1.26 in unit weighs 3.2 oz

Specifications

BrandJansicotek
SeriesOZF2
ModelOZF2
Part NumberOZF2
TypeHDMI Splitters
Changer TypeHDMI
Ports2
AudioYes
ColorBlack
SpecificationsHDMI-compatible version:HDMI-compatible 1.4a
HDMI-compatible resolution:UP TO 1920*1080/60Hz
Support video color format:24bit/deep color 30bit,36bit
Support audio format:DTS-HD/Dolby-trueHD/DTS/Dolby-AC3/DSD HD(HBR)
Max bandwidth:225MHz
Max baud rate:2.25Gbps
Input/Output TMDS signal:0.5~1.5Volts p-p(TTL)
Input/Output DDC signal:5Volts p-p (TTL)
Input cable distance:15m AWG26 HDMI-compatible standard cable
Output cable distance:20m AWG26 HDMI-compatible standard cable
Max working current:350mA
Operating Temperature range:(-15 to +55)
Operating Humidity range:5 to 90%RH (No Condensati
Input Connector1 HDMI
Output Connector2 HDMI
Maximum Resolutions3840 x 2160
Bandwidth18.5Gbps
FeaturesPortable, slim design
Supports 4K, 3D, and HDMI
4K resolution, Full HD 1080p
One HDMI input signal splits into two HDMI sink devices
Support Full HD (1080p) and 3D images
Support Blue-Ray and DVD
Support signal retiming
Support input up to 15metres with AWG26 HDMI standard cable length, output up to 20metres AWG26 cable length
Dimensions5.59 x 3.15 x 1.26 inches
Weight3.2 ounces
Package Quantity1
Package Contents1 X HDMI Splitter 1x2
1 X USB Cable
1 X User Manual

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

What comes in the box and is anything else needed to run the Jansicotek OZF2 splitter?

The box contains the 1×2 HDMI splitter, a USB cable and a user manual. The splitter draws power from the HDMI source so no separate power supply is required.

Which resolution and refresh-rate combination should I pick for a 4K display?

The unit supports up to 3840×2160 at 30 Hz and 1920×1080 at 60 Hz; choose 4K 30 Hz for maximum detail or 1080p 60 Hz for smoother motion.

What does the 18.5 Gbps bandwidth mean for real-world use?

It carries 4K 30 Hz video with 36-bit deep colour and high-bit-rate audio formats such as DTS-HD and Dolby TrueHD without compression or added latency.
