Small black HDMI splitter box, one input two output ports, slim rectangular shape

Jansicotek

Jansicotek OZF2 1x2 HDMI Splitter 4K 30Hz

SKU CH-2KRD-A0S10

One HDMI input is duplicated to two displays at up to 4K 30 Hz with 18.5 Gbps bandwidth and 36-bit deep colour

  • TypeHDMI Splitters
  • Changer TypeHDMI
  • Ports2
  • AudioYes
  • ColorBlack
  • SpecificationsHDMI-compatible version:HDMI-compatible 1.4a HDMI-compatible

Style 2 port - 4K 30Hz

  • Distributes one 4K 30 Hz source to two displays simultaneously
  • Passive operation draws under 1 W directly from the HDMI source
  • Deep-colour 36-bit and 3D video formats supported
  • Audio formats including DTS-HD and Dolby TrueHD pass through unchanged
  • Compact 5.59 × 3.15 × 1.26 inch enclosure weighs 3.2 ounces

What this splitter does

The Jansicotek OZF2 takes one HDMI source and sends the same video and audio to two displays at once. It handles 4K at 30 Hz and 1080p at 60 Hz, plus 3D and deep-colour formats up to 36-bit. A single USB cable powers the unit, so no separate mains adapter is required.

The spec that matters

Maximum supported resolution is 3840 x 2160 at 30 Hz with an 18.5 Gbps bandwidth limit. This means the splitter duplicates a 4K signal but cannot pass higher refresh rates or extended-desktop modes.

How it fits a setup

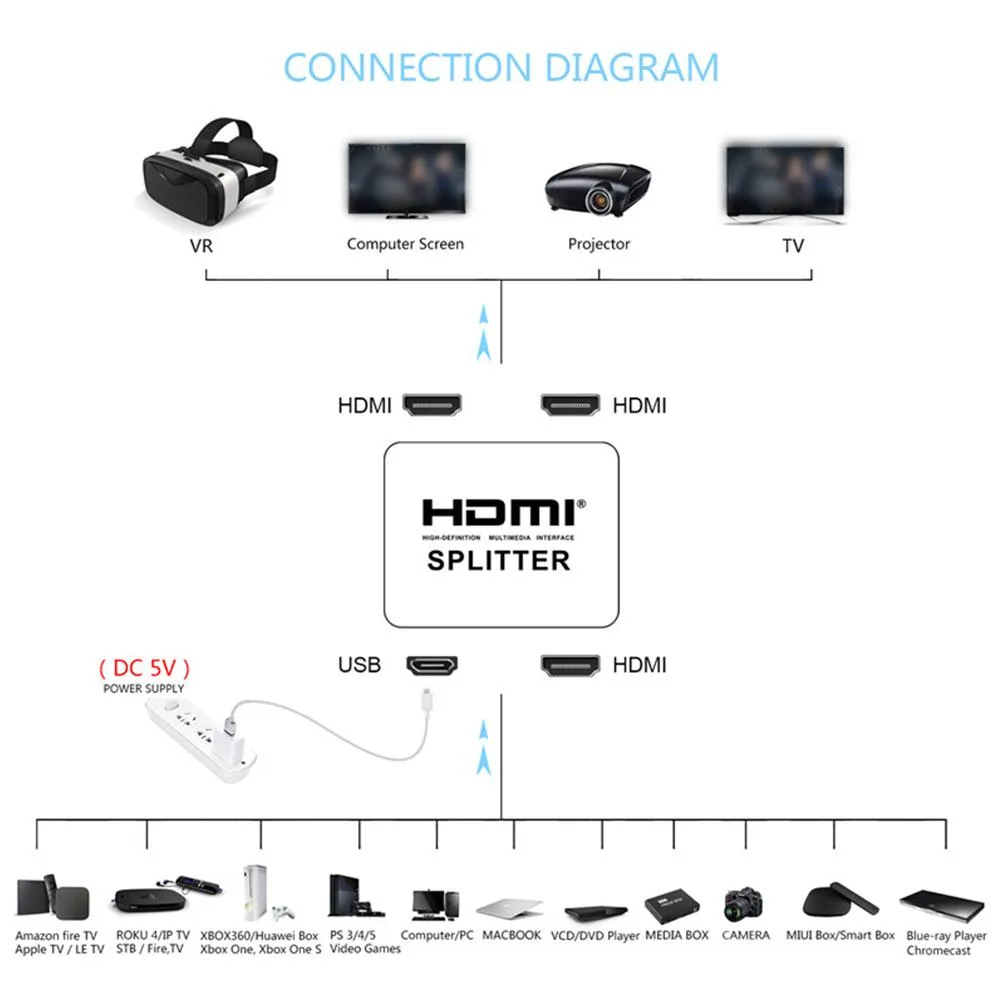

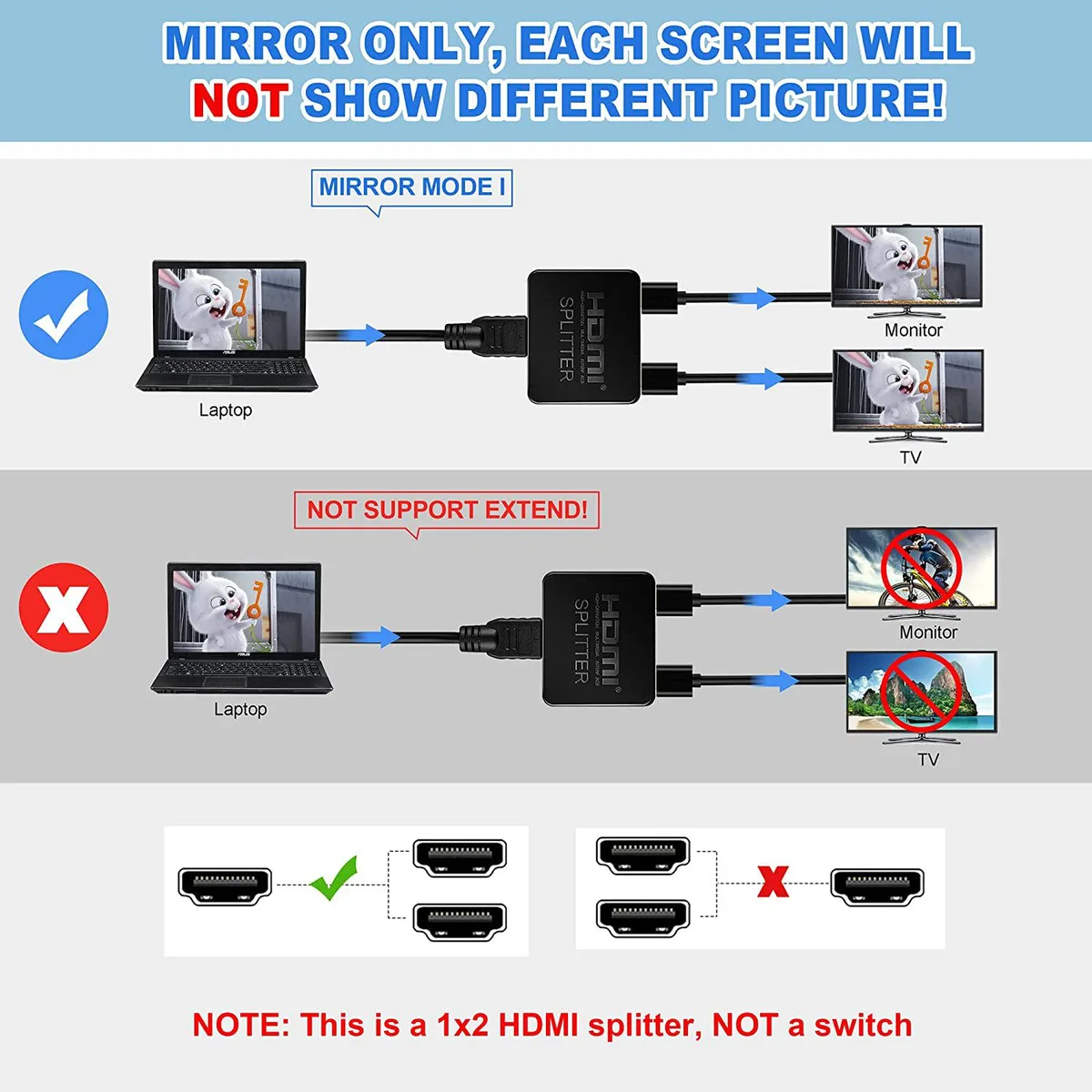

Connect one source such as a laptop, console or media box to the input, then run two HDMI cables to TVs, monitors or projectors. The box mirrors content only; it does not extend the desktop or pass CEC commands. The USB lead draws under 1 W from any powered HDMI port or USB socket.

Highlights

  • Distributes one 4K 30 Hz source to two displays simultaneously
  • Passive operation draws under 1 W directly from the HDMI source
  • Deep-colour 36-bit and 3D video formats supported
  • Audio formats including DTS-HD and Dolby TrueHD pass through unchanged
  • Compact 5.59 × 3.15 × 1.26 inch enclosure weighs 3.2 ounces

Specifications

BrandJansicotek
SeriesOZF2
ModelOZF2
Part NumberOZF2
TypeHDMI Splitters
Changer TypeHDMI
Ports2
AudioYes
ColorBlack
SpecificationsHDMI-compatible version:HDMI-compatible 1.4a
HDMI-compatible resolution:UP TO 1920*1080/60Hz
Support video color format:24bit/deep color 30bit,36bit
Support audio format:DTS-HD/Dolby-trueHD/DTS/Dolby-AC3/DSD HD(HBR)
Max bandwidth:225MHz
Max baud rate:2.25Gbps
Input/Output TMDS signal:0.5~1.5Volts p-p(TTL)
Input/Output DDC signal:5Volts p-p (TTL)
Input cable distance:15m AWG26 HDMI-compatible standard cable
Output cable distance:20m AWG26 HDMI-compatible standard cable
Max working current:350mA
Operating Temperature range:(-15 to +55)
Operating Humidity range:5 to 90%RH (No Condensati
Input Connector1 HDMI
Output Connector2 HDMI
Maximum Resolutions3840 x 2160
Bandwidth18.5Gbps
FeaturesPortable, slim design
Supports 4K, 3D, and HDMI
4K resolution, Full HD 1080p
One HDMI input signal splits into two HDMI sink devices
Support Full HD (1080p) and 3D images
Support Blue-Ray and DVD
Support signal retiming
Support input up to 15metres with AWG26 HDMI standard cable length, output up to 20metres AWG26 cable length
Dimensions5.59 x 3.15 x 1.26 inches
Weight3.2 ounces
Package Quantity1
Package Contents1 X HDMI Splitter 1x2
1 X USB Cable
1 X User Manual

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

What resolution and refresh rate will I actually see on two monitors from the 4K 30Hz headline?

The splitter duplicates a 3840 x 2160 signal at 30 Hz to both displays; it also passes 1920 x 1080 at 60 Hz and lower resolutions such as 720p or 480p.

Which HDMI version does the splitter use and what bandwidth limit does that impose?

It follows HDMI 1.4a with an 18.5 Gbps bandwidth ceiling, which caps 4K output to 30 Hz while allowing 1080p at 60 Hz.

How much space and power does the unit need to sit behind my TV or monitor?

The black enclosure measures 5.59 x 3.15 x 1.26 inches, weighs 3.2 ounces, and draws under 1 W from the HDMI source so no external power brick is required.
