Small black HDMI splitter box with one input and two outputs, compact rectangular shape

Jansicotek

Jansicotek OZF2-1 HDMI Splitter 1×2 4K@60Hz 18.5Gbps

SKU CH-KKZB-HECKS

Splits one HDMI 2.0b source into two displays at up to 4K@60Hz with 18.5Gbps bandwidth, auto downscaling for mixed 4K and 1080p outputs

  • TypeHDMI Splitters
  • Changer TypeHDMI
  • Ports2
  • AudioYes
  • ColorBlack
  • SpecificationsHDMI-compatible version:HDMI-compatible 2.0b HDMI-compatible

Style 2 port - 4K 60Hz

  • Distributes one 4K@60Hz source to two displays simultaneously
  • Mirrors video and audio without loss or added latency
  • Auto-downscales 4K to 1080p per connected screen
  • HDMI 2.0b bandwidth up to 18.5Gbps with deep colour support
  • Compact 5.59 × 3.15 × 1.26 inch aluminium housing

1×2 HDMI 2.0b Splitter 4K@60Hz

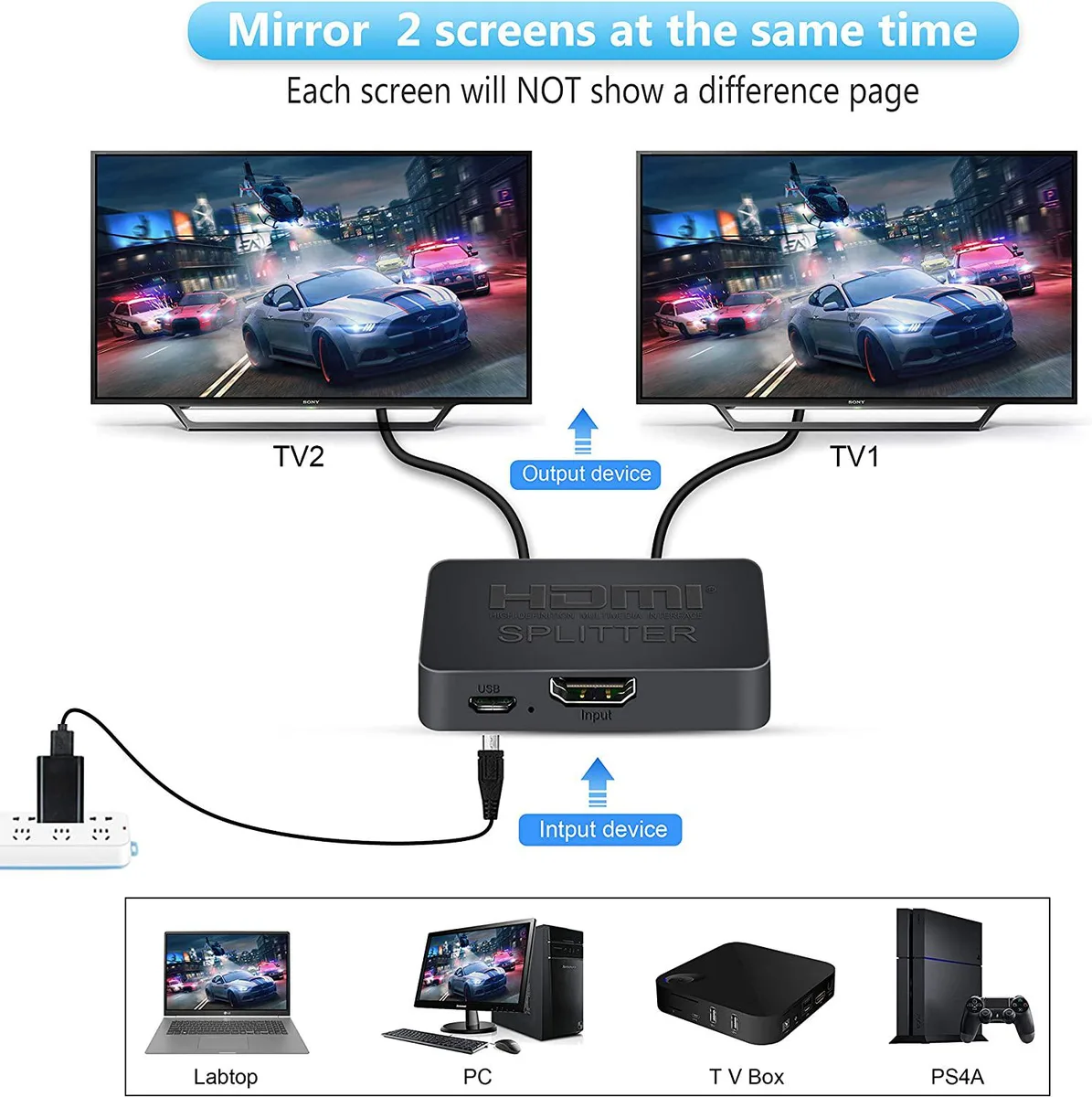

This compact Jansicotek OZF2-1 splitter takes one HDMI source and mirrors it to two displays simultaneously. It supports video resolutions up to 3840×2160 at 60 Hz and passes audio formats including DTS-HD and Dolby TrueHD. The unit is powered via an included USB cable and requires no software setup.

Installers needing simple mirroring.

The splitter duplicates the same signal to both outputs, so it suits digital signage, conference rooms or dual-TV households that want identical content. It does not support extended desktop modes or CEC control, so users who need independent screens or remote passthrough should consider a matrix switch or capture device instead.

HDMI 2.0b with 18.5 Gbps bandwidth

The single decisive specification is the HDMI 2.0b interface providing 18.5 Gbps bandwidth, which enables 4K@60 Hz RGB 4:4:4 and HDR pass-through. If the source or displays are limited to HDMI 1.4, the splitter will fall back to 4K@30 Hz or 1080p, but it cannot exceed the 2.0b link rate.

Highlights

  • Distributes one 4K@60Hz source to two displays simultaneously
  • Mirrors video and audio without loss or added latency
  • Auto-downscales 4K to 1080p per connected screen
  • HDMI 2.0b bandwidth up to 18.5Gbps with deep colour support
  • Compact 5.59 × 3.15 × 1.26 inch aluminium housing

Specifications

BrandJansicotek
SeriesOZF2-1
ModelOZF2-1
Part NumberOZF2-1
TypeHDMI Splitters
Changer TypeHDMI
Ports2
AudioYes
ColorBlack
SpecificationsHDMI-compatible version:HDMI-compatible 2.0b
HDMI-compatible resolution:UP TO 4K/60Hz
Support video color format:24bit/deep color 30bit,36bit
Support audio format:DTS-HD/Dolby-trueHD/DTS/Dolby-AC3/DSD HD(HBR)
Max bandwidth:225MHz
Max baud rate:18.5Gbps
Input/Output TMDS signal:0.5~1.5Volts p-p(TTL)
Input/Output DDC signal:5Volts p-p (TTL)
Input cable distance:15m AWG26 HDMI-compatible standard cable
Output cable distance:20m AWG26 HDMI-compatible standard cable
Max working current:350mA
Operating Temperature range:(-15 to +55)
Operating Humidity range:5 to 90%RH (No Condensation)
Dim
Input Connector1 HDMI
Output Connector2 HDMI
Maximum Resolutions3840 x 2160
Bandwidth2.25Gbps
FeaturesPortable, slim design
Supports 4K@60Hz, 3D, and HDMI
4K@60Hz resolution, Full HD 1080p
One HDMI input signal splits into two HDMI sink devices
Support Full HD (1080p) and 3D images
Support Blue-Ray and DVD
Support signal retiming
Support input up to 15metres with AWG26 HDMI standard cable length, output up to 20metres AWG26 cable length
Dimensions5.59 x 3.15 x 1.26 inches
Weight3.2 ounces
Package Quantity1
Package Contents1 X HDMI Splitter 1x2
1 X USB Cable
1 X User Manual

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

What is the maximum bandwidth the splitter can sustain before signal integrity drops?

The splitter is rated for a maximum bandwidth of 18.5 Gbps, supporting 4K at 60 Hz with deep colour up to 36-bit.

How much heat or noise does the unit produce when powered continuously?

The device has no fan and draws power via the included USB cable, so it runs silently with negligible heat during all-day operation.

Which power source must I already have to run this splitter?

You need an available USB port or a 5 V USB charger to supply power through the included USB cable.
