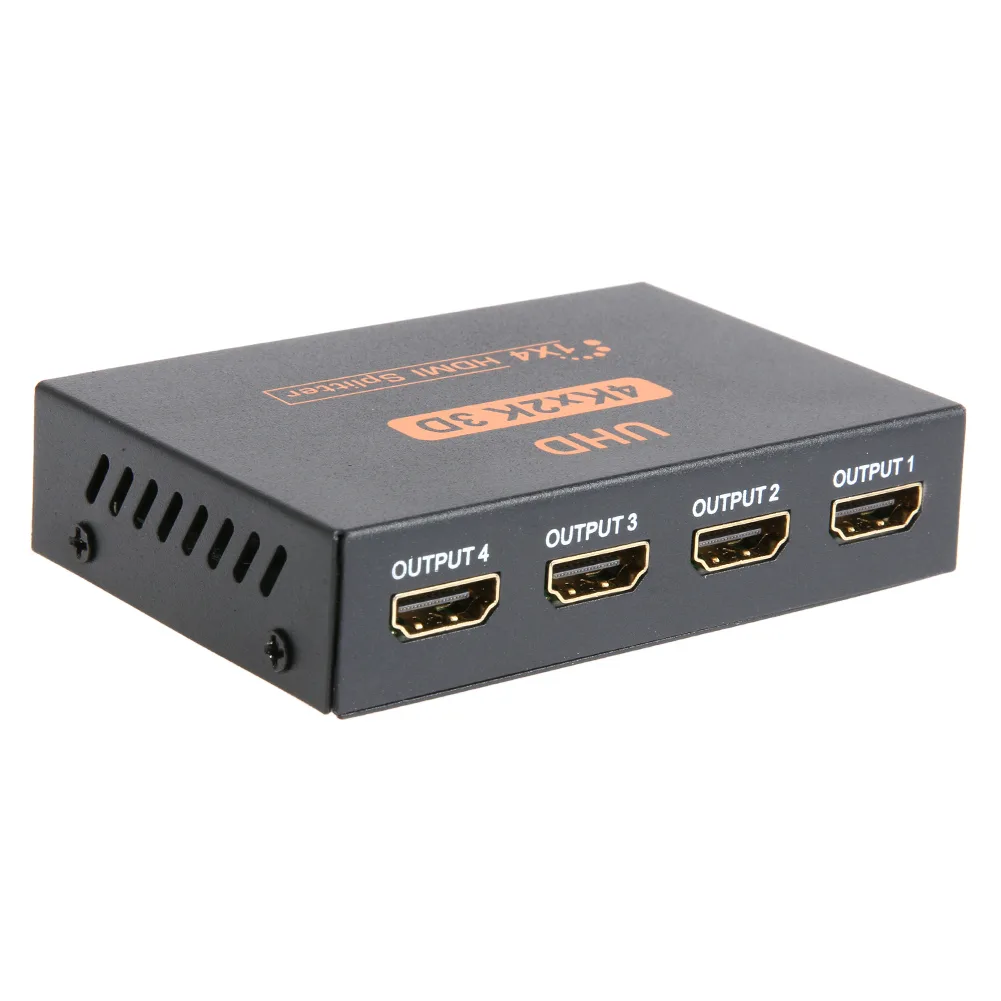

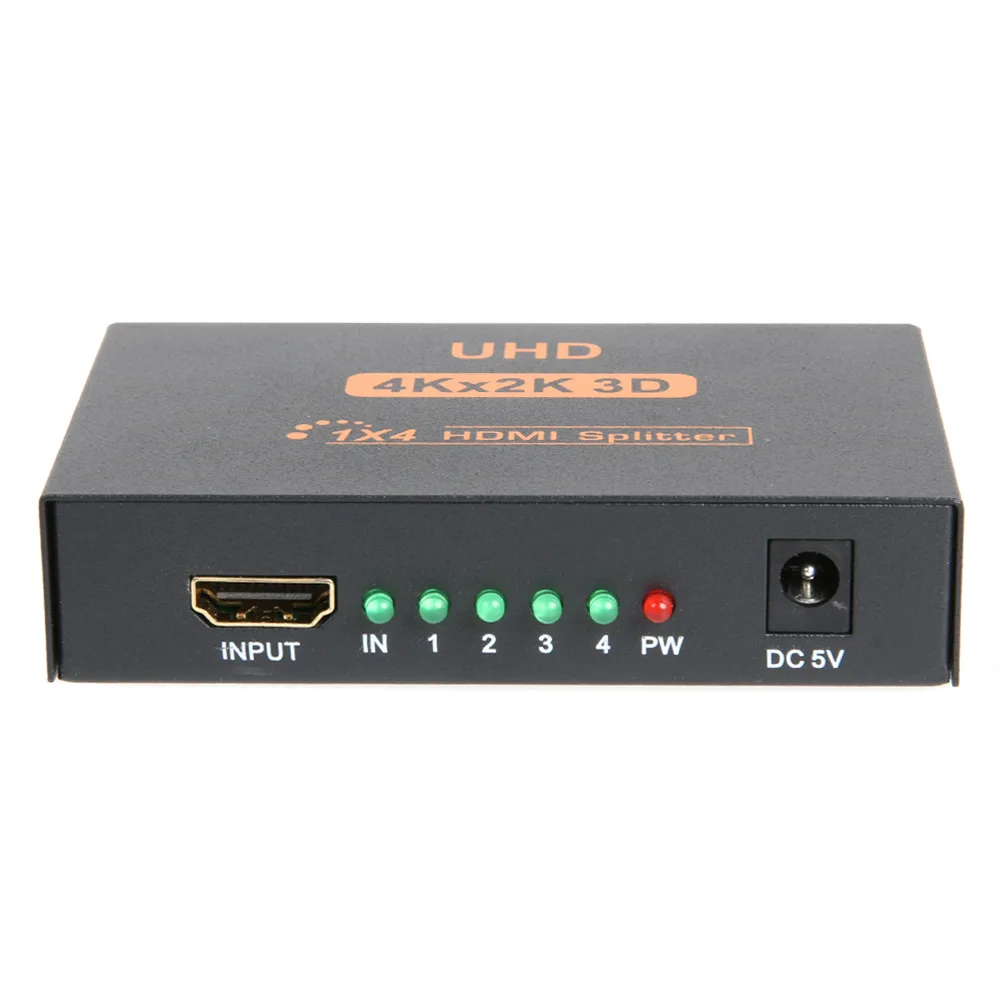

Small black box with one HDMI input and four outputs

Jansicotek

Jansicotek 1x4 HDMI 1.4 Splitter 4 Ports

SKU CH-N5BP-QFCB1

Distributes one HDMI source to four displays simultaneously with HDMI 1.4 and HDCP support

  • Ports4

Ports 4

  • 2
  • 4
  • Distributes one HDMI source to four displays simultaneously
  • Supports 1080p and 2160p resolutions via HDMI 1.4
  • Plug-and-play setup requires no software or drivers
  • Compatible with PS3, Xbox 360, HD-DVD and STB devices
  • HDCP support ensures protected content plays on all connected screens

One-to-four HDMI 1.4 distribution

The Jansicotek 1x4 HDMI 1.4 splitter takes a single HDMI source and sends identical audio and video signals to four displays at the same time. It is built for installers and home-theatre owners who need to show the same content on multiple screens without swapping cables. The unit includes an external power supply and operates purely as a passive distribution device.

HDMI 1.4b bandwidth ceiling

The splitter conforms to HDMI 1.4b with a maximum bandwidth of 225 MHz. That version caps the highest supported resolution at 1920 x 1020, 1080p, 2K x 4K or 2160p depending on the source timing. Any source demanding higher bandwidth or newer HDMI features will not pass through this device.

Resolution headroom and limits

Supported HDMI timings include 480i, 576i, 480p, 576p, 720p, 1080i and 1080p, plus the 1920 x 1020, 1080p, 2K x 4K and 2160p modes listed in the spec. DVI signals at 480p, 576i, 576p, 720p, 1080i and 1080p are also accepted. Content requiring refresh rates or colour depths beyond the 225 MHz limit will fall back or fail.

Highlights

  • Distributes one HDMI source to four displays simultaneously
  • Supports 1080p and 2160p resolutions via HDMI 1.4
  • Plug-and-play setup requires no software or drivers
  • Compatible with PS3, Xbox 360, HD-DVD and STB devices
  • HDCP support ensures protected content plays on all connected screens

Specifications

Ports4

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

What does the 1.4b HDMI version mean for the video I actually see on four screens?

The splitter repeats one source to four displays at up to 1080p or 2160p resolution, with supported formats including 480i, 576i, 480p, 576p, 720p, 1080i and 1080p.

How does the 225 MHz bandwidth limit what I can send through the four outputs?

Bandwidth of 225 MHz carries 1080p at 60 Hz and 2160p at lower refresh rates; higher 4K frame rates exceed the link capacity.

What do I need to mount or connect this 1×4 unit in my rack or behind the TV?

The device has one HDMI input and four HDMI outputs plus a power supply; it sits on a shelf or can be Velcro-mounted, with no rack ears or brackets included.
