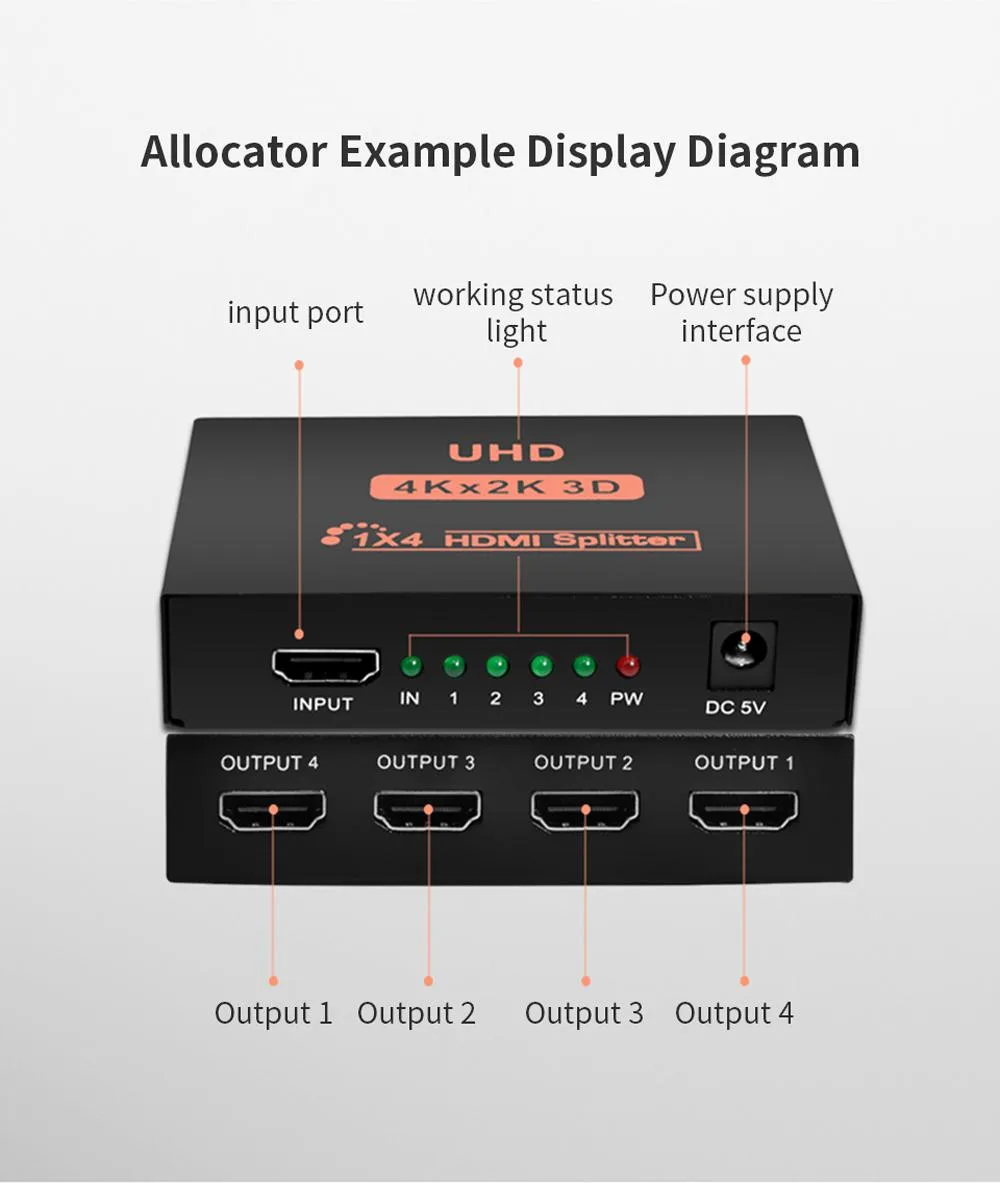

Small black box with one HDMI input and four HDMI outputs, power adapter included

Jansicotek

Jansicotek 4K 1x4 HDMI Splitter 30 Hz 1.4 HDCP

SKU CH-X17B-PQ5M5

Splits one HDMI source to four displays at up to 4K 30 Hz with 100 ft total cable reach

  • TypeHDMI Splitters
  • Ports4
  • Input Connector1x HDMI female
  • Output Connector4x HDMI female
  • Maximum Resolutions3840 x 2160
  • Package Contents4 output ports hdmi splitter box X1 5V/2A AC adapter X1 User

Ports 4

  • 2
  • 4
  • Splits one HDMI source to four identical displays simultaneously
  • Delivers 4K video at 30 Hz with HDCP 1.4 compliance
  • Transmits up to 100 ft using standard AWG26 HDMI cable
  • Supports LPCM, Dolby-AC3, DTS 7.1 and lossless audio formats
  • Accepts PAL, NTSC and SECAM TV standards on a single input

Signal distribution

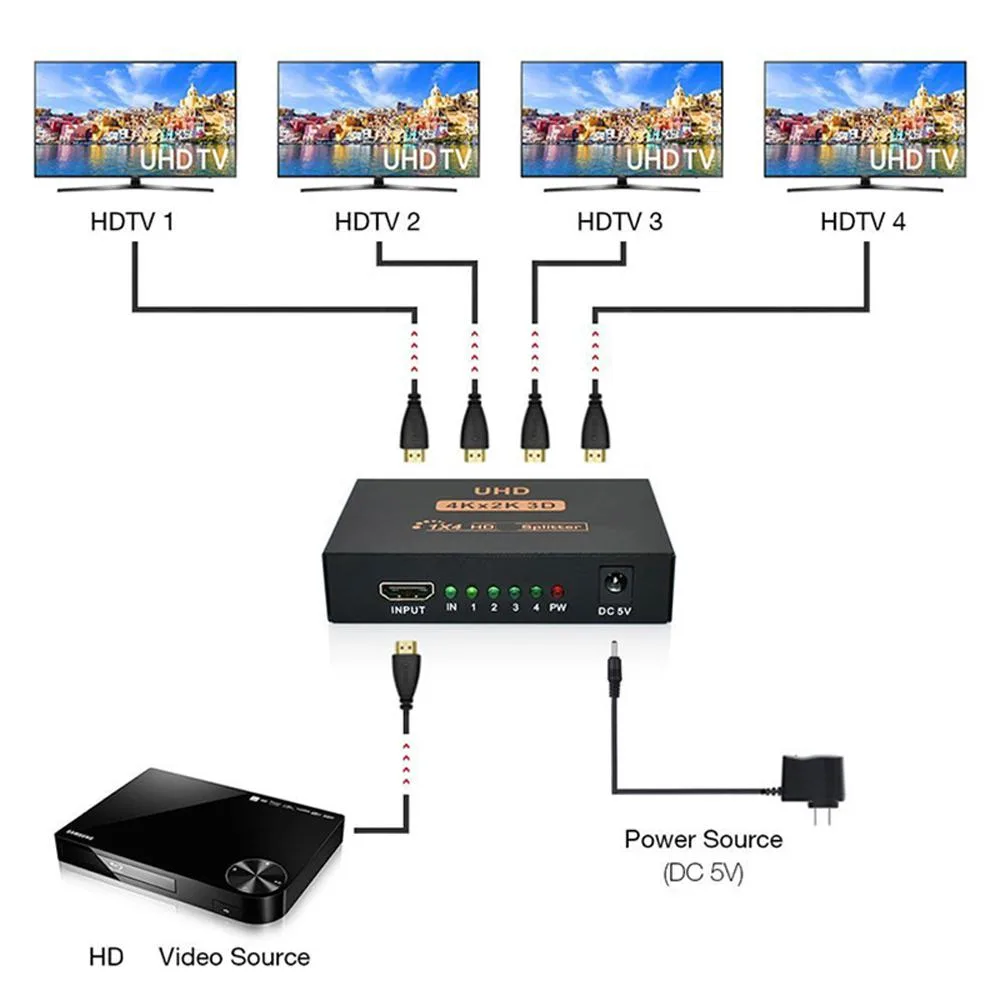

This Jansicotek HDMI splitter takes a single source and sends identical video and audio to four displays at once. It handles resolutions up to 3840 x 2160 at 30 Hz and supports Full HD 1080P at 60 Hz. The unit is suited for setups that need the same image on multiple screens such as digital signage or multi-room viewing.

Source and cable limits

Your source device must output a signal compatible with HDMI 1.4 and HDCP. The splitter accepts standard TV formats including PAL, NTSC3.58, NTSC4.43, SECAM, PAL/M and PAL/N. Input cables should not exceed 10 metres and output cables should not exceed 10 metres for reliable transmission. Total cable run can reach 18 metres.

Power and expansion needs

A 5V 2A AC adapter is included and must be connected for operation. The splitter requires no software configuration and passes through audio formats such as LPCM, Dolby-AC3, DTS7.1 and DSD. Additional splitters can be cascaded to drive more than four displays from the same source.

Highlights

  • Splits one HDMI source to four identical displays simultaneously
  • Delivers 4K video at 30 Hz with HDCP 1.4 compliance
  • Transmits up to 100 ft using standard AWG26 HDMI cable
  • Supports LPCM, Dolby-AC3, DTS 7.1 and lossless audio formats
  • Accepts PAL, NTSC and SECAM TV standards on a single input

Specifications

TypeHDMI Splitters
Ports4
Input Connector1x HDMI female
Output Connector4x HDMI female
Maximum Resolutions3840 x 2160
Package Contents4 output ports hdmi splitter box X1
5V/2A AC adapter X1
User manual X1

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

What comes in the box and which cables must I buy separately?

The package includes the 1x4 HDMI splitter, a 5V/2A power adapter and a user manual. HDMI cables are not supplied; you need one cable for the source and up to four cables for the displays.

This model is listed as 4K at 30 Hz — when would I choose it over a 60 Hz version?

Choose this splitter when your source and displays are limited to HDMI 1.4 bandwidth, such as older 4K TVs, projectors or consoles that only output 3840 x 2160 at 30 Hz. It does not support 4K at 60 Hz.

The spec says 100 ft total reach with AWG26 cable — what does that mean for a typical living-room install?

With standard AWG26 HDMI cables you can run up to 40 ft from the source to the splitter and up to 60 ft from the splitter to each display, giving a combined 100 ft path without signal loss.
