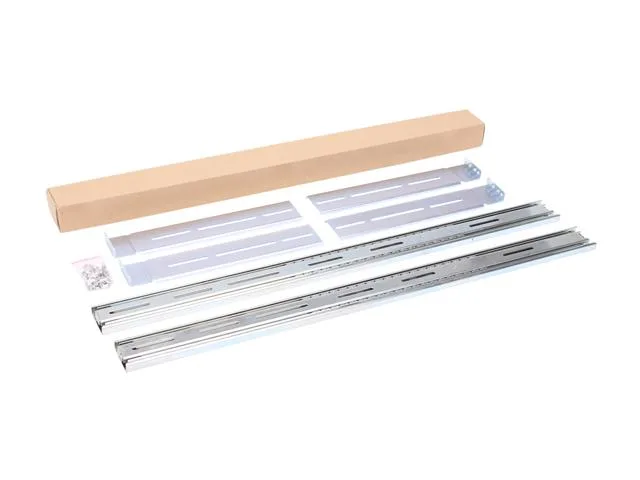

Pair of 26 inch steel sliding rails with ball bearings, adjustable length, lockable stages, grey finish

iStarUSA Inc.

iStarUSA Inc. TC-RAIL-26 26" Sliding Rail Kit server accessory

SKU CH-ZE34-T8SW2 MPN TC-RAIL-26

A 26-inch sliding rail kit with solid ball-bearing rails supports chassis up to 29 inches deep and cabinets from 28.4 to 39 inches deep, rated for 85 lbs

  • TypeOther
  • SpecificationsRoHS Compliance: Yes Material: 1.2mm SECC Steel Supported Ch
  • FeaturesSolid Ball Bearing Sliding Rails Three Stages Temporary Lock
  • Smooth server installation with solid ball-bearing sliding rails
  • Secure positioning via three-stage temporary lockable design
  • Fits varied rack depths with adjustable length rails
  • Handles heavy chassis up to 85 lbs load rating
  • Compatible with cabinets 28.4 to 39 inches deep

26-inch Sliding Rail Kit for Rackmount Chassis

The iStarUSA TC-RAIL-26 is a sliding rail kit designed to mount compatible server chassis into standard equipment cabinets. It suits system integrators and IT professionals installing rackmount hardware up to 29 inches deep. The kit uses 1.2mm SECC steel construction with solid ball bearing slides for smooth operation.

Adjustable Length for Cabinet Depths 28.4 to 39

The rails adjust to fit cabinets where the front-to-rear post spacing falls between 28.4 and 39 inches. A three-stage temporary lockable mechanism secures the chassis in extended, mid and retracted positions during installation or maintenance. Load capacity is rated up to 85 lbs for supported equipment.

Verify Chassis and Cabinet Dimensions Before

Confirm your chassis depth does not exceed 29 inches and that your cabinet post spacing falls within the 28.4 to 39 inch range. The kit mounts to standard front and rear posts; non-standard post spacing or thread types will prevent installation. RoHS compliance is confirmed for regulated environments.

Highlights

  • Smooth server installation with solid ball-bearing sliding rails
  • Secure positioning via three-stage temporary lockable design
  • Fits varied rack depths with adjustable length rails
  • Handles heavy chassis up to 85 lbs load rating
  • Compatible with cabinets 28.4 to 39 inches deep

Specifications

BrandiStarUSA
ModelTC-RAIL-26
TypeOther
SpecificationsRoHS Compliance: Yes
Material: 1.2mm SECC Steel
Supported Chassis Depth: up to 29"
Supported Cabinet Depth: 28.4" to 39" (front mounting posts to
rear posts)
FeaturesSolid Ball Bearing Sliding Rails
Three Stages Temporary Lockable
Adjustable Length
Load Rating Up to 85 lbs.
Supported Chassis: up to 29" deep
Supported Cabinet: 28.4" to 39" deep
Shipping weight2.72 kg
Package size676 × 58 × 44 mm

Questions about this item

Which sliding rail kit length should I choose for a 29-inch deep server chassis?

The 26-inch kit supports chassis up to 29 inches deep and cabinets from 28.4 to 39 inches deep, so it covers that size.

What does the 85 lb load rating mean when the rails are fully extended in a rack?

The solid ball-bearing rails are rated for up to 85 lbs across the three-stage extension, including when locked in the service position.

How does the three-stage temporary lock work with the adjustable rail length?

The rails adjust between 28.4 and 39 inches cabinet depth and lock at three extension stages for secure server access.
