iStarUSA Inc. D-313SE-C246-1 3U barebone server, Xeon E-2100, DDR4 128GB, 500W PSU
3U rackmount barebone server supporting Intel Xeon E-2100 CPUs, dual-channel DDR4 up to 128 GB, eight SATA3 ports and three PCIe 3.0 slots, with a 500 W PSU
- Form Factor3U Rackmount
- MaterialZinc-Coated Steel
- WorkloadEdge Server
- CPU TypeSupports Intel Xeon E-2100 Processors
- North BridgeIntel C246
- Memory Slots4 x U Dimm
- Ready for edge workloads with 3U rackmount form factor
- Powers Intel Xeon E-2100 CPUs via C246 chipset
- Holds 128GB DDR4 ECC or non-ECC across four slots
- Connects eight SATA3 drives at 6Gb/s
- Expands with three PCIe 3.0 slots x16, x8, x4
3U rackmount barebone for edge workloads

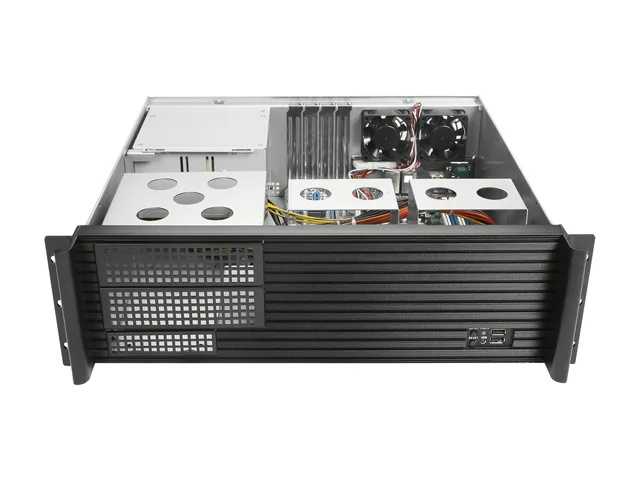

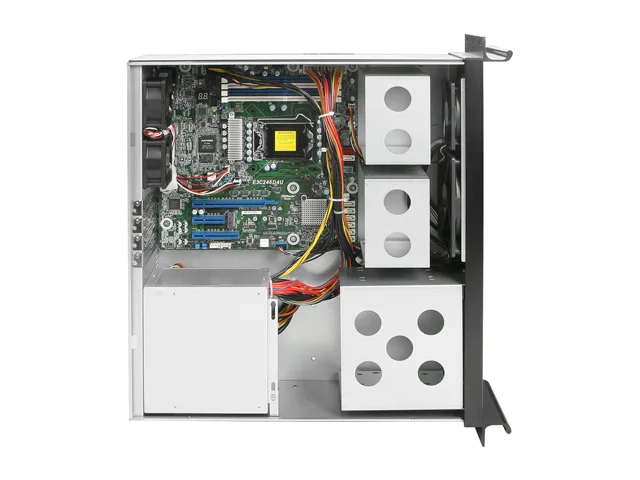

The iStarUSA D-313SE-C246-1 is a new 3U rackmount server barebone built around the Intel C246 chipset and a 500W power supply. It accepts Intel Xeon E-2100 processors and targets edge deployments that need dense compute in a standard rack footprint. Zinc-coated steel construction suits data-centre or industrial environments.
Expansion layout shapes add-in options

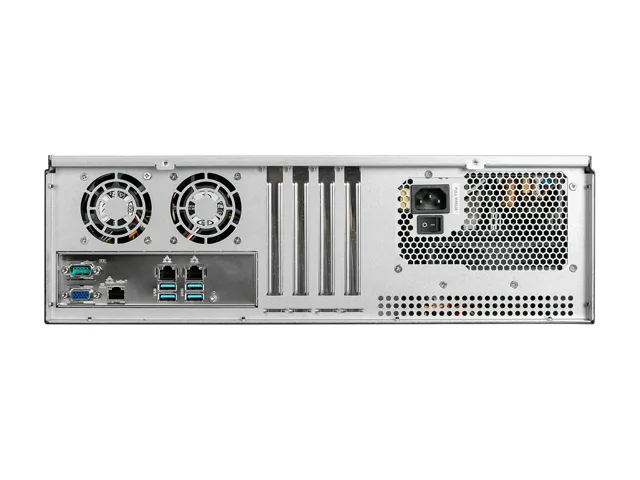

One PCIe 3.0 x16 slot, one PCIe 3.0 x8 slot and one PCIe 3.0 x4 slot provide room for accelerators, network cards or storage controllers. Eight SATA3 6Gb/s ports from the C246 chipset support up to eight drives; SATA0 shares bandwidth with an M.2 PCIe 3.0 x4 connection. Rear I/O includes four USB 3.0 ports, three RJ45 jacks and a VGA connector driven by the ASPEED AST2500 with 32MB DDR4 video memory.
Memory and storage headroom for typical edge tasks
Four U-DIMM slots run dual-channel DDR4 2666/2400 ECC or non-ECC up to 128GB, fitting workloads that need moderate capacity with error correction. The eight SATA lanes handle RAID arrays or JBOD sets for local data, while the single x16 slot limits GPU or high-bandwidth add-in cards to one device. Builds needing more than 128GB RAM, multiple x16 devices or 10 Gigabit networking will require a different platform.
Highlights
- Ready for edge workloads with 3U rackmount form factor
- Powers Intel Xeon E-2100 CPUs via C246 chipset
- Holds 128GB DDR4 ECC or non-ECC across four slots
- Connects eight SATA3 drives at 6Gb/s
- Expands with three PCIe 3.0 slots x16, x8, x4
Specifications
| Brand | iStarUSA |
|---|---|
| Model | D-313SE-C246-1 |
| Form Factor | 3U Rackmount |
| Material | Zinc-Coated Steel |
| Workload | Edge Server |
| CPU Type | Supports Intel Xeon E-2100 Processors |
| North Bridge | Intel C246 |
| Memory Slots | 4 x U Dimm |
| Max Memory Supported | 128GB |
| Memory Type Supported | Dual channel DDR4 2666/2400 ECC and non-ECC U DIMM max 128 GB |
| Serial ATA | 8x SATA3 6Gb/s (SATA0-7, SATA0 supports SATA DOM, and is shared with M.2(PCIE3.0(x4))/ SATA3) |
| GPU/VPU | ASPEED AST2500 |
| Video Memory | DDR4 32MB |
| PCI Express | 1x PCIe 3.0 x16 1x PCIe 3.0 x8 1x PCIe 3.0 x4 |
| Number of LAN | GLAN by Intel i210 Realtek RTL8211E for dedicated management GLAN |
| Max. LAN Speed | 1 Gigabit |
| VGA | 1 |
| Rear USB | 4 x USB 3.0 |
| RJ45 | 3 |
| Other Ports | Internal Connector USB: 1 (supports 2 USB 3.0 ports):: 1 (supports 2 USB 2.0 ports) SATA: 8x SATA3 6Gb/s GPIO: 2 x SGPIO Speaker Header: 1(4pin) TR1_Header: 1 TPM_Header: 1 IPMB_Header: 1 Fan_Header: 3 (1CPU/1Front/1Rear) Buzzer: 1 |
| Features | 3U Rackmount with 500W PSU Supports Intel Xeon E-2100 Processors Supports Dual channel DDR4 2666/2400 ECC and non-ECC U DIMM max 128 GB Support 8x SATA3 by C246 Supports 1x PCIe 3.0 x16, 1x PCIe 3.0 x8, 1x PCIe 3.0 x4 |
| Dimensions | 5.25" x 16.86" x 19.00" |
| Weight | 27.00 lbs. |
| Shipping weight | 12.25 kg |
| Package size | 559 × 533 × 229 mm |
Questions about this item
How long before the 500W power supply needs replacement under continuous load?
The 500W PSU is a standard ATX unit; plan to swap it after three to five years of 24/7 operation as capacitors age.
Which resource hits its ceiling first when the Xeon E-2100 runs at full turbo for hours?
The 128GB DDR4 2666 memory limit and the 500W PSU thermal envelope are the first constraints under sustained compute load.
How loud and hot does the chassis get with all three fan headers spinning all day?
Three 4-pin fan headers (CPU, front, rear) run under PWM control; expect moderate airflow noise and chassis temperatures within Intel C246 spec limits.
